Description

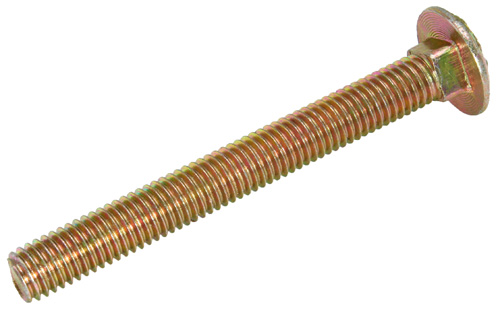

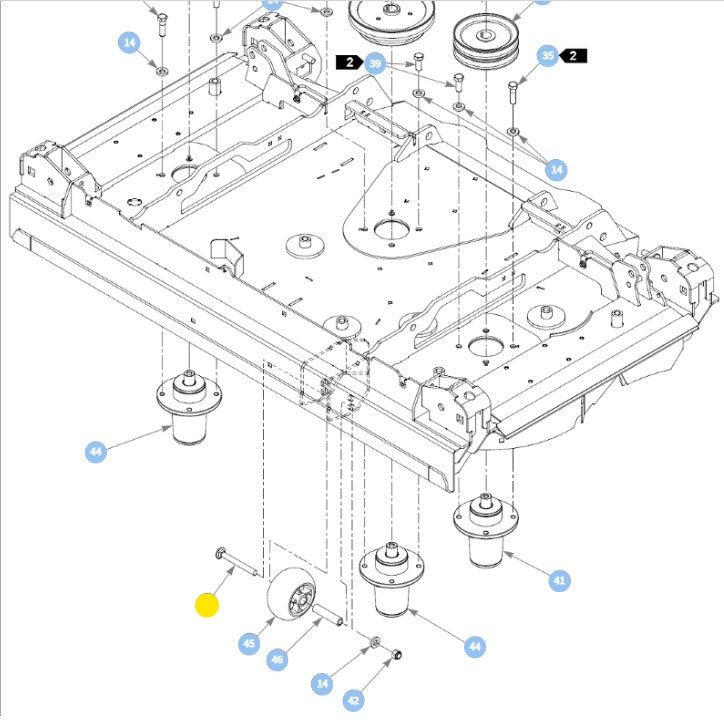

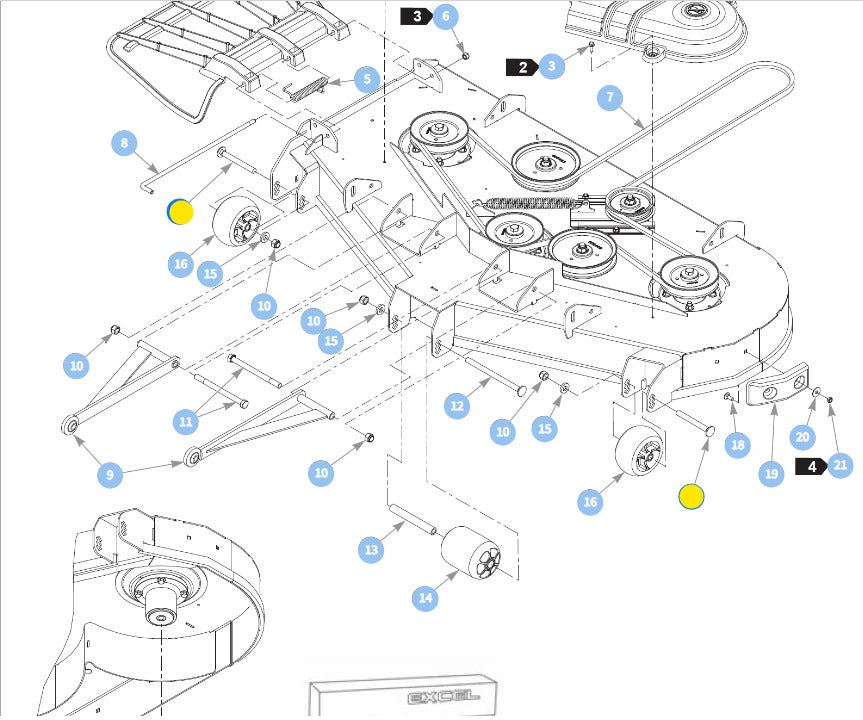

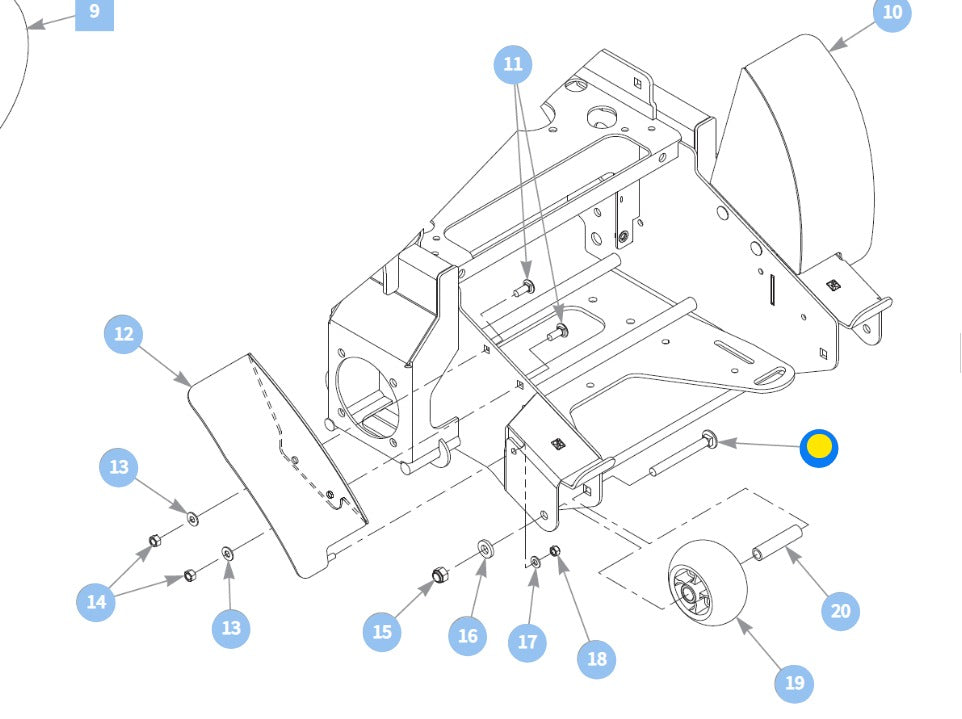

Hustler OEM 602339 Carriage Bolt is not Limited to but is Primarily Used as a Fastner for the Variations of Anti-Scalp Roller Usage (Outside Mower Deck Anti-Scalp Wheels and Anti-Rollover Wheels). Hustler OEM 602339 has a size of .50-13X4.50 and has a Standard Thread Pattern. Hustler OEM 602339 Fits Hustler Trimstar, Raptor SDX AND XDX, FasTrak, Super S, Super SF, Super 88, X-ONE i, and Super 104 Models. Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.
NOTE: On Most Models the Mower Deck Outside Edge Anti-Scalp Wheel Bolts Will Require a shorter Anti-Scalp Wheel Bolt. To Be redirected to a Common Center Anti-Scalp Wheel Bolt Click on Part Number 602338.
COMMON OUTSIDE EDGE MOWER DECK ANTI-SCALP WHEEL REFERENCES
CLICK ON THE ASSOCIATED PART NUMBERS TO BE REDIRECTED
- 604780 - Trimstar, Raptor SDX AND XDX, and FasTrak Models.
- 602263 - Super S, Super SF, X-ONE, X-RIDE, Super Z, Super Z HD, Super 104, Super Z Diesel and/or Z Diesel Models (Also Used as an Anti-Over Wheel).
Specification
|
Product Number: |
602339 |
|
Brand: |
Hustler |
|
Length: |
4.65 IN |
|
Width: |
1.05 IN |
|
Height: |
1.00 IN |
|
Weight: |
0.250 LB |
Model Fit:
