Description

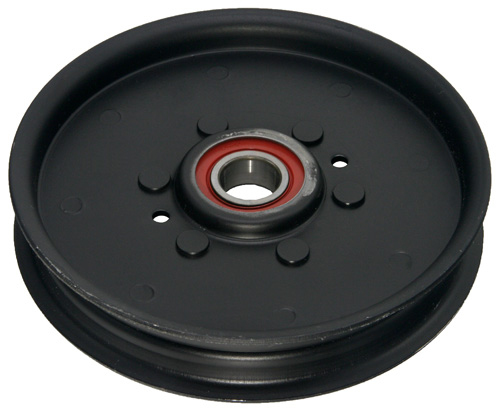

Hustler OEM 602304 Hydraulic Drive Idler Pulley
The Hustler OEM 602304 Hydraulic Drive Flat Idler Pulley is manufactured with strong sealed steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct Hydraulic Drive Belt tracking and Tension on the Hydraulic Drive System. Rough or Damaged Idler Pulley Bearings May cause slippage, premature belt wear, and vibration. Flat Idler Pulleys Primarily Only Retain the Back Side of the Belt or the Flat Side of the Belt.
⚠️ Before You Order – Verify Fitment
Hustler Idler Pulleys will vary by Mower Model, Hydraulic Pump Drive Layout, Belt Routing, and Idler Arm Type. Do Not Order by Appearance Alone. Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage.
Not sure? Contact us with your Hustler Model and Serial Number and We’ll Help Verify Fitment.
What This Part Does
- Helps Maintain Proper Belt Tension in Compatible Hustler Drive Systems
- Supports Smooth Belt Tracking and Reliable Power Transfer
- Replaces Worn, Noisy, Loose, or Damaged Idler Pulleys
- Genuine Hustler OEM Replacement Part for Proper Fit and Performance
Part Details & Specifications
- Brand: Hustler
- Part Number: 602304
- Supersession: n/a
- Part Type: Hydraulic Drive Idler Pulley
- Pulley Style: Flat Idler Pulley
- Outside Diameter: With Flange: 5 1/2" - Without Flange/Belt Arbor 5"
- Inside Diameter: 11/16" Commonly Uses a 5/8" Fastener
- Height: With Flange 15/16" - Without Flange 3/4"
- Material: Metal Pulley Construction
Associated Parts & Fasteners

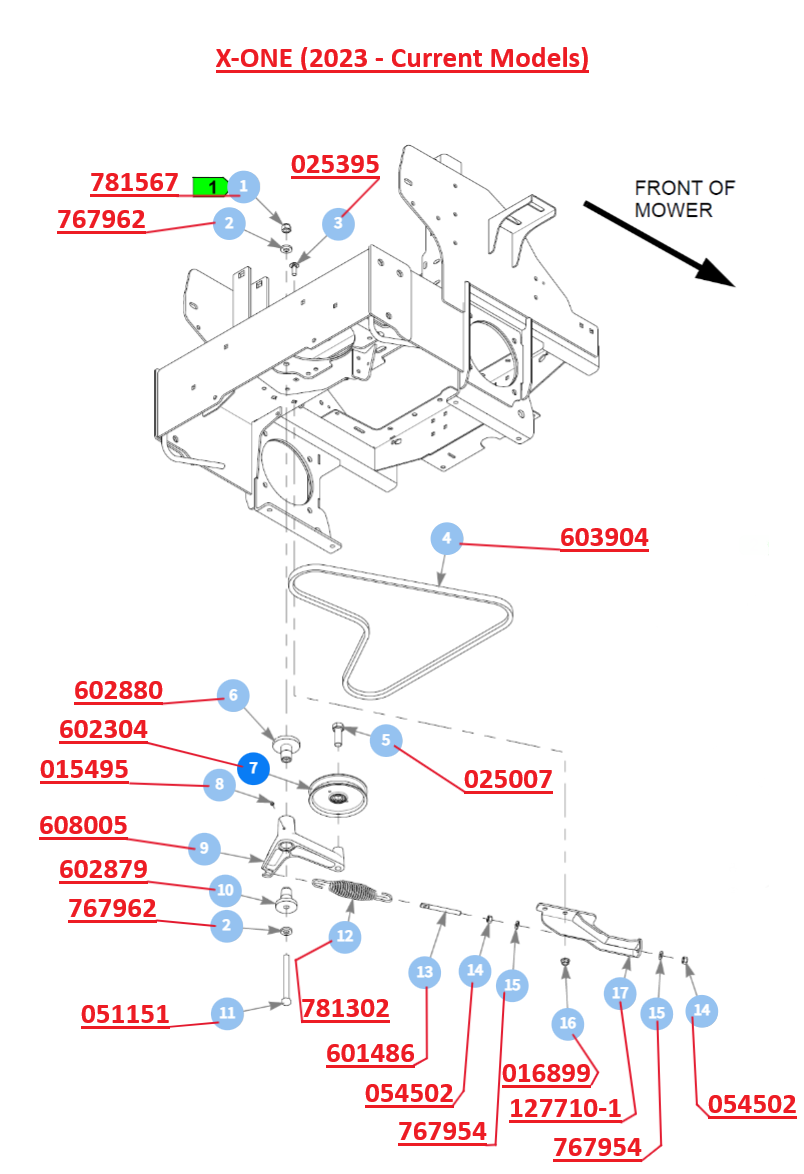

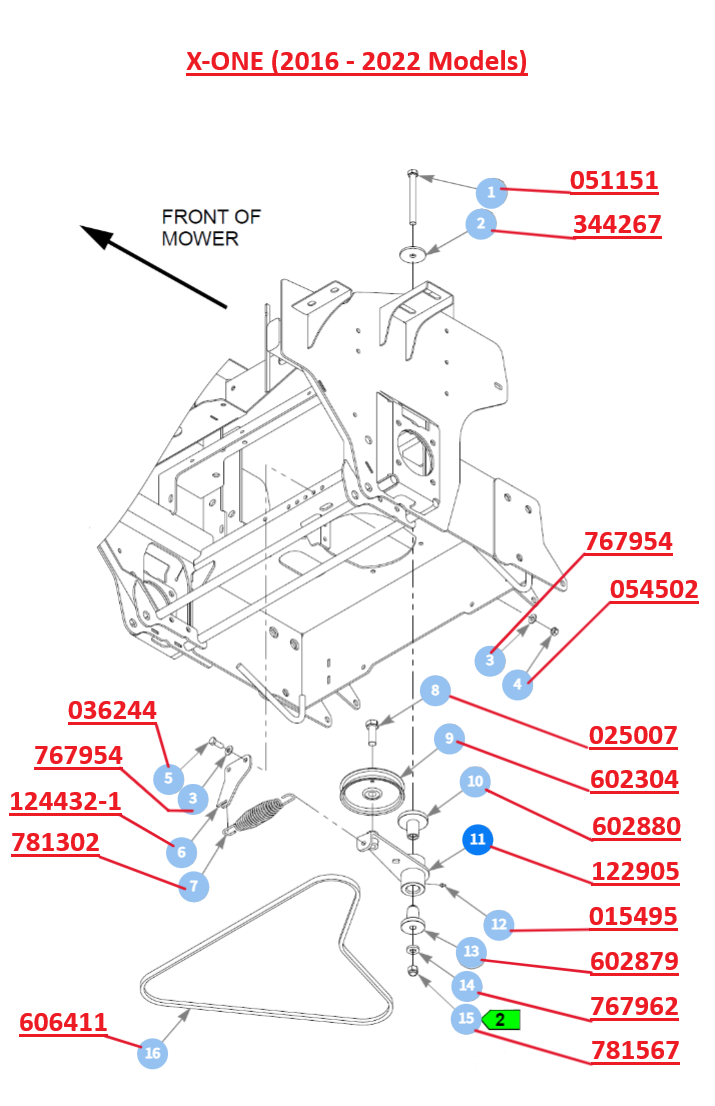

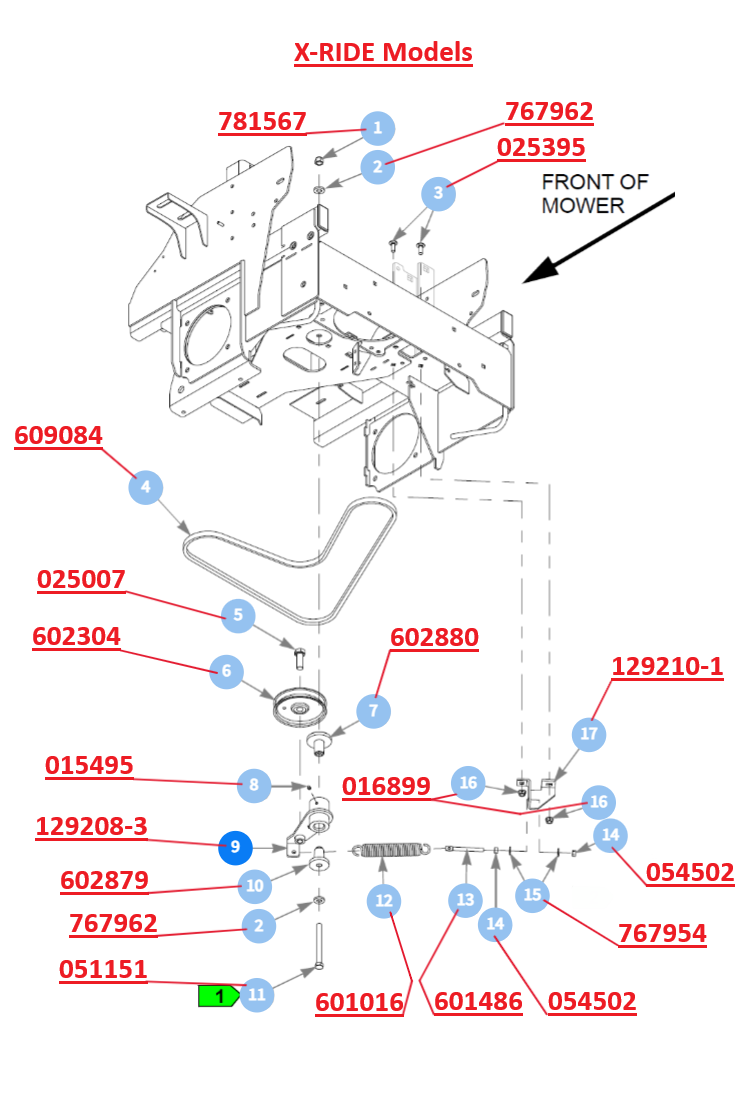

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Fits These Hustler Models/Families
Verify your model number is Listed in the Model Fit Chart Below before ordering.
- X-ONE Series (2016 - Current Models) * Only 52", 60" & 72" SIDE DISCHARGE & 54" & 60" REAR DISCHARGE MODELS
-
X-RIDE (All Models)
Model Fit Chart
X-ONE (2016 - Current)
* 52", 54", 60", 72" Side & Rear Discharge Models
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All 60" Models)
944074, 944868
Idler Pulley Preventive Maintenance & Replacement Checks
A Worn Idler Pulley OR Rough Idler Pulley Bearings may cause squealing, vibration, Belt Tarring or Burning, Hydraulic Slippage and Drive or Drive Tracking Failure. If the Idler Pulley Bearings Feels Rough, Noisy, or Loose, Replacement is Recommended. Preventive Idler Pulley Problems can be Checked by Periodically Removing the Belt Tension and Hydraulic Drive Belt and Spinning the Idler Pulleys to Determine if they Have Rough Bearings and Wiggling them to see if there is Excessive Play Remember a Bad Idler Pulley Can Always Contribute to Additional Mower Deck Component Failures.
Installation Tips
- Disconnect spark plug wires - To Prevent Accidental Starting.
- Release Hydraulic Drive Belt Tension Spring before removing the Old Idler Pulley.
- Remove Idler Pulley
- Inspect the Idler Arm and/or Idler Slide for excessive play - Inspect Hydraulic Drive Belt for Excessive Wear - Most Time it is Recommended to Replace the Hydraulic Drive Belt with the Idler Pulley.
- Install New Idler Pulley
- Torque Mounting Bolt securely OR Nut (.625 or 5/8 Fasteners, Torque to 90 ft.- lbs. or 122 Nm) - Do not Overtighten as this may Damage the Pulley Bearing.

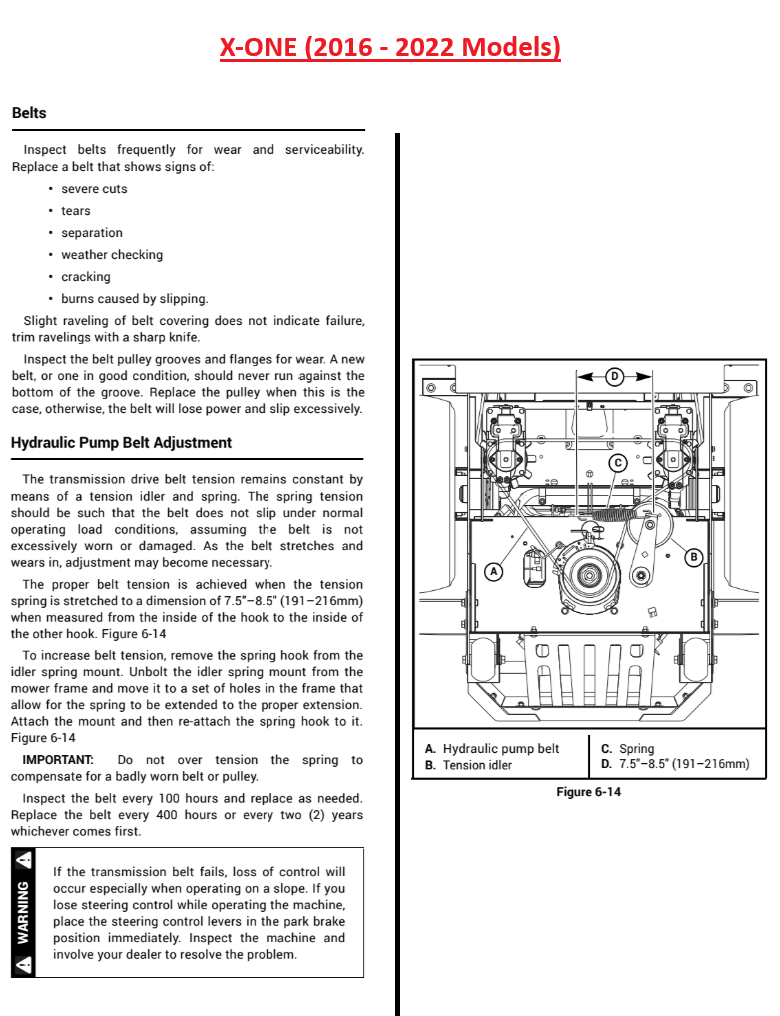

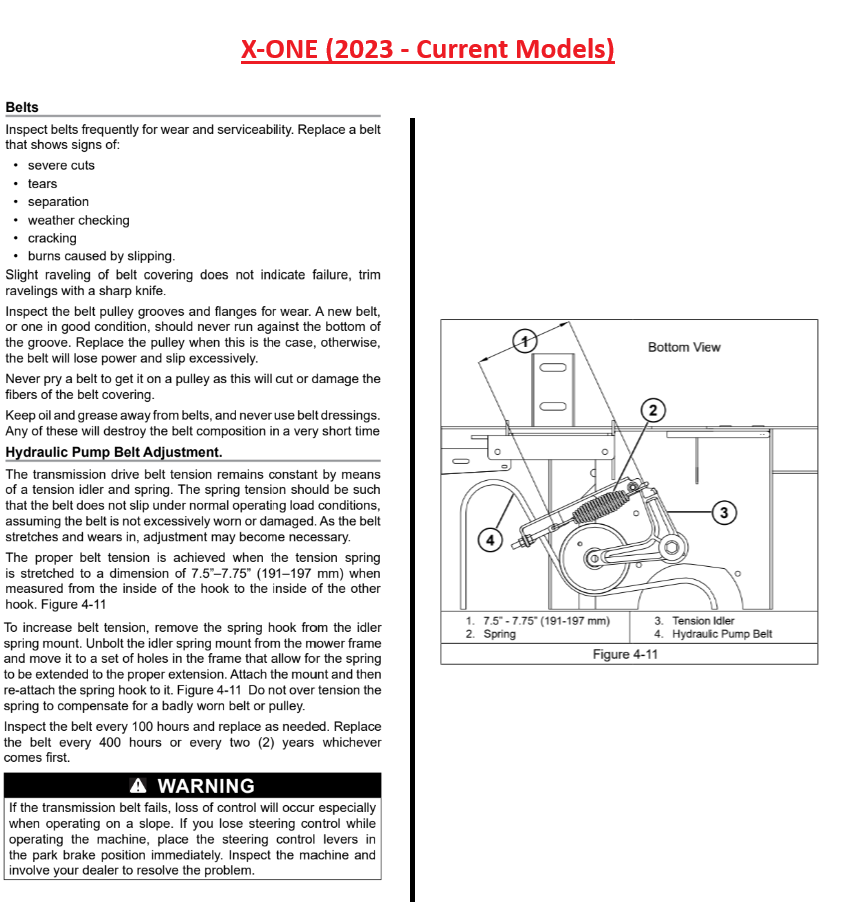

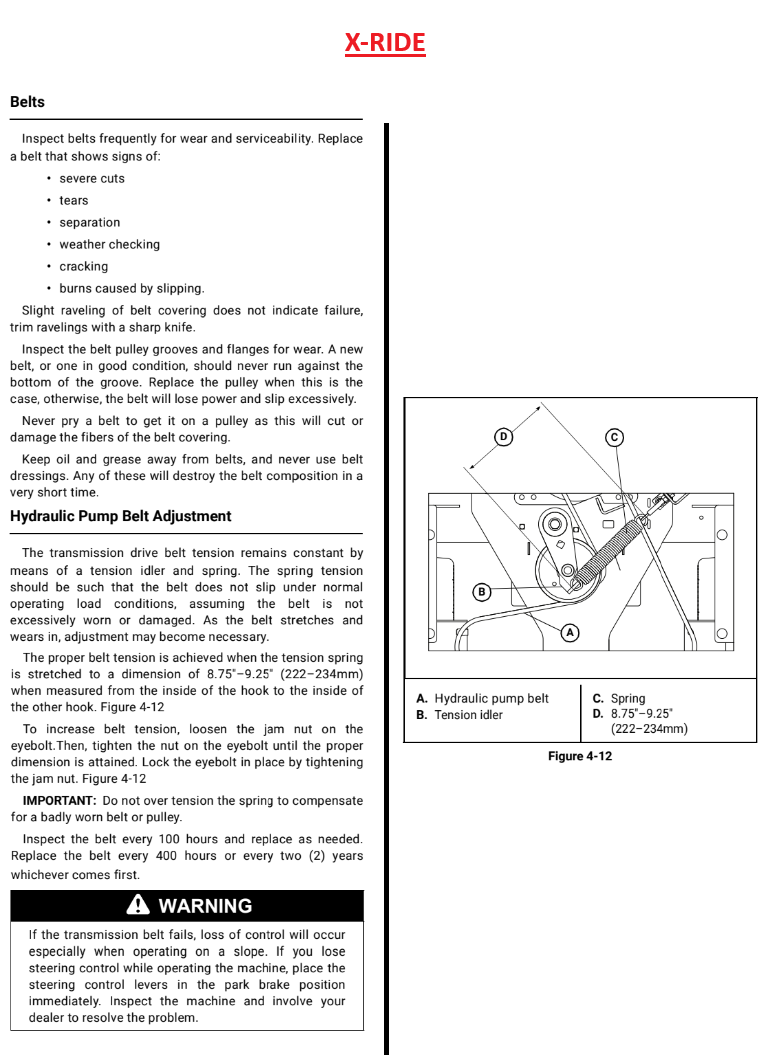

- Verify Correct Adjustment is Made to the Belt Refer Below or to the Images for Correct Hydraulic Drive Belt Adjustment Directions and Specs.
- After Installation, Verify Proper Belt Routing and Tension before Starting Mower.
- Start the Unit and Test Drive the Unit.
