Hustler OEM 602263 Anti-Scalp Wheel



Crafted from Durable Hard Plastic Material, the Hustler OEM Anti-Scalp Wheels are Designed to withstand frequent contact and Rough Surfaces. With the ability to Lift and Transport a Mower Deck, these wheels Eliminate the risk of Scalping on Uneven Terrains and Imperfections in your Yard. Trust Hustler OEM 602263 in helping to keep your yard looking Pristine. Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.



The Hustler OEM 602263 Anti-Scalp Wheel is Designed for Hustler and used for a Couple of Different Applications as follows:





Back Mower Deck Rollers

* Aides in the Mower Deck Travel when Flipping the Deck.

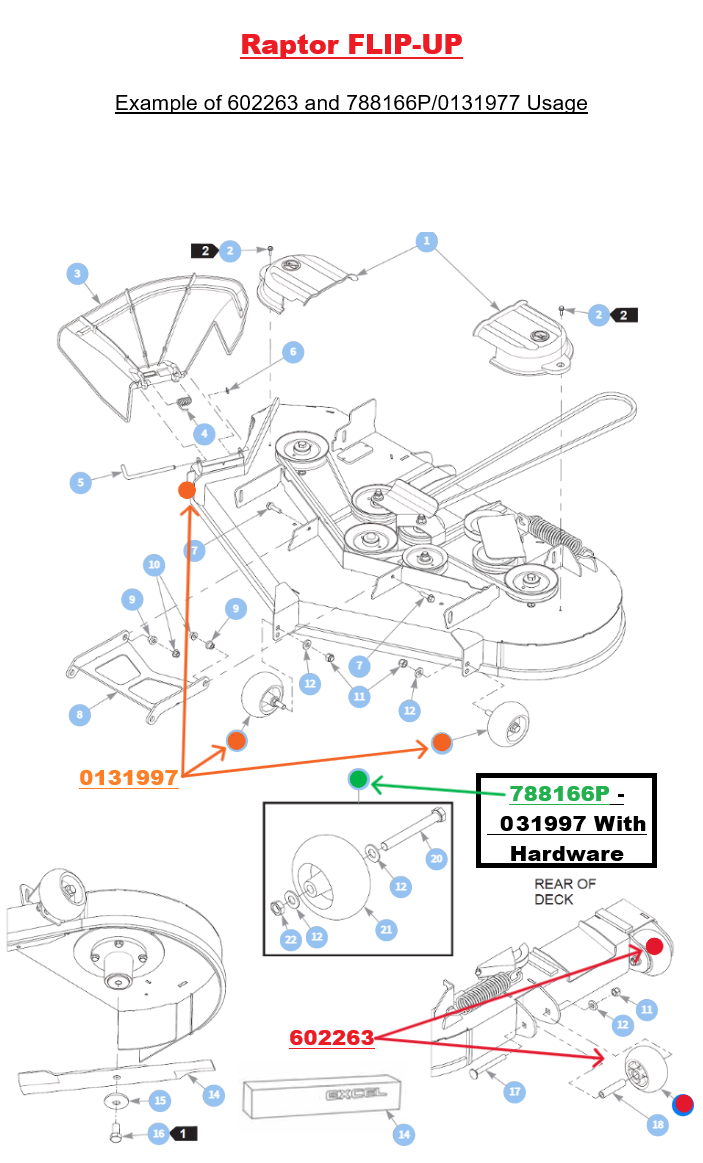

Hustler Raptor Flip-Up Models





Outside Anti-Scalp Wheel Rollers

Outside Anti-Scalp Rollers 602263 is Mounted Typically on the Outside Edges of the Mower Deck and is Used with Longer Front Center Anti-Scalp Wheels 602338.



Super S (Select Models)

Super SF (All Models)

X-ONE (2016 - Current Side & Rear Discharge)

X-RIDE (All Models)

Super Z (2011 - Current Side & Rear Discharge)

Super Z HD (2013 - Current Side & Rear Discharge)

Diesel Z (2018 - Current Side & Rear Discharge)

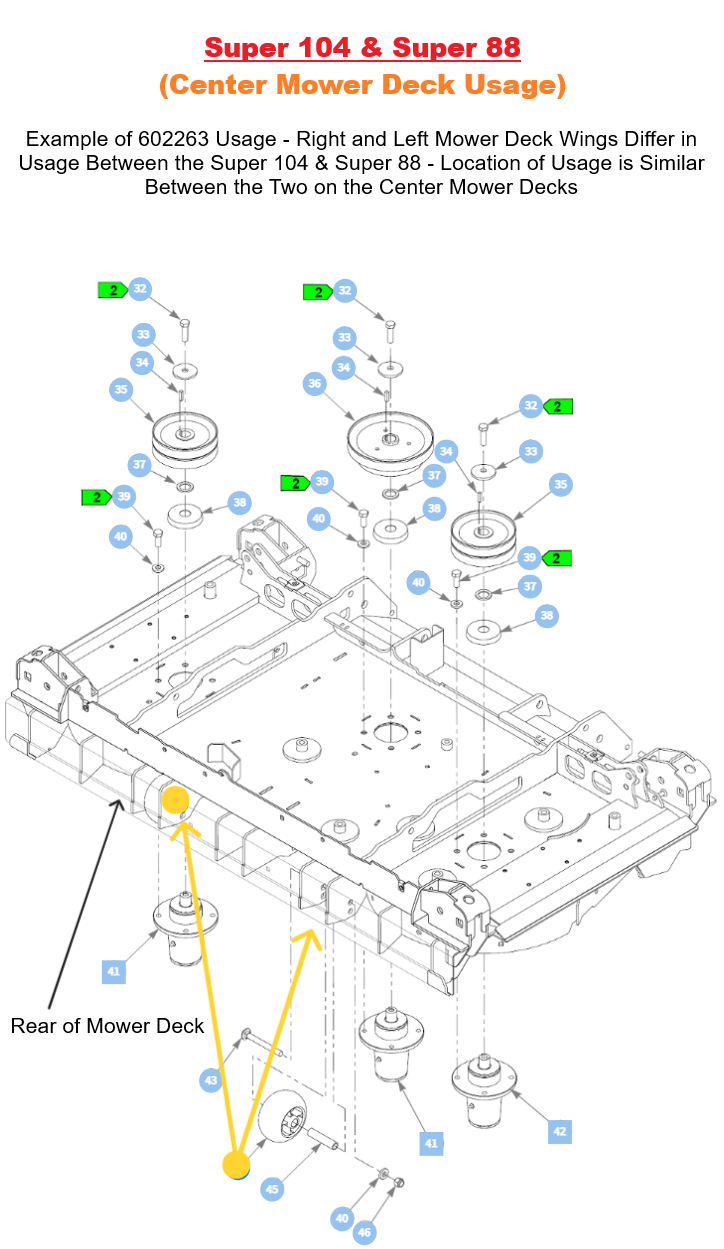

Super 88 (All Models)

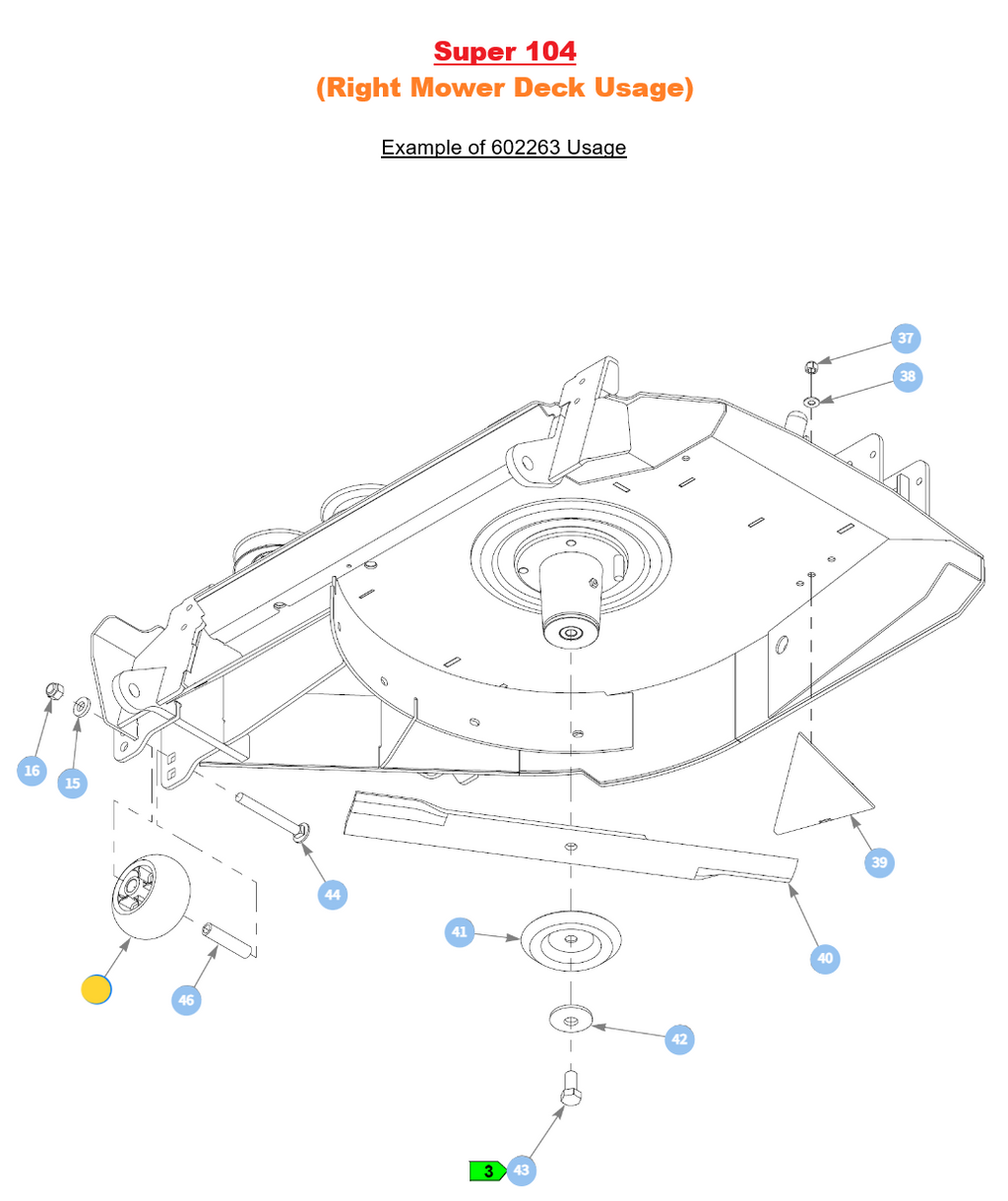

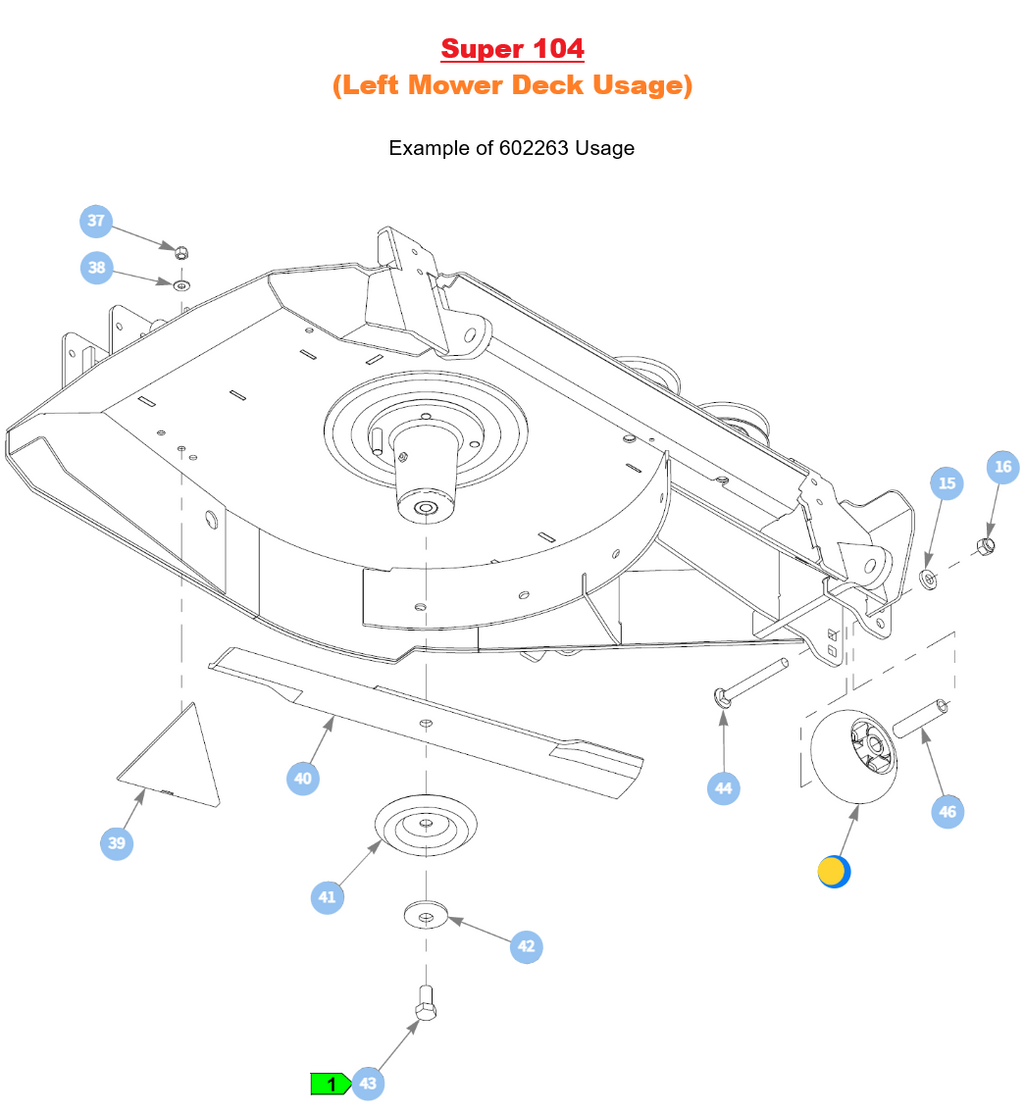

Super 104 (All Models)

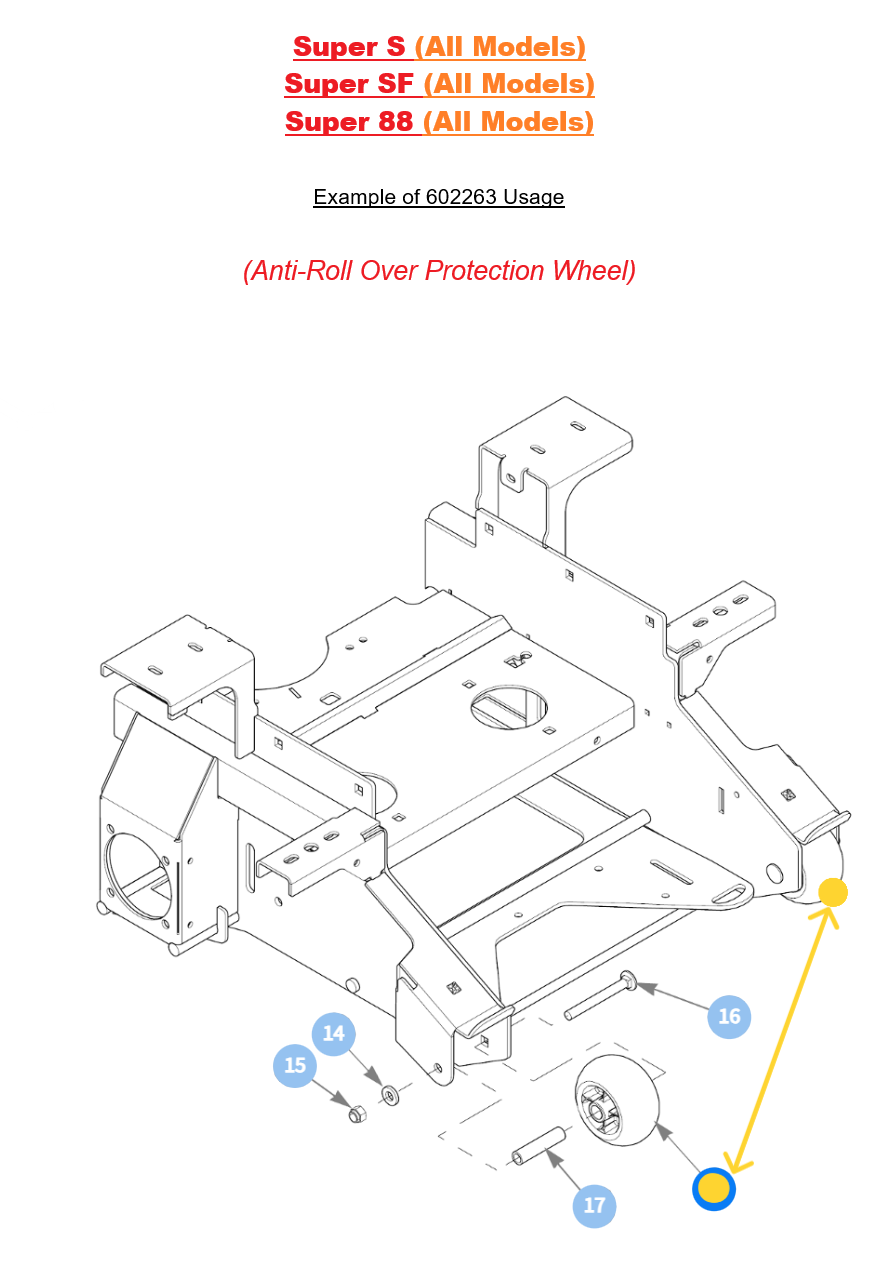

Anti-Roll Over Protection Wheels



Super S (All Models)

Super SF (All Models)

X-ONE (Select Models)

Super Z (Select Models)

Super Z HD (Select Models)

Diesel Z (Select Models)

Super 88 (All Models)

Super 104 (Select Models)

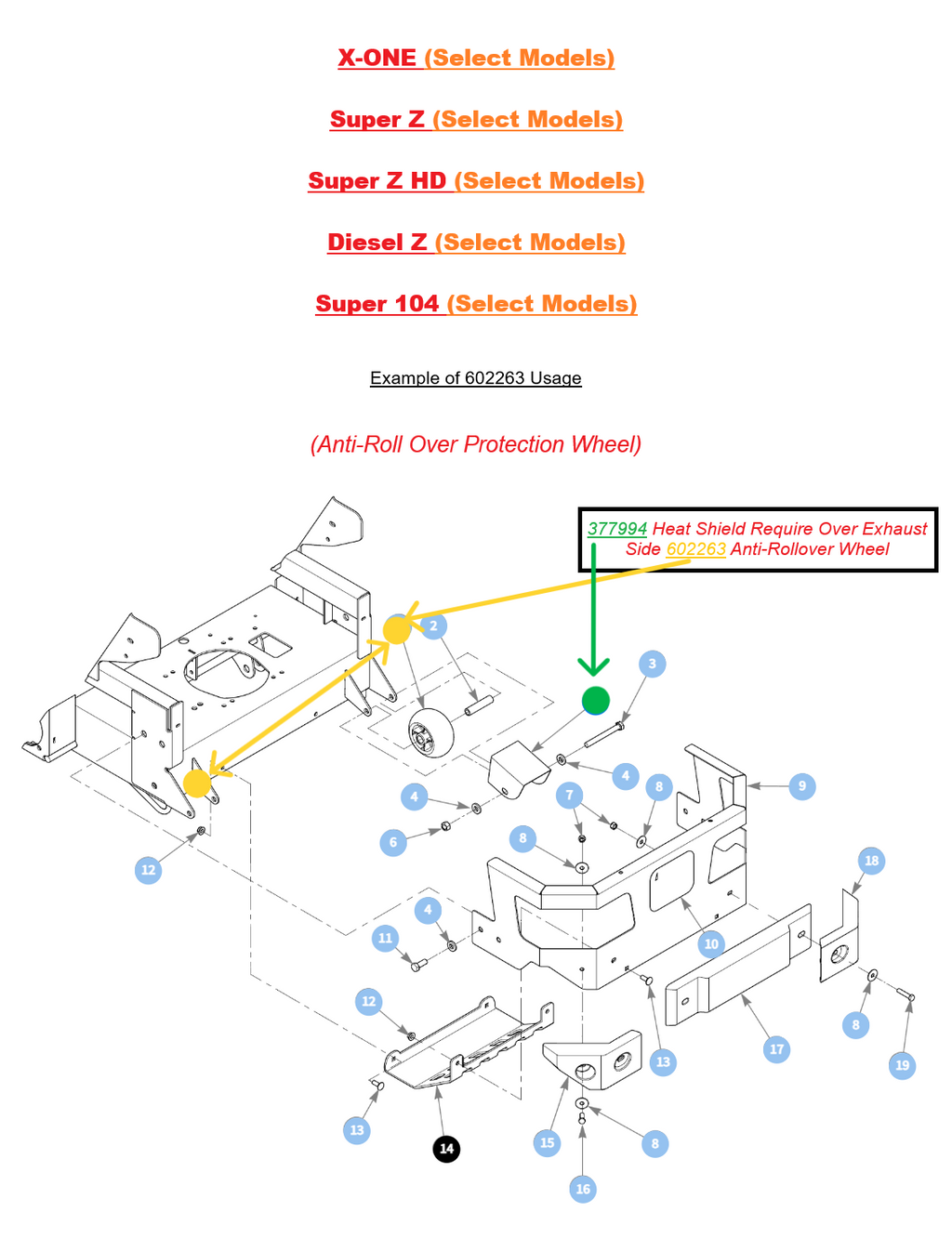

Note 1: More Recent Models Use a Weldment Bar Under the Engine Platforms (On Sit-On Models) Instead of an Anti-Scalp Wheel to Aid in Roll-Over Protections - Explanation on the (Select Models) Beside Some of the Families in the Anti-Wheel Rollover Protection Category. Sit-On Models that Utilize the Anti-Rollover Wheel Under the Engine Platform Will Require a Heat Shield 377994 on the Exhaust Side to Protect the Wheel from Heat/Melting as Referred to in the Parts Diagram in the Images Above.

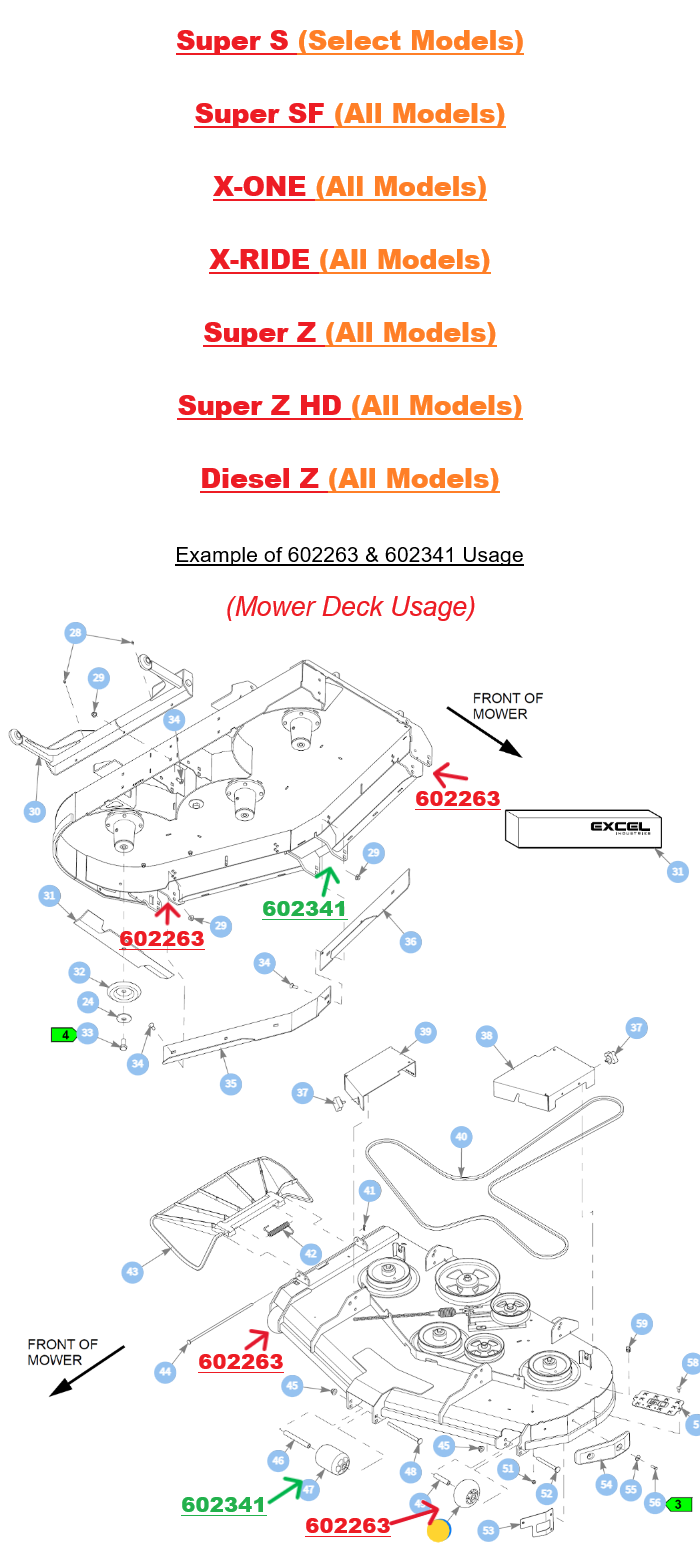

NOTE 2: On most Models the Mower Decks That use Anti-Scalp Wheel 602263 Will Require a Longer Center Anti-Scalp Wheels. To Be redirected to a Common Longer Center Anti-Scalp Wheel on these Models Click on Part Number 602341.





NOTE 3: Some Families/Series Might Overlap with Two Different MOWER DECK Anti-Scalp Wheel Part Numbers. There are a Couple easy ways to verify which Part Number is correct for your Unit. One, is to Compare the Webbing on the Molded Spacer Side of the Anti-Scalp Wheel with the images Above. Second, Determine Whether the Plastic Molded Anti-Scalp Wheel Spacer/Flange Contains Equal Length on Both Side of the Anti-Scalp Wheel. Older Part Number 788166P or 031997 will have a One-Sided Anti-Scalp Wheel Spacer/Flange (This is to Enable it to be Fasten to the Side of a Single Anti-Scalp Weldment Ears). Whereas Newer Anti-Scalp Wheel 602263 will have an Equal Dual Length Anti-Scalp Wheel Spacer/Flange molded on both Sides (This is to Enable it to Fit Between Two Anti-Scalp Weldment Ears on the Mower Deck). 602263 Will Also have bigger whole for a Center Spacer and be used and is Used primarily on Current Commercial Series. Thirdly, Any Models that require a Different (longer) center Anti-Scalp Wheel from the outside edge Anti-Scalp Wheels will require Part Number 602263. Click on Part Number 788166P or 031997 to be Redirected. For an Example Review the Images Below and Always Verify your Model Number is Listed in the Model Fit Chart before Purchasing.







COMMON ANTI-SCALP WHEEL PART REFERENCE FOR 602263 ANTI-SCALP WHEEL

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



• 602345 - Anti-Scalp Wheel Spacer (3.22")
• 767962 - Anti-Scalp Wheel Washer
• 608880 - Anti-Scalp Wheel Nut (1/2 - 13 - Nylon Flange Lock Nut - Not Applicable to all Models)
• 008193 - Anti-Scalp Wheel Nut (1/2 - 13 - Steel Nut - Not Applicable to all Models)
• 781567 - Anti-Scalp Wheel Nut (1/2 - 13 - Nylon Locking Lock Nut - Not Applicable to all Models)
• 068239 - Anti-Scalp Wheel Bolt (1/2 x 4 1/2 - 13 - Hex Head Bolt - Not Applicable to all Models)
• 602339 - Anti-Scalp Wheel Bolt (1/2 x 4 1/2 -13 - Carriage Bolt - Not Applicable to all Models)
• 607288 - Anti-Scalp Wheel Bolt (1/2 x 4 3/4 -13 - Carriage Bolt - Not Applicable to all Models)







 Specification

Product Number:	602263
Brand:	Hustler
Length:	4.95 IN
Width:	4.95 IN
Height:	3.10 IN
Weight:	1.155 LB





Model Fit:





Raptor FLIP-UP Models (Select Models)

Used on the Back of the Mower Deck



Models are Currently Not Listed Will Be Eventually
