Description

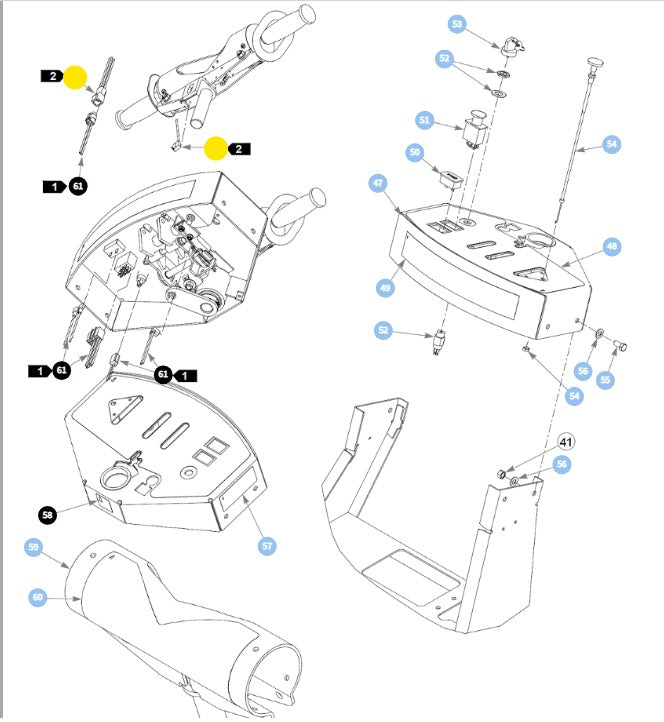

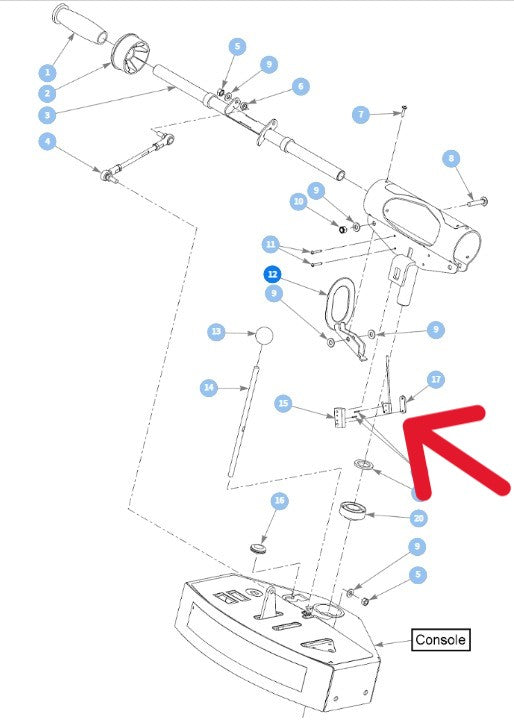

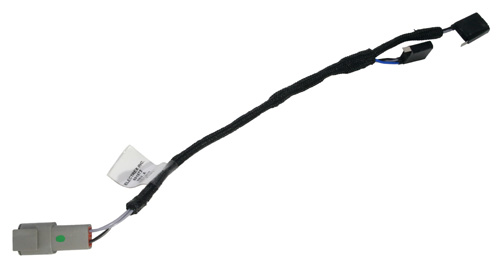

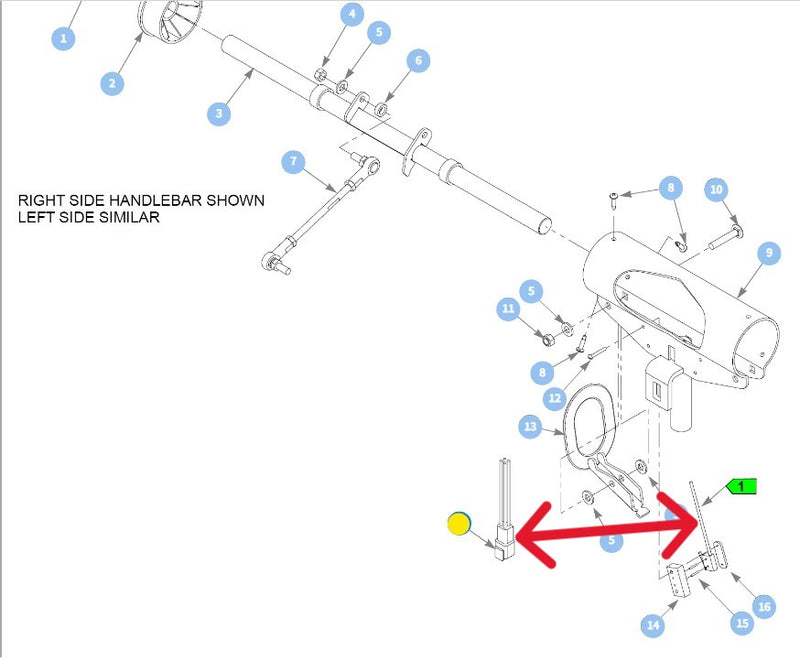

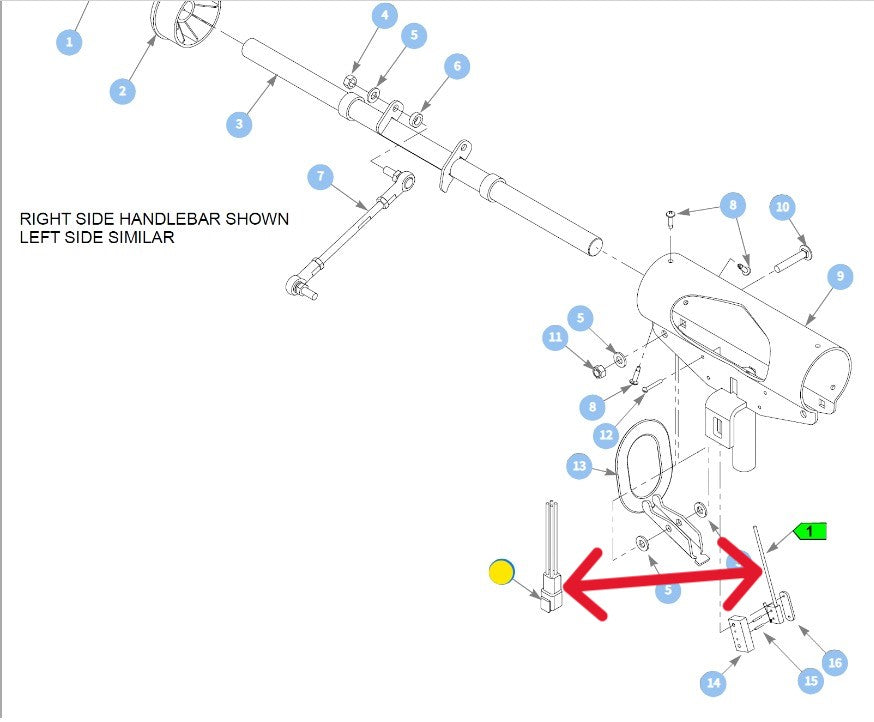

Hustler OEM 601972 Wire Harness/Safety Switch Assembly is used exclusively on Hustler Trimstar Models. The Hustler OEM 601972 Safety Switch Wire Harness Combo is Made to Bridge the Distance of the T Bar Handle Assembly and Wrapped in Wire Coating to help Prevent Any wear and break point in a Prone-To-Be High Wear Erea. the Safety Switch Side of the Assembly is used to communicate to other Electrical Components (Brake Safety, Ignition Switch, PTO Switch, Ect.) when an operator is present and ready for Operation. The Operator in return will Need to hold in one of the two handlebar Assembly T Bar Arm lever to communicate when they are present and ready for Operation. this in return will activate the T Bar 601972 Operator Safety Switch and allow it to Communicate to the rest of the Unit. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
HYDRAULIC DRIVE BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 341826 - Operator Safety Lever/Arm - T Bar Handle Assembly
- 342378 - Safety Switch Spacer
- 077842 - Safety Switch Fastners/Bolts
- 779165 - Safety Switch/Spacer Plate Location Pins
- 039693 - Nut Plate
Specification
|
Product Number: |
601972 |
|
Brand: |
Hustler |
|
Length: |
7.25 IN |
|
Width: |
3.40 IN |
|
Height: |
0.85 IN |
|
Weight: |
0.085 LB. |
Model Fit:
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276
