Description

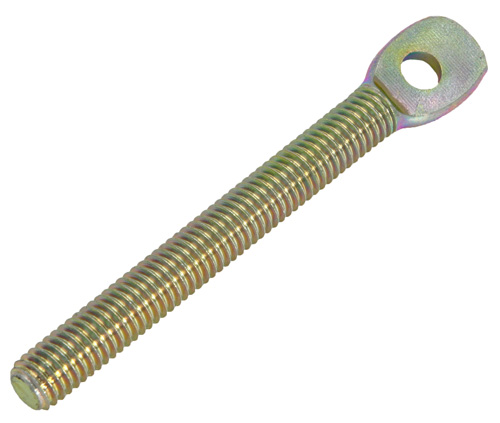

Hustler OEM 601486 Tension Spring Adj. Screw
The Hustler OEM 601486 Tension Spring Adjustment Screw is a Genuine Hustler Replacement Fastener used in Select Spring Tension and Adjustment Applications. 601486 Is a Full-Thread Eye Bolt and Helps Maintain the Proper Connection Point for Mower Spring Tension Assemblies for Hydraulic Belt Tensions, Mower Deck Lift Assist.
⚠️ Before You Order – Verify Fitment
Spring Tension Screws and Eye Bolts can vary by Hustler Model, Deck Setup, Drive System, and Serial Number Range. So Be Sure to Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage Before Ordering.
Not sure? Contact us with your Hustler Model and Serial Number and We’ll Help Verify Fitment.
What This Part Does
- Provides a Secure Mounting or Adjustment Point for Select Spring Tension Assemblies
- Helps Maintain Proper Spring Alignment and Tension Connection
- Replaces Worn, Bent, Damaged, or Missing Tension Adjustment Hardware
- Genuine Hustler OEM Part for Correct Fit and Dependable Service
Part Details
- Brand: Hustler
- Part Number: 601486
- Supersession: n/a
- Size: .375 x 3.00 -16 or 3/8 x 3.00 - 16
- Style: Fully Threaded Eye Bolt
- Part Type: Tension Spring Adjustment Screw / Full-Thread Eye Bolt
- OEM: Genuine Hustler Replacement Part

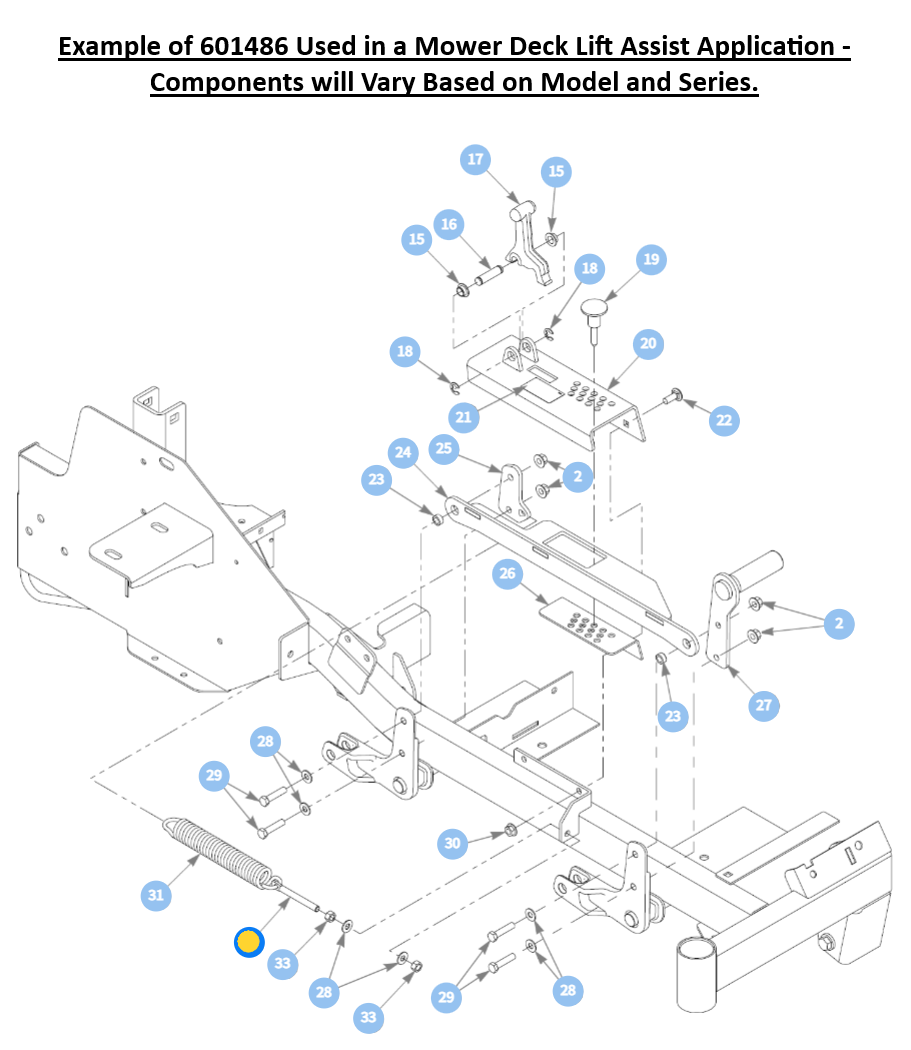

- Kit Availability: Raptor Mower Deck Lift Assist Kit 127403P
Fits These Hustler Models/Families
Verify your model number is Listed in the Model Fit Chart Below before ordering.
- Raptor (Models 939827, 939835, 939843) * Used in Add on Kit 127403P
- FasTrack Series (2015 - Current) * Mower Deck Usage
- X-ONE Series (2023 - Current 52", 60" & 72" Side Discharge & 54" & 60" Rear Discharge Models) * Hydraulic Belt Tensioner
- X-RIDE (All Models) * Hydraulic Belt Tensioner
- Super Z Series (2011 - Current Models) * Hydraulic Belt Tensioner
- Super Z HD Series (All Models) * Hydraulic Belt Tensioner
- Diesel Z (All Models) * Hydraulic Belt Tensioner - Excludes Model with Yanmar Engines
- Super S Series (All Models) * Hydraulic Belt Tensioner & Mower Deck Lift Assist (On Select Models)
- Super SF Series (All Models) * Hydraulic Belt Tensioner
- Super 88 Series (All Models) * Hydraulic Belt Tensioner
- Super 104 Series (All Models) * Hydraulic Belt Tensioner
Model Fit Chart
Raptor (Select Models Only) * Used in Add on Kit 127403P
939827, 939835, 939843
FasTrack (2015 - Current Models)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
X-ONE (2023 - Current)
* 52", 54", 60", 72" Side & Rear Discharge Models
941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942797, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All Models)
944074, 944868
Super Z (2011 - Current Models)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (All Models)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942765, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943985, 943993, 944017, 944041, 944025, 944033, 944041
Diesel Z (2025 - Earlier Models) * Excludes Models with Yanmar Engine
928606, 928606A, 928606B, 928614, 928614A, 928614B, 928614US, 928614EX, 928622, 928622A, 928622B, 928630, 928630A, 928630B, 928630US, 928630EX, 928655, 928655US, 928655EX, 928663, 928663EX, 932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US
Super S (All Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
Super 88 (All Models)
936617, 939546
Super 104 (All Models)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066
Important Replacement Notes & Helps

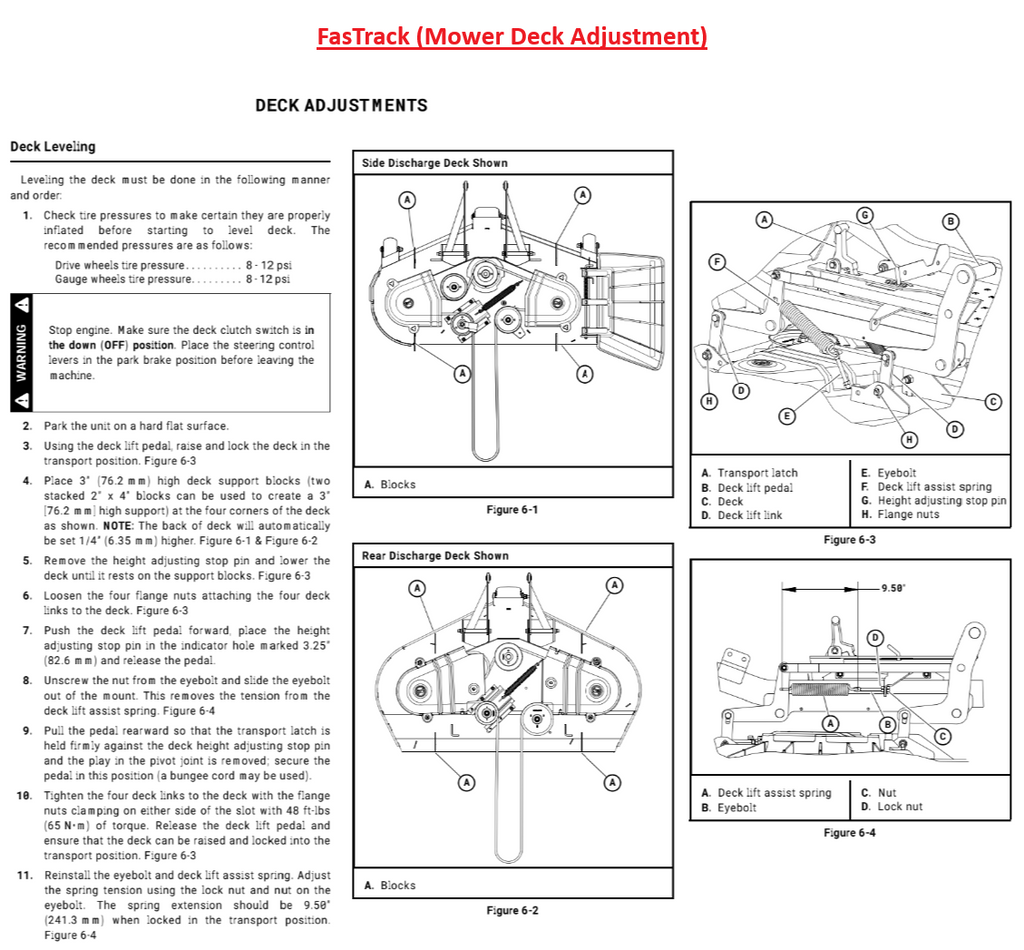

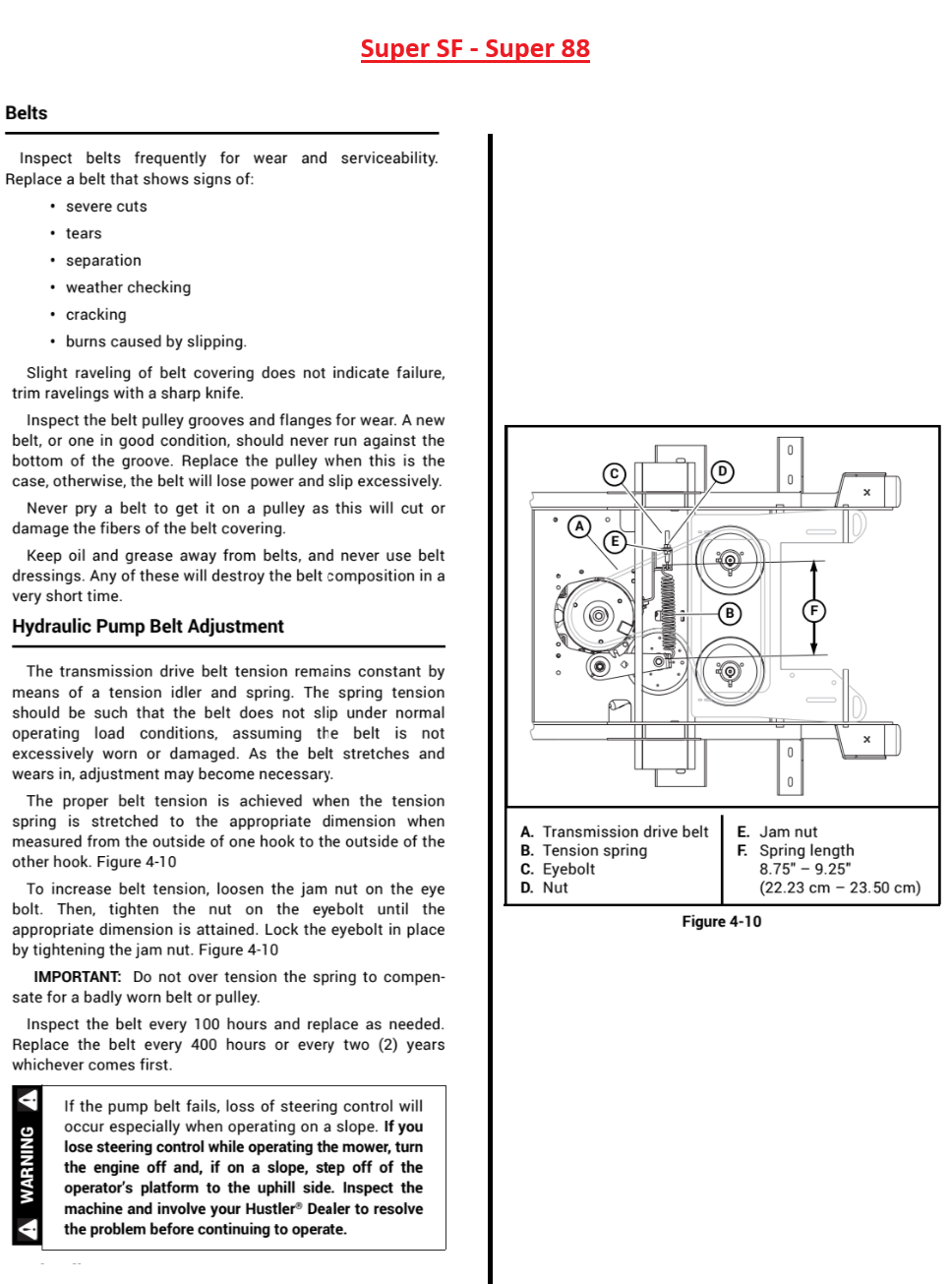

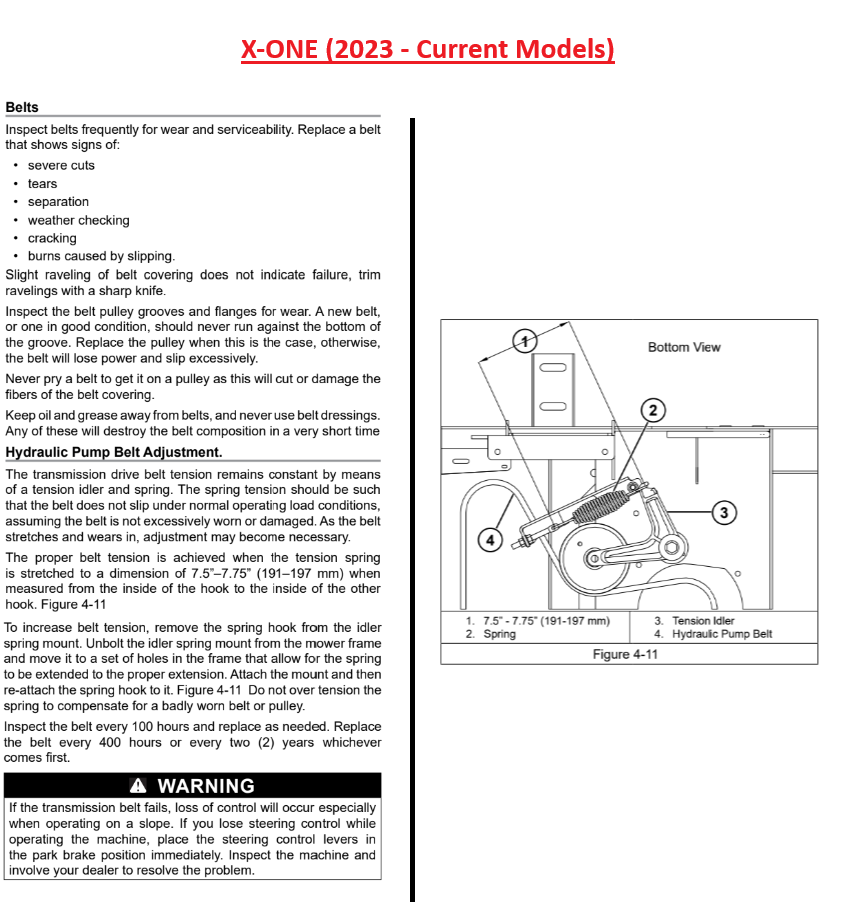

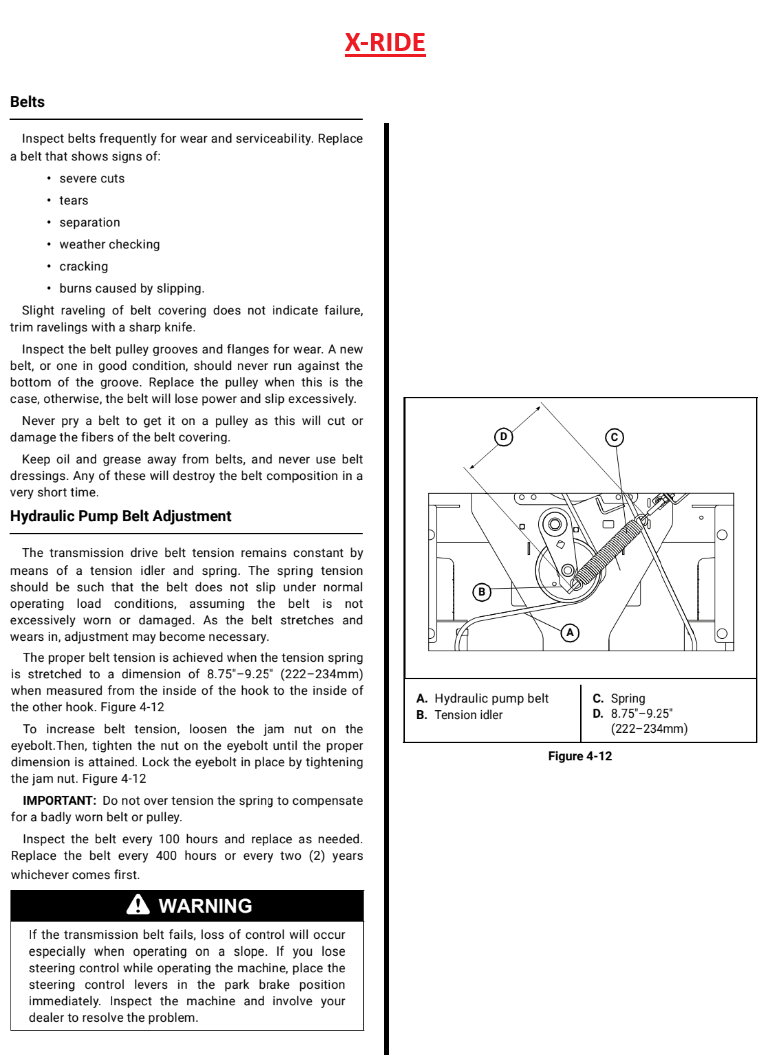

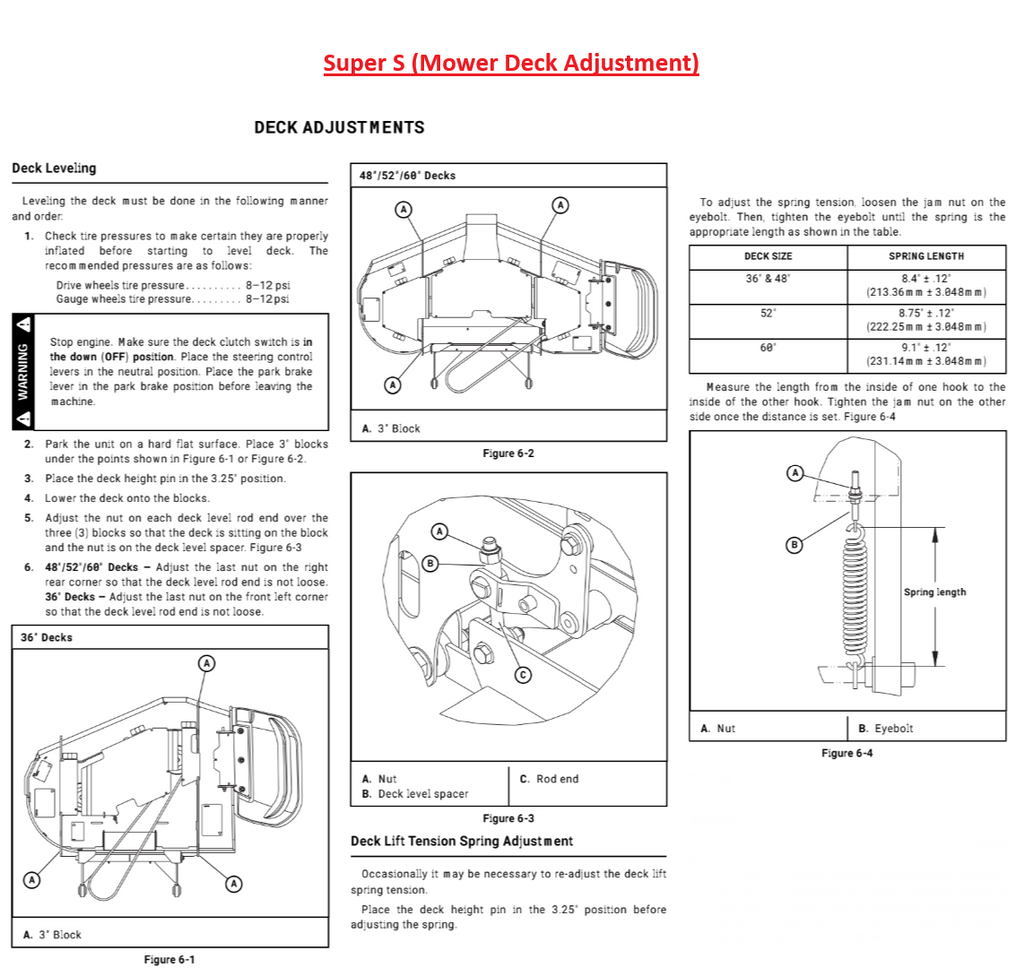

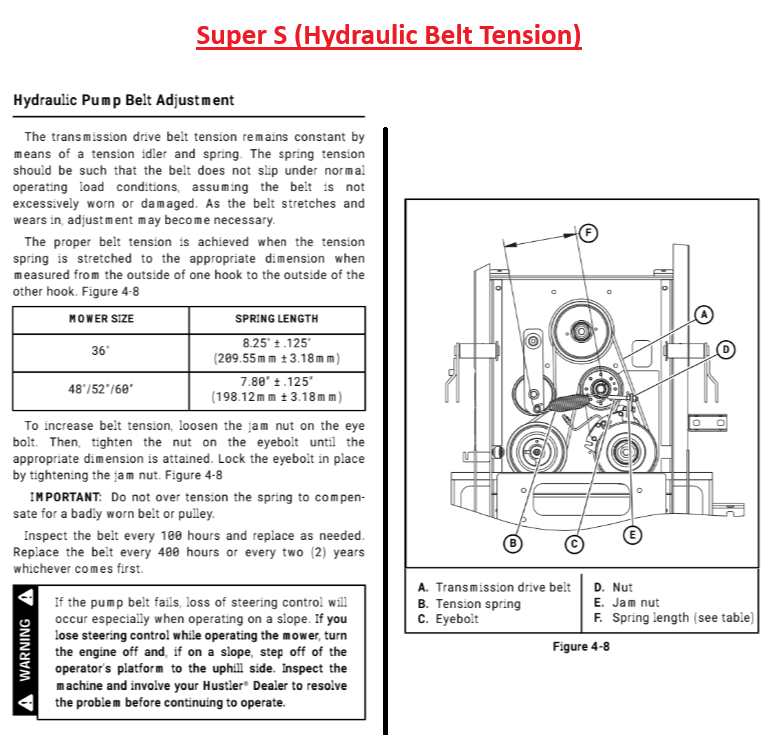

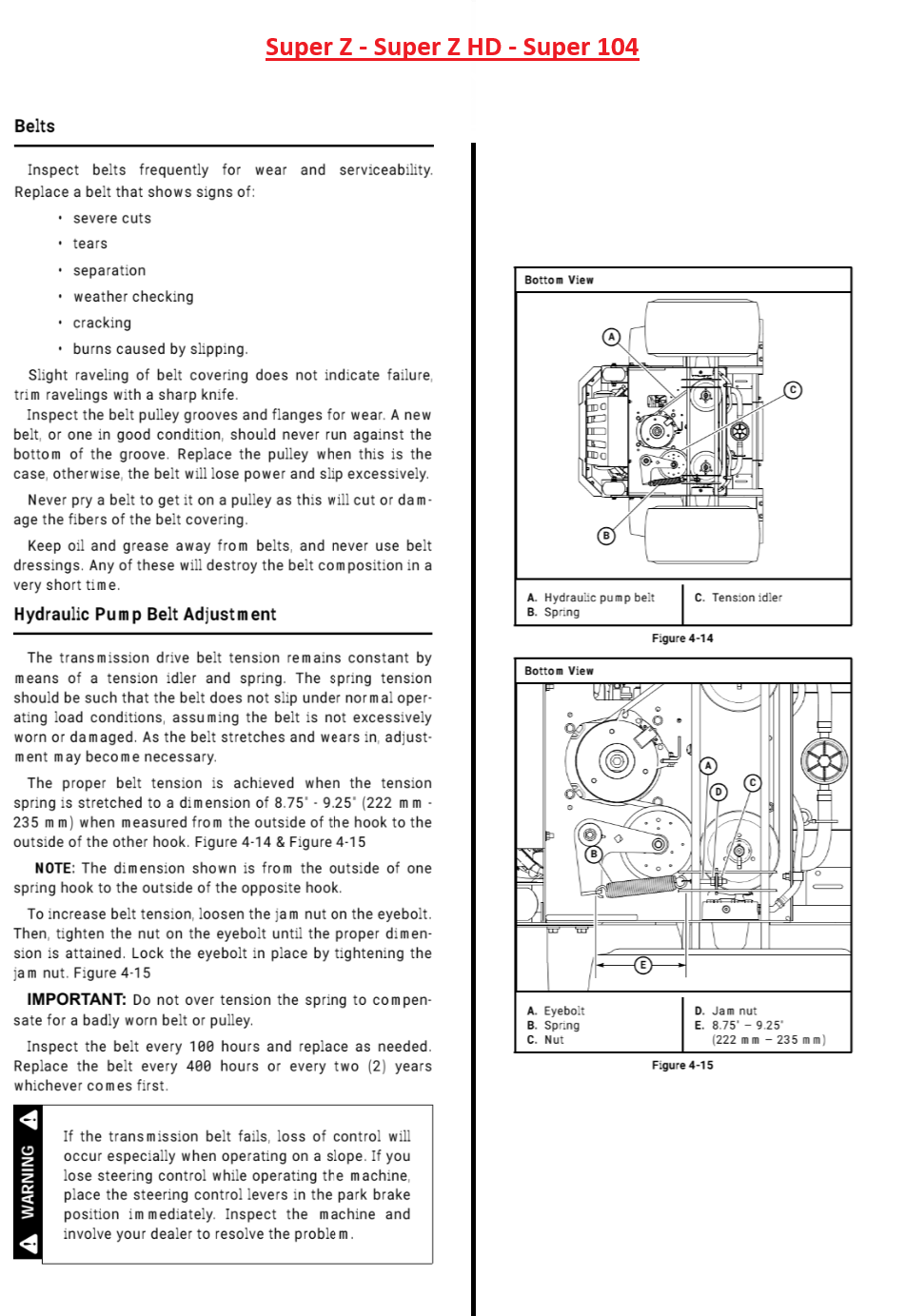

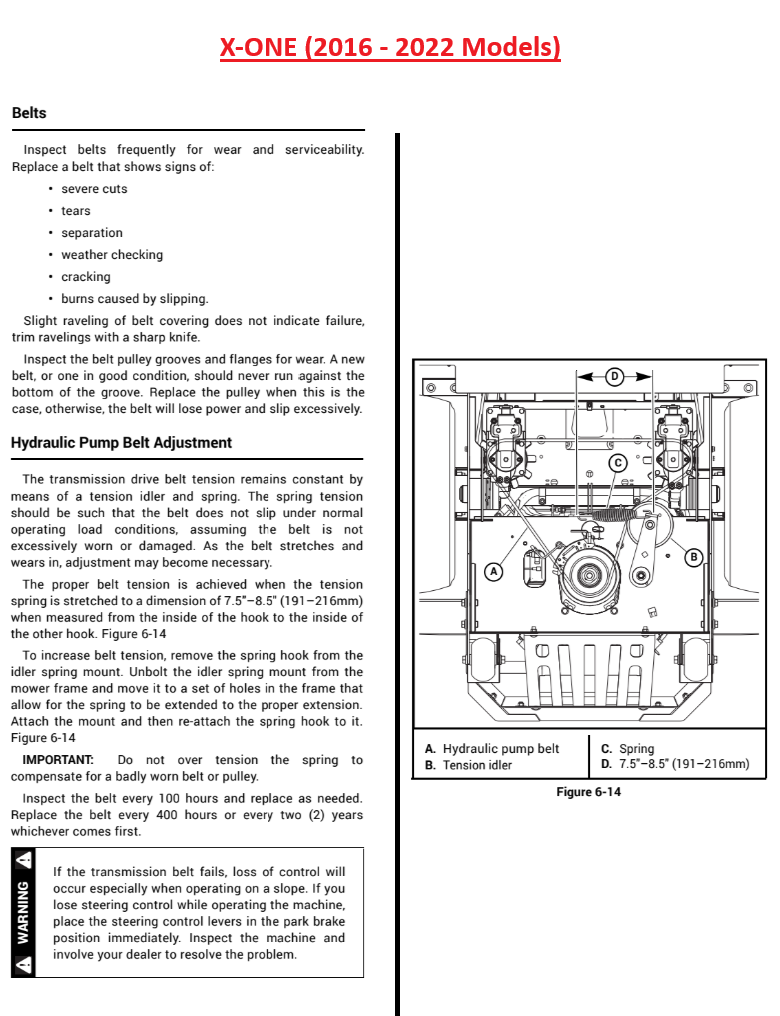

* Helps and Directions in the Image Section are Organize by Model/Series

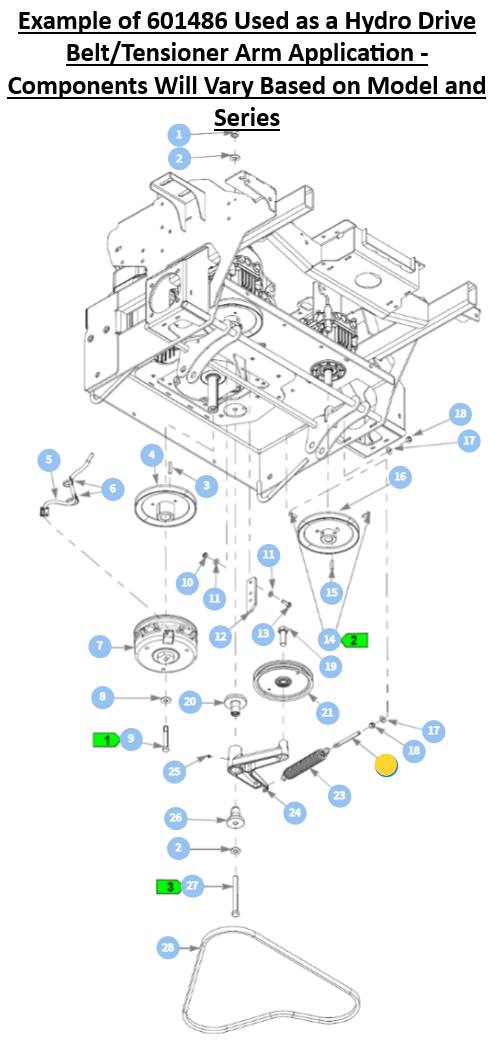

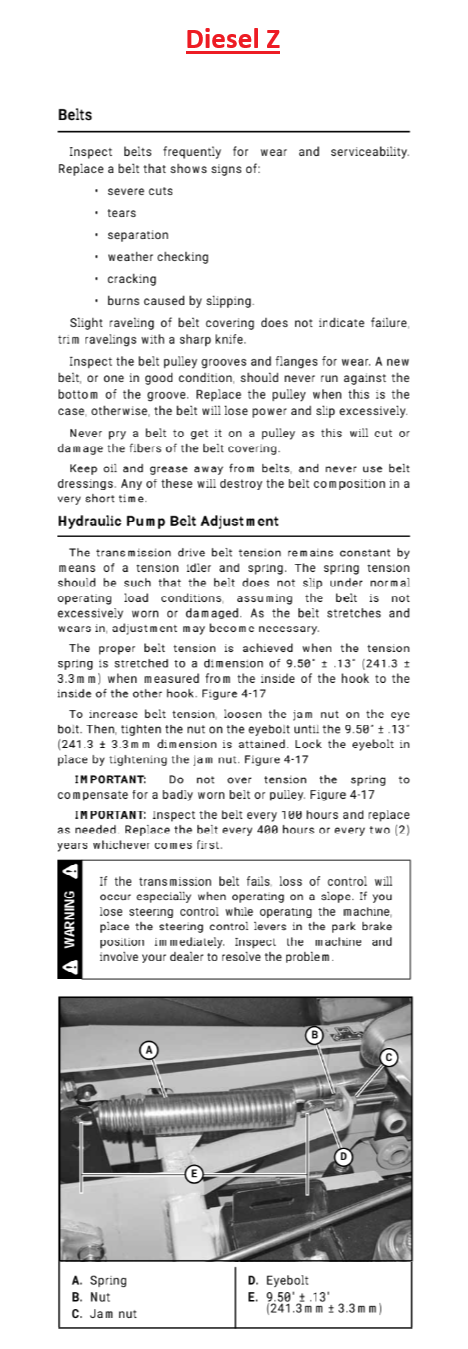

- When Experiencing Belt Slipping Before Replacing the Hydro Drive Components Alway Evaluate the Problem First - Refer to the Directions & Drive Belt Helps in the Images Above for Proper Evaluation and Adjustment of the Drive Belt
- Whenever Replacing the Hydro Drive Components from Wear, it is Always Recommended to Evaluate and Replace the Hydraulic Drive Belt - If Replacing the Hydraulic Drive Belt, the Belt Requires Proper Spring Tension Adjustment. Refer to the Direction in the Images Above or Contact us here at Hilly Ridge if Further Assistance is Needed with finding Proper Spring Tension Measurements and Directions.
- Whenever Replacing Hydro Drive Components Whether or Not Replacing the Hydraulic Drive Belt, the Hydraulic Drive Belt Tension Will Require the Spring Tension Adjustment to Be Readjusted. Refer to the Direction in the Images Above or Contact us here at Hilly Ridge if Further Assistance is Needed with finding Proper Spring Tension Measurements and Directions.
