Description

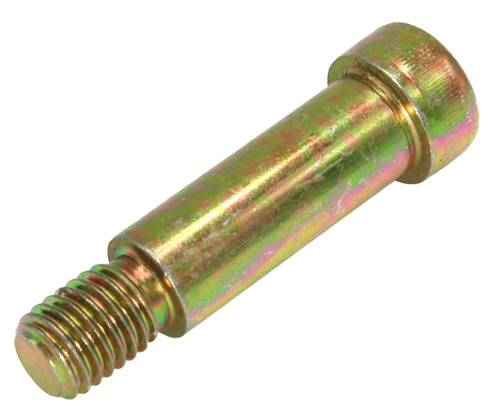

601084 Hex Head Bolt

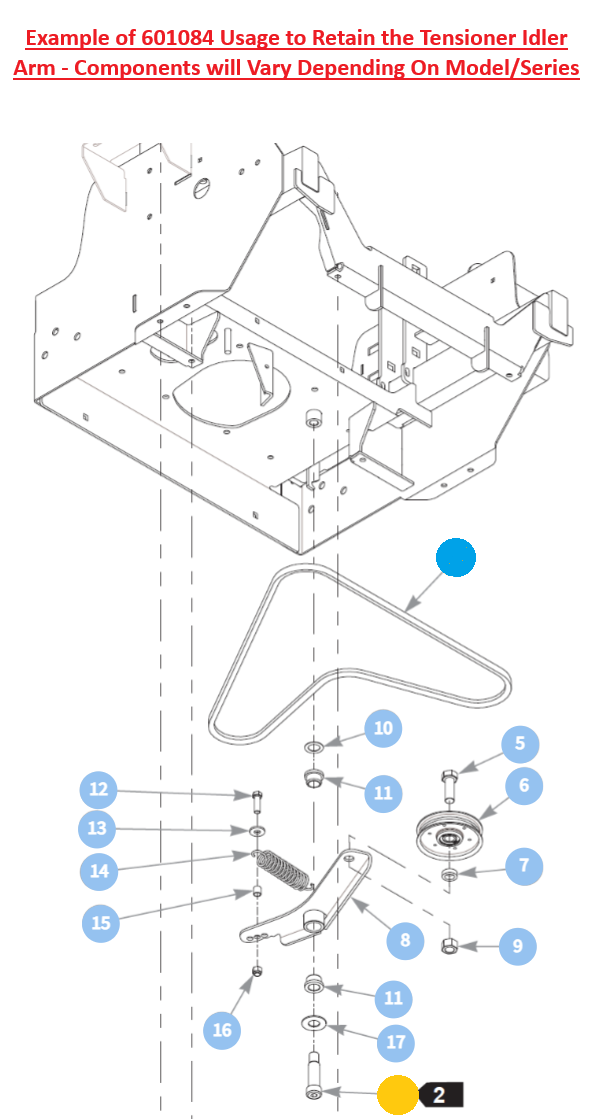

- Application: 601084 Could be Used in a Wide Range of Usages and in a Wide Range of Models However, it is Commonly Used to Retain the Hydraulic Tensioner Arm and Insert Bushings to the Mower Frame.
- Size: (.625 x 2.00 - 11 - Shoulder Diameter .750) OR (5/8 X 2.00 -11 - Shoulder Diameter 3/4) Grade 5
- Supersession: n/a
Fits These Hustler Models/Families
Verify your model number is Listed in the Model Fit Chart Below before ordering.
- Trimstar Series (All Models)
- Surfer PRO Series (All Models)
- Raptor Flip-Up Series (2015 - 2023)
- FasTrack Series (2015 - 2021)
-
Super S Series (All Models)
- Diesel Z (2011 - 2017 Models)
Model Fit Chart
Trimstar (All Models)
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276
Surfer PRO (Select 2022 - 2025 Models)
941591, 941617
Raptor FLIP-UP Models (2015 - 2023 Models)
933614, 933622, 933846US, 933853US, 938464, 938472, 940312, 940320
FasTrack (2015 - 2021 Models)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437
Super S (All Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Diesel Z (2011 - 2017 Models) * Excludes Models with Yanmar Engines
928606, 928606A, 928606B, 928614, 928614A, 928614B, 928614US, 928614EX, 928622, 928622A, 928622B, 928630, 928630A, 928630B, 928630US, 928630EX, 928655, 928655US, 928655EX, 928663, 928663EX
