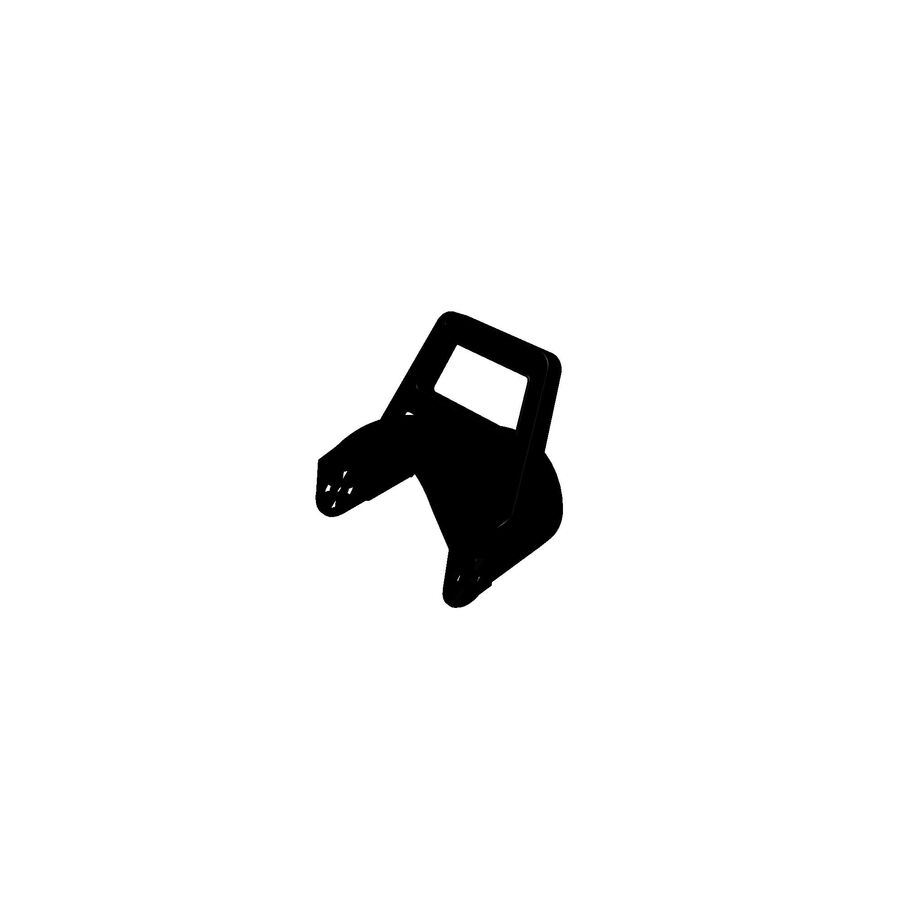

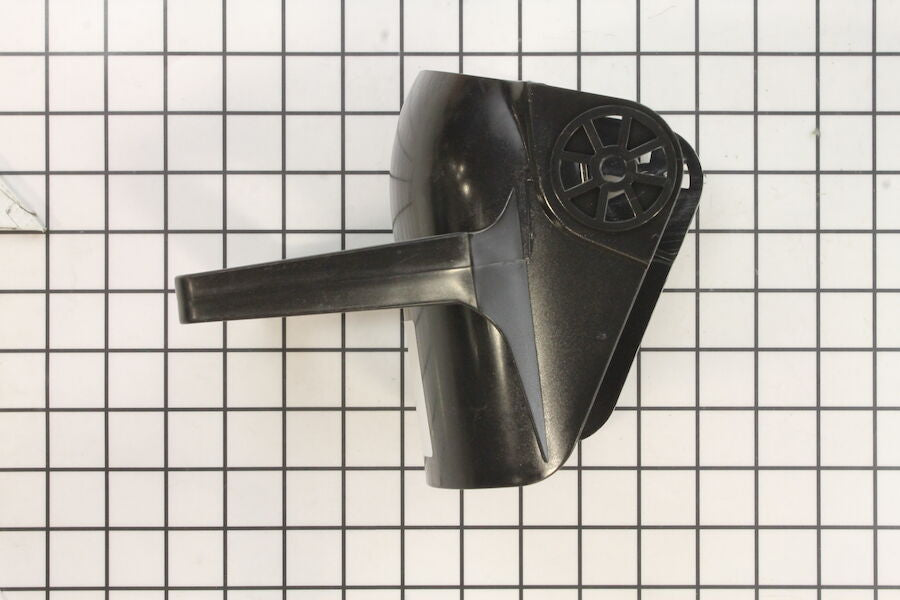

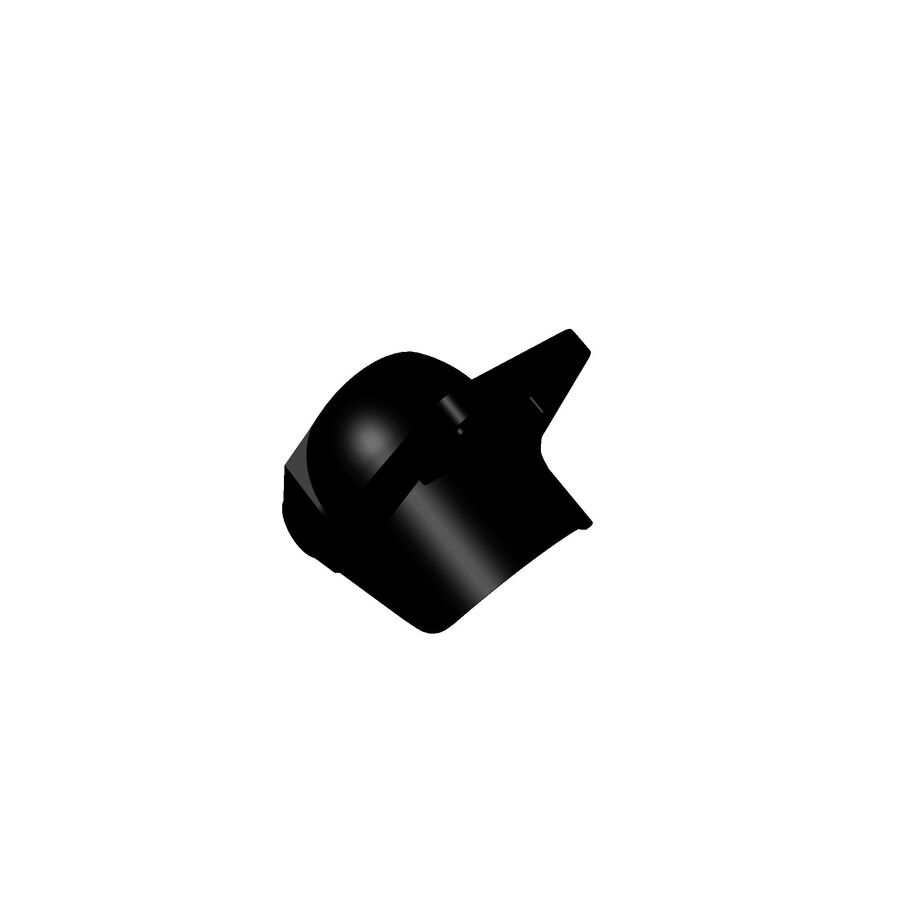

Toro OEM 52-2680 Chute Deflector



Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it.



• OEM Part Number: 56-2680, 56 2680, 562680
• Part Name: DEFLECTOR-CHUTE
• Application: Chute assembly (top deflector / throw angle control)
• Genuine OEM: Correct fit and function for listed Toro Quick Clear, Power Clear and Older CCR, Insight, Power Throw, Snowthrower Models



Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38587, 38593, 38741, 38742, 38751)



CCR Series – Model Numbers – (* Model Numbers 38180, 38181, 38185, 38186, 38190, 38191, 38195, 38196, 38400, 38405, 38409, 38410, 38411, 38412, 38413, 38414, 38415, 38416, 38417, 38418, 38419, 38420, 38421, 38422, 38423, 38424, 38425, 38426, 38427, 38428, 38429, 38430, 38431, 38432, 38433, 38435, 38436, 38437, 38438, 38439, 38440, 38441, 38442, 38445, 38515, 38516, 38517, 38518, 38535, 38536, 38537, 38538)



INSIGHT/POWER THROW/SNOWTHROWER and Other Older Misc. Series – Model Numbers – (* Model Numbers 28220, 28221, 28222, 28223, 28226, 28230, 28231, 28232, 33005, 33006, 34001, 34002, 38035, 38052, 38051, 38053, 38054, 38056, 38062, 38063, 38064, 38072, 38073, 38078, 38605, 38606, 38607, 38608, 38818)

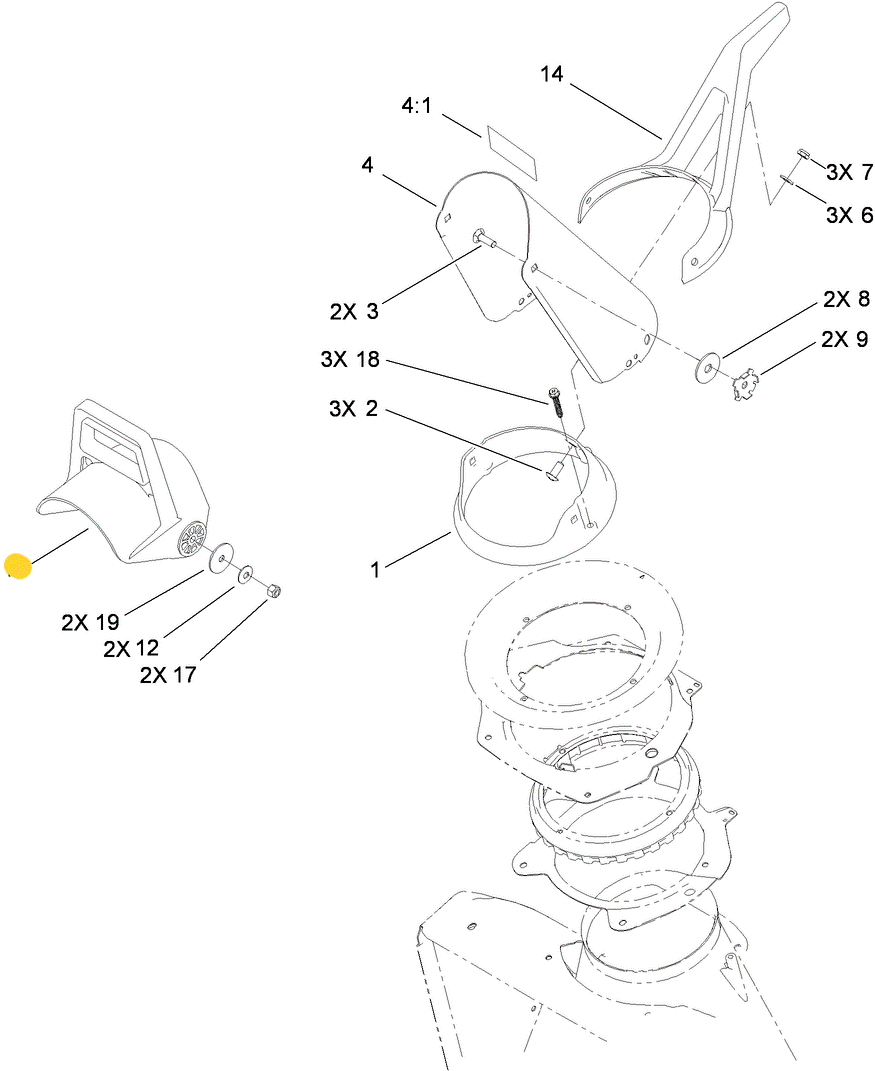

Associated Parts (Common “Replace With” Items)

These are in the same chute/deflector control area and are smart “finish-the-repair” items if worn, missing, or damaged:

Review Model Numbers Associated to Each Part Number to Verify a Correct Fit



• 3230-22 – Chute Deflector Carriage Bolt (Assembled from Inside the Discharge Chute - Pointing Out - Retaining the Discharge Chute Deflector to the Discharge Chute)
• 20-4320 – Rubber Washer (Assembled Between the Discharge Chute and 55-8950 Friction Plate)
• 55-8950 – Friction Washer (Assembled on the Inside against the Chute Deflector with the Inter-Locking Tabs Insert Outwards through the Chute Deflector)
• 3256-68 – Flat Washer (Assembled on the Outside Surface Against the Chute Deflector over the Friction Washer tab slots)
• 3290-456 – Belleville Washer (Assembled Between the Flat Washer and the Lock Nut - Keeps Constant Pressure on the Fasteners Enabling them to Remain Tight as the Chute is Rotated up and down)
• 3296-29 – Lock Nut (Fastens Against the Belleville Washer and Retains the Discharge Chute Deflector to the Discharge Chute)
• 120-0131 – Discharge Chute (Replace if Discharge Chute is Crack or Broken)

Installation Tips (Chute Deflector Replacement)



• Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
• Visual Documentation: Raise the deflector and note the spring orientation of Hardware before disassembly (a quick phone photo helps).
• Remove: The Old Deflector Chute and Different Hardware parts from the old deflector as needed.
• Transfer or Assemble: The Old Deflector Chute and Different Hardware parts from the old deflector as needed.
• Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind - Loosen and Tighten Hardware as Needed.



Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
