Description

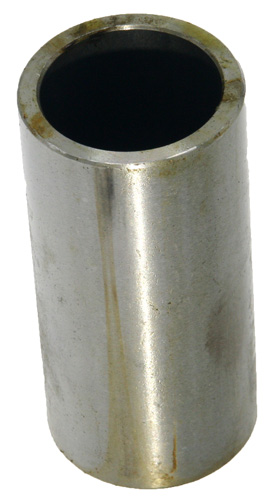

387035 Bearing Spacer
- Application: Made to Fit Perfectly Against the Inner Bearing Race Between the Upper and the Lower Roller Bearing on Front Caster Axle Assembly.
- Function: Installed Between the Upper and Lower Bearing Against the Inner Bearing Race and is Designed to Space the Two Bearing Apart To Ensure Proper Spacing Inside the Front Caster Tube as Well as Enable Both Bearings to Rotate Together and Direct the Tension from the Bolt and other Caster Components to the Center of the Bearing which would Allow them to Swivel In Rotation with the Front Caster Fork and Wheel - Worn Bearing Spacers May Contribute To Complete Bearing Rotation Inside the Caster Tube instead of Utilizing the Alloy Balls Built Between the Inner and Outer Bearing Race which could cause Worn Front Caster Tubing from not Retaining the .
- Size: 1.07 X 1.312 X 2.79
- Notes: When assembling the 387035 Bearing Spacer & 784223 Bearings on Caster Fork 116890P & 120614 - the Bearing Flanges on the Inner Bearing Race Should be Directed Inward into the Caster Tube and Resting against the 387035 Bearing Spacer - Review the Diagram in the Images in Visual Clarity is Need.
Suggested Parts Links

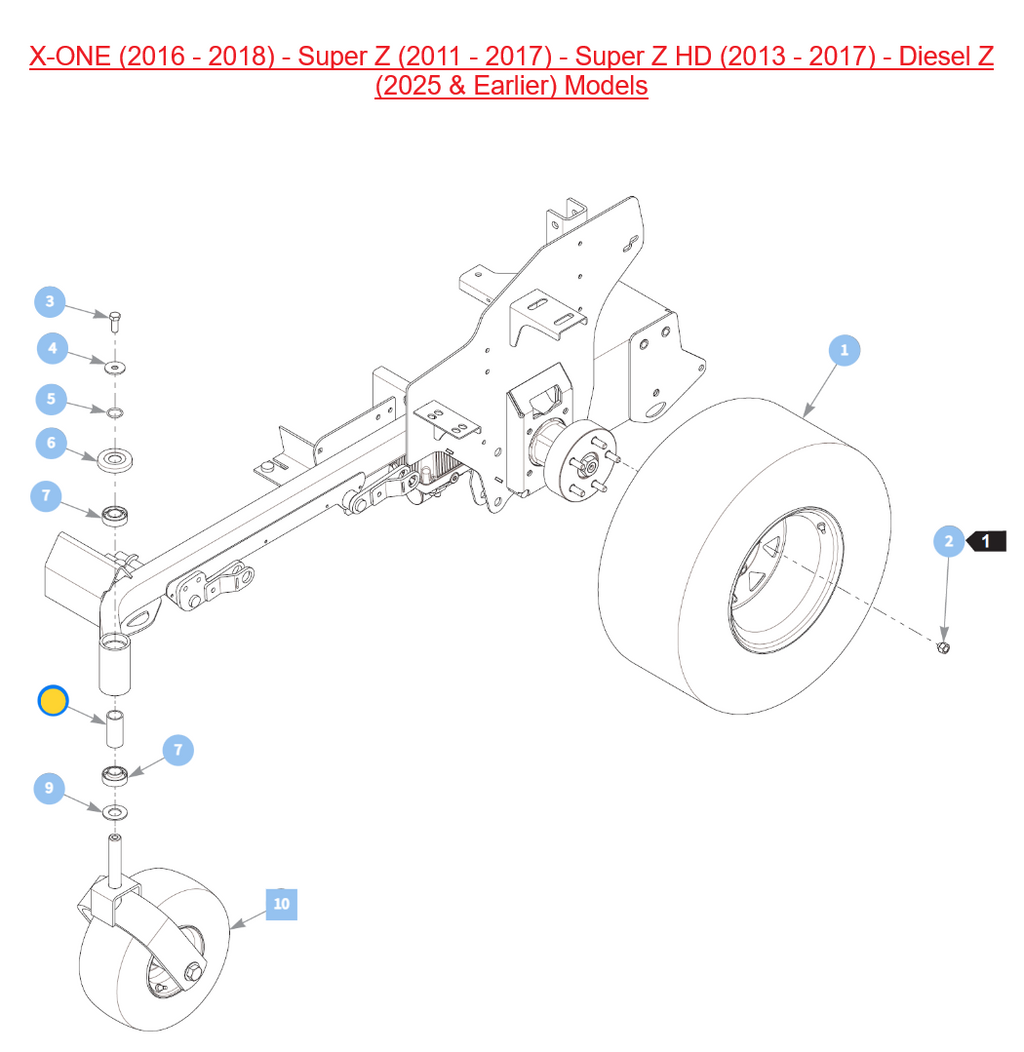

X-ONE (2016 - 2018) - Super Z (2011 - 2017) - Super Z HD (2013 - 2017) - Diesel Z (2025 & Earlier) Models
- 705954 - Bolt (1/2 x 1 1/4 - 13) - Reference Number 1
- 798603 - Supporting Flat Washer - Reference Number 2
- 601375 - Rubber O-Ring (SAE - 14) - Reference Number 3
- 603153 - Bearing Dust Cap - Reference Number 4
- 784223 - Upper & Lower Bearing - Reference Number 5
- 387035 - Bearing Spacer - Reference Number 6
- 603164 - Bearing Disc - Reference Number 7
- 116890P - Caster Fork - Reference Number 10

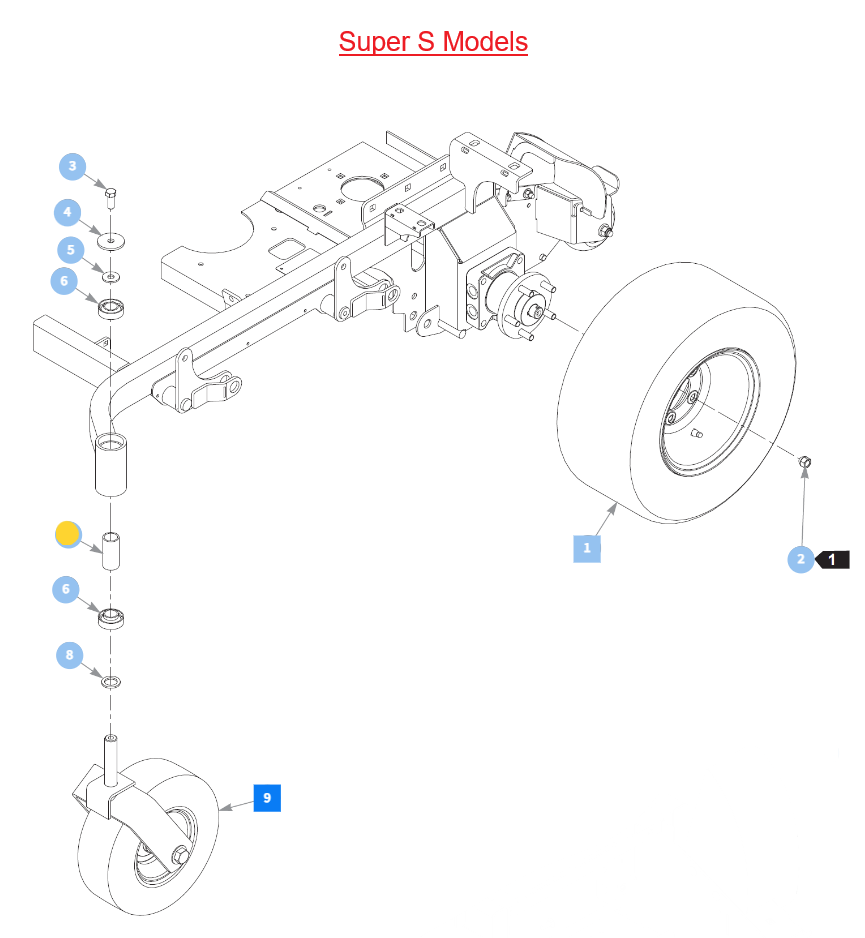

Super S Models
- 705954 - Bolt (1/2 x 1 1/4 - 13) - Reference Number 3
- 344267 - Supporting Flat Washer - Reference Number 4
- 712976 - Spacer Washer - Reference Number 5
- 784223 - Upper & Lower Bearing - Reference Number 6
- 387035 - Bearing Spacer - Reference Number 7
- 045765 - Spacer Washer - Reference Number 8
- 122293 - Caster Fork - Reference Number - Part of 9 (48", 52", 60" Only)
- 120614 - Caster Fork - Reference Number - Part of 9 (36" Only)
Model Fit Chart
X-ONE (2016 - 2018 Side & Rear Discharge Models)
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336
Super Z (2013 - 2017 Side & Rear Discharge Models)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 937714, 937722
Super Z Hyper Drive (2013 - 2017 Side & Rear Discharge Models)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976
Diesel Z (2025 - Earlier Side & Rear Discharge Models)
938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US
Super S (2016 - 2018 Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US
