Toro OEM 38266 STANDARD/RESIDENTIAL Rubber Rotor Blade Kit Fits Select 18" Toro Power Clear and Powerlite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 38266

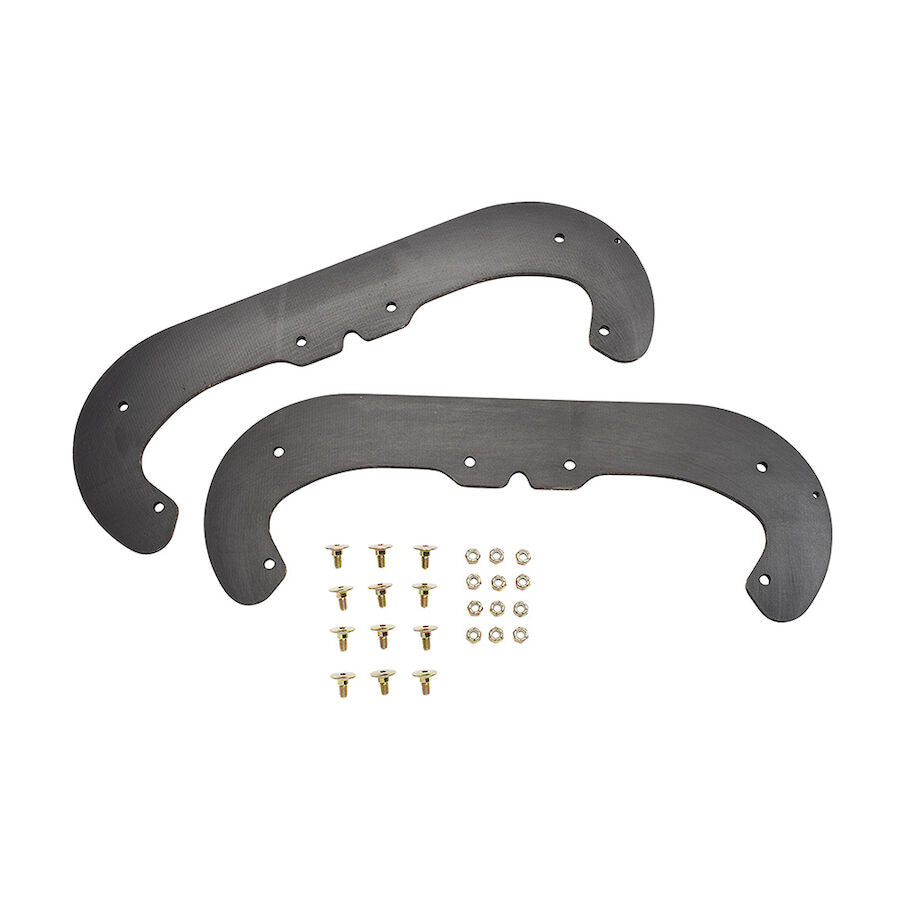

• PRODUCT TYPE: Replaceable Residential Rubber Rotor Blade Kit - *Comes with Two Rubber Blades & Hardware
• SIZE: NA
• NOTES & DETAILS: Toro OEM  38266 kit Contains Two Rubber Rotor Blades 161-2171 & Hardware - Individual Parts as well as Description of their Individual Usages are Listed Below in the Associated Parts Chart - 161-2171 Rubber Rotor Blades is Assembled to the Rotor Shaft Weldment Ears Using a Flanged Counter Sinking Screw - Toro Rubber Rotor Blades Are Made with a High Quality of Rubber Allowing for them To Run against a Hard Surface without Causing Damage to Paved or Cement Driveways as well as Helping Propel the Complete Snowblower Unit Forward when the Auger is Engaged. The Friction Design of 161-2171 Rubber Rotor Blades Also Allows for a Cleaner Snow Cleanup as well as Enhancing the Capability of Blowing wet Snow and Slush. If Your Blades are Not Cleaning Properly or Giving no Forward/Propelling Assistance it is time for a NEW! Set of Rubber Rotor Blades. 38266 Rotor Blade/Paddle Kit Contains Two161-2171 Rubber Rotor Blades and Hardware. FOR INDIVIDAUL PARTS FOR KIT 38266 REFER TO THE ASSOCIATED PARTS CHART
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Power Lite Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 38266 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

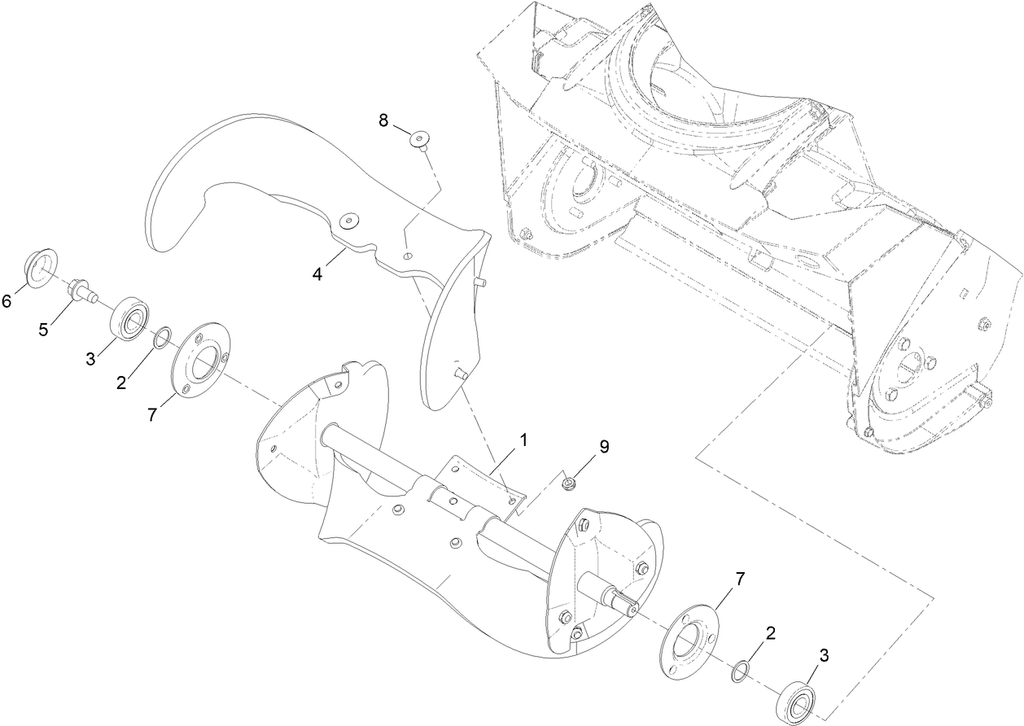

38266 KIT - INDIVIDUAL PARTS LIST - ROTOR BLADE & HARDWARE



1. 161-2171 - RUBBER ROTOR BLADES (Rubber Rotor Blades are Fastened to the Rotor Shaft Weldment Rotor Ears and Brackets that is Welded or Manufactured to the Main Rotor Shaft - it is Always recommended to Use the Correct Shoulder Counter Sinking Screws to Fasten the Rubber Rotor Blades to Protect Against Over-Tightening and Eliminating Damage to the Rubber Rotor Blades) x1 Per Snowblower
2. 136-7182 - SHOULDER COUNTER SUNK SCREW (Retains the Rubber Rotor Blades to the Rotor Shaft Weldment Rotor Ears and Brackets that is Welded or Manufactured to the Main Rotor Shaft - Protects Against Over-Tightening and Eliminates Deforming and Causing Damage to the Rubber Rotor Blades) x6 Per Rubber Rotor Blade - 12 for Complete Rotor Shaft Assembly and Components
3. 3296-56 - LOCK NUT (Retains 136-7182 Screw and their Components) x6 Per Rubber Rotor Blade - 12 for Complete Rotor Shaft Assembly and Components
