Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 38205

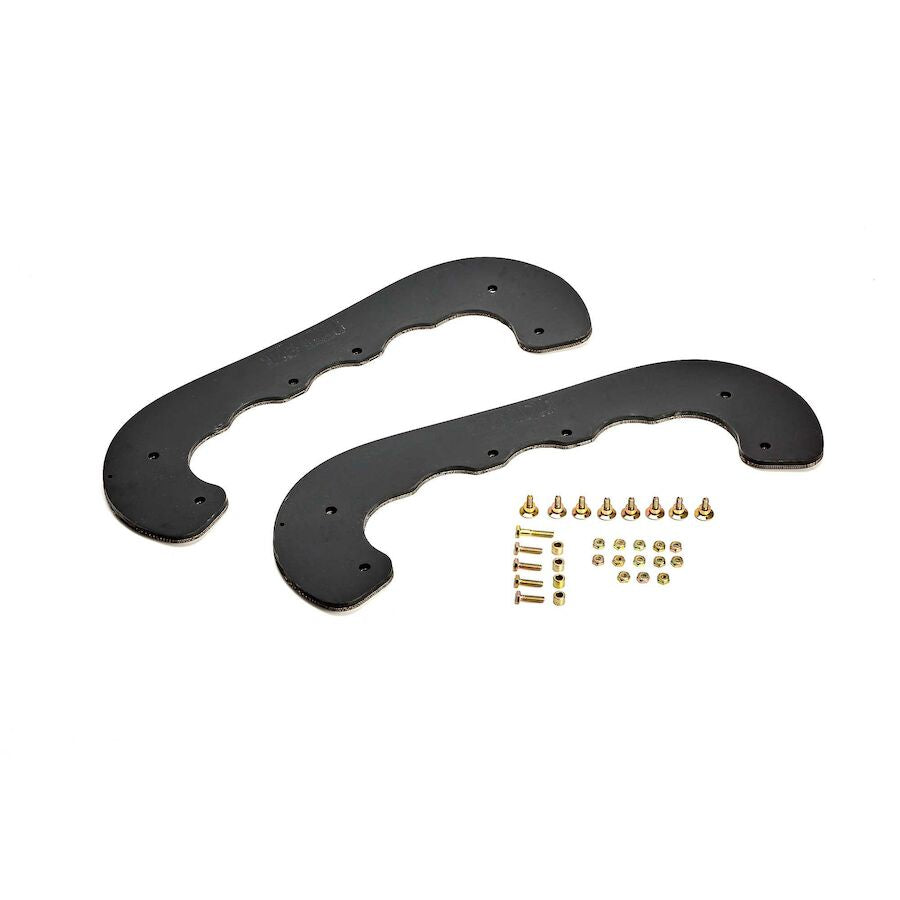

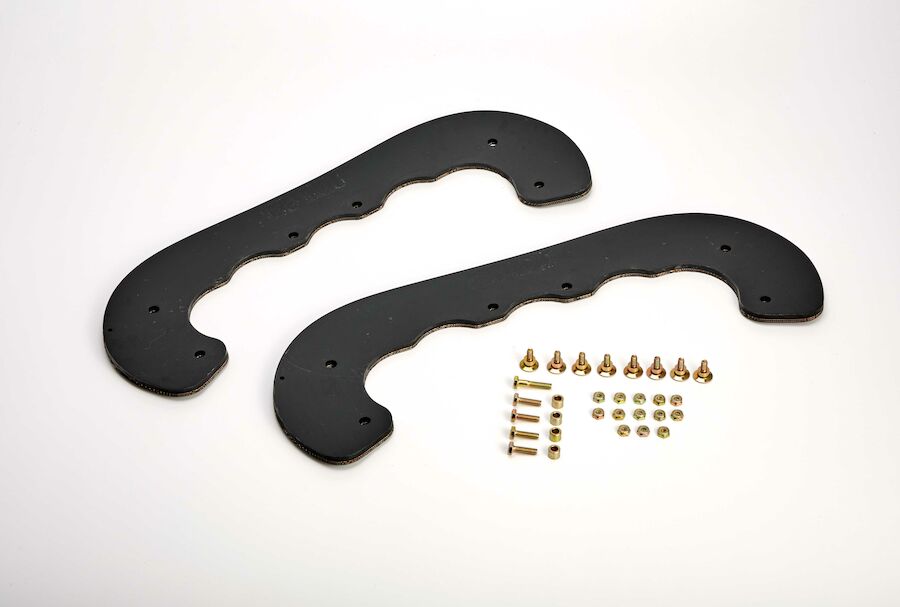

- PRODUCT TYPE: Replaceable Extended Wear Rubber Rotor Blade Kit - *Comes with Two Rubber Blades & Hardware
- SIZE: NA
- NOTES & DETAILS: Toro OEM 38205 kit Contains Two Rubber Rotor Blades 161-2172 & Hardware - Individual Parts as well as Description of their Individual Usages are Listed Below in the Associated Parts Chart - 161-2172 Rubber Rotor Blades is Assembled to the Rotor Shaft Using a Two Piece - Half Rotor Clamping Brackets that Is Designed To Clamp Over the Rotor Shaft as well as Clamping Both Rubber Rotor Blades Between The Half Rotor Clamping Brackets - Toro Rubber Rotor Blades Are Made with a High Quality of Rubber Allowing for them To Run against a Hard Surface without Causing Damage to Paved or Cement Driveways as well as Helping Propel the Complete Snowblower Unit Forward when the Auger is Engaged. The Friction Design of 161-2172 Rubber Rotor Blades Also Allows for a Cleaner Snow Cleanup as well as Enhancing the Capability of Blowing wet Snow and Slush. If Your Blades are Not Cleaning Properly or Giving no Forward/Propelling Assistance it is time for a NEW! Set of Rubber Rotor Blades. 38205 Rotor Blade/Paddle Kit Contains 161-2172 Rubber Rotor Blades that are EXTENDED LIFE - Made Thicker than Standard 21" Rotor Blades and Contains Different Hardware as well - All 21" Models that don't come with EXTENDED LIFE Rotor Blades can be updated using Kit Part Number 38205. FOR INDIVIDAUL PARTS FOR KIT 38205 REFER TO THE ASSOCIATED PARTS CHART
- COMMON SERIES APPLICATIONS: Toro Select 21" Quick Clear, Power Clear, E Power Clear & Older CCR Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
Models with Factory Installed
POWER CLEAR Series – Model Numbers – (* Model Numbers 38751, 38754, 38755)
E POWER CLEAR Series – Model Numbers – (* Model Numbers 39922T)
Models with Optional Upgrade –
*Initial Upgrade Requires Kit (Rotor Blades & Hardware) Part Number 38205
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38752, 38753, 38756, 38757)
E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T)
CCR Series – Model Numbers – (* Model Numbers 38180, 38181, 38185, 38186, 38409, 38410, 38411, 38412, 38413, 38414, 38415, 38416, 38417, 38418, 38419, 38420, 38421, 38422, 38423, 38424, 38425, 38426, 38427, 38428, 38429, 38430, 38431, 38432, 38433, 38435, 38436, 38437, 38438, 38439, 38440, 38441, 38442, 38445, 38515, 38516, 38517, 38518, 38535, 38536, 38537, 38538
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 28226, 33005, 33006, 34001, 34002)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 38205 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

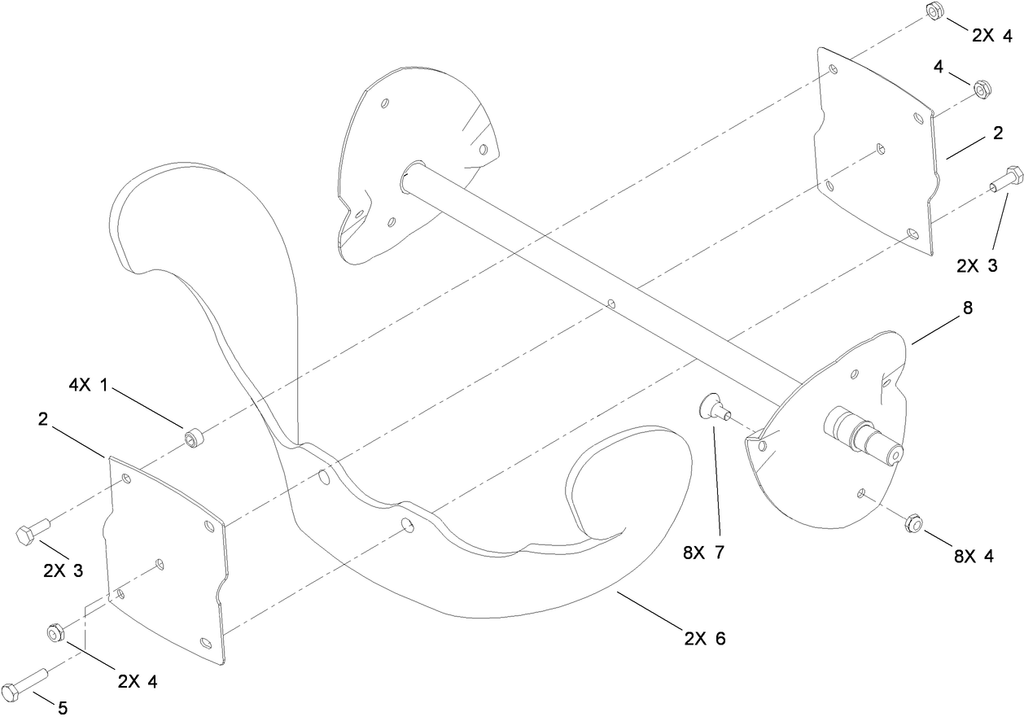

38205 KIT - INDIVIDUAL PARTS LIST - ROTOR BLADE & HARDWARE

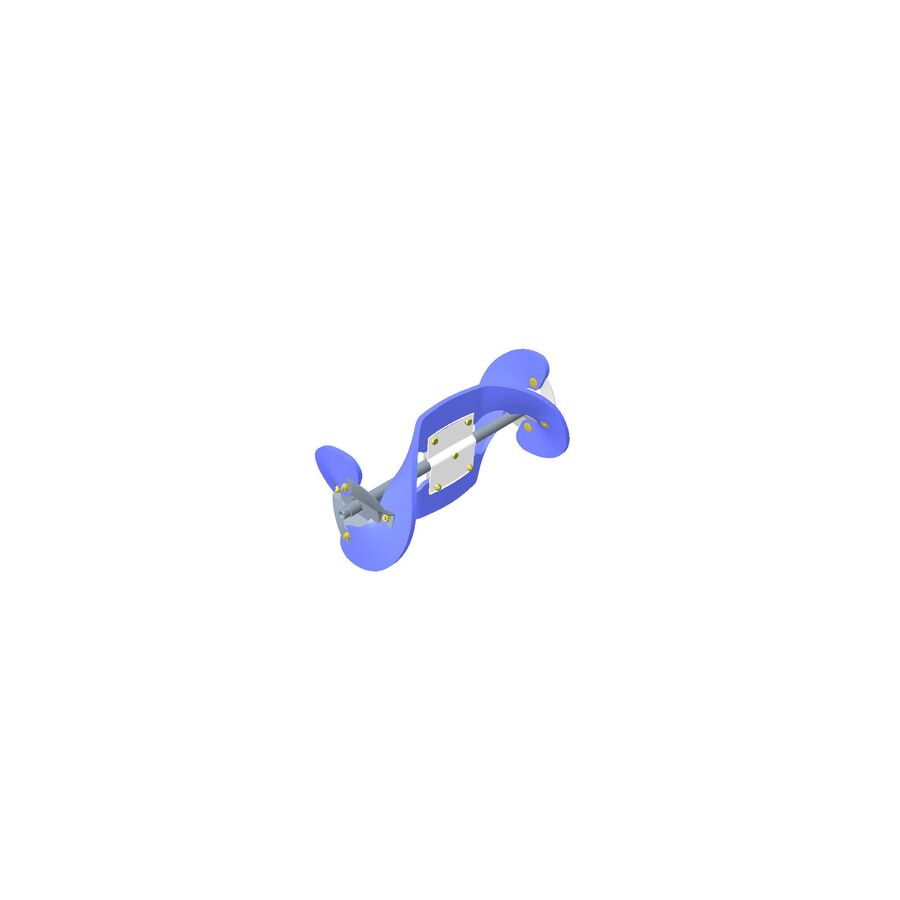

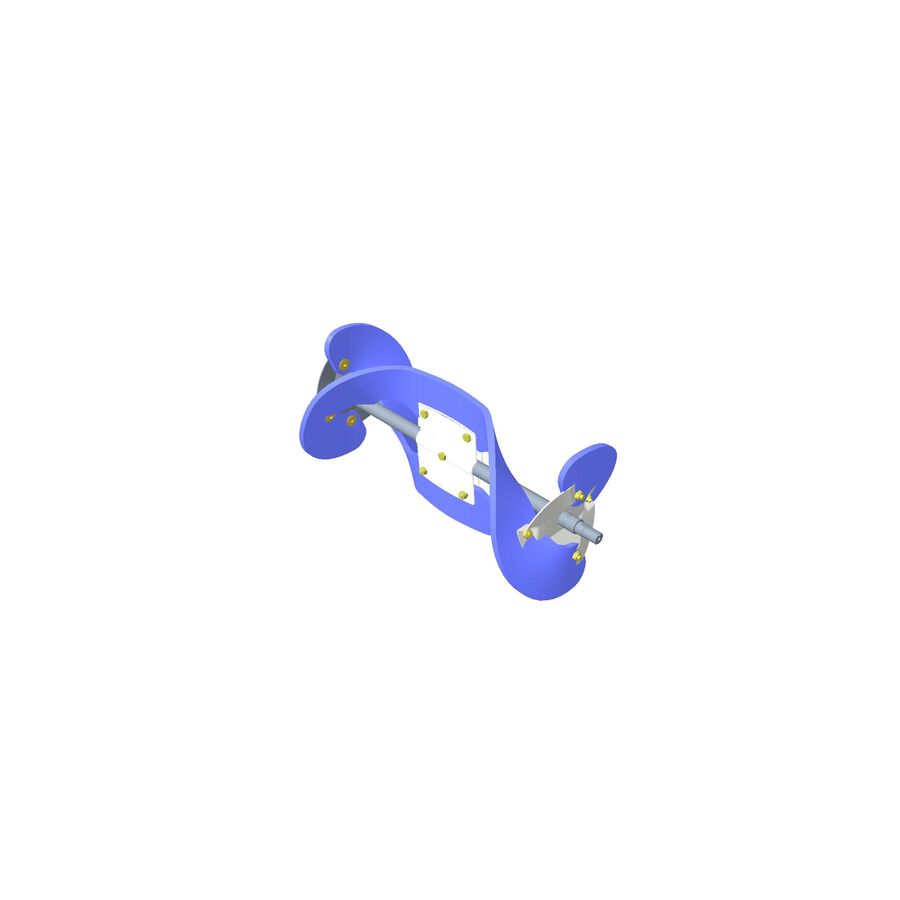

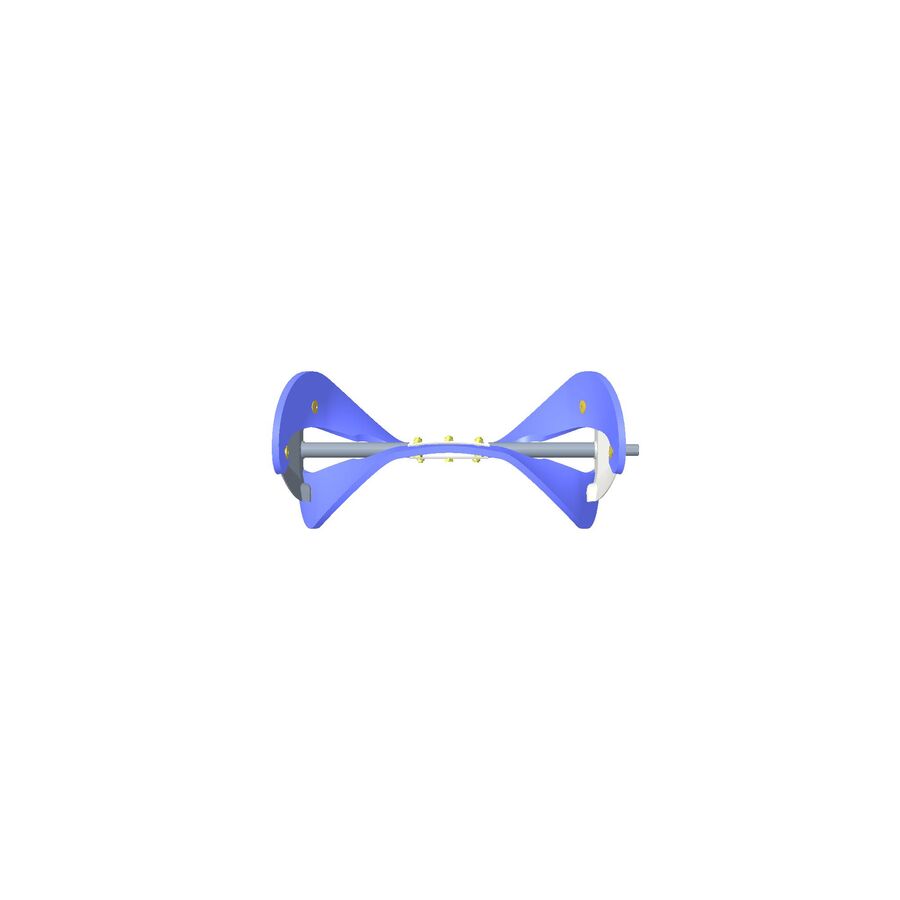

- 161-2172 - INDIVIDUAL REPLACEABLE RUBBER ROTORS (Toro 161-2172 Rotor Blades Are Made with High Quality of Rubber and are Assembled to the Rotor Shaft Using a Two Piece - Half Rotor Clamping Brackets that Is Designed to Clamp Over the Rotor Shaft as well as Clamping Both Rubber Rotor Blades Between the Half Rotor Clamping Brackets) x2 Per Snowblower
- 66-6600-03 - HALF ROTOR CLAMPING BRACKESTS (Retains the Rubber Rotor Paddle Between the Two Halves or Two-Piece Rotor Clamping Bracket - Both of the two Halves are Designed to Clamp over the Auger Shaft. To Ensure that they are Not Overtightened and lose their Correct Form it Necessary to Use the Correct Spacer Between the Two Halves) x2 Per Snowblower
- 136-7167 - SPACER (Installed Between the Two Half Rotor Clamping Brackets and through the Two Holes in Each of the Rubber Rotor Blades - Protect Against Over-Tightening and Eliminates Deforming the Half Rotor Clamping Brackets and Causing Damage to the Rubber Rotor Blades) x4 Per Snowblower Unit - x2 Per Rubber Rotor Blade
- 321-5 - HEX HEAD BOLT (Inserts Through the Half Rotor Clamping Bracket, Half Rotor Clamping Brackets Spacer and Rubber Rotor Blades - Clamps them Together to the Rotor Shaft - Important to Use Correct Spacer Size to Eliminates of Tightening Which Could Deform the Half Rotor Clamping Bracket and Cause Damage to the Rubber Rotor Blade) x4 Per Half Rotor Clamping Brackets
- 321-8 - HEX HEAD BOLT (Inserts Through the Half Rotor Clamping Bracket, Half Rotor Clamping Brackets Spacer, Rubber Rotor Blades and Rotor Shaft - Because it Travels through the Rotor Shaft it Eliminates the Assembly from Turning without the Rotation of the Rotor Shaft as well Keeping the Components at their Proper Alignment) x1 Per Half Rotor Clamping Brackets
- 125-1122 - SHOULDER COUNTER SUNK SCREW (Retains the Rubber Rotor Blades to the Rotor Shaft Weldment Rotor Ears that is Welded or Manufactured to the Main Rotor Shaft) x8 Per Rotor Shaft Assembly - x4 Per Rubber Rotor Blade
- 3296-56 - LOCK NUT (Retains Bolt 321-5, 321-8, 125-1122 and their Components) x5 Per Half Rotor Clamping Brackets OR x8 Per Rotor Shaft Assembly - x4 Per Rubber Rotor Blade = 13 for Complete Rotor Shaft Assembly and Components
