Description

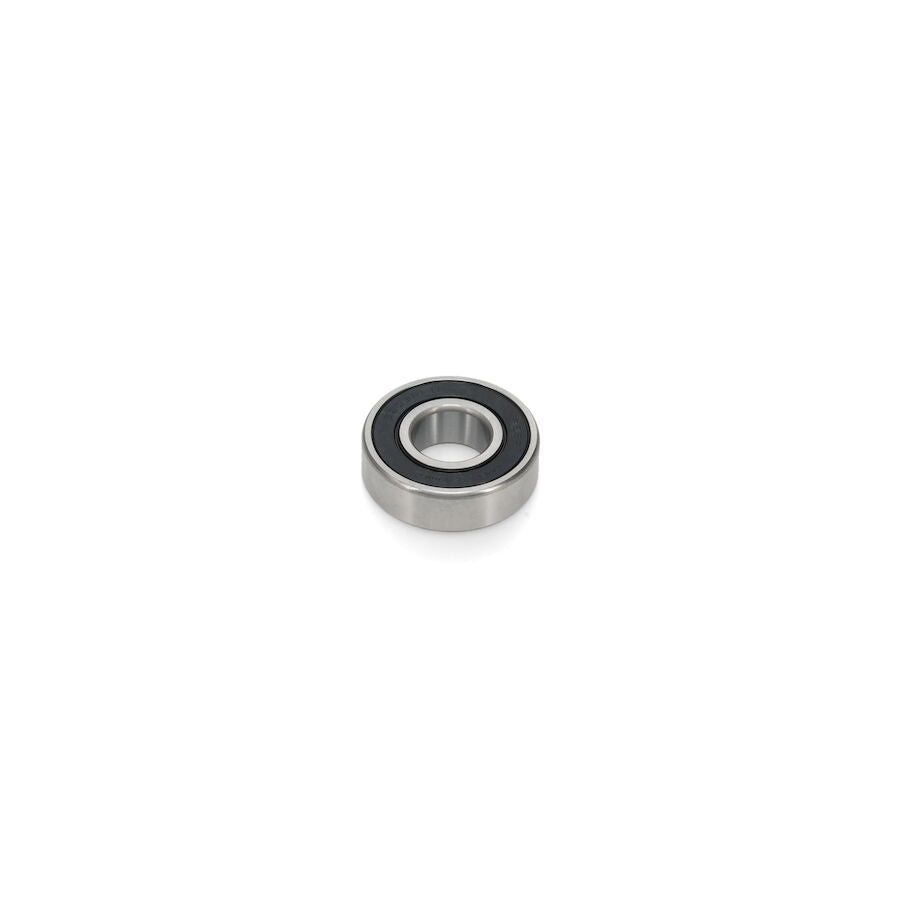

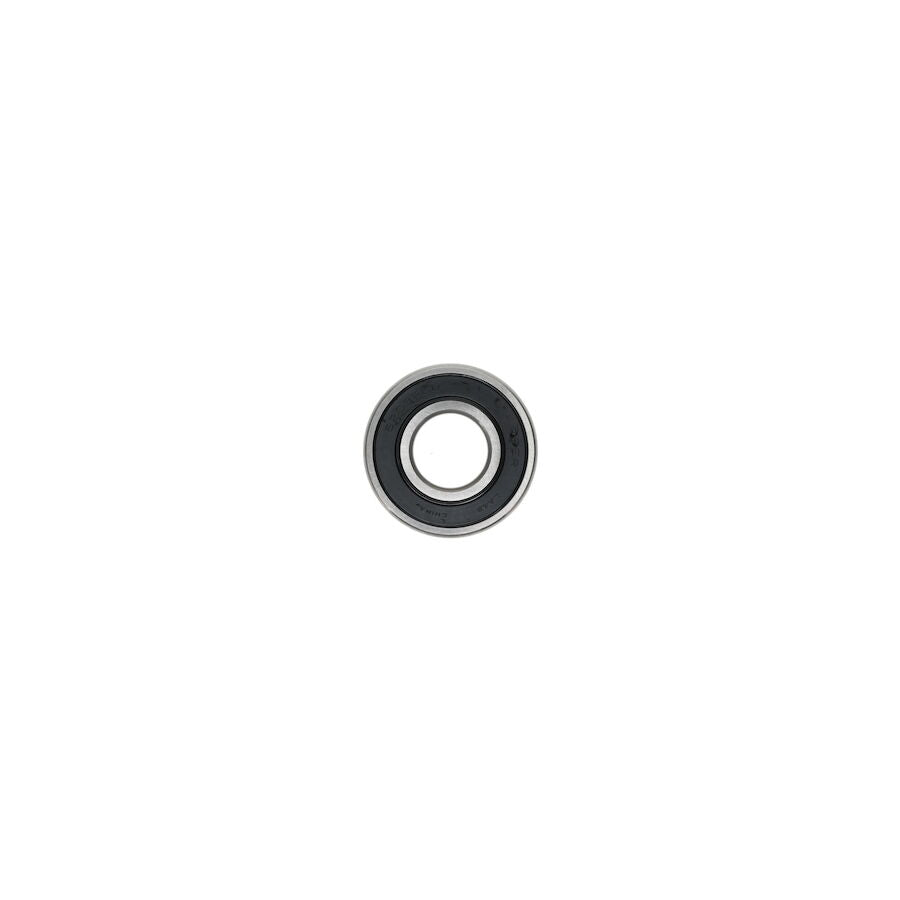

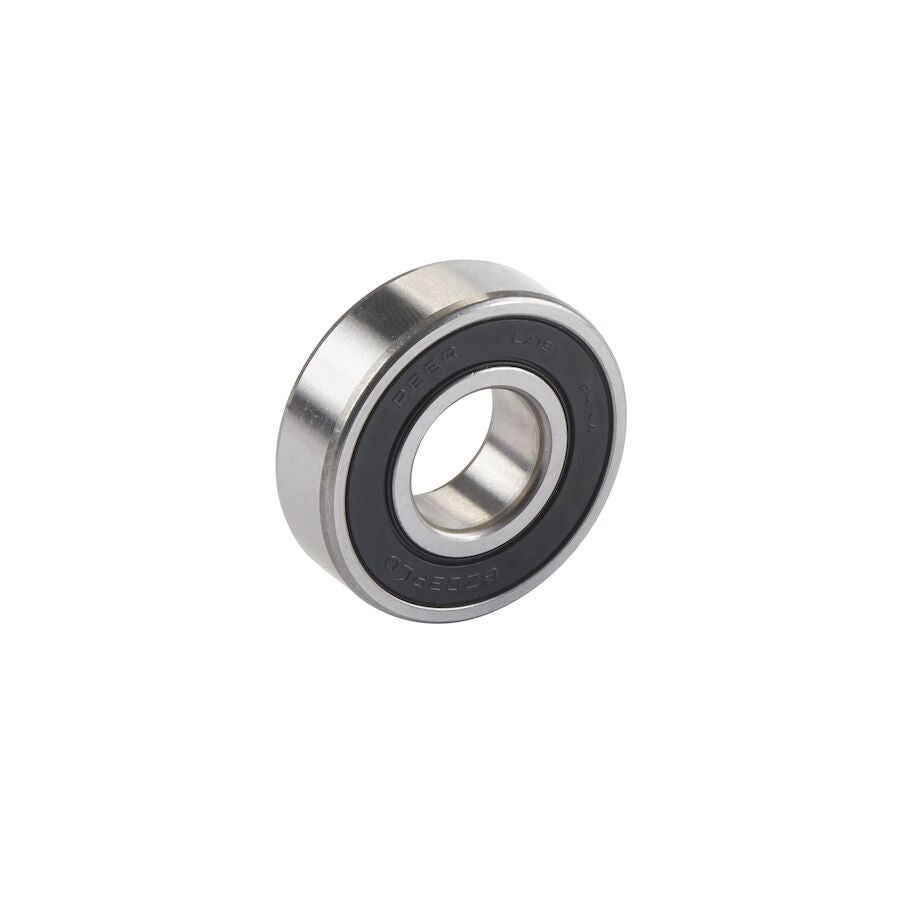

The Superior OEM Toro 38 7820 Roller Bearing contains high Quality Allow Roler Bearings built to withstand high impact scenario. The Toro OEM 38 7820 is One of Toro's Most Common Bearings and is made with precise sizing allowing it to fit snuggly inside the Cast Aluminum Spindle Assemblies, Gearbox Casings and Many Other Applications on a Wide Range of Toro Equipment. For an Accurate Breakdown of Usage of Models Using Bearing Part Number 38-7820 In Spindle Assembly 139-3214 & 121-9107 Refer to the Usage Chart Below. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers 100-1048, 251-277, 251-5, 61-8780, 73-5850 and 108-3765 Supersede to Part Number 38-7820.
Note: Bearing Part Numbers 38-7820 (Peer Brand) and 138-9770 (Timco Brand) do have the same Bearing size. Toro is Currently Installing Timco Bearing 138-9770 in all Spindle Assemblies. If you are Replacing Spindle Assembly Bearing either would work upon Preference However Factory Recommendation Would Be 138-9770.
Specification
|
Product Number: |
1001048, 251277, 2515, 618780, 735850, 1083765, 387820 |
|
Brand: |
Toro |
|
Length: |
1.500 IN (3.810 CM) |
|
Width: |
1.500 IN (3.810 CM) |
|
Height: |
|
|
Weight: |
0.150 LB (0.068 KG) |
Model Fit:

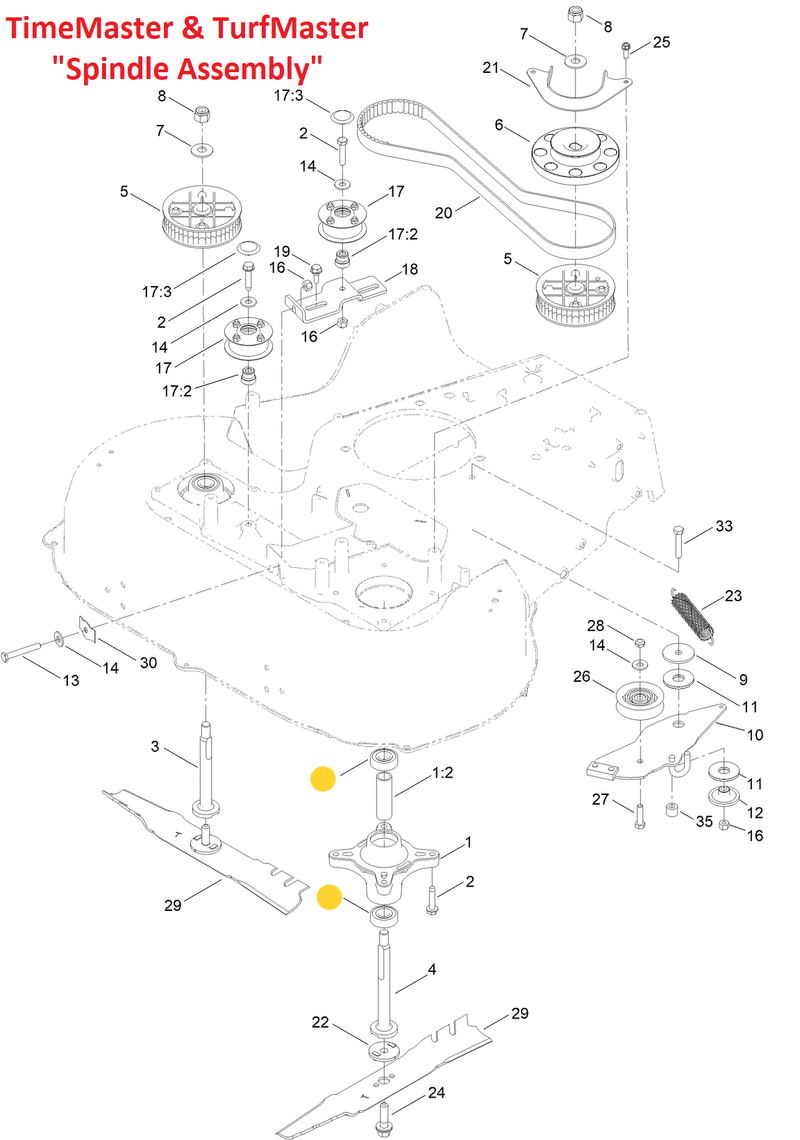

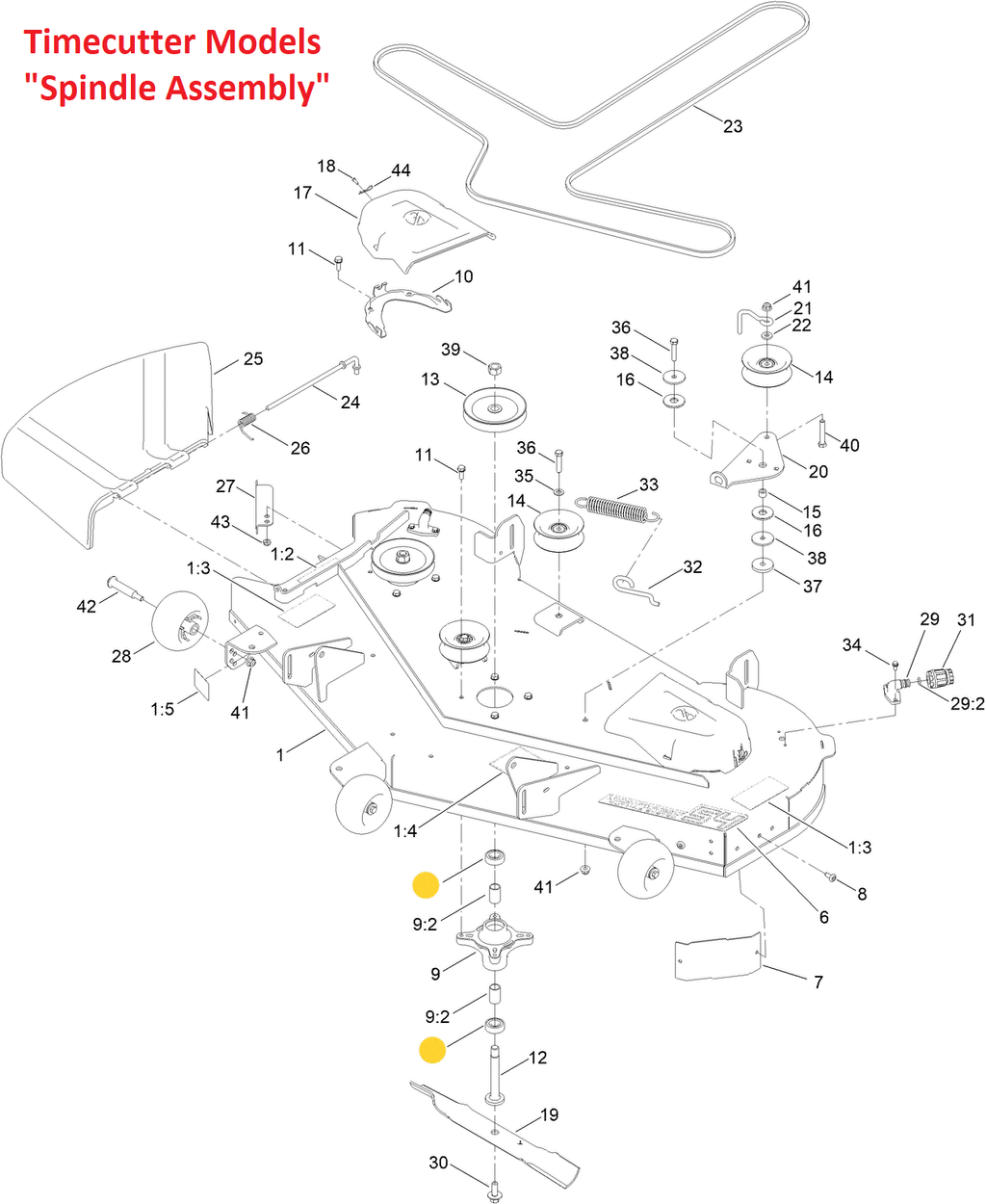

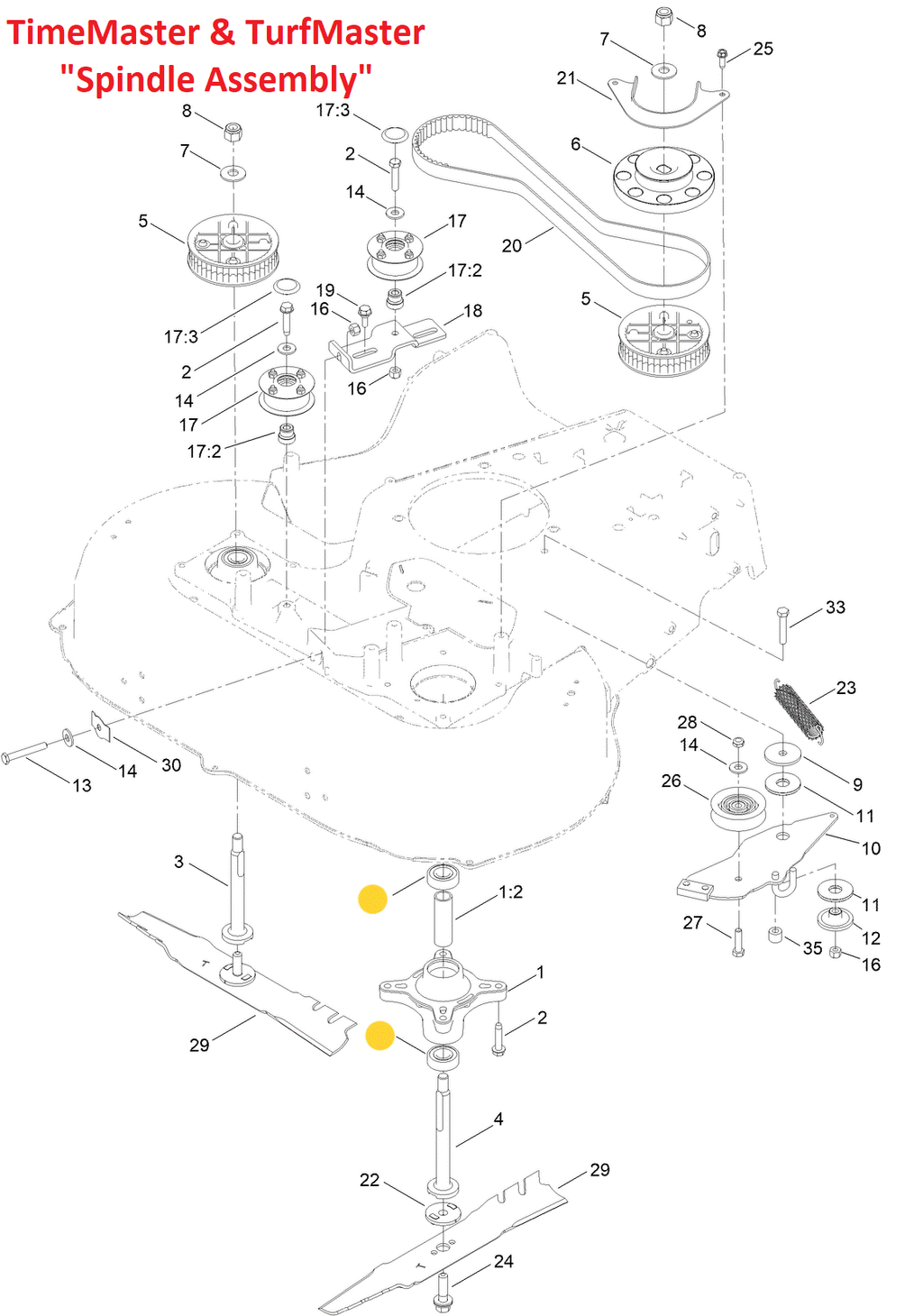

COMMON 38-7820 USAGE WITH MODELS USING SPINDLE ASSEMBLY 139-3214
TIMECUTTER 34” MX Series – Model Numbers – 74750
TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788
TIMECUTTER 42” SWX Series – Model Numbers – 74787
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687
TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766, 74649, 74690, 74691
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740
TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404
TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747
TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74661, 74395, 74688
TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774
TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732
TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790
TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795
TIMECUTTER 50” 5000 Series – Model Numbers – 75751
TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753
TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759
TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505
TIMECUTTER MAX 50” (My-Ride) Series – Model Numbers – 77502
TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741
TIMECUTTER 54” SW Series – Model Numbers – 74793
TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757
TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506
TIMECUTTER MAX 54” (My-Ride) Series – Model Numbers – 77503, 77507
TIMECUTTER 60” MX Series – Model Numbers – 74777
TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762
TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604
TIMECUTTER MAX 60” (My-Ride) Series – Model Numbers – 77602, 77603
TITAN 50” ZX Series – Model Numbers - 74840
E-Z VAC BLOWER & BAGGER BLOWER ASS. MODELS – Model Numbers – 79345
2657, 3410, 3430, 3603, 3810, 3811, 4018, 4021, 4022, 4030, 4031, 4034, 4035, 4036, 4037, 4038, 4039, 4040, 4041, 4042, 4043, 4044, 4045, 4046, 4048, 4049, 4050, 4051, 4052, 4053, 4054, 4055, 4056, 4060, 4456, 4485, 4490, 4810, 4820, 4830, 4840, 4850, 4860, 7252, 7253, 7264, 7266, 7273, 7277, 7279, 7280, 7288, 7299, 7359, 8703, 8743, 10201, 10202, 10210, 10211, 10227, 10301, 10302, 10304, 10305, 10307, 10309, 10310, 10311, 10312, 10313, 10314, 10316, 10317, 10318, 10319, 10320, 10321, 10323, 10324, 10327, 10328, 10329, 10330, 10331, 10332, 10334, 10335, 10342, 10343, 10344, 10345, 10415, 10416, 10418, 10420, 10421, 10422, 10500, 10502, 10515, 10516, 10517, 10518, 10519, 10520, 10521, 10522, 10523, 10524, 10525, 10527, 10528, 10533, 10545, 10546, 10547, 10548, 10651, 10910, 10915, 10924, 10925, 10926, 10927, 10928, 10929, 11001, 11003, 12003, 12004, 17740, 20011, 20020, 20021, 20022, 20023, 20025, 20027, 20028, 20029, 20040, 20042, 20043, 20044, 20045, 20046, 20060, 20061, 20106, 20107, 20199, 20200, 20210, 20211, 20214, 20216, 20218, 20219, 20320, 20321, 20322, 20324, 20325, 20333, 20373, 20383, 20432, 20434, 20436, 20437, 20438, 20439, 20442, 20444, 20448, 20452, 20454, 20457, 20458, 20462, 20463, 20464, 20465, 20466, 20470, 20472, 20473, 20474, 20475, 20476, 20478, 20479, 20480, 20481, 20482, 20483, 20486, 20487, 20488, 20489, 20490, 20494, 20495, 20611, 20620, 20622, 20624, 20631, 20632, 20651, 20652, 20653, 20666, 20667, 20668, 20671, 20672, 20675, 20676, 20677, 20680, 20684, 20692, 20695, 20705, 20710, 20711, 20714, 20715, 20716, 20718, 20747, 20767, 20768, 20773, 20776, 20777, 20778, 20779, 20786, 20787, 20789, 20791, 20808, 20809, 20810, 20811, 20813, 20821, 20822, 20823, 20824, 20826, 20827, 20914, 20958, 21199, 21200, 21383, 21389, 21463, 21563, 21764, 21772, 22042, 22210, 22241, 22261, 22280, 22285, 22293, 22296, 22298, 22303, 22336, 22685, 23741, 26621, 26622, 26623, 26624, 26626, 26632, 26633, 26636, 26637, 26638, 26639, 26641, 26642, 26643, 26651, 26680, 26682, 26683, 27500, 27501, 27502, 28220, 28221, 28222, 28223, 28226, 28230, 28231, 30223, 30224, 30357, 30401, 30402, 30450, 30455, 30502, 30503, 30506, 30555, 30557, 30558, 30561, 30576, 30626, 30627, 30630, 30631, 30718, 30739, 30741, 30751, 30754, 30775, 30782, 30788, 30790, 30793, 30794, 30795, 30798, 30823, 30855, 31860, 31875, 36001, 36002, 36003, 37779, 37780, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38010, 38015, 38035, 38051, 38052, 38054, 38056, 38062, 38063, 38064, 38072, 38073, 38079, 38087, 38116, 38120, 38130, 38162, 38165, 38170, 38171, 38172, 38173, 38175, 38176, 38177, 38178, 38180, 38181, 38182, 38183, 38185, 38186, 38190, 38191, 38195, 38196, 38225, 38232, 38235, 38242, 38250, 38252, 38274, 38303, 38361, 38381, 38400, 38405, 38409, 38410, 38411, 38412, 38413, 38414, 38415, 38416, 38417, 38418, 38419, 38420, 38421, 38422, 38423, 38424, 38425, 38426, 38427, 38428, 38429, 38430, 38431, 38432, 38433, 38435, 38436, 38437, 38438, 38439, 38440, 38441, 38442, 38445, 38472, 38473, 38474, 38475, 38500, 38505, 38510, 38513, 38520, 38525, 38540, 38542, 38543, 38545, 38546, 38547, 38555, 38556, 38558, 38559, 38560, 38563, 38565, 38566, 38568, 38570, 38573, 38574, 38580, 38590, 38591, 38592, 38600, 38602, 38701, 38711, 38712, 38720, 38721, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757, 38812, 38814, 38815, 38819, 38830, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865, 39901, 39902, 39914, 39915, 39921, 39924, 39925, 39926, 56123, 56125, 56127, 56128, 56132, 56133, 57300, 57354, 57356, 57357, 57358, 57360, 57365, 57400, 57410, 57420, 57430, 59147, 59160, 70040, 70041, 70044, 70060, 70122, 71180, 71181, 71184, 71185, 71190, 71191, 71193, 71198, 71202, 71203, 71205, 71208, 71212, 71213, 71215, 71217, 71219, 71220, 71221, 71223, 71225, 71226, 71227, 71228, 71240, 71241, 71242, 73470, 73471, 73540, 73541, 73542, 73570, 74350, 74655, 74657, 74661, 74675, 74680, 74720, 74721, 74722, 74723, 74725, 74730, 74731, 74732, 74741, 74750, 74760, 74765, 74766, 74770, 74771, 74775, 74776, 74777, 74784, 74785, 74787, 74790, 74793, 74795, 77102, 77104, 77106, 78455, 78456, 78498, 78507, 78525, 78526, 78527, 78574, 78575, 78576, 79105, 79106, 79107, 79108, 79345, 79402, 79430, 79431, 79432, 79433, 80040, 81180, 81181, 81182, 81191
10323, 10324, 10356, 10357, 10358, 10360, 10361, 10362, 10363, 10367, 10550, 10551, 10552, 10605, 10625, 10655, 10656, 10658, 10672, 10673, 10682, 10684, 10685, 10686, 10687, 10695, 10696, 10697, 10797, 10927, 10995, 10997, 20001, 20003, 20005, 20007, 20012, 20013, 20014, 20016, 20017, 20018, 20019, 20025, 20027, 20031, 20035, 20036, 20037, 20038, 20039, 20040, 20041, 20042, 20043, 20045, 20046, 20047, 20048, 20049, 20051, 20054, 20055, 20056, 20057, 20058, 20062, 20064, 20065, 20066, 20067, 20068, 20069, 20070, 20071, 20072, 20073, 20074, 20075, 20076, 20079, 20086, 20087, 20089, 20091, 20092, 20093, 20094, 20095, 20096, 20098, 20099, 20110, 20111, 20112, 20113, 20194, 20197, 20333, 20373, 20376, 20383, 20487, 20652, 20654, 20655, 20656, 20658, 20779, 20781, 20783, 20784, 20789, 20791, 20792, 20793, 20794, 20795, 20796, 20817, 20819, 20828, 20829, 20831, 20832, 20833, 20897, 20958, 20976, 20978, 20997, 21200, 22157, 22164, 22168, 22177, 22178, 22188, 22189, 22191, 22192, 22194, 22196, 22198, 22210, 22243, 22261, 22293, 22298, 26634, 33005, 33006, 34001, 34002, 36001, 36002, 36003, 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 38026, 38087, 38172, 38173, 38182, 38183, 38272, 38273, 38282, 38283, 38302, 38360, 38361, 38365, 38371, 38375, 38381, 38451, 38452, 38453, 38454, 38458, 38459, 38472, 38473, 38515, 38516, 38517, 38518, 38535, 38536, 38537, 38538, 38559, 38560, 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38592, 38593, 38600, 38601, 38602, 38603, 38605, 38606, 38607, 38608, 38610, 38611, 38620, 38621, 38632, 38635, 38642, 38645, 38652, 38710, 38711, 38712, 38741, 38742, 38743, 38744, 38751, 38810, 38811, 38813, 38816, 38817, 38818, 71223, 71226, 71227, 71228, 71242, 71243, 71245, 71246, 71252, 71254, 71255, 71427, 71428, 71429, 74301, 74325, 74327, 74330, 74350, 74351, 74352, 74353, 74360, 74363, 74365, 74366, 74370, 74372, 74373, 74374, 74375, 74376, 74380, 74381, 74386, 74387, 74389, 74390, 74391, 74395, 74398, 74399, 74401, 74402, 74403, 74405, 74406, 74407, 74419, 74420, 74425, 74432, 74433, 74570, 74571, 74573, 74582, 74585, 74590, 74591, 74592, 74593, 74596, 74602, 74603, 74616, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74630, 74631, 74632, 74633, 74635, 74636, 74637, 74638, 74640, 74641, 74642, 74643, 74655, 74656, 74660, 74675, 74680, 74702, 74704, 74720, 74721, 74723, 74730, 74731, 74740, 74750, 74760, 74770, 74784, 74785, 74787, 74790, 74793, 74797, 74798, 74802, 74806, 74812, 74814, 74820, 74840, 79109, 79110, 81228, 81229, 81230, 81235, 81240, 81242, 81243, 81245, 81246, 81250, 81270, 81271, 94301, 94327, 94330, 94351, 94352, 94360, 94370, 94372, 94375, 94603, 94802, 94806
