Description

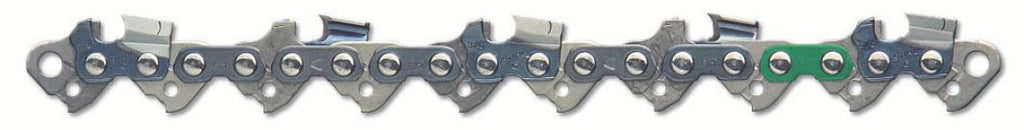

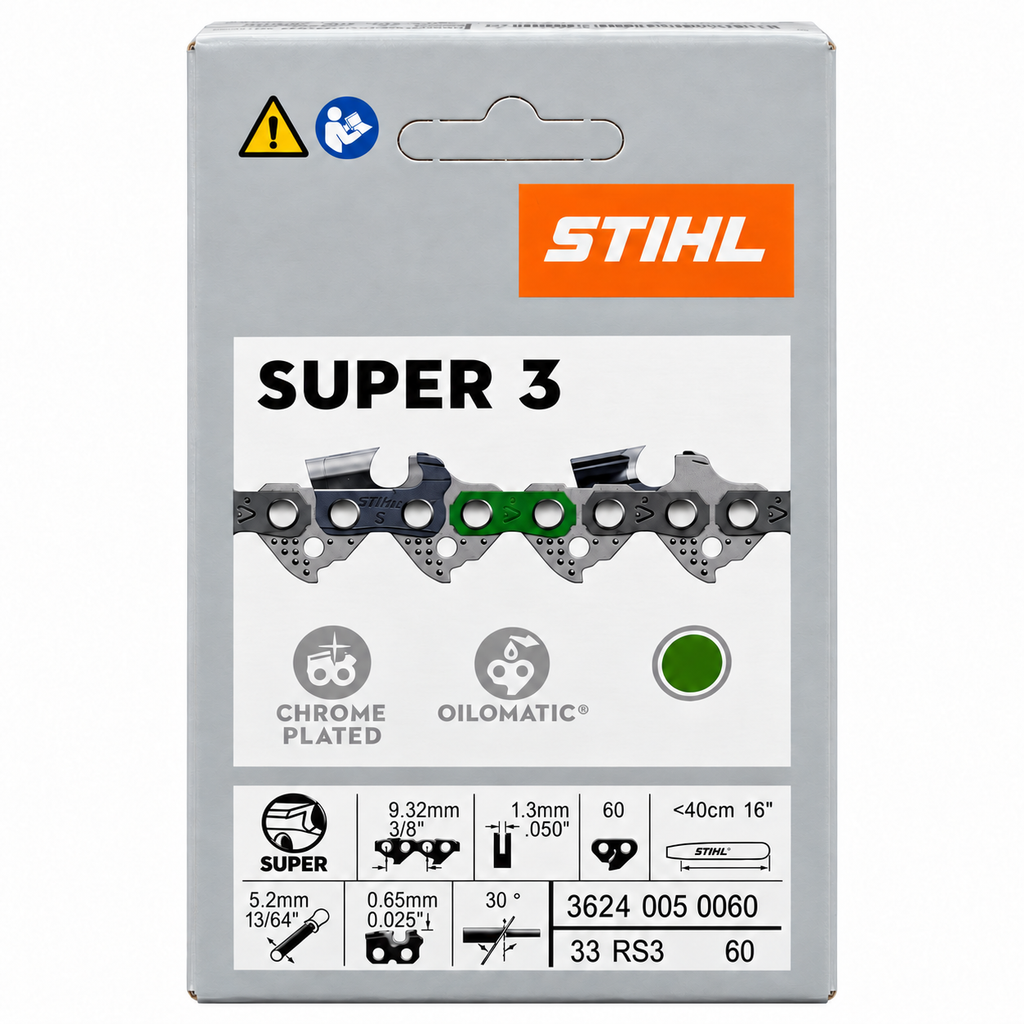

STIHL OEM 3624 005 0060 33 RS3 RAPID™ Super 3 Chainsaw Chain – 16", 3/8" Pitch, .050" Gauge, 60 Drive Links – Full-Chisel
Experience fast, aggressive cutting performance with improved kickback protection using the STIHL 33 RS3 RAPID™ Super 3 Chainsaw Chain. Genuine STIHL OEM part number 3624 005 0060 is a 16" full-chisel saw chain featuring 3/8" (.375") pitch, .050" (1.3 mm) gauge, and 60 drive links. Designed for medium- to high-powered chainsaws, RAPID Super 3 combines exceptional cutting speed with reduced-vibration and low-kickback design features.
The razor-edged, square-cornered full-chisel cutters deliver aggressive cutting performance and excellent efficiency in clean wood, hardwood, and frozen wood. Unlike standard STIHL RAPID Super chain, RAPID Super 3 features specially designed single-humped drive links that help reduce kickback tendency. Its engineered cutter and tie strap design also helps reduce vibration levels during cutting.
Manufactured in Switzerland, this genuine STIHL OEM chain incorporates STIHL's OILOMATIC® lubrication system and factory pre-stretched construction to help reduce chain wear and minimize excessive tension adjustments during break-in. RAPID Super 3 is an excellent choice for professional operators who want the cutting efficiency of a full-chisel chain with additional kickback-reduction features.
Chain fitment depends on the specifications of your guide bar and cutting system—not just the chainsaw model or bar length.
Always verify your current chain specifications:
- 16" (40 cm) Bar Length
- 3/8" (.375") Pitch
- .050" (1.3 mm) Gauge
- 60 Drive Links

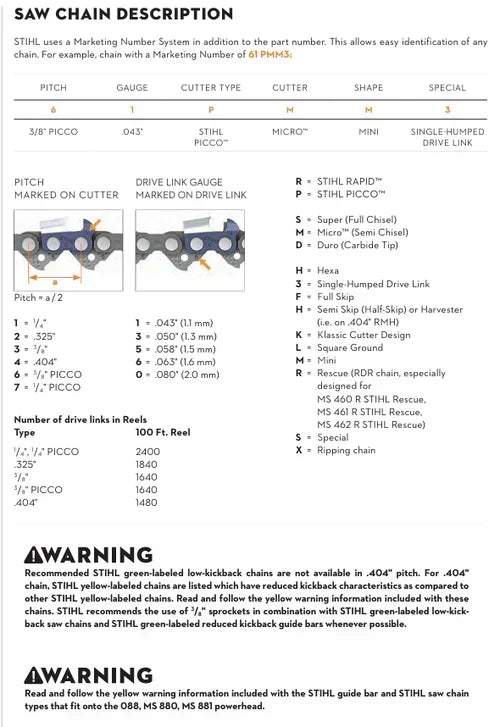

- STIHL 33 RS3 / RAPID Super 3
- Full-Chisel Cutter
- Standard Cutter Sequence
- Reduced-Kickback Drive Link Design
- Reduced-Vibration Features
Bar length alone does not guarantee compatibility. STIHL chainsaws may be equipped with different guide bars and cutting systems. Always verify the pitch, gauge, drive-link count, and guide bar specifications before ordering.
Reduced-Kickback Design: STIHL RAPID Super 3 features single-humped drive links designed to reduce kickback tendency compared with standard RAPID Super chain. However, reduced-kickback features do not eliminate the possibility of kickback or the risk of serious injury.
Kickback Safety: STIHL recommends using low-kickback, green-labeled saw chain with green-labeled reduced-kickback guide bars where appropriate for the powerhead and application. Always follow the chainsaw manufacturer's operating and safety instructions.
Important: This is a standard 3/8" pitch chain. Do not substitute 3/8" Low Profile (Picco), .325", or other pitch chains. The chain pitch must match the guide bar nose and drive sprocket, and the .050" gauge must match the guide bar groove.
If you're unsure, contact us with your STIHL model number, serial number, guide bar information, and current chain number, and we'll help verify the correct replacement before you order.
Product Features
- Genuine STIHL OEM replacement saw chain
- STIHL Part Number: 3624 005 0060
- STIHL 33 RS3 – RAPID™ Super 3 chain
- 16" chain with 60 drive links
- 3/8" (.375") pitch
- .050" (1.3 mm) gauge
- Aggressive full-chisel cutter design
- Razor-edged, square-cornered cutters provide exceptionally fast cutting performance
- Single-humped drive links help reduce kickback tendency
- Reduced-vibration cutter and tie strap design
- Combines aggressive cutting performance with additional safety-oriented design features
- Excellent cutting efficiency in clean wood
- Designed for professional forestry and demanding woodcutting applications
- Excellent bucking, felling, and limbing performance
- Suitable for professional plunge-cutting applications
- Performs well in clean hardwood and frozen wood
- Typically cuts faster than comparable STIHL RAPID Micro semi-chisel chain under suitable conditions
- Best performance in clean cutting conditions with limited dirt and abrasive material
- STIHL OILOMATIC® drive-link lubrication system
- Lubrication slots help direct oil toward the rivets and critical wear areas
- Factory pre-stretched to reduce excessive adjustment during break-in
- Professional-quality STIHL construction
- Swiss-made OEM STIHL saw chain
- Recommended sharpening file: 5.2 mm (13/64")
- Standard cutter sequence
- Sold as one complete chain loop
Specifications
- Brand: STIHL
- OEM Part Number: 3624 005 0060
- Chain Type: 33 RS3
- Chain Family: RAPID™ Super 3
- Product Type: Chainsaw Chain
- Package Quantity: 1 Chain
- Bar Length: 16" (40 cm)
- Pitch: 3/8" (.375")
- Gauge: .050" (1.3 mm)
- Drive Links: 60
- Cutter Type: Full-Chisel
- Cutter Sequence: Standard
- Profile: Professional Full-Chisel Chain
- Kickback Reduction: Yes – Single-Humped Drive Links
- Vibration Design: Reduced Vibration
- Recommended File Size: 5.2 mm (13/64")
- Recommended Saw Displacement: 3.0–6.0 cu. in. (50–100 cc)
- Lubrication System: STIHL OILOMATIC®
- Construction: Factory Pre-Stretched
- Country of Manufacture: Switzerland
- Recommended Applications: Professional Forestry, Felling, Bucking, Limbing, Plunge Cutting & Clean Woodcutting
What Makes STIHL RAPID Super 3 Different?

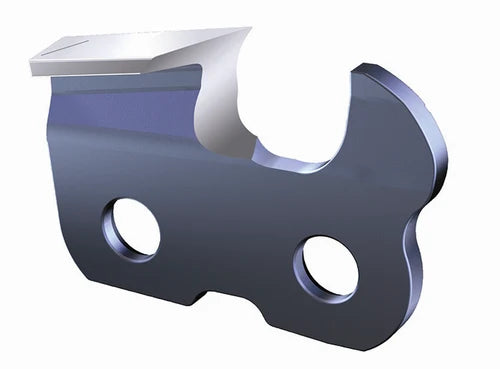

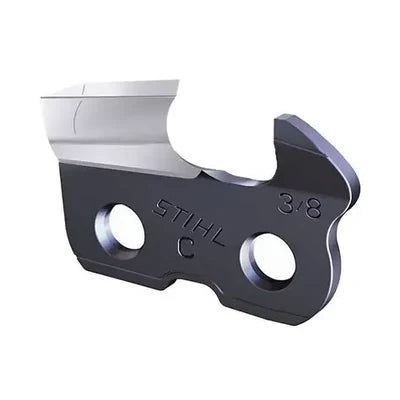

STIHL RAPID Super 3 combines the aggressive cutting characteristics of the standard RAPID Super chain with additional features designed to reduce kickback tendency and vibration. Its full-chisel cutter design features sharp, square-cornered cutting edges that efficiently remove wood fibers for fast, smooth cutting performance.
Single-Humped Drive Link Technology: Unlike standard RAPID Super chain, RS3 features specially designed single-humped drive links that help reduce kickback tendency during operation. This design provides an additional level of kickback protection while maintaining the cutting efficiency expected from a professional full-chisel chain.
Reduced-Vibration Design: STIHL's engineered cutter and tie strap construction helps reduce vibration levels during cutting, contributing to smoother operation and improved operator comfort during extended use.
Compared with STIHL RAPID Micro semi-chisel chain, RAPID Super 3 generally offers faster cutting performance under favorable conditions. However, the sharp full-chisel cutter corners are more sensitive to dirt, sand, and other abrasive materials, making proper sharpening and maintenance especially important.
For best performance, RAPID Super 3 should be used primarily in clean woodcutting conditions. Operators regularly cutting dirty wood, roots, or abrasive materials may benefit from a semi-chisel or carbide chain instead.

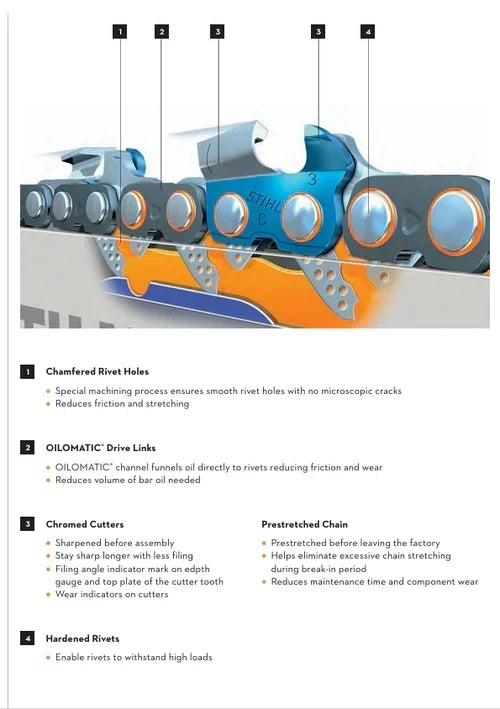

STIHL OILOMATIC® Lubrication System
STIHL RAPID Super 3 saw chain incorporates the OILOMATIC® lubricating system. Specially engineered lubrication slots in the drive links help channel bar oil toward the rivets and other critical wear areas while the chain is operating.
Directing lubrication to these high-wear areas helps reduce friction and wear, maximizes the effectiveness of the bar and chain oil, and contributes to longer service life.
The chain is also factory pre-stretched to help reduce excessive chain tension adjustments during the initial break-in period.
Fits Saw Systems Using These Chain Specifications
Required Chain Specifications: 16" Bar, 3/8" Pitch, .050" Gauge, 60 Drive Links
This chain is designed for compatible chainsaws equipped with a guide bar and drive sprocket system requiring 3/8" pitch, .050" (1.3 mm) gauge, and exactly 60 drive links.

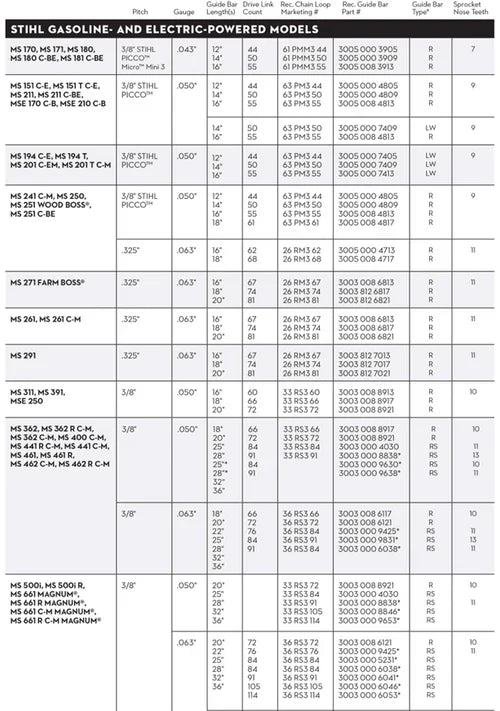

Recommended Saw Size: 036, 039, MS310, MS311, MS391

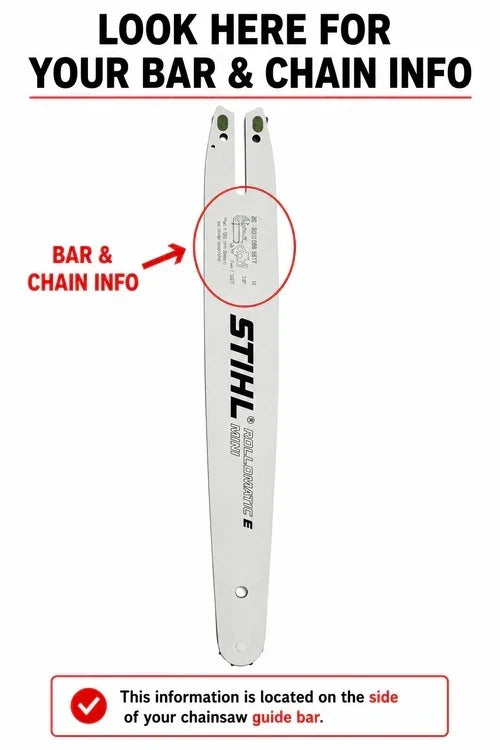

Important: Chainsaws may use different bar lengths, gauges, and drive-link counts depending on their configuration. Always verify the specifications stamped on your guide bar, compare them with your existing chain, and consult the chainsaw manufacturer's approved cutting attachment specifications before ordering.
Common Applications
- Professional forestry operations
- Commercial logging
- Tree felling
- Log bucking
- Tree limbing
- Professional tree removal
- Firewood production
- Hardwood cutting
- Frozen wood cutting
- Storm-damaged tree removal
- Land clearing
- Farm and acreage maintenance
- Professional plunge-cutting applications
- High-production woodcutting
- Clean cutting conditions where maximum cutting speed is desired
Frequently Purchased Together
- STIHL 16" guide bar for 3/8" pitch, .050" gauge chain – verify 60-drive-link requirement
- STIHL 5.2 mm (13/64") round sharpening file
- STIHL sharpening file holder
- STIHL depth gauge tool
- STIHL bar and chain oil
- Replacement 3/8" drive sprocket
- Guide bar groove cleaner
- STIHL chain sharpening kit
- Replacement air filter
- Replacement spark plug
Installation & Sharpening Tips
- Shut off the chainsaw and disconnect the spark plug or remove the battery before servicing the cutting attachment.
- Verify that your guide bar requires a 16" chain with 3/8" pitch, .050" gauge, and exactly 60 drive links.
- Do not select this chain based on 16" bar length alone. Pitch, gauge, and drive-link count must all match.
- Confirm that the guide bar groove is designed for .050" (1.3 mm) gauge drive links.
- Make sure the guide bar nose and drive sprocket are compatible with standard 3/8" pitch chain.
- Clean the guide bar groove and oil passages before installing the new chain.
- Inspect the guide bar and drive sprocket for excessive or uneven wear before installing a new chain.
- Install the chain with the cutting edges facing forward across the top of the guide bar.
- Make sure all 60 drive links are properly seated in the guide bar groove and sprocket.
- Adjust chain tension according to the STIHL operator's manual.
- Although the chain is factory pre-stretched, recheck chain tension after initial operation and periodically during use.
- Confirm that the OILOMATIC® lubrication system is receiving an adequate supply of clean bar and chain oil.
- Use a 5.2 mm (13/64") round file when hand-sharpening this chain.
- Maintain the proper sharpening angle, file position, and depth gauge settings according to STIHL's sharpening instructions.
- Keep cutter lengths consistent on both sides of the chain to maintain straight, smooth cutting.
- Full-chisel cutters are sensitive to dirt, sand, and abrasive materials. Avoid ground contact and clean contaminated wood whenever possible.
- Inspect cutters regularly for dullness, damage, or chipped cutting corners.
- Sharpen the chain promptly when cutting performance decreases or the saw begins producing fine sawdust instead of normal wood chips.
- Kickback Safety: The reduced-kickback drive link design helps lower kickback tendency but does not eliminate kickback hazards. Always use proper chainsaw handling techniques and approved personal protective equipment.
Why Choose STIHL RAPID Super 3 Chains?
STIHL RAPID™ Super 3 chains combine aggressive, fast-cutting full-chisel performance with reduced-vibration and low-kickback design features. The single-humped drive links help reduce kickback tendency, while STIHL's engineered cutter and tie strap design contributes to smoother operation and improved operator comfort.
Designed for demanding forestry, felling, bucking, limbing, and general professional woodcutting applications, RAPID Super 3 delivers excellent cutting efficiency without sacrificing the additional kickback-reduction features of the RS3 series. STIHL OEM 3624 005 0060 is the 33 RS3 configuration for cutting systems requiring a 16" bar, 3/8" pitch, .050" gauge, and 60 drive links.
