Description
Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 321-44, 321 44, 32144

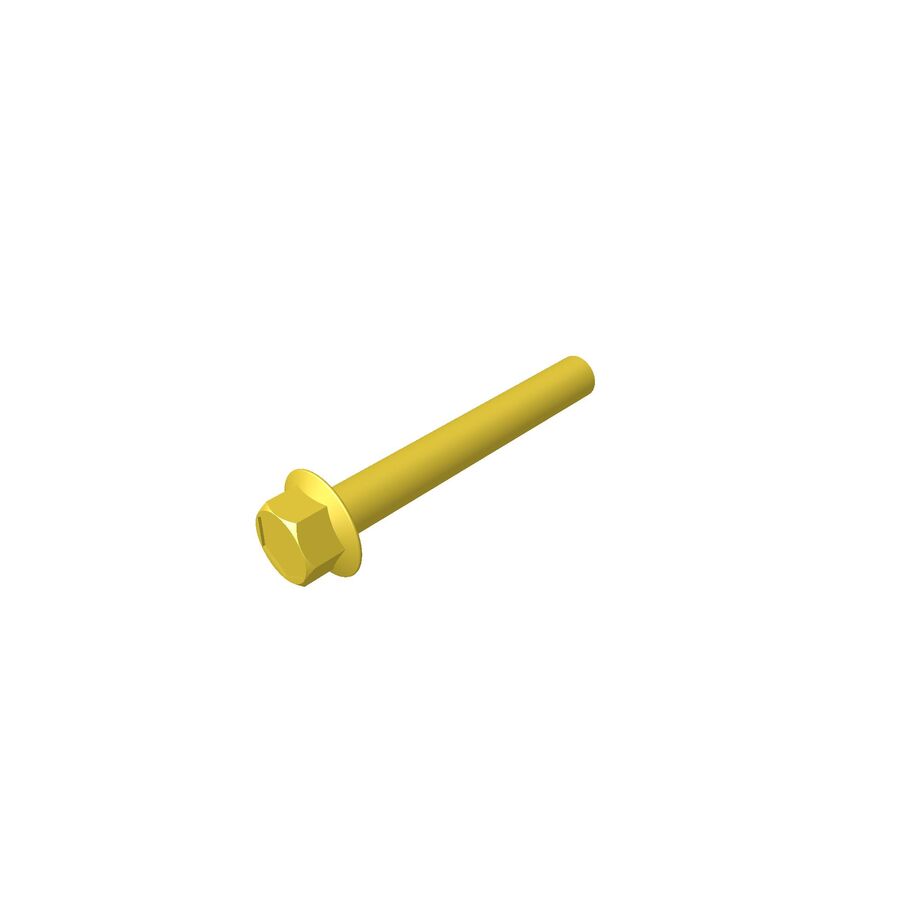

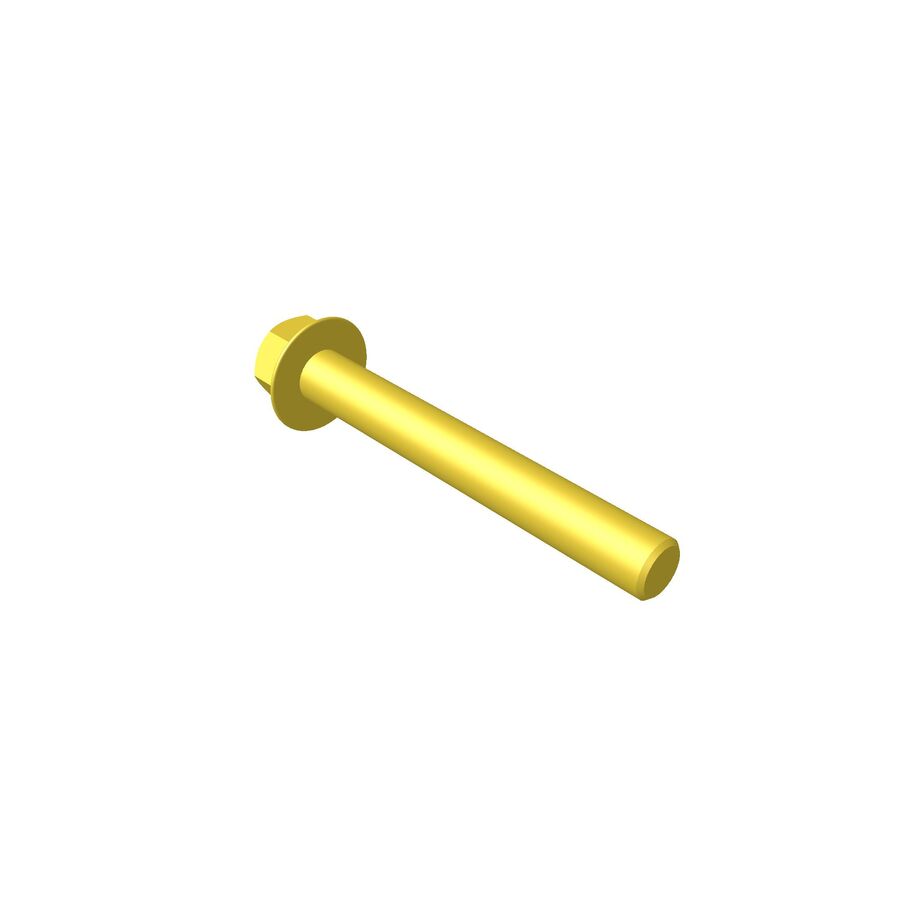

- PRODUCT TYPE: Impeller Sheer Pin Bolt
- SIZE: Common Standard Thread Type 1/4 x 1 7/8 - 20
- NOTES & DETAILS: Toro OEM the 321-44 shear pin bolt is a critical safety component designed to protect your Power Max Auger Impeller assembly and gearbox. This OEM Toro bolt is engineered from a softer material that intentionally breaks under excessive load. Example -When foreign objects jam the auger or cause sudden stoppage, the bolt shears rather than allowing damage to propagate through the gearbox and Auger Impeller mechanism. Genuine OEM construction ensures reliable performance and proper protection of your equipment's drivetrain components.
321-44 Sheer Pin Bolt Comes as a Stand-Alone Sheer Pin Bolt and can be Replaced with Standard Hex Head Bolt 137-3032 which is Used in Complete Sheer Pin Kit 139-9901. For the Complete Kit and a List of Associated Parts for Select Power Max, Power Max HD, Power TRX and Multi-Force Snowblowers Models Refer to Part Number 139-9901 - Kits Contains Different Size Auger & Impeller Bolts as Well as a Nut Grommet Spacer (Auger Bolt - 5/16 x 2 1/4 - 18) x2 (Impeller Bolts 1/4 x2 - 20) x2 (Grommet Spacer) x2 & For Select Standard Power Max Models Complete Sheer Pin Kit Refer to Part Number 139-9900 - Kit Contains Same Size Auger & Impeller Bolts and No Spacers (Auger & Impeller Bolts 1/4 x 2 - 20) x4.
- COMMON SERIES APPLICATIONS: Toro Select Standard Snowthrower, Power MAX Snow Blower Model.
- MODEL FIT CHART:
POWER MAX Series – Model Numbers – (* Model Numbers 38595, 38597, 38611, 38610, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657)
SNOW THROWER Series – Model Numbers – (* Model Numbers 38065, 38066, 38079, 38080, 38083, 38084, 38085, 38086, 38087, 38500, 38505, 38510, 38513, 38520, 38525, 38540, 38542, 38543, 38545, 38546, 38547, 38555, 38556, 38558, 38559, 38560, 38565, 38566, 38570, 38573, 38574, 38580, 38590, 38591, 38592)
GROUNDMASTER MOWER Series – Model Numbers – (* Model Numbers 04384)
GREENSMASTER ROTORY MOWER Series – Model Numbers – (* Model Numbers 31598)
WORKMAN HI-FLO HYDRAULIC KIT Series – Model Numbers – (* Model Number 07316, 07385)
KITS – Model Numbers – (*Part Numbers 119-2827)
