Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 7-0136 Supersedes to Part Number 3-4244
- PRODUCT NUMBER AND VARIATIONS: 3-4244, 3 4244, 34244, 7-0136, 7 0136, 70136

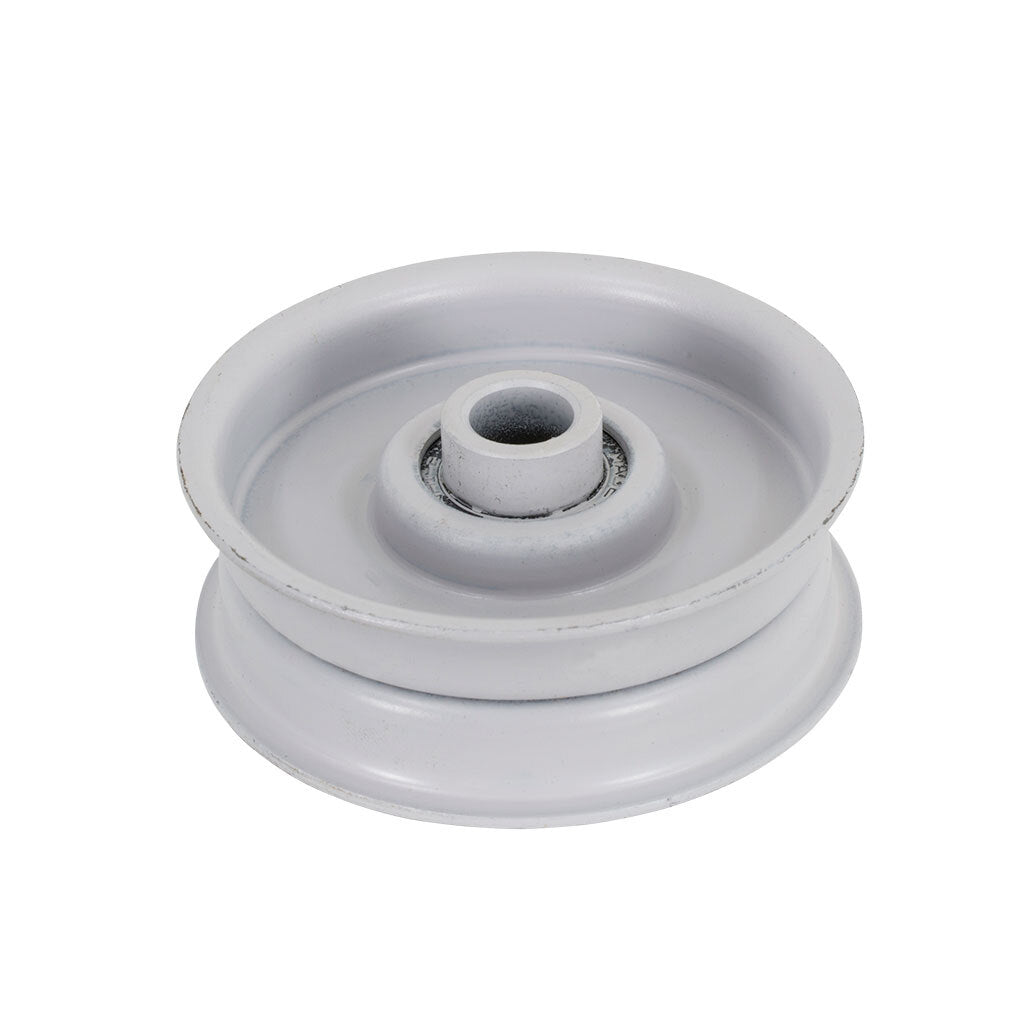

- PRODUCT TYPE: Flat Idler Pulley
- SIZE: Length 2.200 in. - Width 2.200 in. - 0.500 in. - Weight 0.292 lbs.

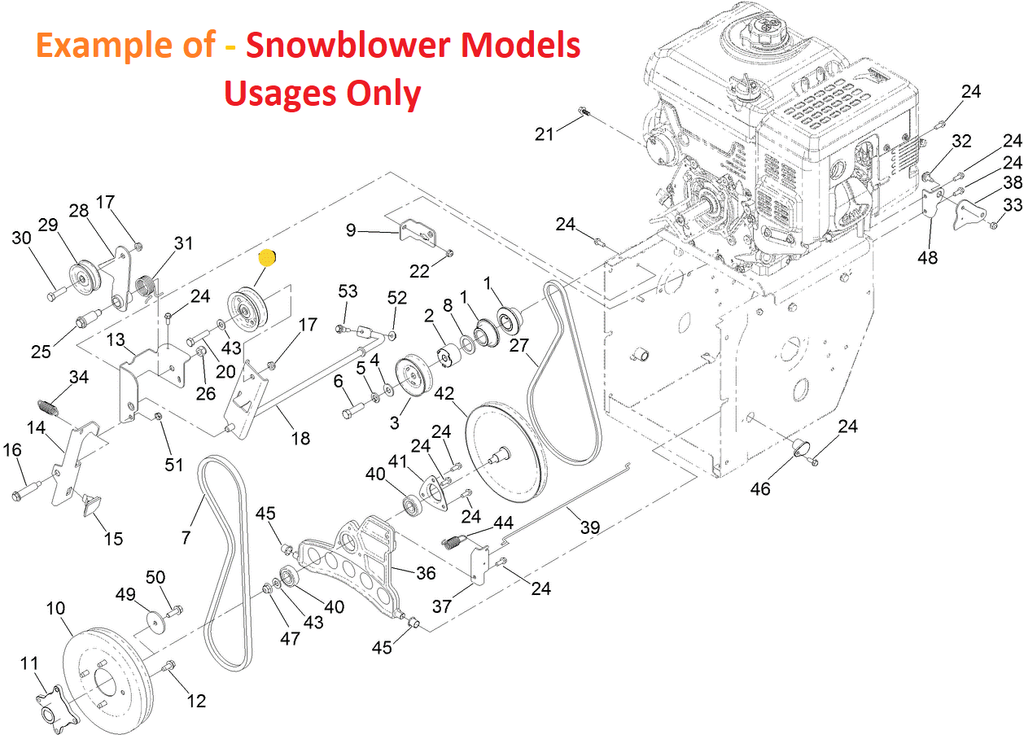

- NOTES & DETAILS: Toro OEM 3-4244 IS COMMINLY USED - 3-4244 Flat Idler is Often Used as a Traction Drive, Belt Tension Idler, Mower Deck Belt Flat Idler on Riding Tractors, Tillers, Attachment, Kits and Many More Usages. However, it's Most Common Usage is Used as the Tensioner Auger and Traction Drive Flat Idler for the Auger V-Belts and Traction V-Belts on a Wide Range of Snowblower Model and is Fastened to the Pulley/Auger Clutch Arm or Traction/Drive Idler Tensioner Arm applying Pressure to the Auger Belt When the Operator Engages the Operators Auger Bail Lever or Constant Tension on the Traction Drive Belt Via a Tension or Torsion Spring. Although all Listed Models Use Same Tractions drive Idler Pulley. Some Models will Use a Different Auger Idler Pulleys While Other Will Use Two of the Same Size Pulleys for Both the Auger and Traction Drive. If you Have Model that uses a Different Auger Idler Pulley from the Traction Drive Idler Pulley Refer to Part Number 92-7104 - Standard Power Max and Power Max HD Models and 136-6531 - Power TRX Models. Most Common Snowblower Models are Categorized Below in the Model Fit Chart as well as the Fuel Model List for 3-4244 Flat Idler Pulley Usages.
- COMMON SERIES APPLICATIONS: Toro Select Snow Blower Models and A Wide Range of other Usage as well.
- MODEL FIT CHART:
COMPLETE MODEL/SERIES USAGES
08122, 09749, 145-0700, 17740, 20311, 20313, 23000, 23100, 23177, 23740, 23741, 28230, 28231, 28232, 31260, 31263, 31320, 31323, 31624, 31625, 31626, 31660, 31663, 31677, 31727, 31756, 31760, 31763, 31813, 31820, 31823, 31832, 31875, 31995, 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38010, 38015, 38035, 38040, 38045, 38050, 38051, 38052, 38053, 38054, 38056, 38060, 38062, 38063, 38064, 38065, 38066, 38070, 38072, 38073, 38078, 38079, 38080, 38083, 38084, 38085, 38086, 38087, 38090, 38095, 38150, 38155, 38160, 38240, 38250, 38500, 38505, 38510, 38513, 38520, 38525, 38540, 38542, 38543, 38545, 38546, 38547, 38555, 38556, 38558, 38559, 38560, 38565, 38566, 38570, 38573, 38574, 38580, 38590, 38591, 38592, 38595, 38597, 38605, 38606, 38607, 38608, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38700, 38701, 38800, 38801, 38802, 38803, 38805, 38806, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38818, 38819, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865, 38870, 38875, 38890, 38891, 39924, 39925, 39926, 39926T, 55001, 55002, 55003, 55050, 55051, 55055, 55101, 55150, 55152, 55166, 55233, 55256, 55275, 55302, 55402, 57001, 57002, 57003, 57017, 57043, 57050, 57051, 57054, 57060, 57077, 57101, 57104, 57111, 57131, 57201, 57204, 57222, 57228, 57241, 58000, 58010, 58013, 58100, 58200, 58307, 58336, 59004
COMMOM SNOWBLOWER & POWER BROOM USAGES
POWER MAX Series – Model Numbers – (* Model Numbers 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38819, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)
E - POWER MAX Series – Model Numbers – (* Model Numbers 31875, 39924, 39925, 39926, 39926T)
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)
POWER THROW/SNOWTHROWER Series – Model Numbers – (* Model Numbers 38053, 38066, 38078, 38083, 38084, 38086)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740, 28232)
Power Broom Series – Model Numbers – (* Model Numbers 23740, 23741, 38700, 38701)
- ASSOCIATED PARTS CHART:
REFERENCES FOR SNOWBLOWER AUGER IDLER USAGES ONLY
* For associated Traction/Drive Parts Refer to Traction Drive Belts
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 3-4244 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 138-0722 - HEX HEAD BOLT (Retains Idler Pulley to Pulley/Impeller Clutch Arm) x1 Per Idler Pulley
- 115-1166 - FLAT WASHER (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface) x1 Per Flat Idler Pulley
- 121-4600 - HEX NUT (Retains Idler Pulley to Pulley/Impeller Clutch Arm) x1 Per Idler Pulley
- 120-9254-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit * All Associated Models Except Model 38838
- 144-1243-03 - PULLEY/IPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit * Only Snowblower Model 38838
