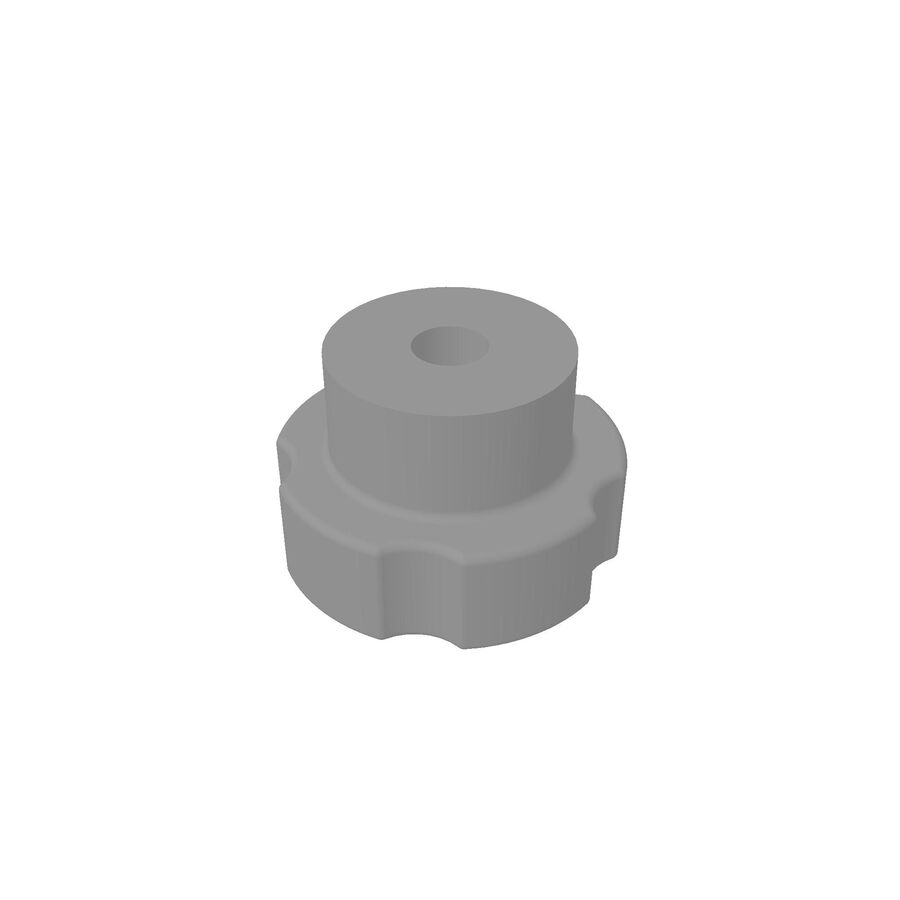

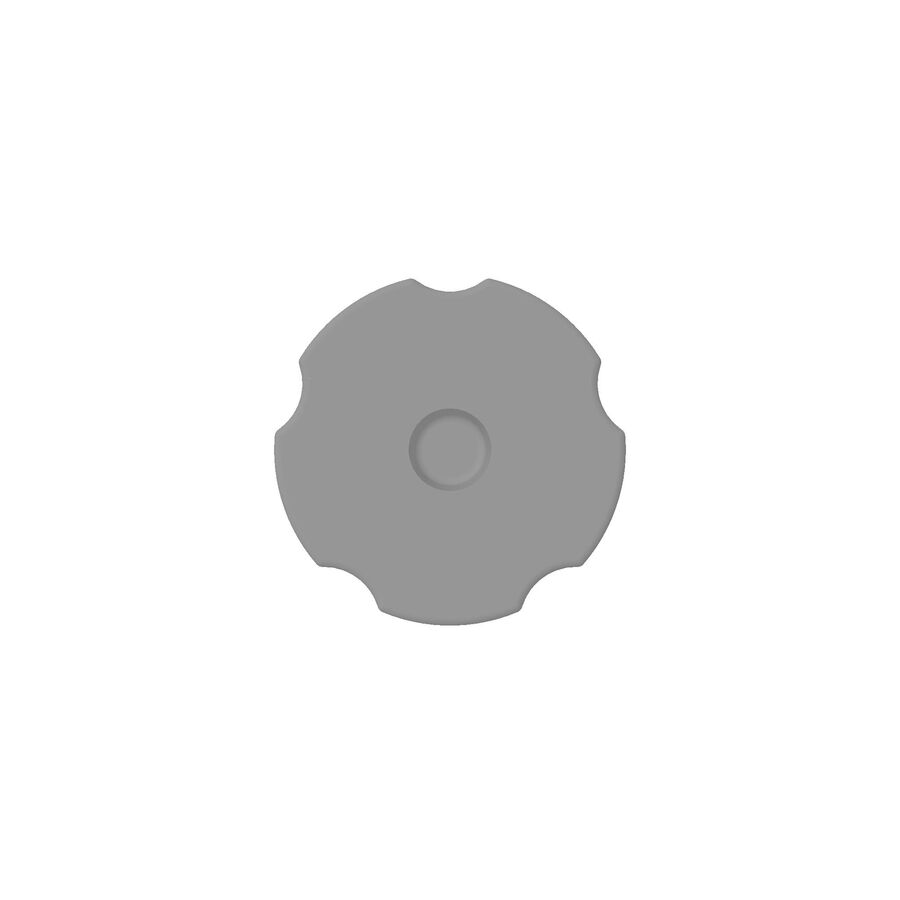

Toro OEM 233-67 Discharge Chute Knob



Keep your Toro snow thrower discharge chute set exactly how you want to aim it with this genuine Toro OEM 233-67 Chute Knob. This knob provides the hand-tightened clamping force that holds the chute/deflector position during operation. If your chute angle won’t stay put, the knob is missing, or the threads are stripped/cracked, replacing the knob restores proper chute control and safer, more consistent snow placement. * 233-67 is used only on the Rear Slotted Discharge Chute Hole in Snowblower Models. 233-67 May Contains Usage in other Categories as well that are not Specified or as Common - if in Question Review the Model Fit Chart Below.



• OEM Part Number: 233-67, 233 67, 23367
• Part Name: Discharge Chute Knob / Chute Knob
• Function: Hand-tightens onto the chute/deflector fastener to create friction and lock the discharge direction/deflector angle
• Genuine Toro OEM: Correct fit and dependable holding power for compatible units





Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering. Model Numbers Listed Below are in Order of Smallest to Largest.



135-0192, 142-5462, 23508, 23510, 23512, 30611, 33510, 33512, 33525, 38170, 38171, 38172, 38175, 38176, 38177, 38178, 38182, 38272, 38273, 38274, 38282, 38283, 38472, 38473, 93-9450

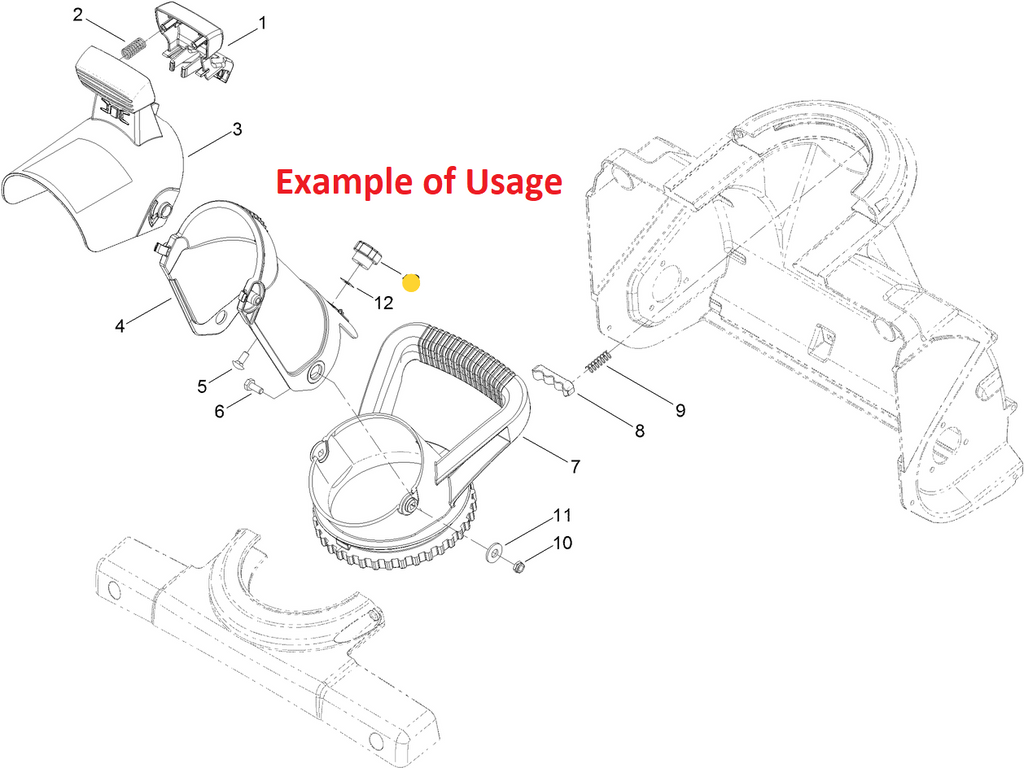

Associated Parts & Hardware - Snowblower Models Only

These Parts & Fasteners Retain the Discharge Chute at the Base.

• 321-3 – Carriage Bolt (Assembled from Inside the Discharge Chute Handle/Chute Ring Assembly - Pointing Out - Retaining the Discharge Chute to the Discharge Chute Handle/Chute Ring Assembly -Used Only in the Side Two Holes)
• 3256-81 – Flat Washer (Assembled on the Outside Surface Between the Discharge Chute and Lock Nut 3296-56)
• 3296-56 – Lock Nut (Assembled on the Outside of the Discharge Chute against the Flat Washer - Retains the Discharge Chute to the Discharge Chute Handle/Chute Ring Assembly - Used Only in the Side Two Holes)
• 3229-11 – Carriage Bolt (Assembled from Inside the Discharge Chute Handle/Chute Ring Assembly - Pointing Out - Retaining the Discharge Chute to the Discharge Chute Handle/Chute Ring Assembly -Used Only in the Rear Hole)
• 32115-15 – Push Nut (Assembled on the Outside Surface of the Discharge Chute on the Rear Carriage Bolt Hole Between the Discharge Chute & the Retaining Knob - Retains Carriage Bolt 3229-11 from Falling if Retaining Knob 233-67 were to Come Loose) * Recommended to be Replace if were to be Removed.
• 233-67 – Knob (Retains the Rear Discharge Chute Carriage Bolt 3229-11 [Rear Hole] and Enable for the Discharge Chute to Be Slightly Angled/Adjusted if Needed)
• 117-2312 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken) *Used Only on Select Models that are List that tend to be More Common - Review Model Numbers of the Suggested Discharge Chute under the Discharge Chute's Model Fit Chart to verify a correct Fit.





Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
