Description

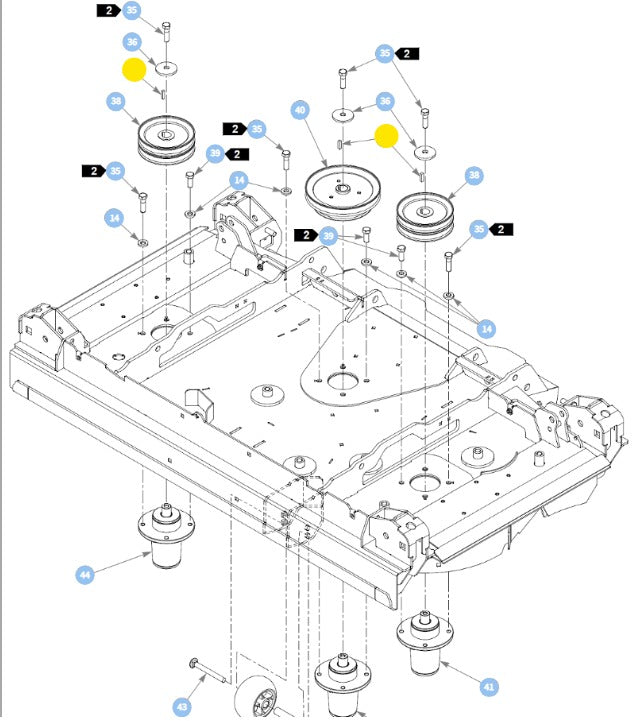

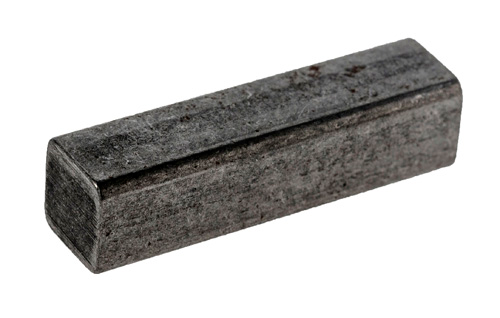

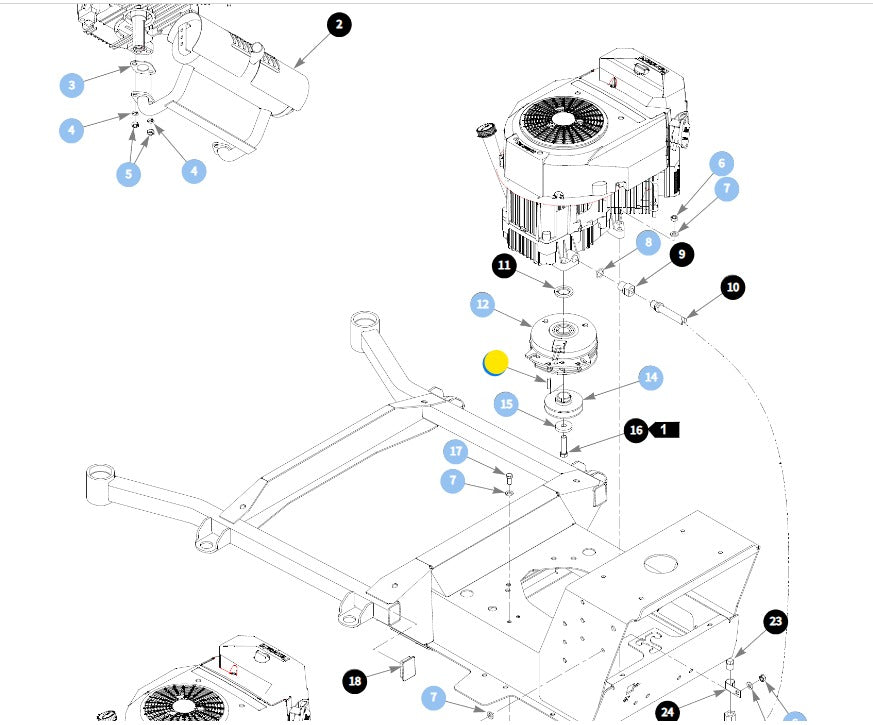

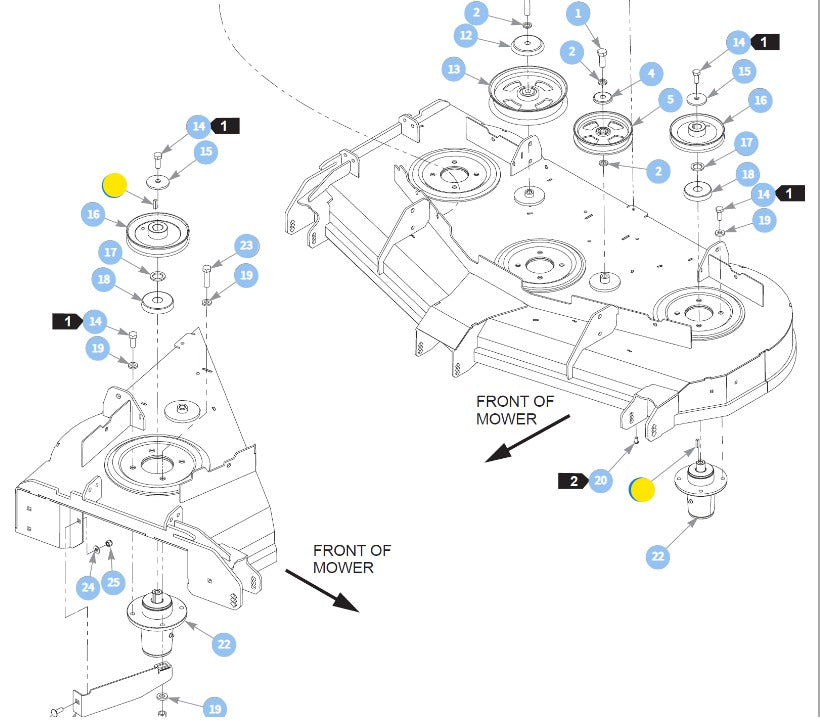

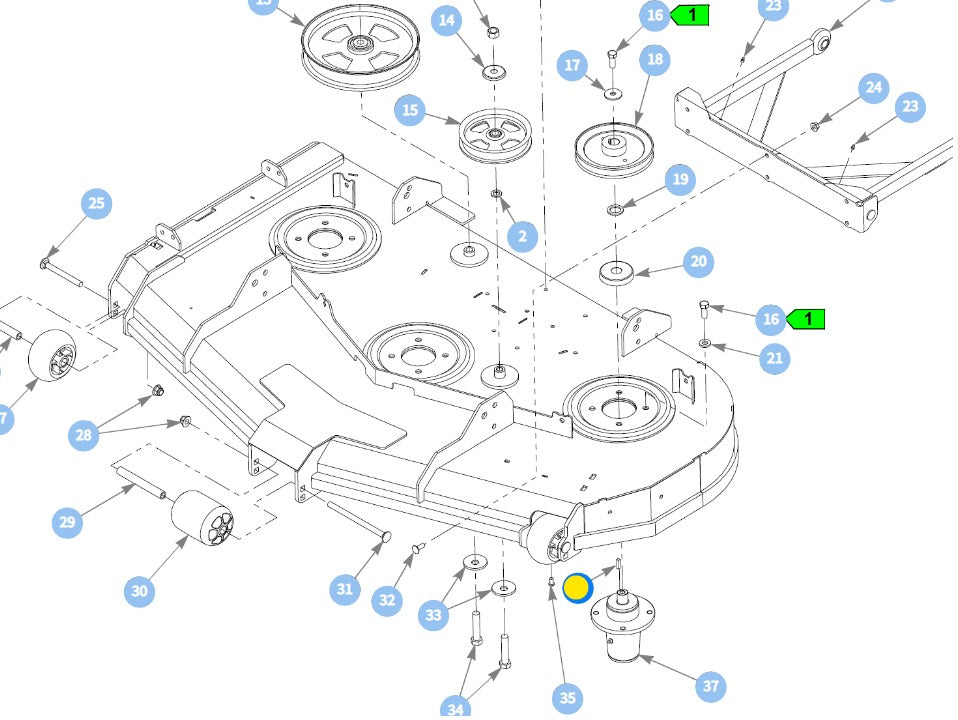

Hustler OEM 212472 Straight Key is True Hustler Made to Fit and Commonly used The Hustler Spindle Assembly 607407P & 607408P as Spindle Shaft/Pulley Key Although Not Limited to Other Usages. Hustler OEM Key 212472 has A key size of 1/4 X 1.00 and Used on Hustler X-ONE, X-RIDE, Diesel Z, Super Z, Super Z HD, Super S, Super 104, Super SF and Super 88 Series. Although not as common Hustler OEM Straight key is also used on Engine Pulleys on Trimstar Models 927400 and 927426 & Bac Vac Shaft/Drive Pulley Applications. Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected. Part Number 839-114C and 510446 Supersede to Part Number 212472.
COMMON ASSOCIATED SPINDLE ASSEMBLY REFERENCE FOR 212472 STRAIGHT KEY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 607407P - Right-Hand, Standard or Common Mower Blade Spindle Assembly (Used on Side & Rear Discharge Models)
-
607408P - Left-Hand Mower Blade Spindle Assembly (Used at Select Locations on Rear Discharge Mower Models - OEM Mower Blades and Spindle Ass. are Painted Red to Determine the Difference)
Specification
|
Product Number: |
839114C, 510446, 212472 |
|
Brand: |
Hustler |
|
Length: |
0.90 IN |
|
Width: |
0.25 IN |
|
Height: |
0.25 IN |
|
Weight: |
0.020 LB |
Model Fit:
* 212472 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
TRIMSTAR - Engine Pulley Usage Only
927400, 927426
X-ONE - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE - ALL MODELS
944074, 944868
Super Z - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive - Side & Rear Discharge Models
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z - Side & Rear Discharge Models
Models are Currently Not Listed Will Be Eventually
Super ATZ
No Listed Model Numbers
Super 104
Models are Currently Not Listed Will Be Eventually
Super S
Models are Currently Not Listed Will Be Eventually
Super SF
Models are Currently Not Listed Will Be Eventually
Super 88
936617, 939546
Select BAC-VAC Kits
No Listed Model Numbers
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
