Description
DESCRIPTION

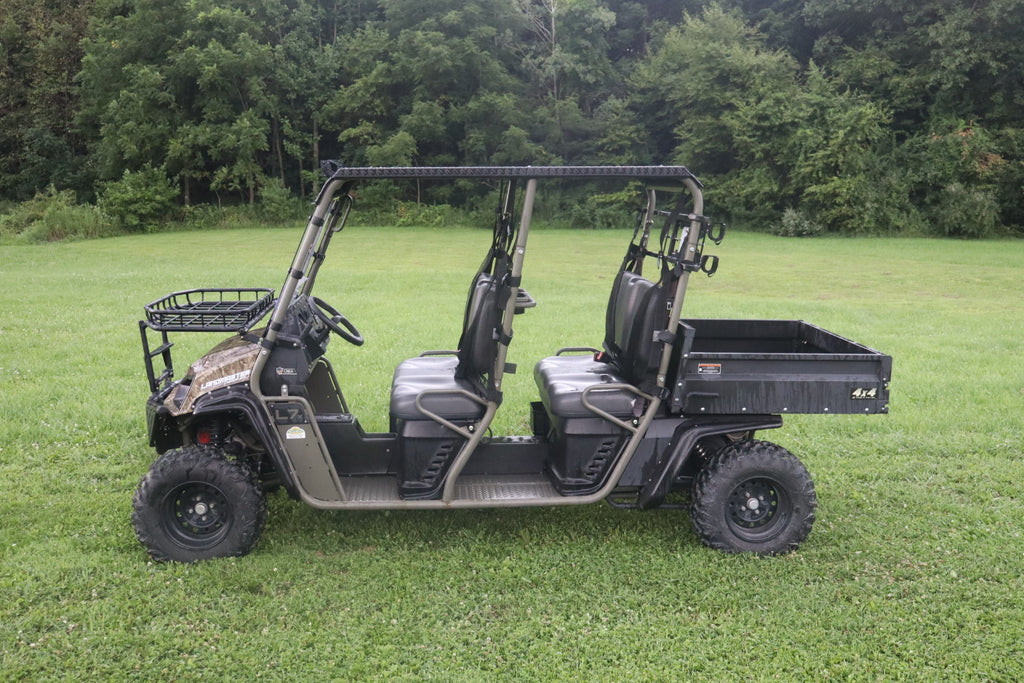

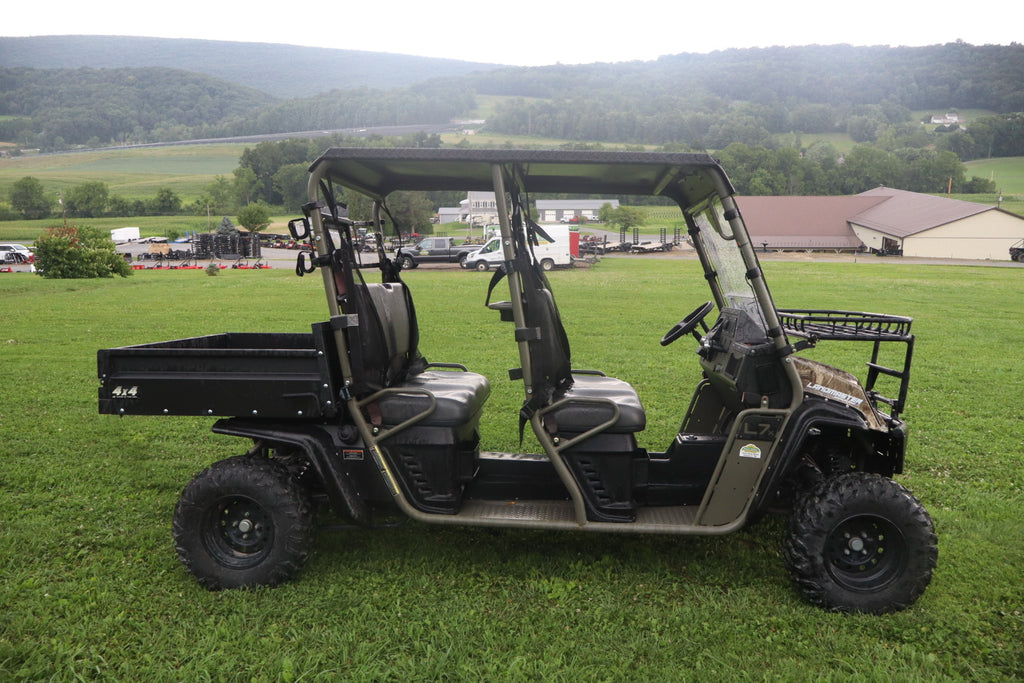

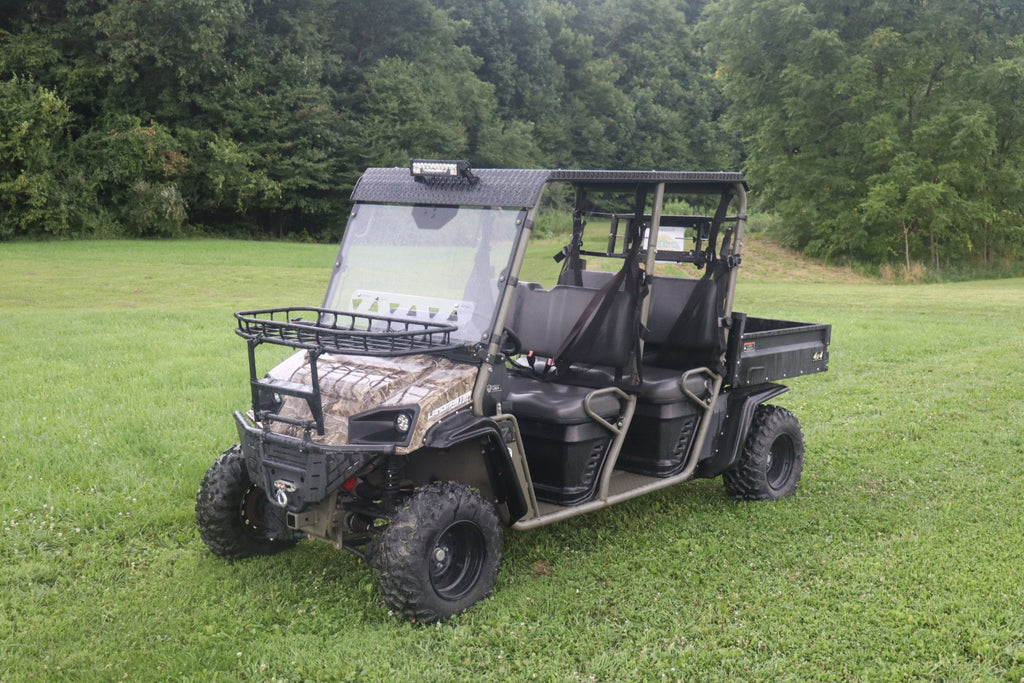

The L7x comes built with our most powerful 694cc EFI commercial-grade engine, and includes power steering as a standard feature. The superior ride and comfort is attributed to our unique L-ROSS (Landmaster Ride Optimization System). The L-ROSS works seamlessly together to provide the ultimate SUV-like ride and drive experience. Travel over bumps, hills, uneven terrain, and muddy bogs smoother than ever.
Our crew model now travels up to 35mph to get you from point A. to B. quickly and smoothly.
The L7x is the ideal UTV for frequent hauling of passengers, hunters, large manufacturing facilities, municipalities, police, fire, or just a fun vehicle to haul around friends. Customize the L7 the way you want and to fit your lifestyle with our new Plug N' Play electrical system. built for reliability, functionality, and ease of installation.
ROPS Certified
L7x NOT AVAILABLE IN CALIFORNIA. MSRP below does not include transportation and preparation fees. Images may be shown with optional features and accessories.
VIEW ALL 2021 NEW FEATURES >
SAFETY, SERVICE, RELIABILITY
- Overhead Bars Rops Certified(Roll Over Protection)
- 1 Year Full Bumper-To-Bumper Warranty
- Built With Name Brand And Highly Reliable Usa Components
- Easy Access For Serviceability
- Warning Indicator Lights
- Fully Sealed Half Shaft Boots & Tie Rod Ends
- High Impact / High Temp Resistant Bushings
- Auto Grade Ball Joints
- Improved Wheel Hub And Bearing
- Parking Brake Lever Improved Location And Indicator Light
- Weather Sealed Wiring Connections
PERFORMANCE
- L-Ross - Full Independent Super Sport Suspension
- 4 Wheel Hydraulic Disc Brakes
- Improved Rack And Pinion Gearing
- Automotive-Quality Plug & Play Electrical System
- Increased Top Speed To 35mph
- Wider Track Width
- Built With On-Demand 4x4
- Best In Class Comfort, Performance, And Capability In Your Shocks
- Over 8" Of Suspension Travel For Both Front And Rear Suspensions
DESIGN
- Two-Tone Design Interior And Exterior
- New Side Skirts And Fenders
- New Aggressive Front-End Look
- Protected Winch Location
- New Flat Roof Design
- All New Decals And Badging
- Electric Packages To Fit Your Needs
- Marine-Grade, High Density Foam, Contoured Seats
- Automotive-Grade, Waterproof, Back-Lit Switches
- Easy Grip N' Lock Drive & Differential Lever
RIDE EXPERIENCE
- Quieter Driving Experience
- Due To An Improved Muffler, Fenders, Side Skirts, And Catalytic Converter.
- Versatility For Work, Trails, Comfort, Speed
- Improved Steering System
- Industry-Leading Turning Radius Of 12ft
- Automotive-Quality Plug & Play Electrical System
SPECIFICATIONS
- Power: 21hp | 694cc LandMAXX EFI Commercial Power Engine by Kohler Command Pro® ECH650 rated at 21hp 4-stroke OHV V-twin with oil pressure warning light. Remote Air Cleaner
- Speed: Up to 34 mph**
- Fuel Consumption: Up to 28 mpg**
- Range: Up to 100 miles**
- Starting: 12V keyed ignition with recoil backup
- Battery: 12V / 360 cca utility class
- Spark Plug: NGK C7HSA
- Fuel Capacity: 5.0 gal
- Alternator: 25 amp
- Transmission: CVT automatic
- Transaxle: Gear drive Schafer/DANA oil-filled transaxle
- Differential: Cable Actuated Rear-Locking
- Drive: Switch engaged on demand, 4 wheel drive
- Front Suspension: Double A-arms, adjustable coil over shock with up to 8" travel
- Rear Suspension: Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
- Brake System: 4 wheel disk, hydraulic brake. Trans-axle mounted rotor with mechanical caliper parking brake with indicator light.
- Tires: 25 x 8 - 12 (front) 25 x 10 - 12 (rear)
- Dimensions: 127" L x 59" W x 76" H
- Wheel Base: 105"
- Turning Radius: 16' inside radius
- Curb Weight: 1,525 lb.
- Bed Material: Structural foam “Poly Bed" with stake pockets
- Bed Dimensions: 35.25" L x 41.5" W x 11" D
- Ground Clearance: 11"
- Bed Capacity: Poly - 9 cu.ft. / Steel - 11 cu.ft. / L-ROSS - 600 lb. / HD-LROSS - 800 lb.
- Towing Capacity: 1500 lb.
- Total Payload: L-ROSS - 1,000 lb. / HD-LROSS - 1,200 lb.
- Warranty: 3 year engine / All other 1 year limited
- Additional Features: 3pt lap/shoulder DOT certified belts for driver and passenger with driver indicator light, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2" front and rear receiver hitch, poly dump bed standard, bench seating, welded steel frame, Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour/volt meter standard
- Vehicle Packages: Powersteering // Sport // Trail // Untamed
