Description
Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit. For Additional Fasteners & Part References Review the Associated Part Chart Below the Model Fit Guide
- PRODUCT NUMBER AND VARIATIONS: 161-4452, 161 4452, 1614452

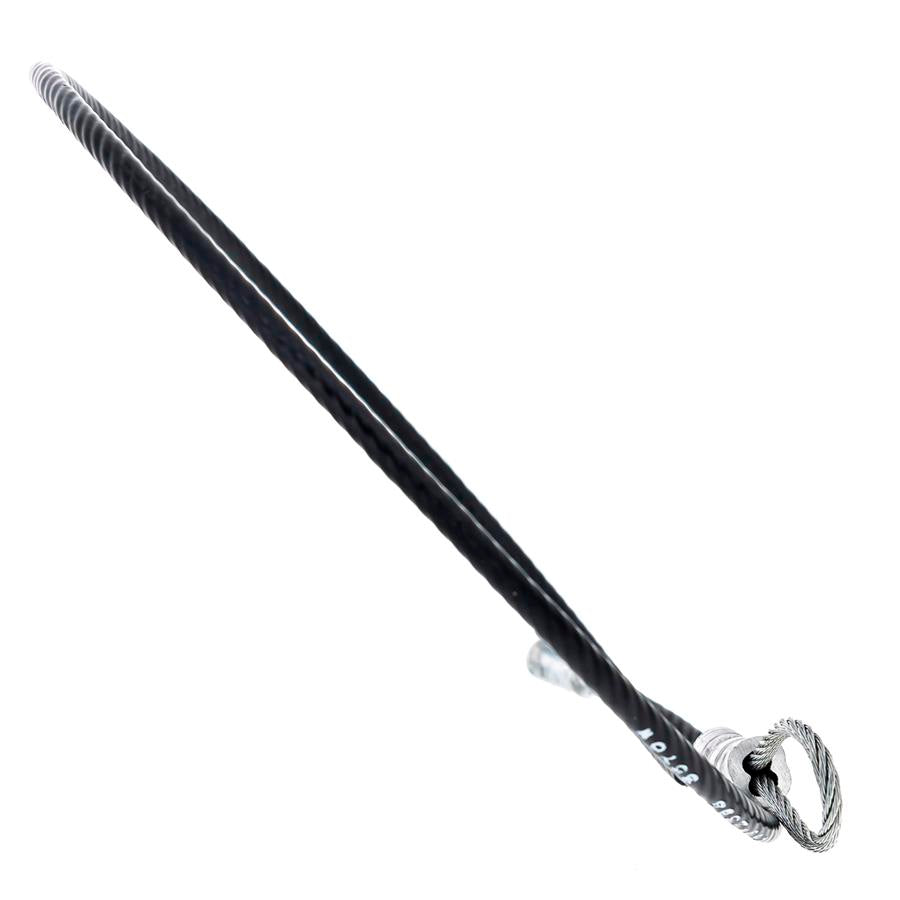

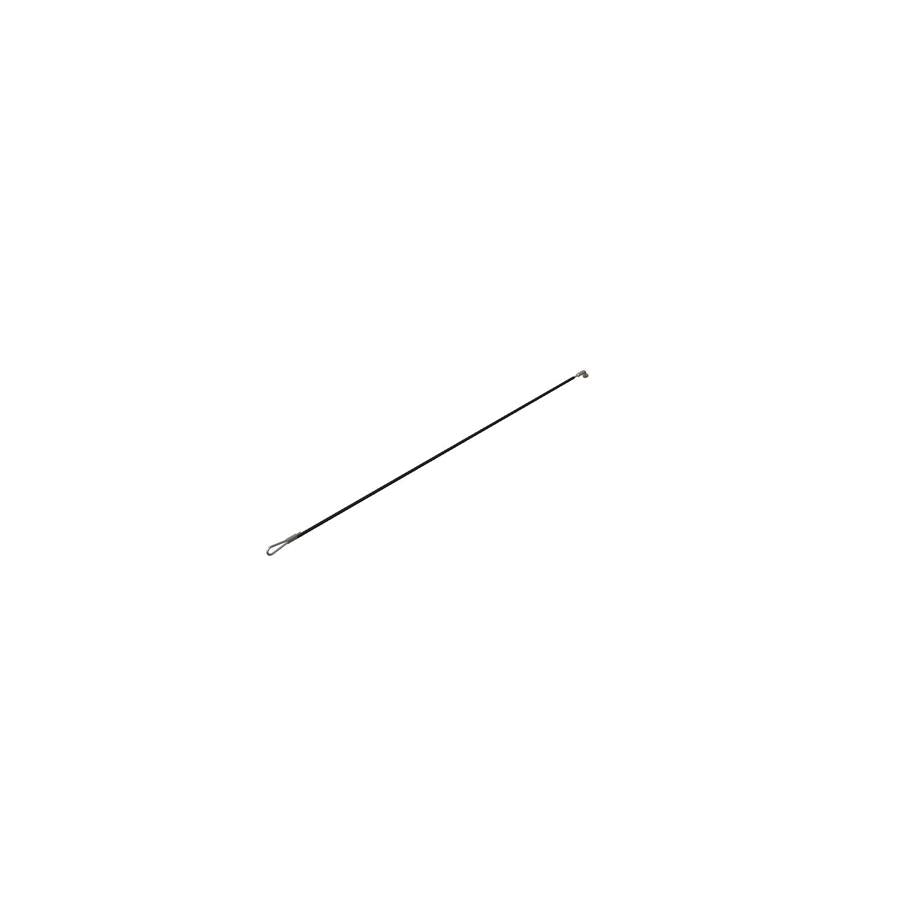

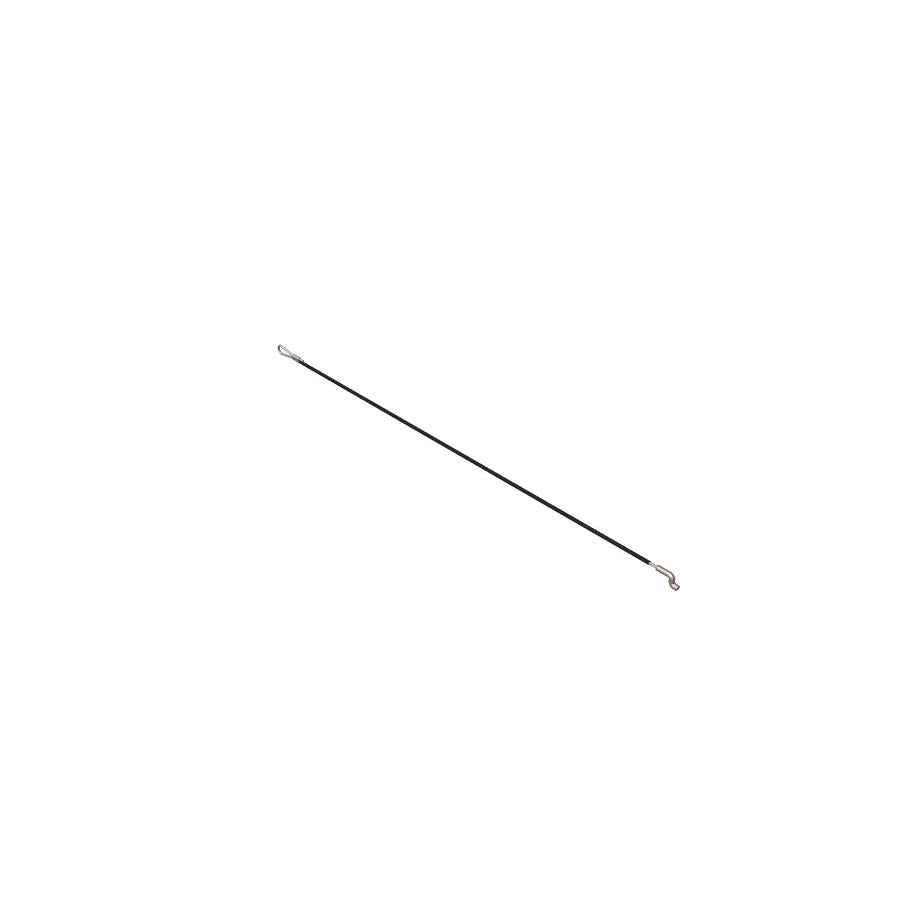

- PRODUCT TYPE: TORO OEM SEAT LANYARD-CABLE

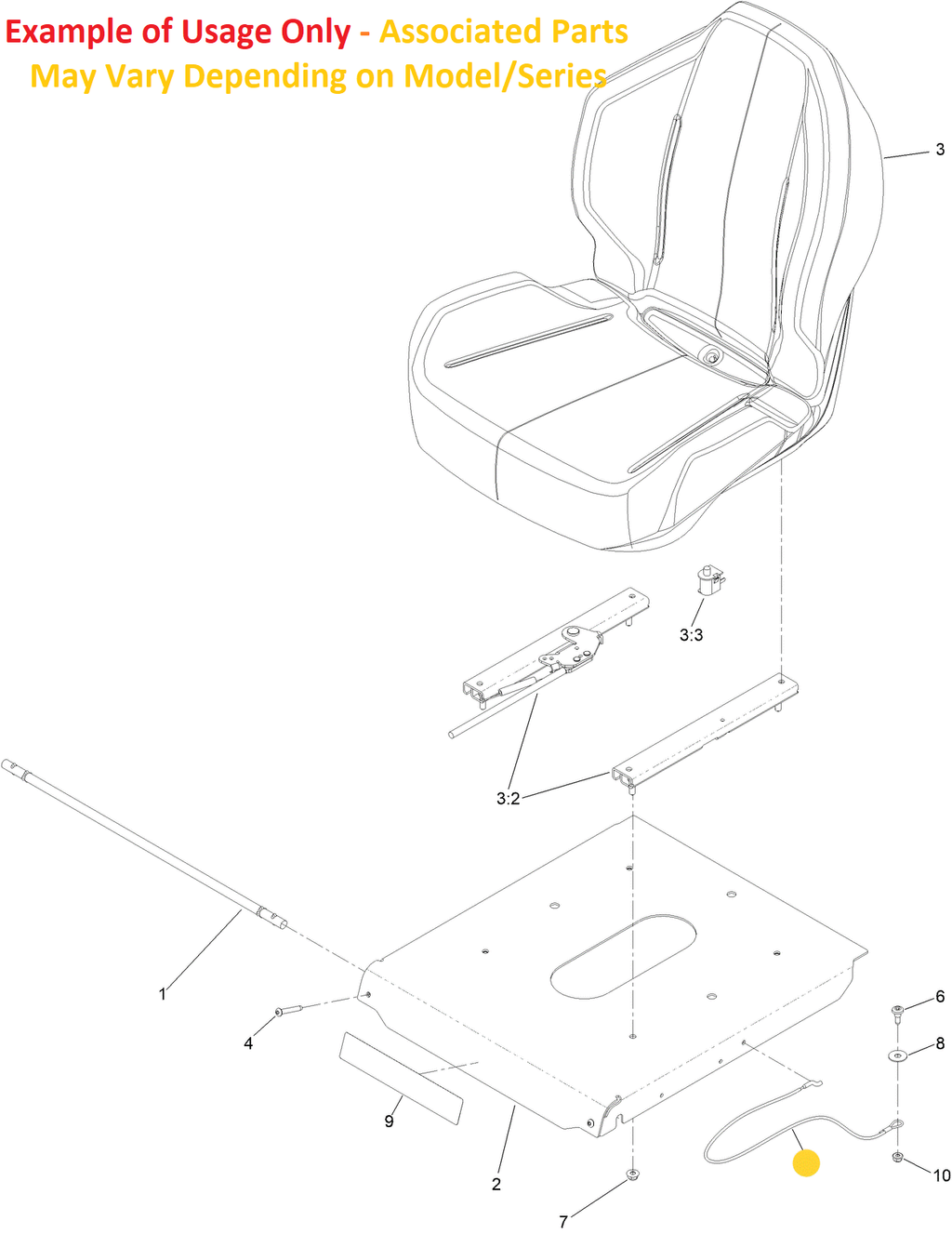

- NOTES & DETAILS: Hooks into the Mower Seat Pan and Bolts to The Mower Frame This Enables the Operator to Lift his Seat Without it Falling to For Forward and Risking Tearing the Seat Fabric.
- COMMON SERIES APPLICATIONS: Current 42", 50", 54", 60" Timecutter MAX (Non-My-Ride Standard Models) - Current 48", 54", 60 Titan (Non-My-Ride Standard Models with I-Beam Framing)
- ASSOCIATED PARTS CHART:
- 135-2015 - SELF-TAPPING SHOULDER SCREW (Retains Seat Lanyard to the Mower Frame or Seat Supporting Bracket) x1 Per Mower Seat Lanyard/Cable
- 147-5287 - FLAT WASHER (Eliminates the Mower Seat Lanyard/Cable from Rubbing against the Mower Frame or Seat Supporting Bracket - Installed Between the Self-Tapping Shoulder Screw and The Mower Frame or Supporting Seat Bracket) x1 Per Mower Seat Lanyard/Cable
- 119-4040 - FLANGE NUT (Retains Seat Lanyard to the Mower Frame or Seat Supporting Bracket) x1 Per Mower Seat Lanyard/Cable
- MODEL FIT CHART:
TIMECUTTER
42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – 77402
50’’ TIMECUTTER MAX (STANDARD) Series – Model Numbers – 77501, 77505
54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – 77504, 77506
60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – 77601, 77604
TITAN
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models – 76401, 76420
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Current Models Only - 76501
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - 76604, 76605
