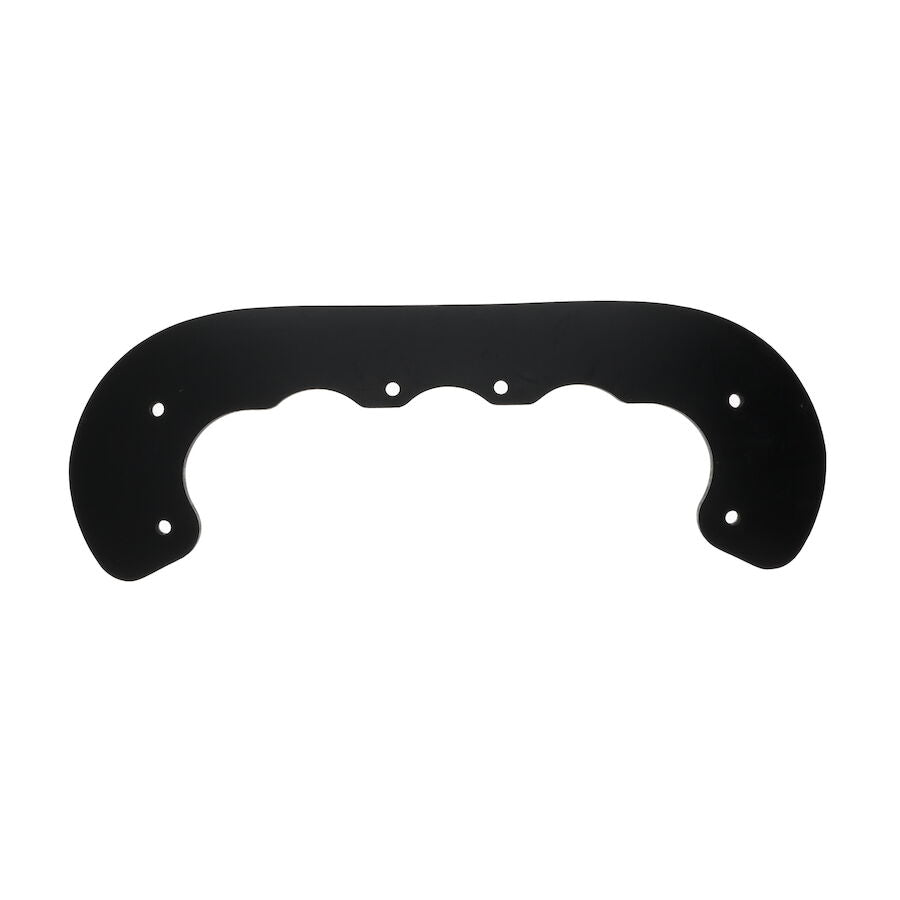

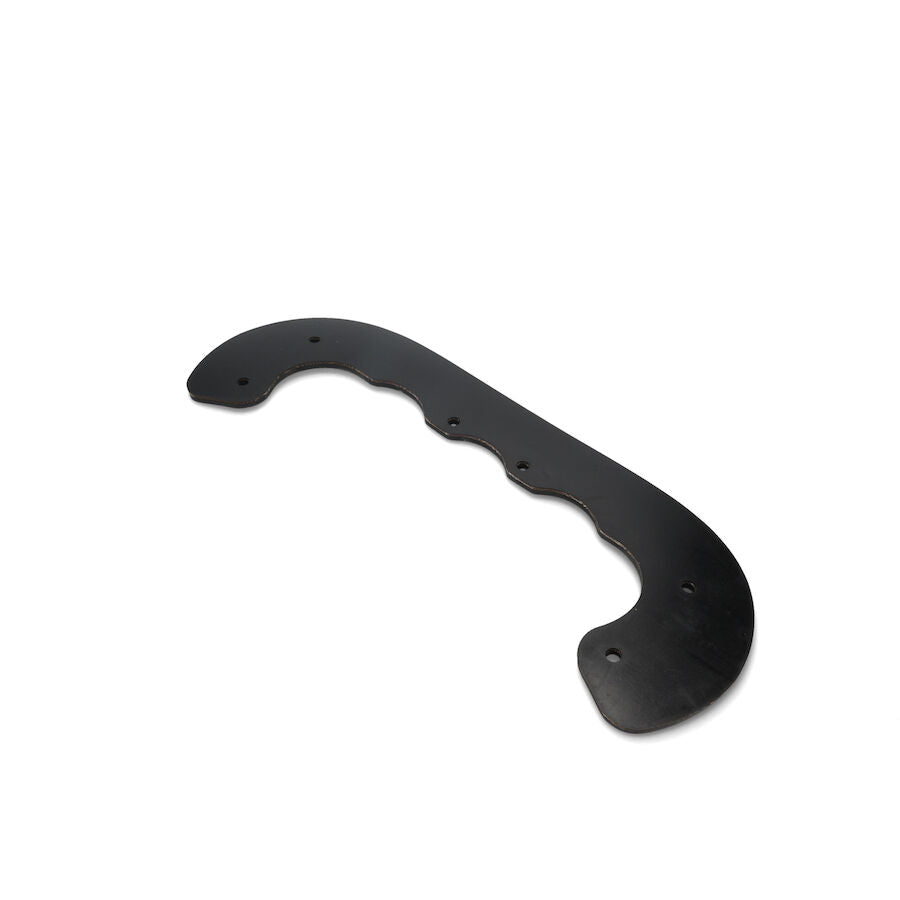

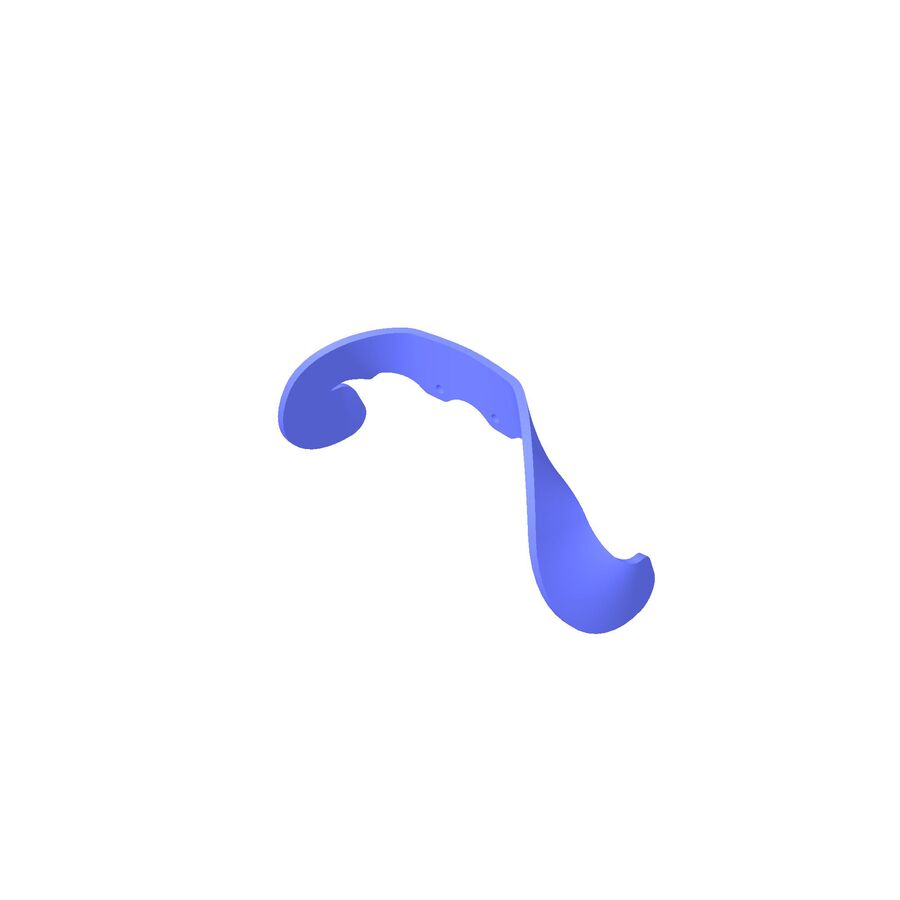

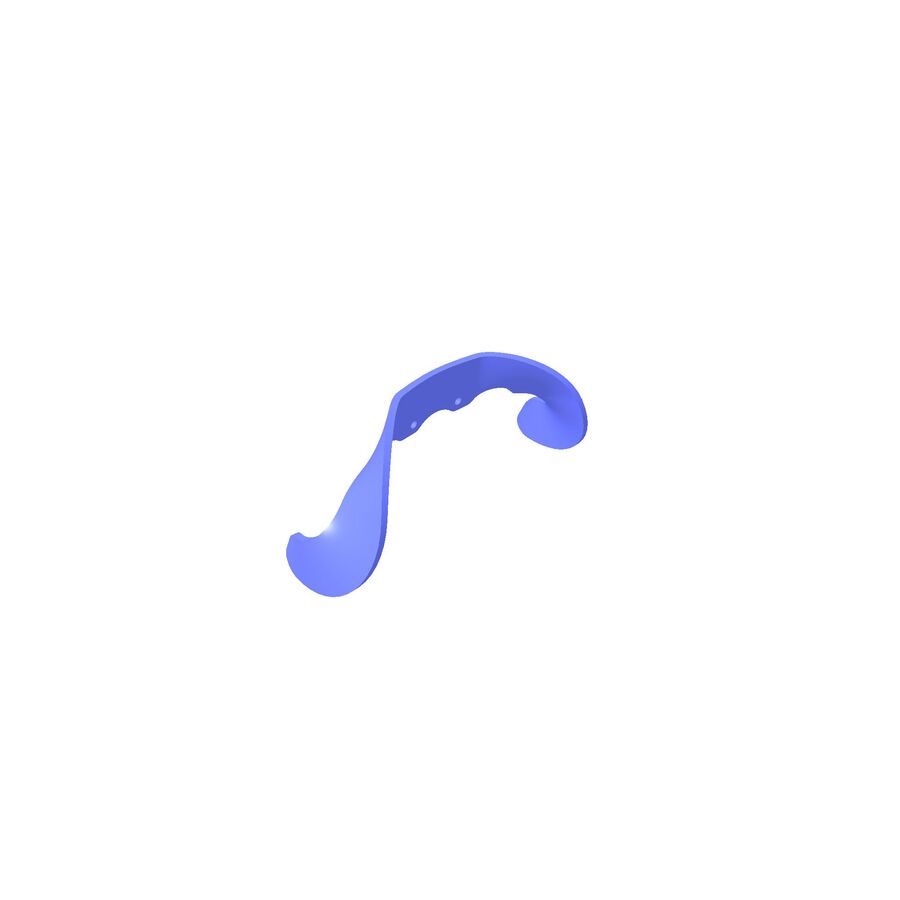

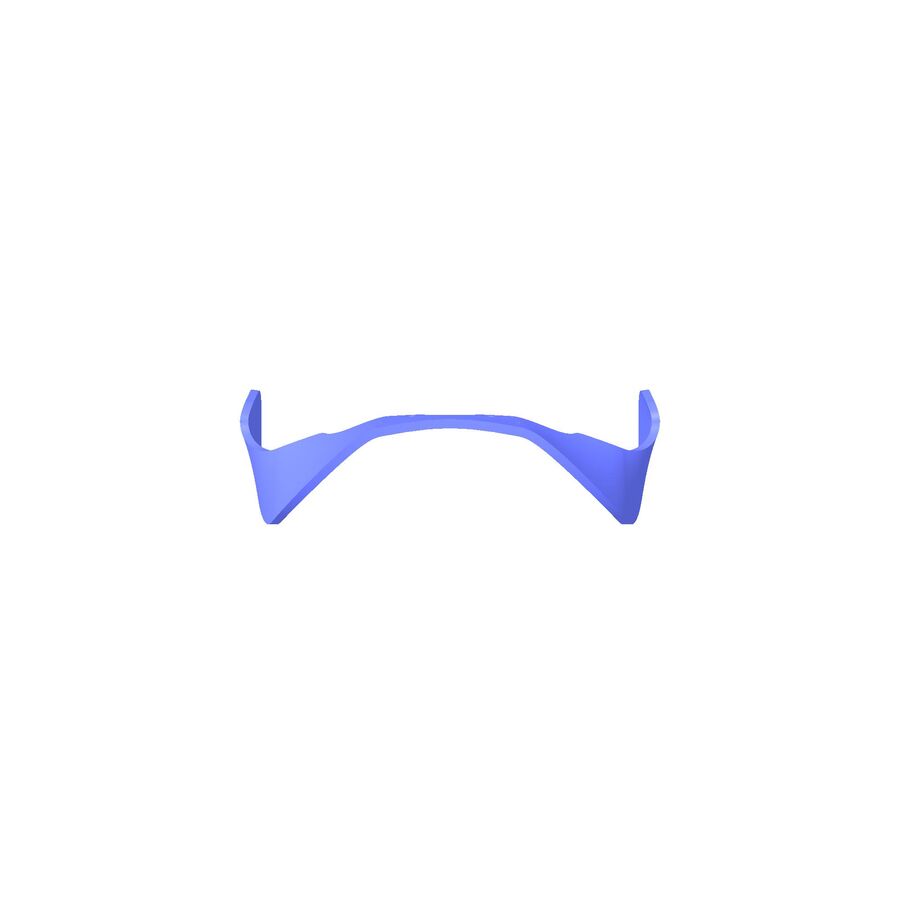

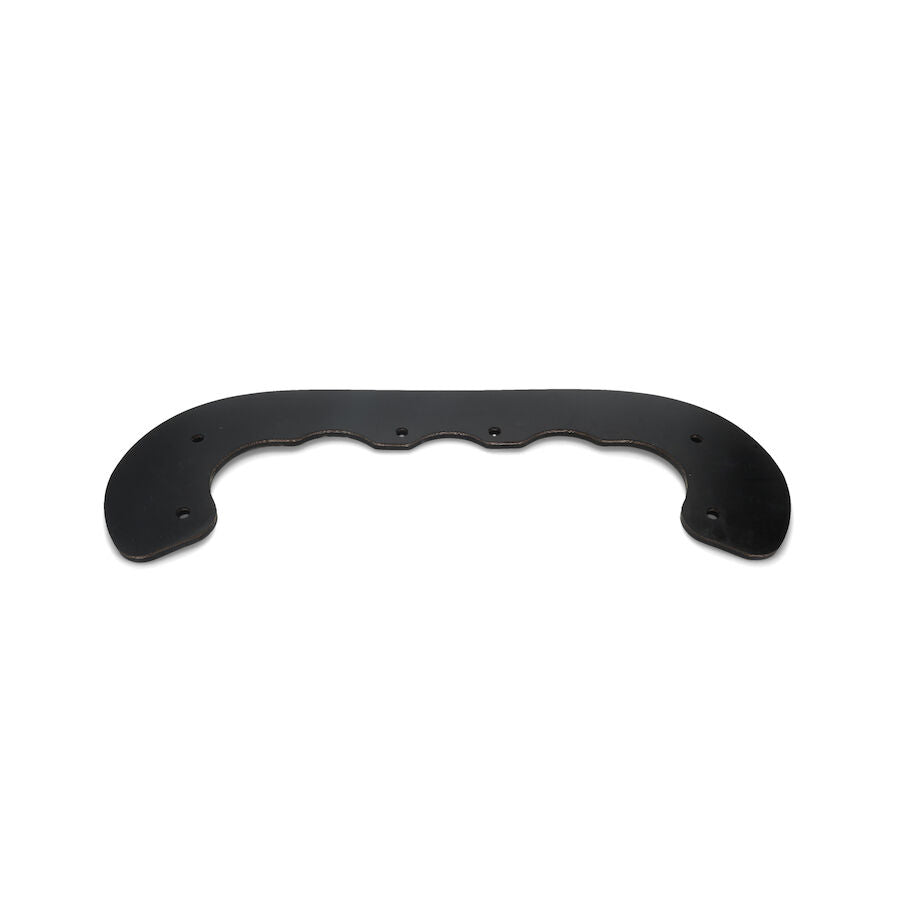

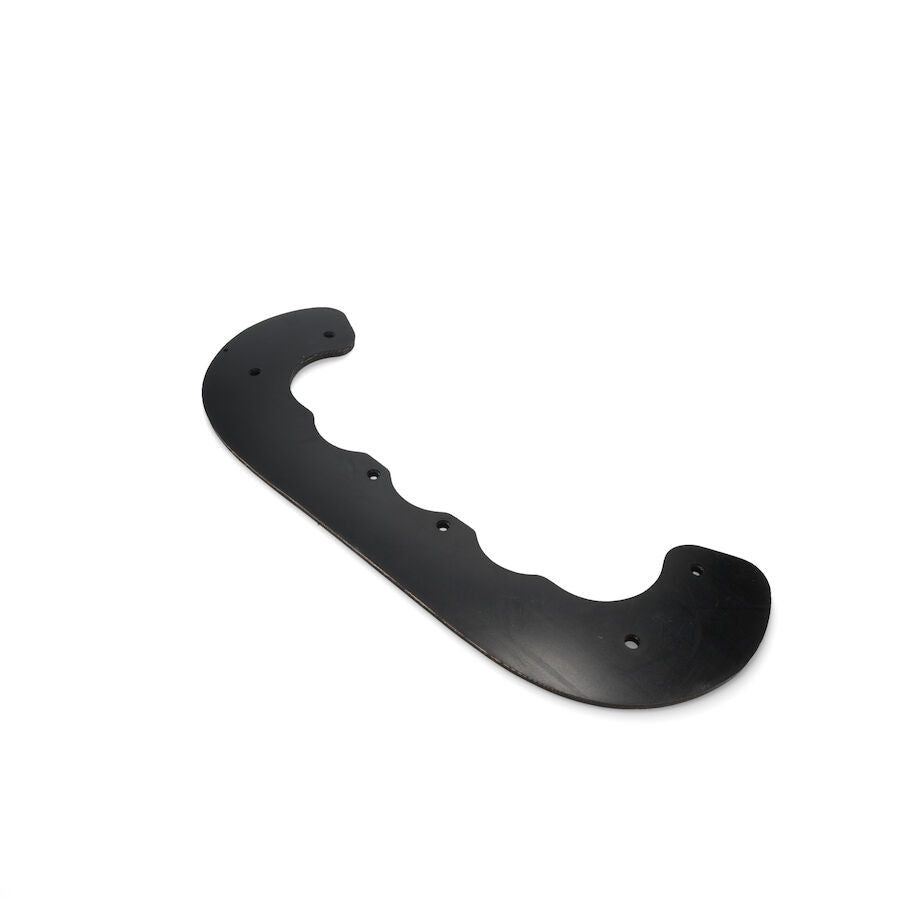

Toro OEM 161-2172 EXTENDED LIFE Rubber Rotor Blade Fits Select 21" Toro Power Clear, E Power Clear, Quick Clear and Older CCR Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 125-1128 Supersedes to Part Number 161-2172



• PRODUCT NUMBER AND VARIATIONS: 161-2172, 161 2172, 1612172, 125-1128, 125 1128, 1251128
• PRODUCT TYPE: Replaceable Extended Wear Rubber Rotor Blade
• SIZE: Length 22.000 in. - Width 8.500 in. - Height 0.500 in. - Weight 1.284 lbs.
• NOTES & DETAILS: Toro OEM  161-2172 IS COMMINLY USED - 161-2172 is Assembled to the Rotor Shaft Using a Two Piece - Half Rotor Clamping Brackets that Is Designed To Clamp Over the Rotor Shaft as well as Clamping Both Rubber Rotor Blades Between The Half Rotor Clamping Brackets - Toro 161-2172 Are Made with High Quality of Rubber Allowing for them To Run against a Hard Surface without Causing Damage to Paved or Cement Driveways as well as Helping Propel the Complete Snowblower Unit Forward when the Auger is Engaged. The Friction Design of 161-2172 Rubber Rotor Blades Also Allows for a Cleaner Snow Cleanup as well as Enhancing the Capability of Blowing wet Snow and Slush. If Your Blades are Not Cleaning Properly or Giving no Forward/Propelling Assistance it is time for a NEW! Set of Rubber Rotor Blades. 161-2172 Rubber Rotor Blades are EXTENDE LIFE - Made Thicker than Standard 21" Rotor Blades and Contains Different Hardware as well - All 21" Models that don't come with EXTENDED LIFE Rotor Blades can be updated using Kit Part Number 38205.
• COMMON SERIES APPLICATIONS: Toro Select 21" Quick Clear, Power Clear, E Power Clear & Older CCR Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S

Models with Factory Installed



POWER CLEAR Series – Model Numbers – (* Model Numbers 38751, 38754, 38755)



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39922T)



Models with Optional Upgrade –

*Initial Upgrade Requires Kit (Rotor Blades & Hardware) Part Number 38205



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38752, 38753, 38756, 38757)

E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T)



CCR Series – Model Numbers – (* Model Numbers 38180, 38181, 38185, 38186, 38409, 38410, 38411, 38412, 38413, 38414, 38415, 38416, 38417, 38418, 38419, 38420, 38421, 38422, 38423, 38424, 38425, 38426, 38427, 38428, 38429, 38430, 38431, 38432, 38433, 38435, 38436, 38437, 38438, 38439, 38440, 38441, 38442, 38445, 38515, 38516, 38517, 38518, 38535, 38536, 38537, 38538

Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 28226, 33005, 33006, 34001, 34002)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 161-2172 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

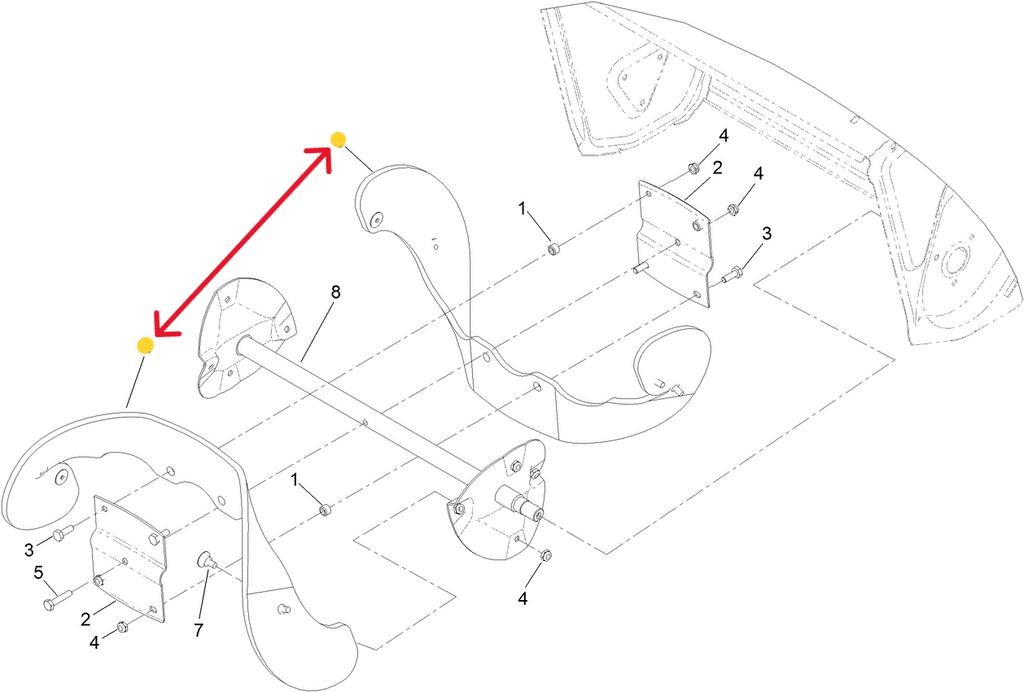

COMPLETE KIT - ROTOR BLADES & HARDWARE



1. 38205 - COMPLETE ROTOR BLADE & HARDWARE KIT (Fastens to the Rotor Shaft Comes as the Complete Hardware and Both Rotor Blades) x1 Per Snowblower



INDIVIDUAL PARTS



1. 66-6600-03 - HALF ROTOR CLAMPING BRACKESTS (Retains the Rubber Rotor Paddle Between the Two Halves or Two-Piece Rotor Clamping Bracket - Both of the two Halves are Designed to Clamp over the Auger Shaft. To Ensure that they are Not Overtightened and lose their Correct Form it Necessary to Use the Correct Spacer Between the Two Halves) x2 Per Snowblower
2. 136-7167 - SPACER (Installed Between the Two Half Rotor Clamping Brackets and through the Two Holes in Each of the Rubber Rotor Blades - Protect Against Over-Tightening and Eliminates Deforming the Half Rotor Clamping Brackets and Causing Damage to the Rubber Rotor Blades) x4 Per Snowblower Unit - x2 Per Rubber Rotor Blade
3. 321-5 - HEX HEAD BOLT (Inserts Through the Half Rotor Clamping Bracket, Half Rotor Clamping Brackets Spacer and Rubber Rotor Blades - Clamps them Together to the Rotor Shaft - Important to Use Correct Spacer Size to Eliminates of Tightening Which Could Deform the Half Rotor Clamping Bracket and Cause Damage to the Rubber Rotor Blade) x4 Per Half Rotor Clamping Brackets
4. 321-8 - HEX HEAD BOLT (Inserts Through the Half Rotor Clamping Bracket, Half Rotor Clamping Brackets Spacer, Rubber Rotor Blades and Rotor Shaft - Because it Travels through the Rotor Shaft it Eliminates the Assembly from Turning without the Rotation of the Rotor Shaft as well Keeping the Components at their Proper Alignment) x1 Per Half Rotor Clamping Brackets
5. 125-1122 - SHOULDER COUNTER SUNK SCREW (Retains the Rubber Rotor Blades to the Rotor Shaft Weldment Rotor Ears that is Welded or Manufactured to the Main Rotor Shaft) x8 Per Rotor Shaft Assembly - x4 Per Rubber Rotor Blade
6. 3296-56 - LOCK NUT (Retains Bolt 321-5, 321-8, 125-1122 and their Components) x5 Per Half Rotor Clamping Brackets OR x8 Per Rotor Shaft Assembly - x4 Per Rubber Rotor Blade = 13 for Complete Rotor Shaft Assembly and Components
