Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Numbers 140-7927 & 145-0717 Supersedes to Part Number 161-0977
- PRODUCT NUMBER AND VARIATIONS: 161-0977, 161 0977, 1610977, 145-0717, 145 0717, 1450717, 140-7927, 140 7927, 1407927

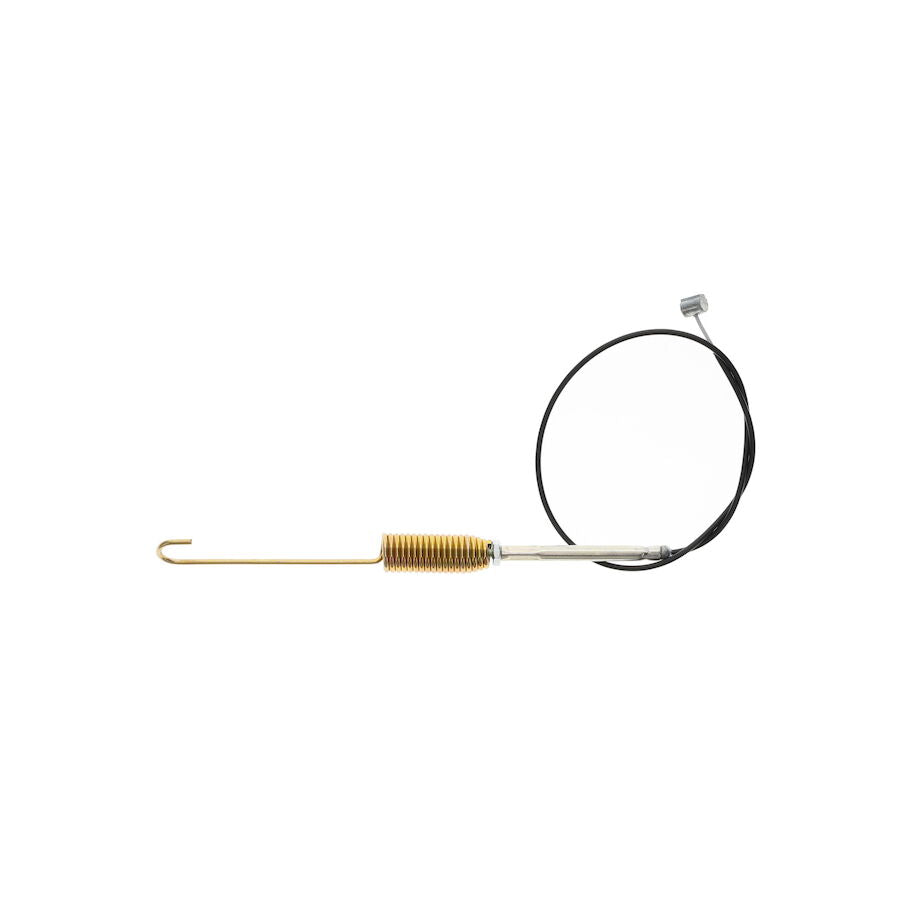

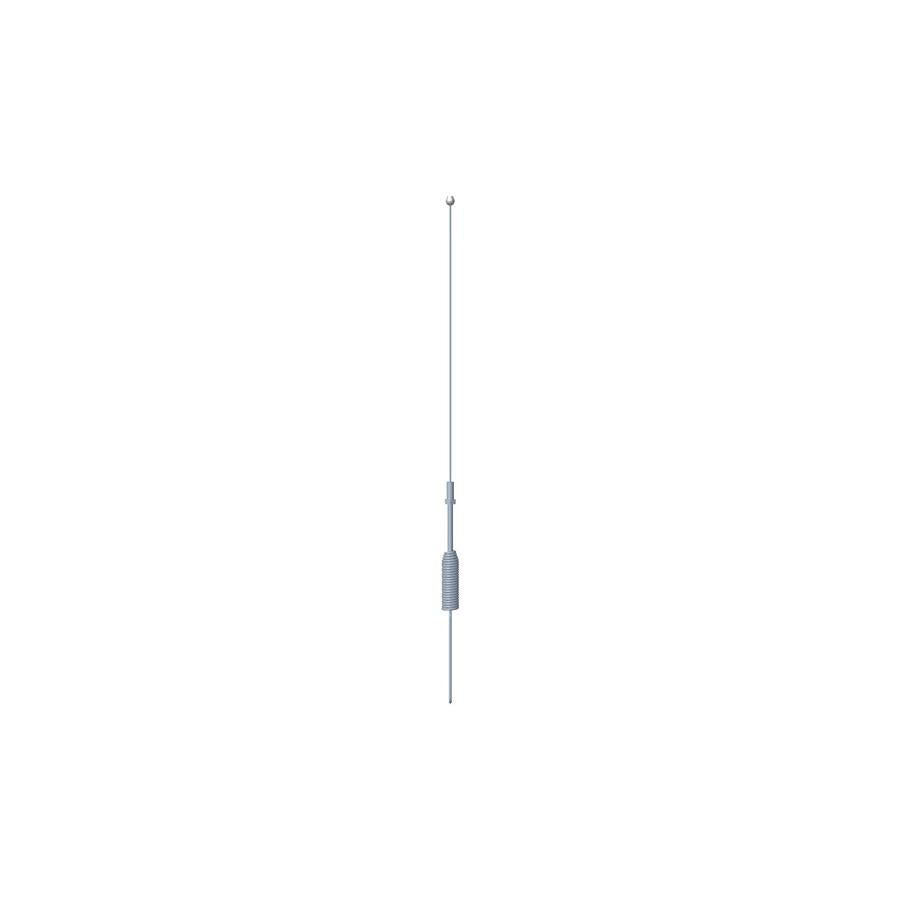

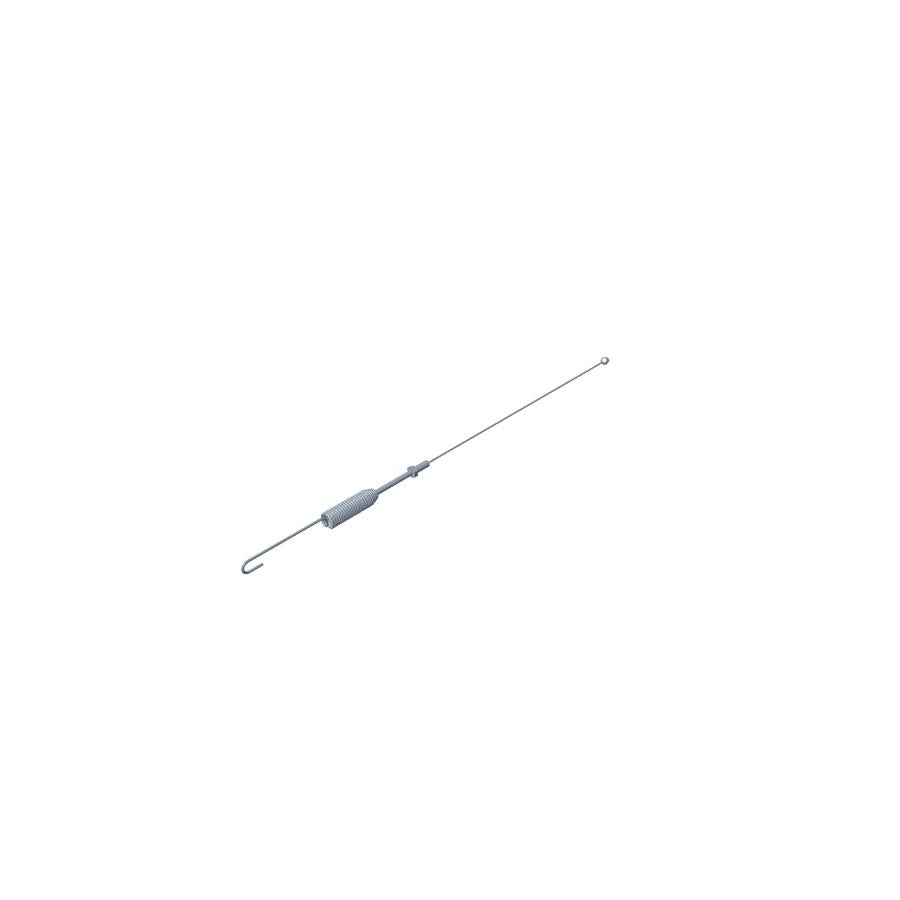

- PRODUCT TYPE: Primary Traction/Drive Cable
- SIZE: Length N /A - Width N/A - Height N/A - Weight 0.118 lbs.

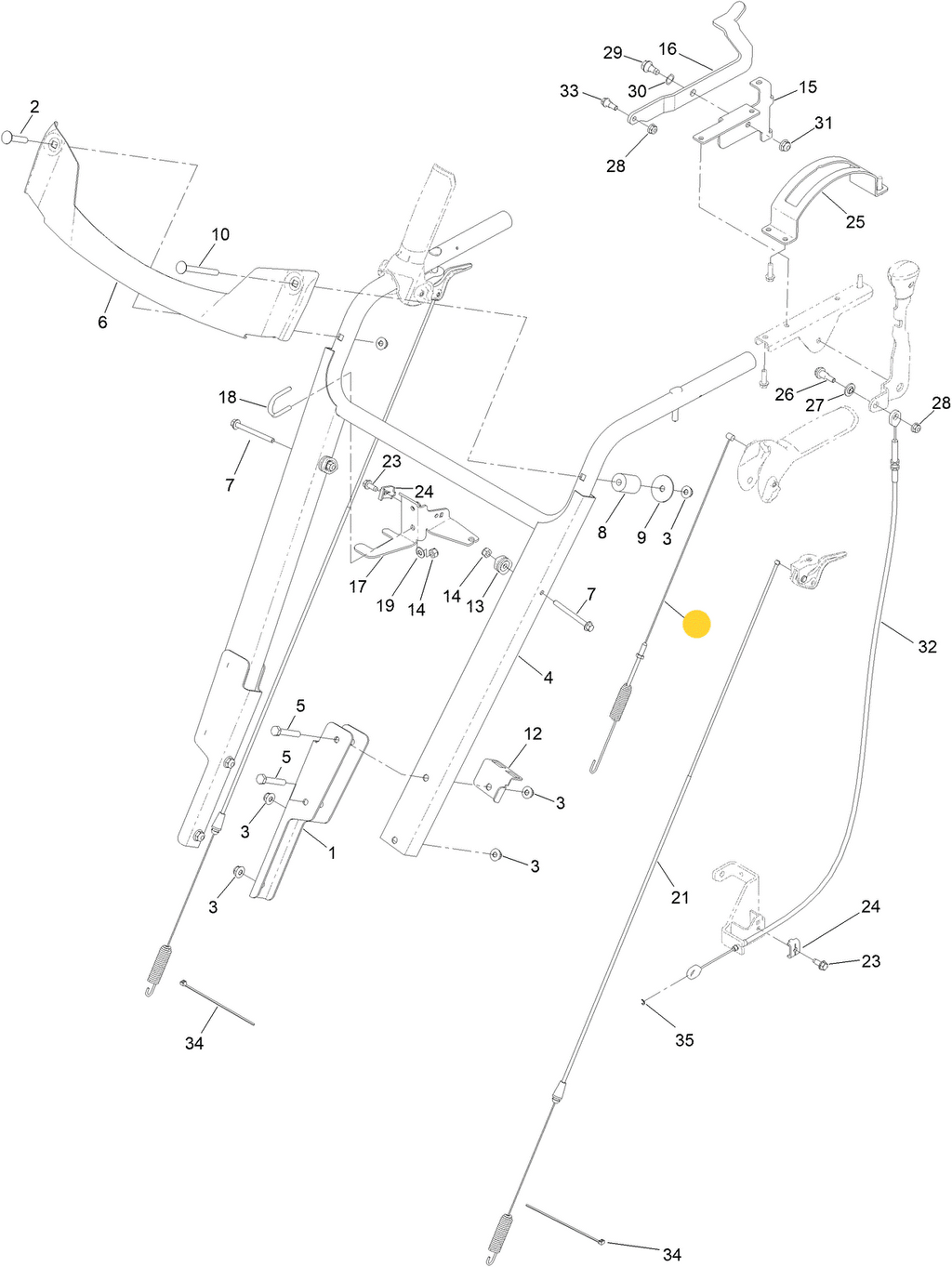

- NOTES & DETAILS: Toro OEM 161-0977 IS COMMINLY USED - PRIMARY CABLE -161-0977 Primary Cable is a One of a Two-Part Cable System. 161-0977 Primary Traction Cable End Inserts into the Operator's Control Lever, Travels to Below the Engine on the Lower Snow Blower Frame, Changes Direction into a 90 Degree and Feeds through the Cable Guide 139-3565 and Cable Guide Cap 139-3564 Which is Fastened to the Cable Guide Bracket/Anchor 140-7895-03 - from their Primary Cable 161-0977 Feeds through the rear snowblower frame and connects to the Secondary Traction Cable 144-2828 Via the Eyelet and Spring End Of both Cables. - SECONDARY CABLE - Secondary Cable 144-2828 Changes Direction into a 90 Degree and Feeds through the Cable Guide 139-3565 and Cable Guide Cap 139-3564 Which is Fastened to the Cable Guide Bracket/Anchor 140-7894-03 - From There Secondary Cable 144-2828 Connects to the Idler Pulley Arm via the Hook End to the Idler Arm Whole. Traction Cable's 161-0977 & 144-2828 Only Serve the purpose of Engaging and Disengaging the Drive Capability's by Tightening or adding Pressure Between the Belt and the Idler Pulley which is Fastened to the Idler Arm. Speed Variation is Selected by the Operator - By Adjusting the Speed Selection it Increase and Decreases Hydraulic Pressure. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Select Power TRX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)
