Description

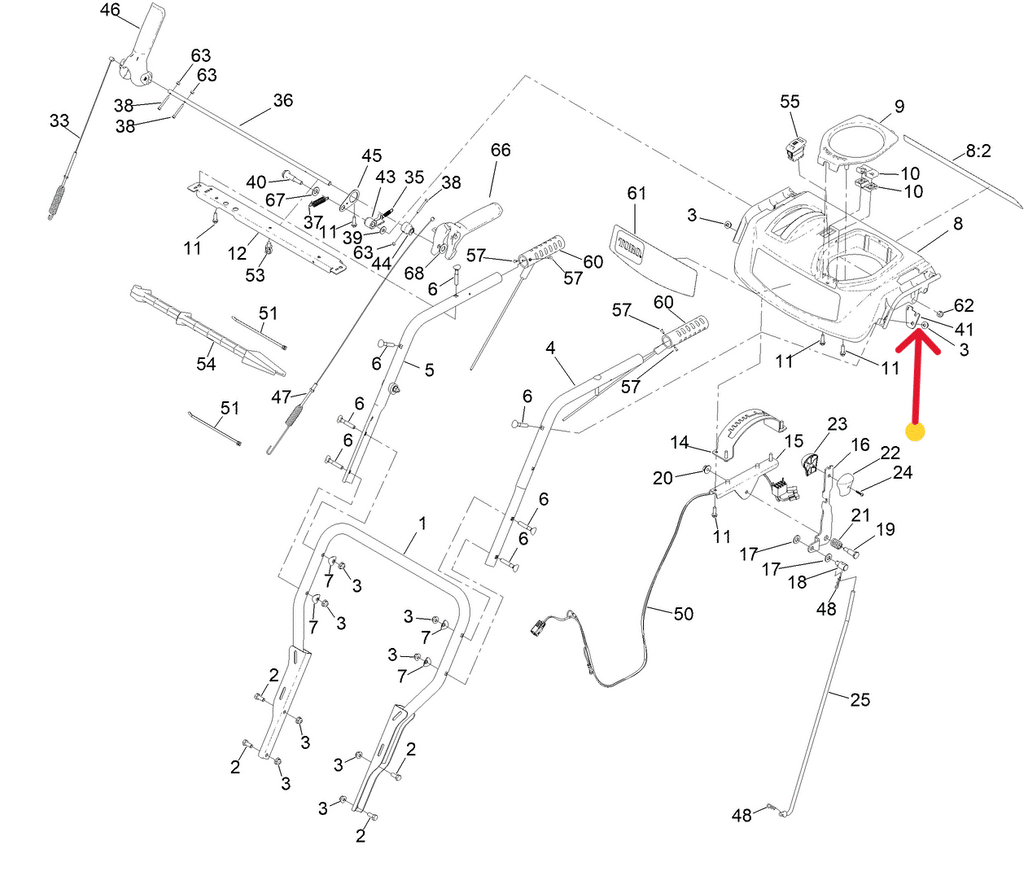

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

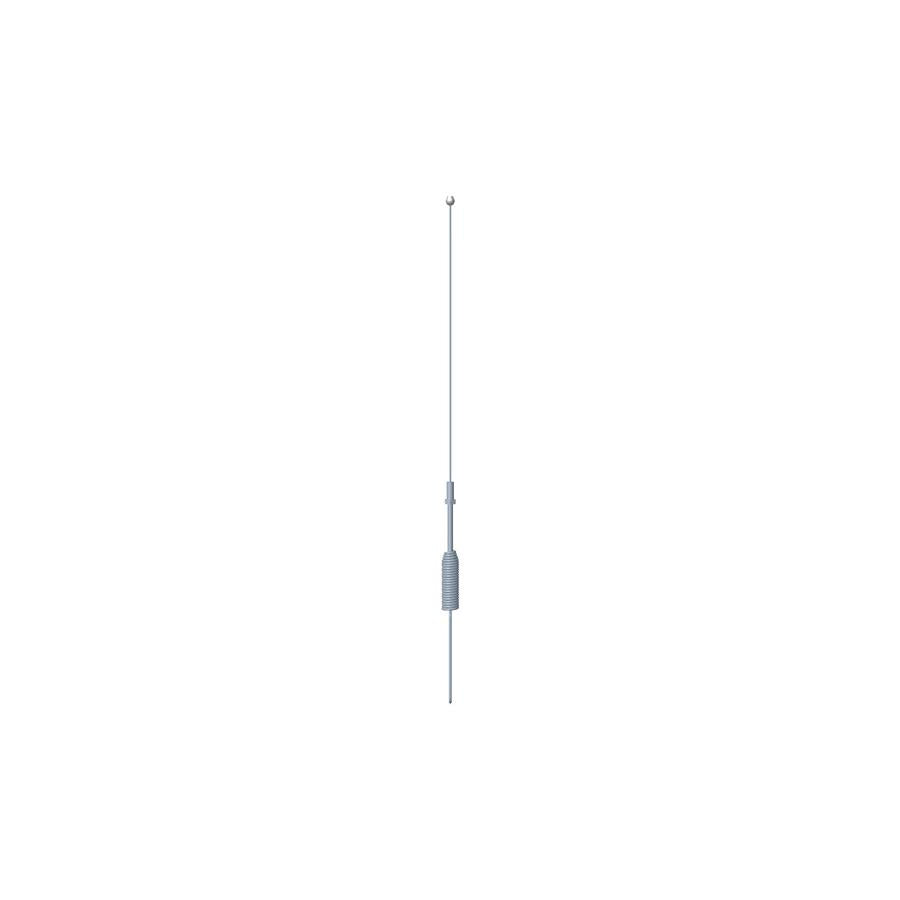

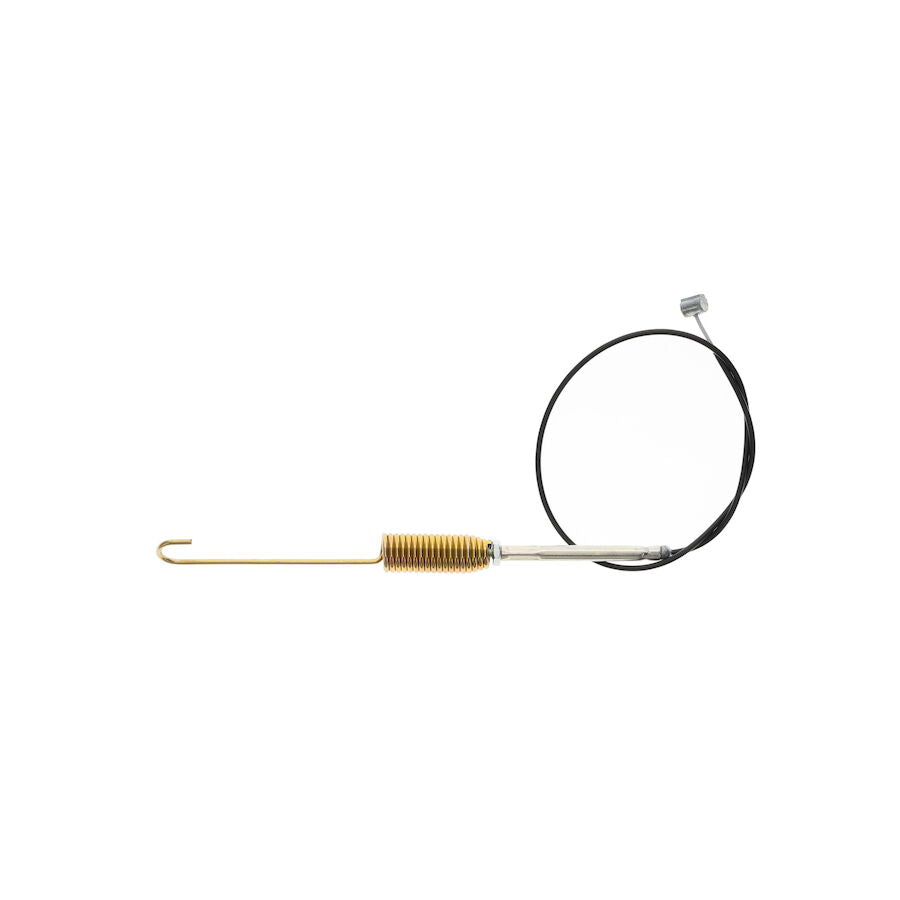

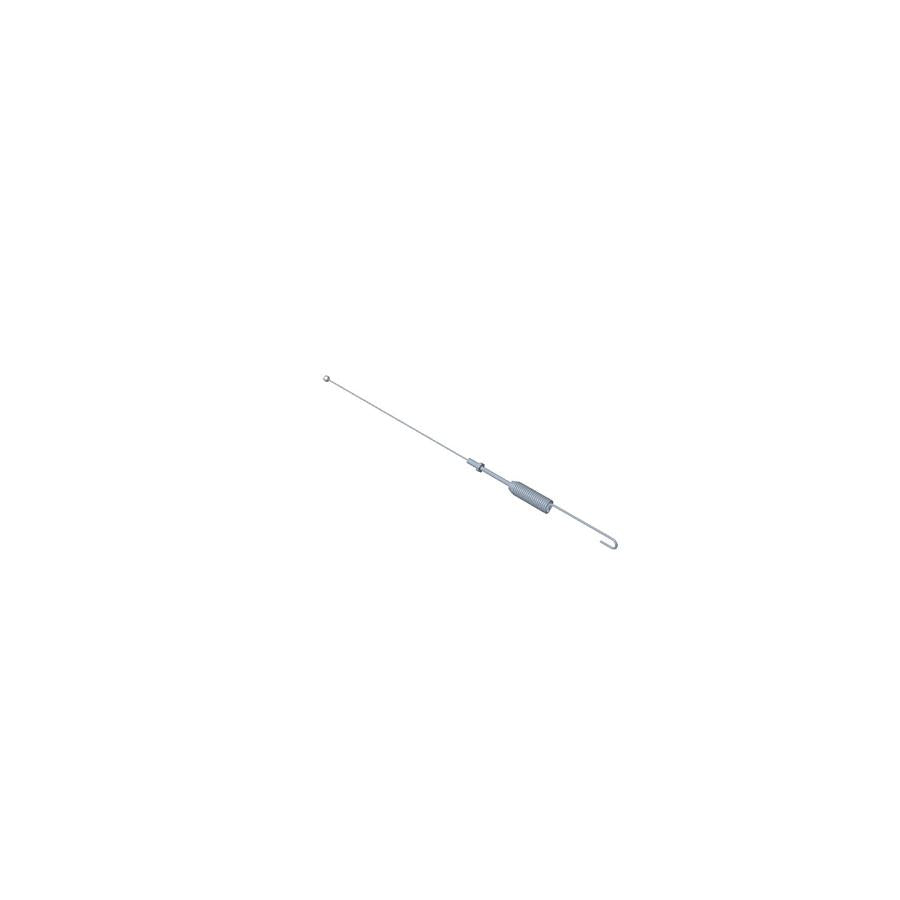

Part Number 138-0728 Supersede to Part Number 161-0976
- PRODUCT NUMBER AND VARIATIONS: 161-0976, 161 0976, 1610976, 138-0728, 138 0728, 1380728
- PRODUCT TYPE: Traction/Drive Cable
- SIZE: Length N /A - Width N/A - Height N/A - Weight 0.128 lbs.
- NOTES & DETAILS: Toro OEM 161-0976 IS COMMINLY USED - 161-0976 Cable End Inserts into the Operator's Control Lever - 161-0976 Cable's Spring End Hooks into the Traction/Drive Bell crank Rotational Plate which connects to a Rod that Connects to the Friction Wheel Plate which Retains The Traction Pulley - 161-0976 Cable Enables Tightening/Engaging of the Friction Wheel Plate Applying Pressure Between the Traction Pulley and the Rubber Friction Wheel when the Operator Engages the Traction Control Handle/Lever - Rotation of the Traction Pulley is Constant with The Engine/Belt/Pulleys. Speed of the Snowblower travel as well as Forward and Reverse is Select by the Amount of Friction, Rotational Speed, and Location of the Friction Wheel Against the Beveled Style Traction Pulley as Selected by the Operator.
- COMMON SERIES APPLICATIONS: Toro Select Power MAX HD Snow Blower Models - Power Broom Models.
- MODEL FIT CHART:
SNOWBLOWER’S & POWER BROOMS
POWER MAX Series – Model Numbers – (* Model Numbers 38830, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)
Power Broom Series – Model Numbers – (* Model Numbers 23741, 38701)
