Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 121-6813 Supersede to Part Number 161-0975
- PRODUCT NUMBER AND VARIATIONS: 161-0975, 161 0975, 1610975, 121-6813, 121 6813, 1216813

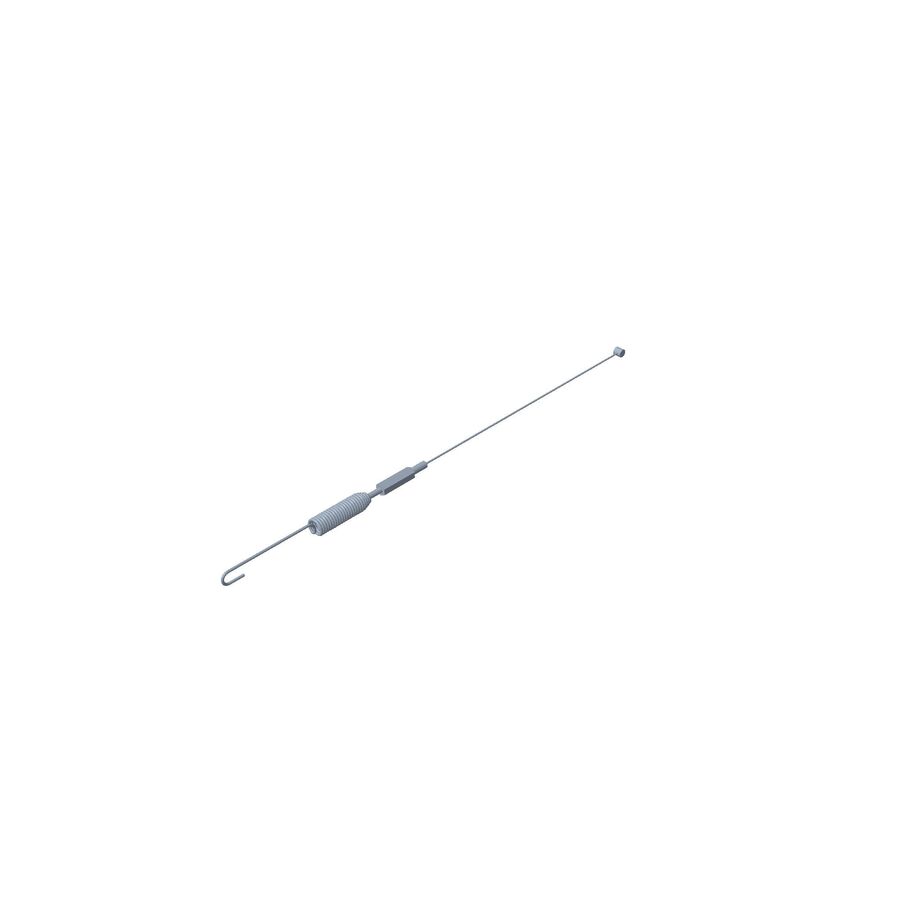

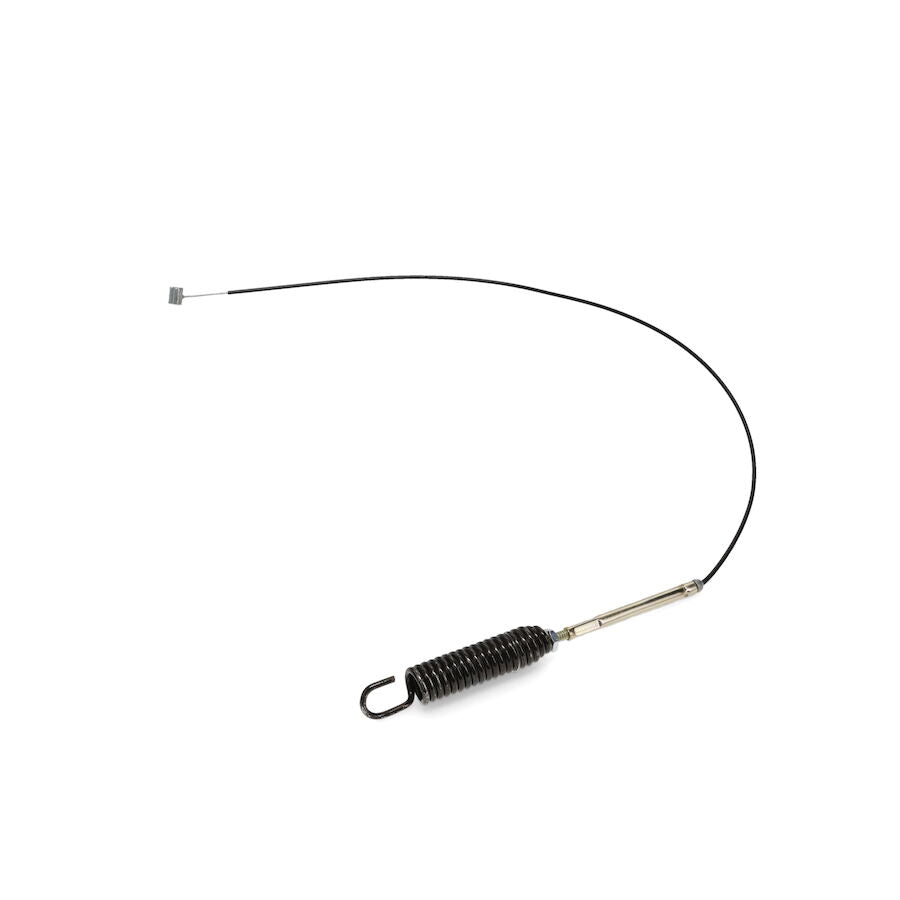

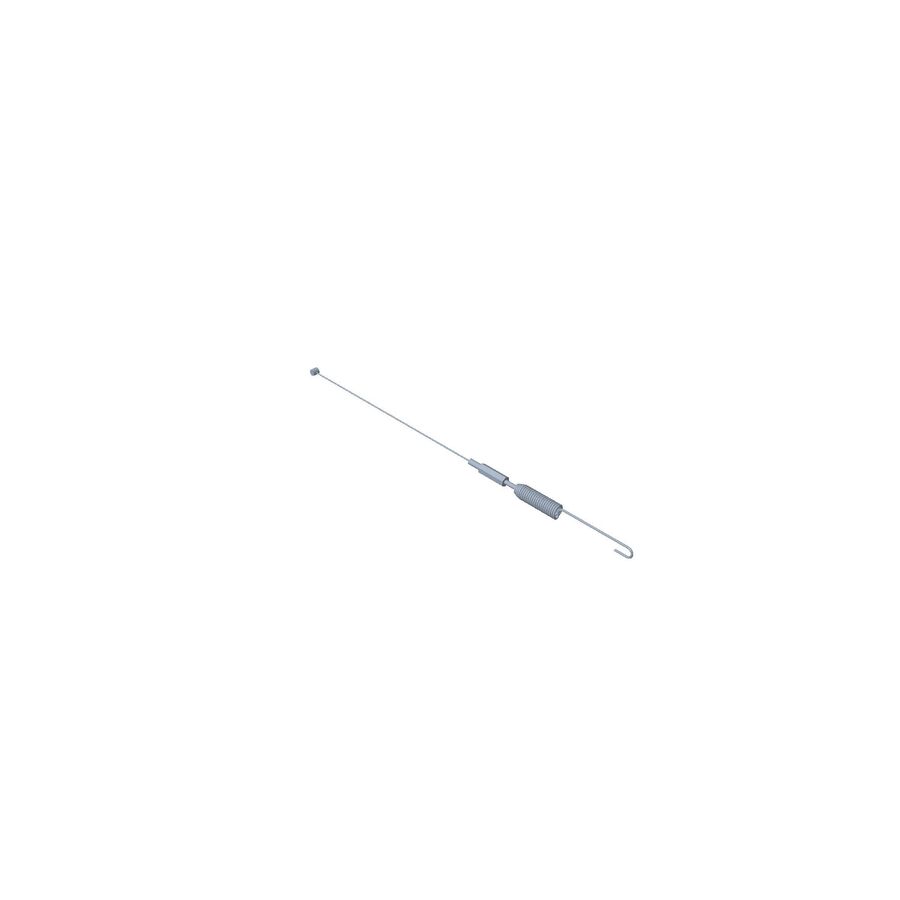

- PRODUCT TYPE: Traction/Drive Cable
- SIZE: Length N /A - Width N/A - Height N/A - Weight 0.125 lbs.

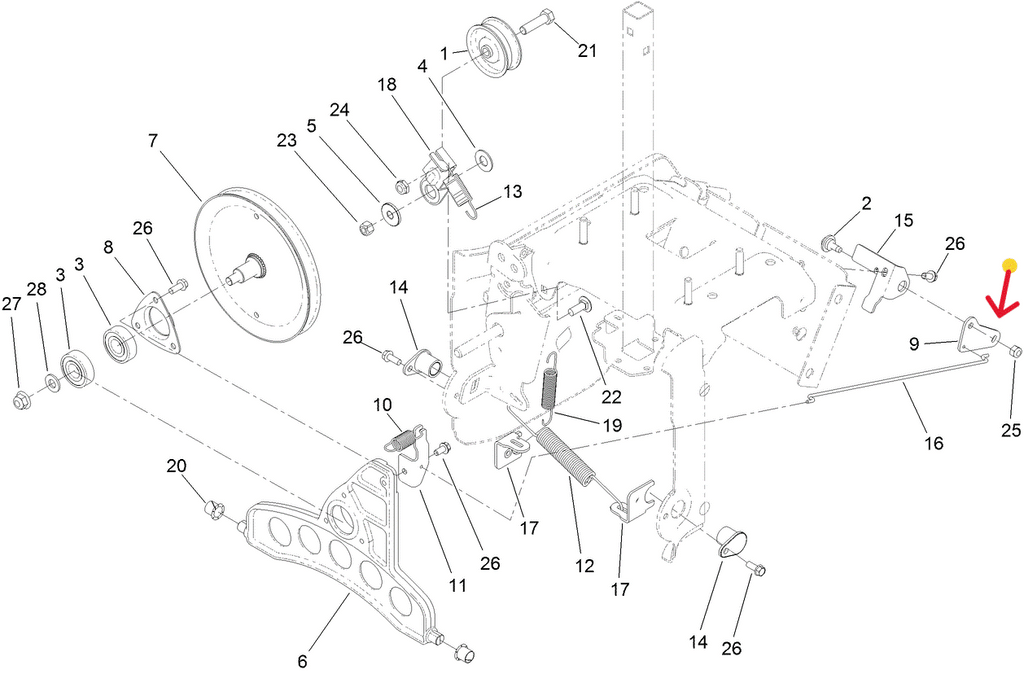

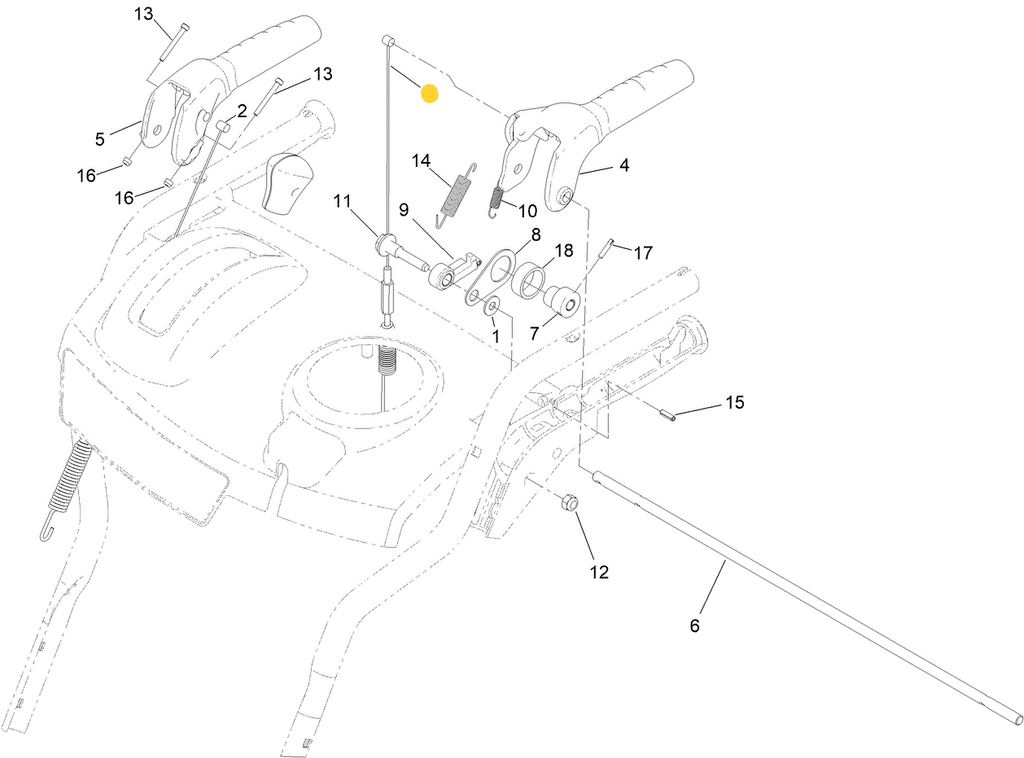

- NOTES & DETAILS: Toro OEM 161-0975 IS COMMINLY USED - 161-0975 Cable End Inserts into the Operator's Control Lever - 161-0975 Cable's Spring End Hooks into the Traction/Drive Bell crank Rotational Plate which connects to a Rod that Connects to the Friction Wheel Plate which Retains The Traction Pulley - 161-0975 Cable Enables Tightening/Engaging of the Friction Wheel Plate Applying Pressure Between the Traction Pulley and the Rubber Friction Wheel when the Operator Engages the Traction Control Handle/Lever - Rotation of the Traction Pulley is Constant with The Engine/Belt/Pulleys. Speed of the Snowblower travel as well as Forward and Reverse is Select by the Amount of Friction, Rotational Speed, and Location of the Friction Wheel Against the Beveled Style Traction Pulley as Selected by the Operator.
- COMMON SERIES APPLICATIONS: Toro Select Power MAX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER MAX Series – Model Numbers – (* Model Numbers 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37807, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38819)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)
