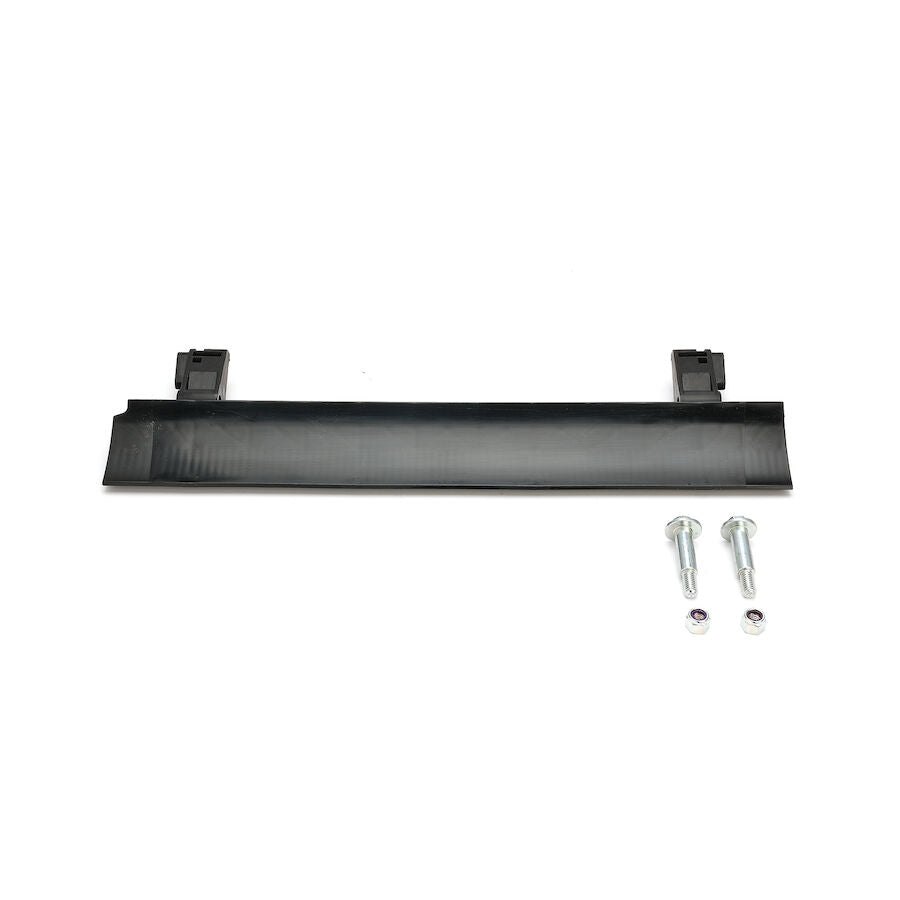

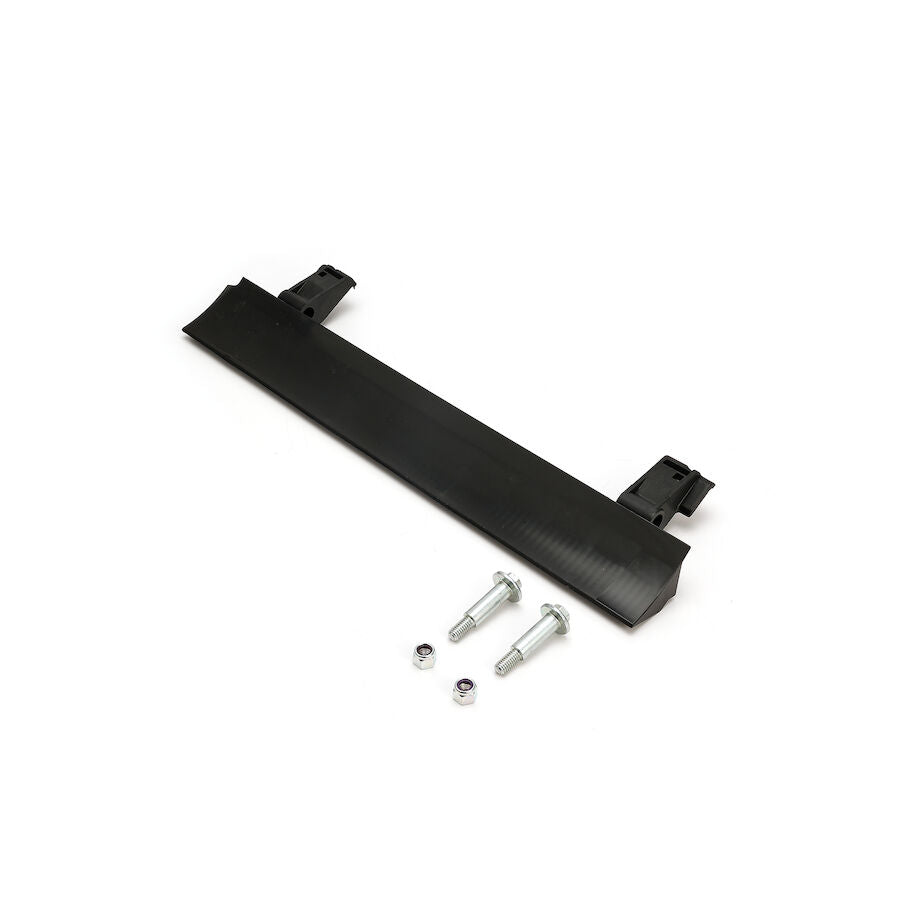

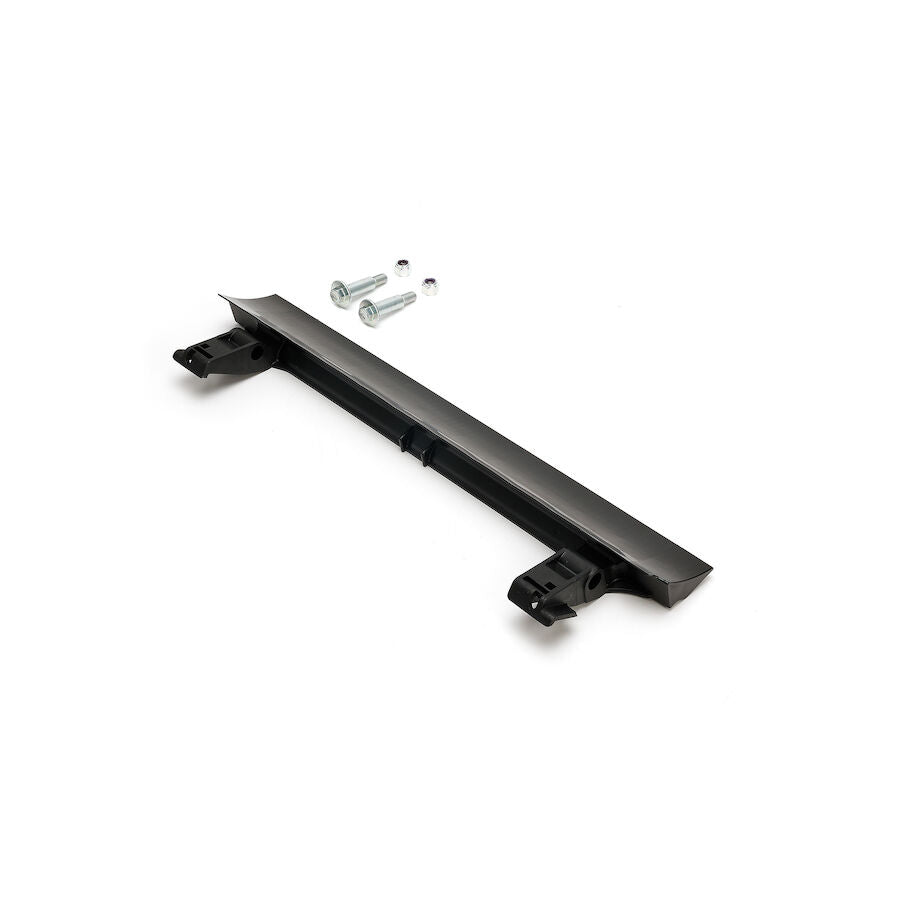

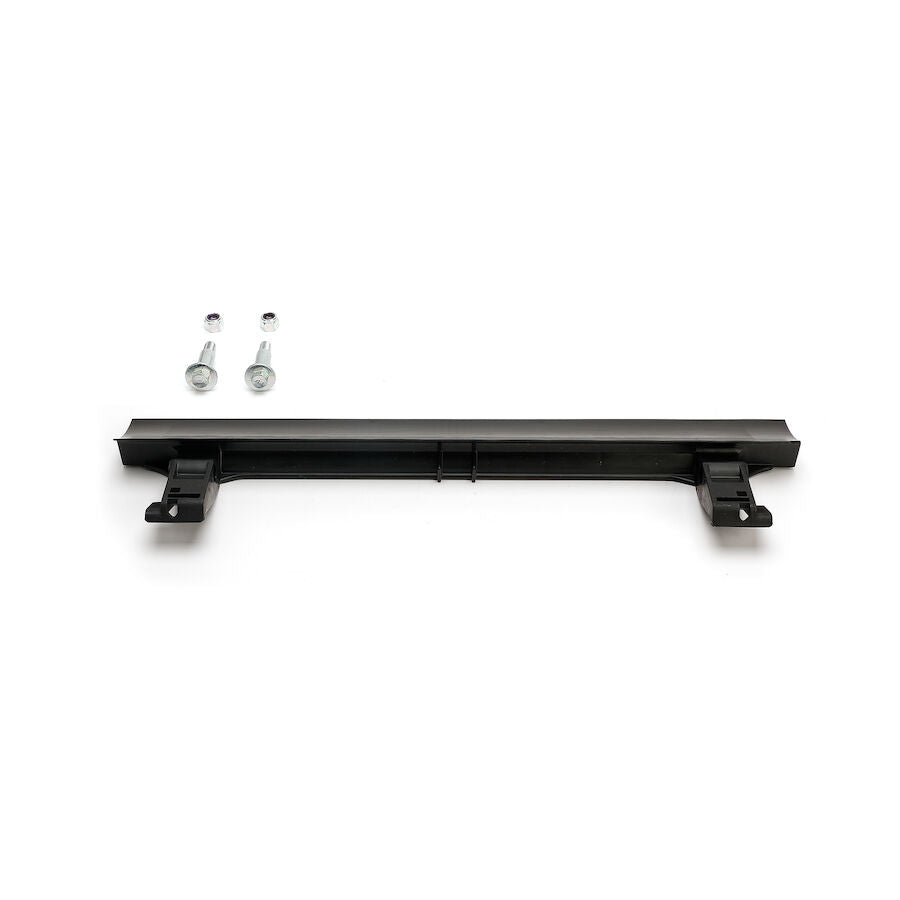

Toro OEM 161-0963P Poly/Plastic Scraper Bar Fits Select Toro 21" Single Stage Power Clear, E Power Clear, Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Numbers 38269 and 133-5585P Supersede to Part Number 161-0963P



• PRODUCT NUMBER AND VARIATIONS: 161-0963P, 161 0963P, 1610963P, 133-5582P, 133 5582P, 1335582P, 38269
• PRODUCT TYPE: Replaceable Poly/Plastic Scraper Blade
• SIZE: N/A
• NOTES & DETAILS: Toro OEM  161-0963P IS COMMINLY USED - (161-0963P Comes with 161-0963 Scraper Bar and Mounting Hardware)161-0963 is a Hard Poly/Plastic Replaceable Scraper Bar and is Designed to Travels the Length of the Snowblower Housing. 161-0963 Scraper Bar Travels Against Hard Surfaces Absorbing the Wear and Abuse. this Enable an Easy Replacement of the Scraper Bar when it is Worn over Repairing or Replacing the Main Snowblower Auger Housing. 161-0963 Scraper Bar is Fastened with Shoulder Bolt (Shoulder Bolt Inserted from Inside out with Nuts on the Outside of the Snow Blower Unit) and Uses Spring Tension to Keep it Resting Against the Snowblower Housing as well as act as a Trip Blade if it were to make Contact with an Obstruction - Potentially Eliminating Damage. Inspect Scrapers Bars Regularly or when Noticing Snow Skipper or Unclean Scraping Patterns. 161-0963 - Most Cost-Effective Replacement is Using 161-0963P Scraper Bar Kit.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear, E-Power Clear, Quick Clear Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38472, 38473, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 161-0963P ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



INDIVIDUAL ASSOCIATED PARTS



1. 161-0963 - PLASTIC/POLY SCRAPER BAR (Fasten to the Bottom of the Snow Blower Auger Housing and Enable Operators to Maintain a Cleaner Consistent Snowblower Cleaning) - *INDIVIDUAL Scraper Bar ONLY x1 Per Snowblower
2. 136-7198 - SHOULDER BOLTS (Retains the Scraper Bar to the Bottom of the Snowblower Auger Housing - Allows the Scraper Bar to Rotate as a Trip Blade if it Come into Contact with an Obstruction - Bolts are Installed from the Inside Out with a Nut on the Outside of the Snowblower Unit) x2 Per Scraper Blade
3. 3296-39 - LOCK NUT (Retains 136-7198 Shoulder Bolt and Scraper Bar) x2 Per Scraper Blade - *Gasoline Models Only
4. 137-3087 - LOCK NUT (Retains 136-7198 Shoulder Bolt and Scraper Bar) x2 Per Scraper Blade - *Battery Models Only
5. 108-4906 - RETURN SPRING (Hooks into the Scraper Bar and the Spring Tab on the Snowblower Frame - Allows the Scraper Blade to Rotate Back into Position Against the Auger Houser if it Where to Come into Contact with an Obstruction) x2 Per Scraper Blade - *Gasoline Models Only
6. 147-9464 - RETURN SPRING (Hooks into the Scraper Bar and the Spring Tab on the Snowblower Frame - Allows the Scraper Blade to Rotate Back into Position Against the Auger Houser if it Where to Come into Contact with an Obstruction) x2 Per Scraper Blade - *Battery Models Only
