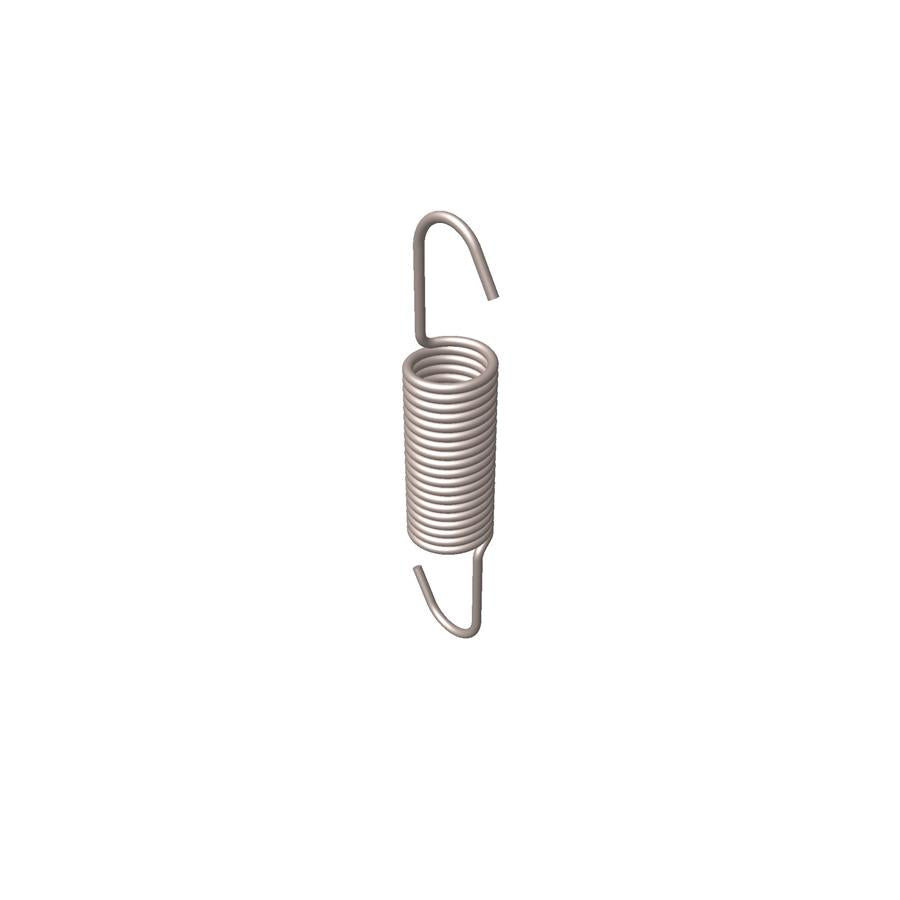

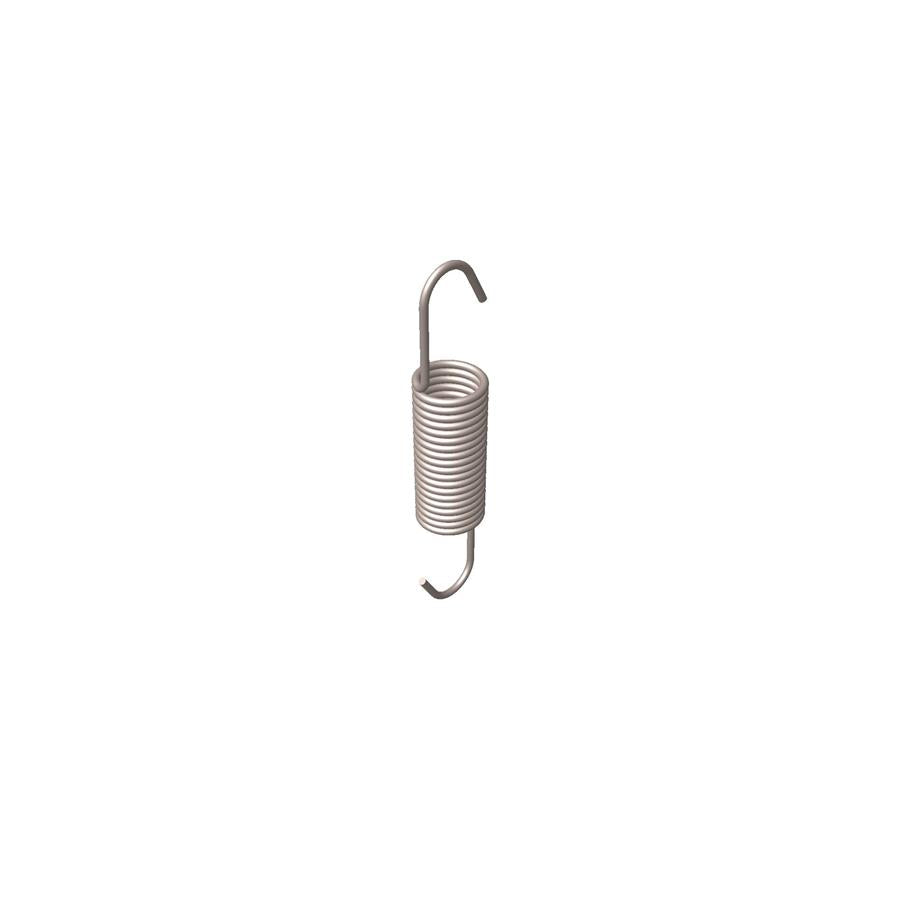

Toro OEM 147-9464 Scraper Extension Spring



Keep your Toro single-stage snowblower clearing clean and tight to the pavement with this genuine Toro OEM 147-9464 Scraper Extension Spring. This spring maintains proper tension on the scraper bar Retaining the Scraper Bar Against the Snow Blower Auger Housing while still Allowing it to Rotate out of the way if the Scraper Bar where to come into contact with something, helping to reduce Impact Damage to the Scraper Bar and other Components. 147-9464 Scraper Bar Extension Spring helps ensure effective snow removal and reducing chatter or uneven scraping From a Loose Rotating Scraper Bar.



Part Number 108-4906 Supersedes to Part Number 147-9464.



• OEM Part Number: 147-9464, 147 9464, 1479464, 108-4906, 108 4906, 1084906
• Part Name: Spring-Extension (scraper bar extension spring)
• Application: Scraper bar tension spring - Maintains Tension Between the Scraper Bar and the Auger Housing
• Genuine Toro OEM: Correct fit and performance on Select Toro Quick Clear, Power Clear & E-Power Clear snow thrower Models



Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)



Associated Parts (Common “Replace With” Items)

When this spring is worn or broken, other scraper and wear items are often due for replacement as well.



• 161-0963P – Scraper Bar (With the Hardware)
• 161-0963 – Scraper Bar (Without the Hardware)



Installation Tips

• Always work with the engine off and the spark plug wire disconnected to prevent accidental starting.

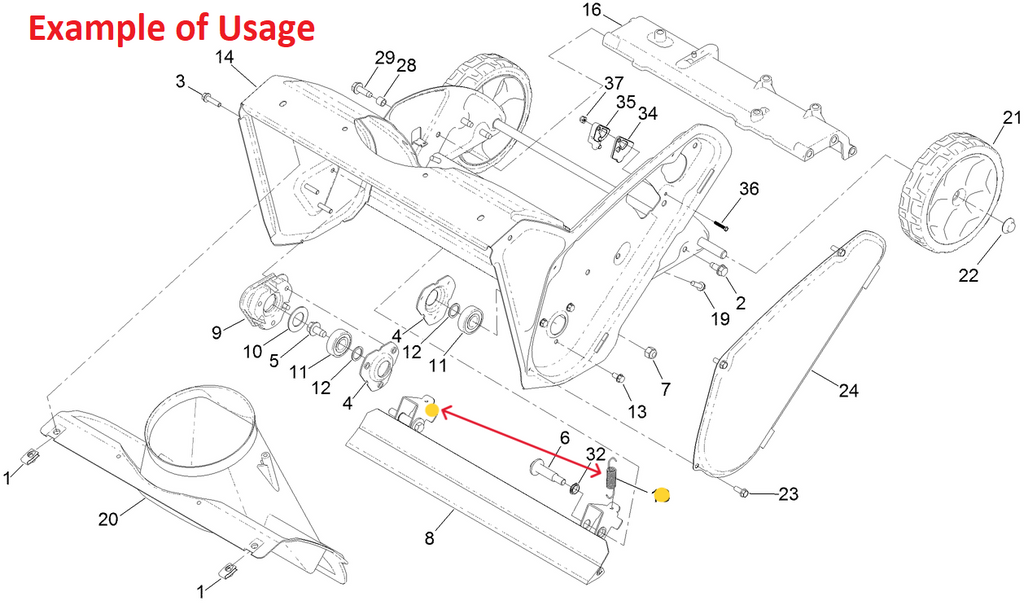

• Tip the unit back carefully so you can access the scraper bar and spring underneath the front of the housing.
• Note the original spring routing and hook locations before removal; take a quick photo for reference if needed.
• Inspect the scraper bar and mounting hardware; replace any excessively worn or bent components before installing the new spring.

• Use pliers or a spring tool to safely unhook the old spring and attach the new one, keeping hands clear of pinch points.
• Confirm the scraper bar moves into a tight, even contact with the ground and that the spring is not twisted or rubbing on other parts.
• After installation, roll the unit on a flat surface and check for even scraping across the width of the housing.



Need Help Verifying Fit?

Not sure if this is the correct spring for your snowblower? Contact us with your Toro model and serial number and we can verify the correct part before you order.
