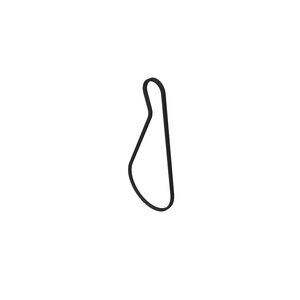

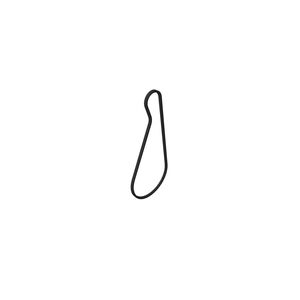

Toro OEM 147-9462 Snowblower Auger Drive V-Belt Fits Standard Power Max & E-Power Max Snowblower Models. TORO DEALER

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Model Numbers 37798, 37799, 37805, 37807, 31875, 38812, 38819, 39924, 39925 & 39926 Does Contain a Serial Number Break in Requiring Correct Part Number Usage - Review the Model Fit Chart to Ensure Correct Part Number. if it is the Incorrect Part Number Refer to Part Number 120-3892





• PRODUCT NUMBER AND VARIATIONS: 147-9462, 147 9462, 1479462
• PRODUCT TYPE: Auger/Rotor Drive V-Belt
• SIZE: Length N/A in. - Width N/A in. - Height N/A in. - Weight 0.203 lbs.

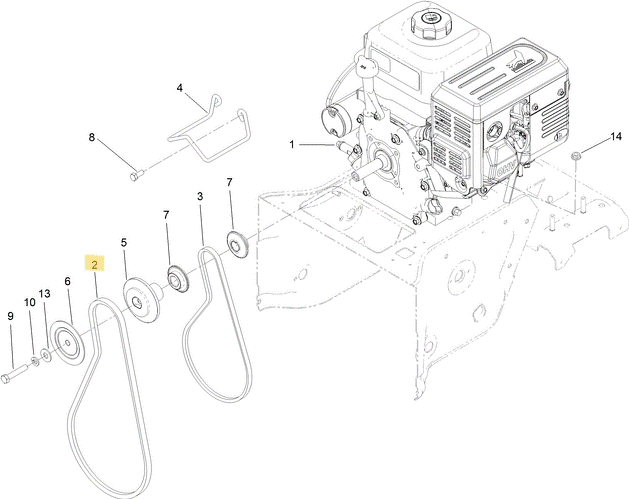

• NOTES & DETAILS: Toro OEM  147-9462 IS COMMINLY USED - 147-9462 Travels from the Two-Piece Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power Max & E - Power Max Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 37798 Serial Number 416442244 and Higher, 37799 Serial Number 416223093 and Higher, 37805 Serial Number 416243856 and Higher, 37807, 38812 Serial Number 418000000 and Higher, 38819 Serial Number 415000000 and Higher)



E - POWER MAX Series – Model Numbers – (* Model Numbers 31875 Serial Number 417154000 and Higher, 39924 Serial Number 416211065 and Higher, 39925 Serial Number 417948631 and Higher, 39926 Serial Number 416422805 and Higher)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 147-9462 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

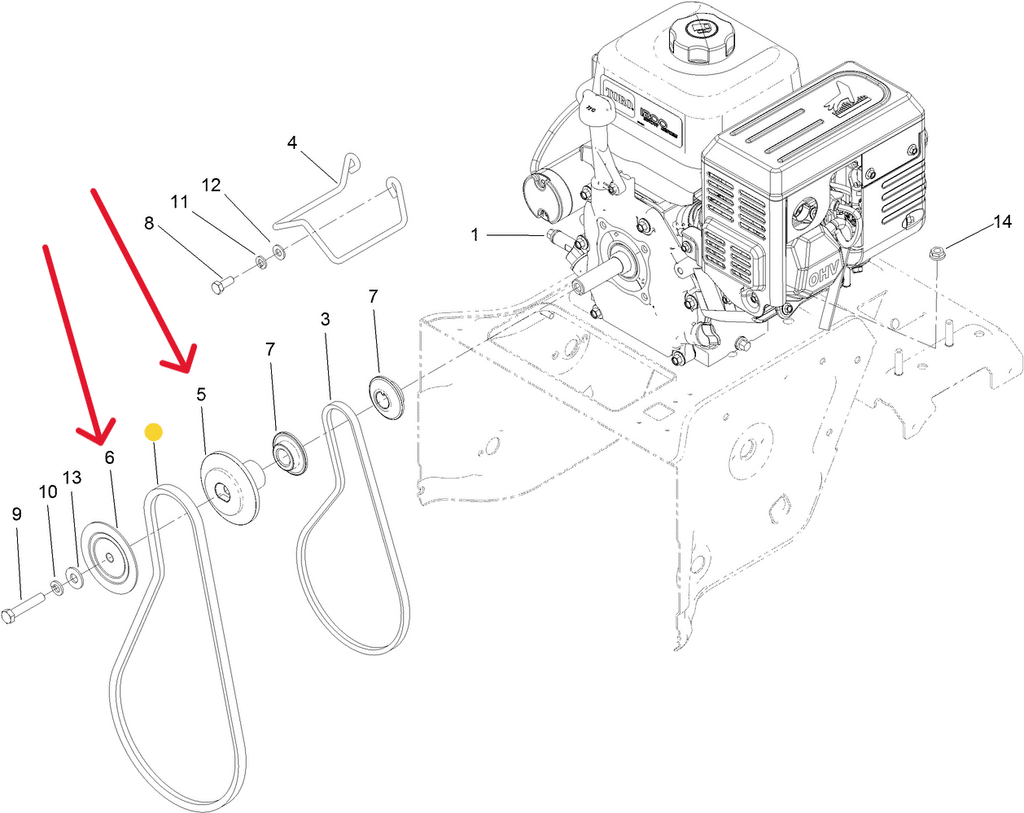

1. 120-9284 - FRONT TWO-PIECE ENGINE IMPELLER PULLEY (Is the Front of the Two-Piece Pulley and is Assembled Directly to the Engine Crankshaft - Two Piece Traction Drive Pulley is Installed Behind it Between Engine Impeller Pulley and the Engine Crankcase - and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit
2. 120-9283 - REAR TWO-PIECE ENGINE IMPELLER PULLEY (Is the Rear or Engine Side of the Two-Piece and is Assembled Directly to the Engine Crankshaft - Two Piece Traction Drive Pulley is Installed Behind it Between Engine Impeller Pulley and the Engine Crankcase - and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit

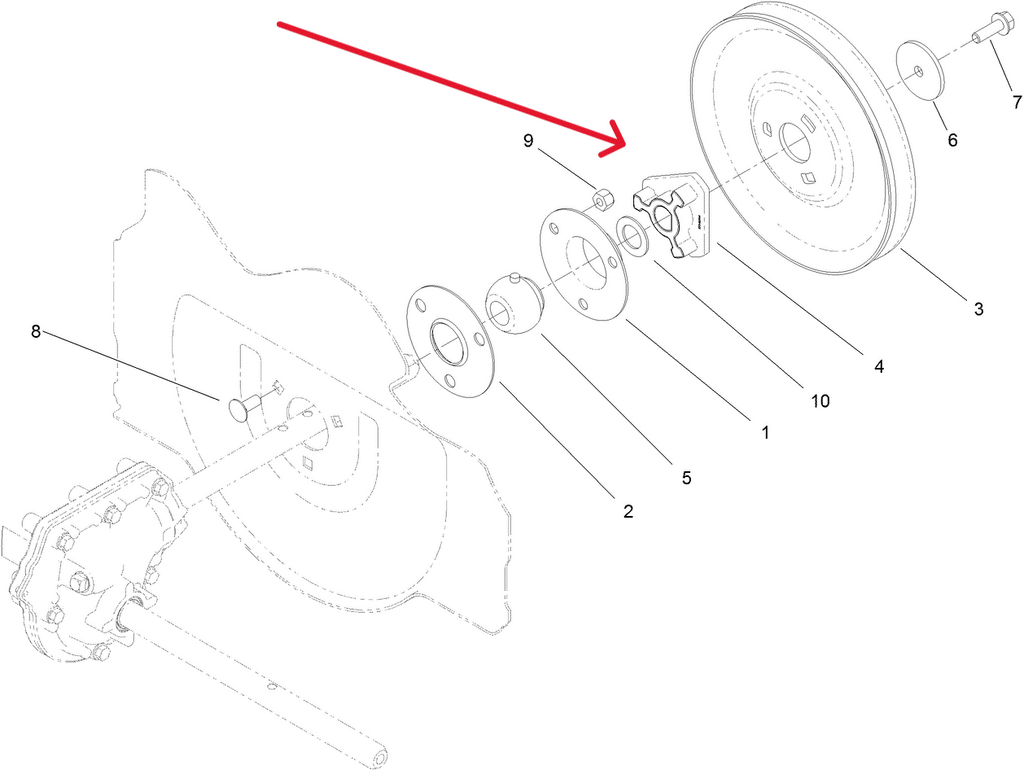

3. 136-7157 - AUGER/ROTOR PULLEY (Is Assembled Directly to the Auger/Rotor Assembly Shaft Using Pulley Hub 120-9264 and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit -
4. 120-9264 - AUGER/ROTOR PULLEY HUB (Retains the Auger/Rotor Pulley to the Auger/Rotor Shaft) x1 Per Snowblower Unit

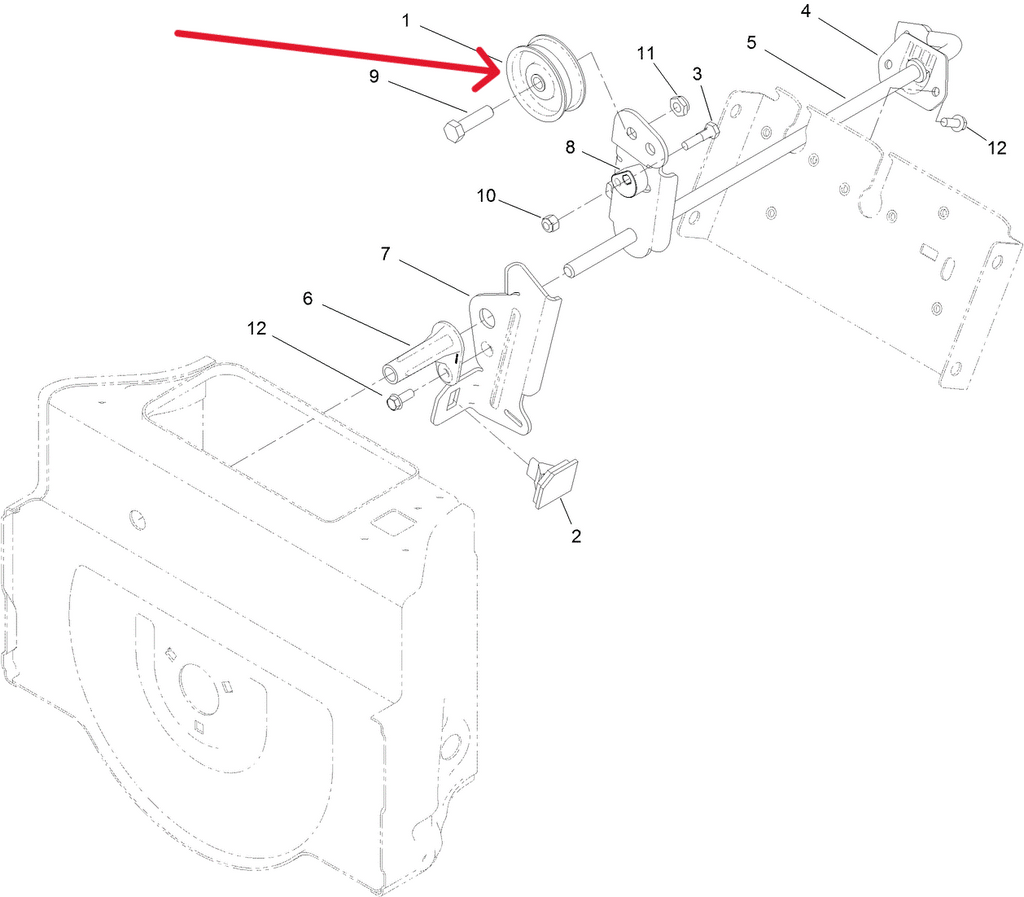

5. 3-4244 - IDLER PULLEY (Contains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley/Impeller Clutch Arm 120-9254-03) x1 Per Snowblower Unit
6. 120-9254-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit
