Toro OEM 147-5175 Pivot Pin Roll Screw Fits Current Non-My-Ride Timecutter MAX and TITAN (With I-Beam Framing) Models (1/4 x 1.75 - 20)

• TYPE: TORO OEM Roll Pin Screw
• SIZE: Standard 1/4 x1.75 - 20 Standard Thread Size
• APPLICATIONS: Used to Retain Seat Pan Pivot Rod Which is Used to Retain Pivot Pan to Mower Frame
• COMMON SERIES APPLICATIONS: Toro Current 42", 50", 54", 60" Timecutter MAX (Standard) Models. * Non - My-Ride Models. - Toro Current 48", 54", 60" TITAN & TITAN MAX (Standard) Models. * Non - My-Ride Models.

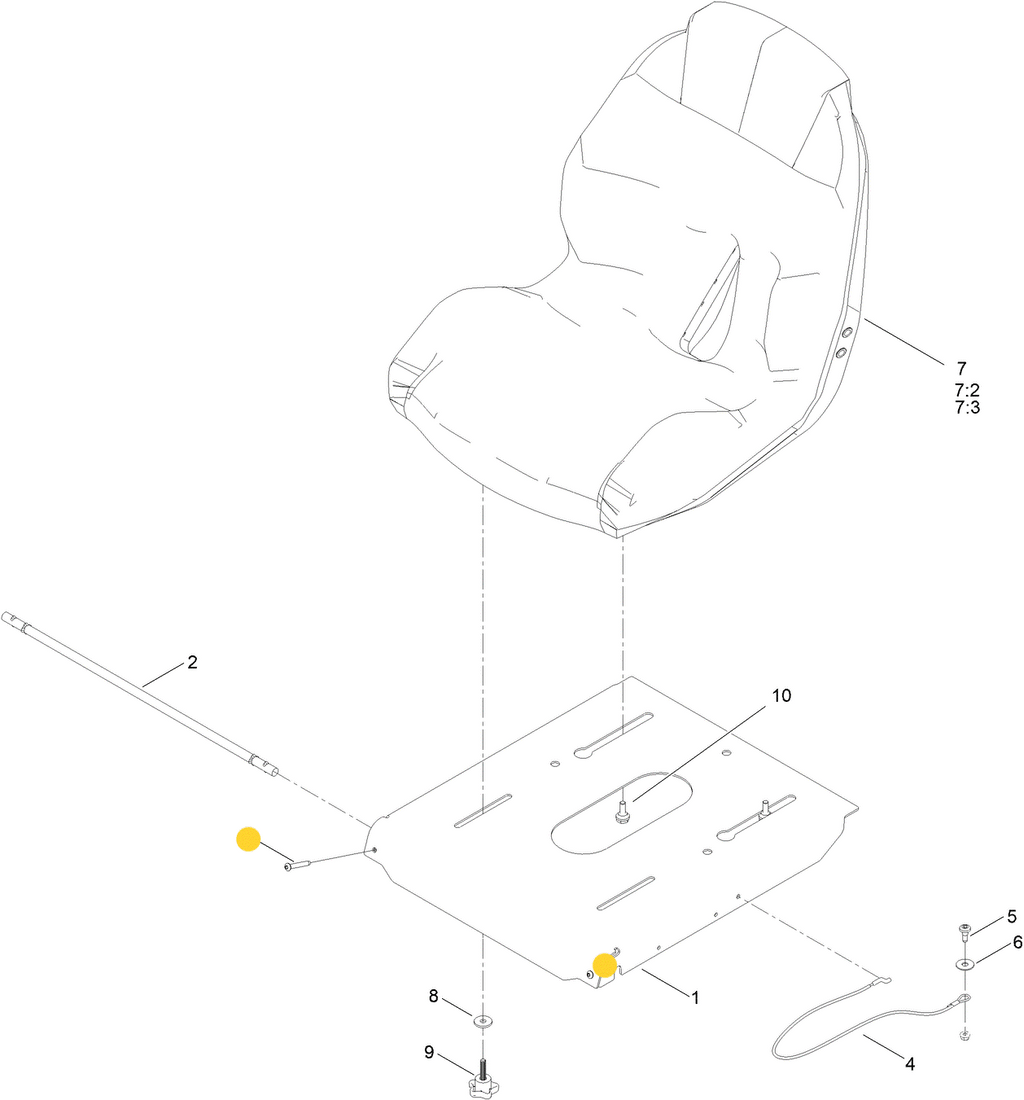

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







Product Number:

1475175, 147 5175





Model Fit:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)





TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76420)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605)
