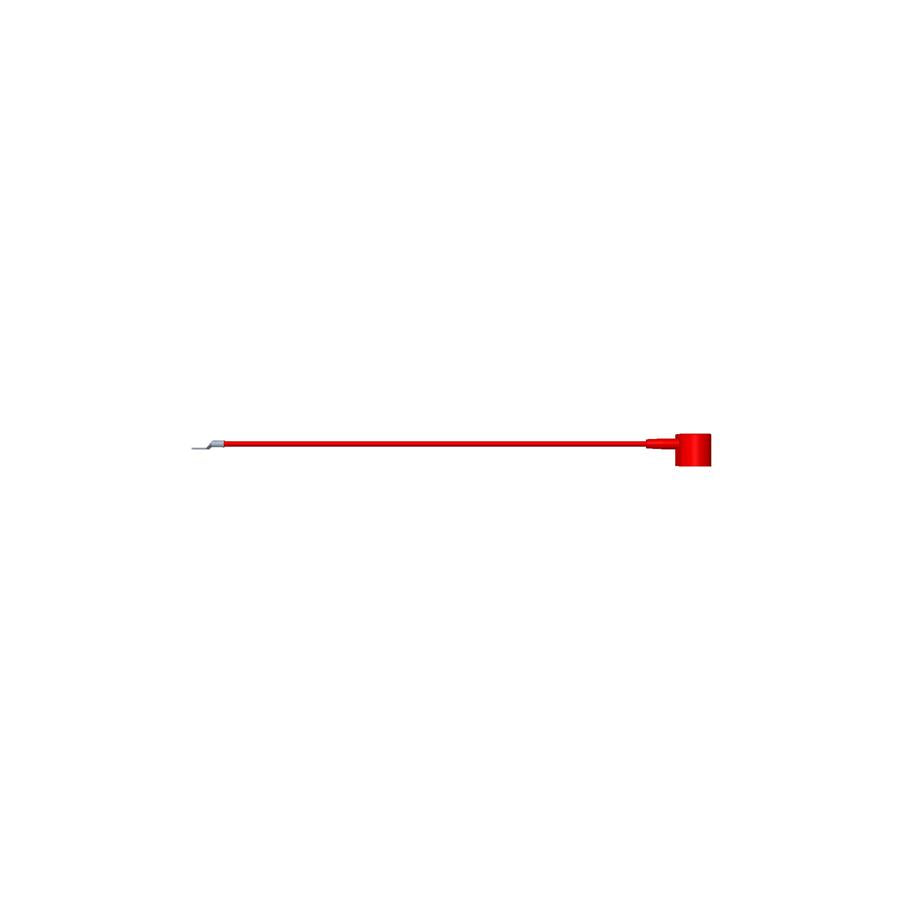

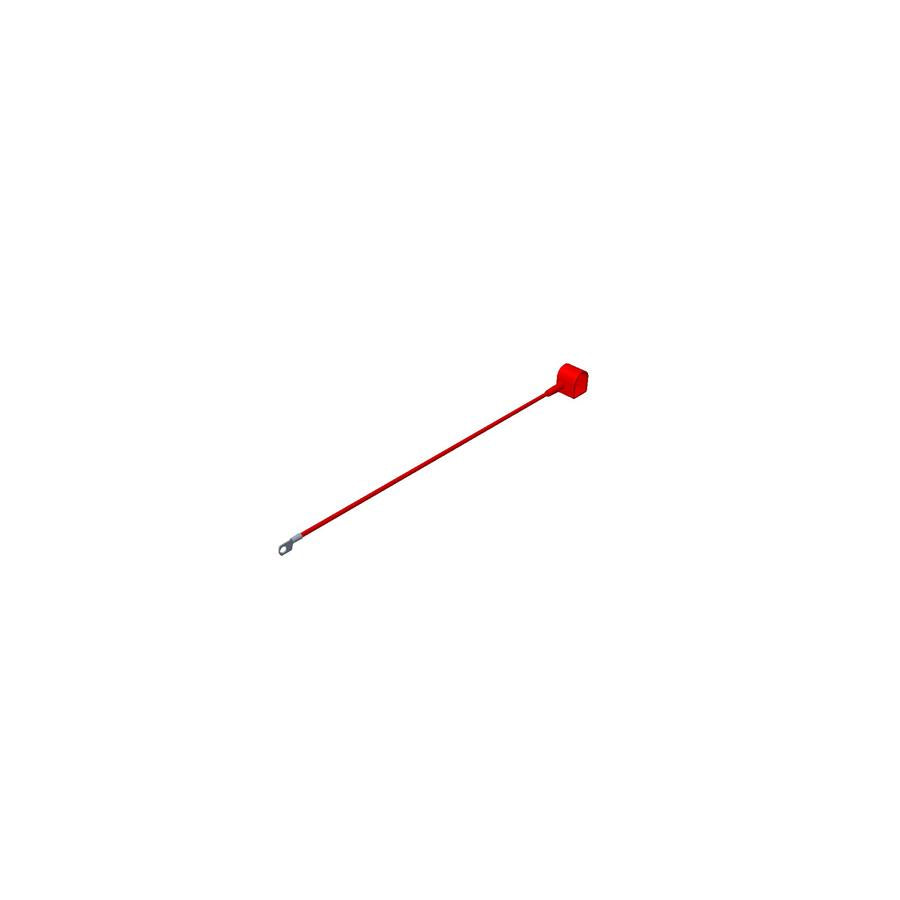

Toro OEM 147-2941 Red/Positive Battery Cable (8 Gauge Wire - 5/16" Eyelet/Bolt Whole - 1/4" Eyelet/Bolt Whole - Battery Post Cover) Fits Current Timecutter Max Models - Current Titan and Titan MAX Models (With I-Beam Framing).

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 147-2941, 147 2941, 1472941
• PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 147-2941 Red Positive Battery Cable is Primarily Used Between the Battery and the Electrical Solenoid. 147 2941 Contains a Protective Boot for Positive Battery Post Eliminating the Possibilities of accidentally Creating a short Across the Battery Post which could Result in Injury, Fire & Damage as well as Protecting the Post from less Moisture Accumilation which can Encourage Corrosion Build-Up. 147 2941 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 19 in.
• COMMON SERIES APPLICATIONS: Current 42", 50", 54", 60" Timecutter MAX - Current 48", 54", 60 Titan & 60" Titan Max Models (With I-Beam Framing).



• ASSOCIATED PARTS CHART:



BATTERY



1. 137-3041 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
2. 119-8952 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
3. 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post



SOLENOID



1. 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
2. 139-2580 - NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post



• MODEL FIT CHART:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
