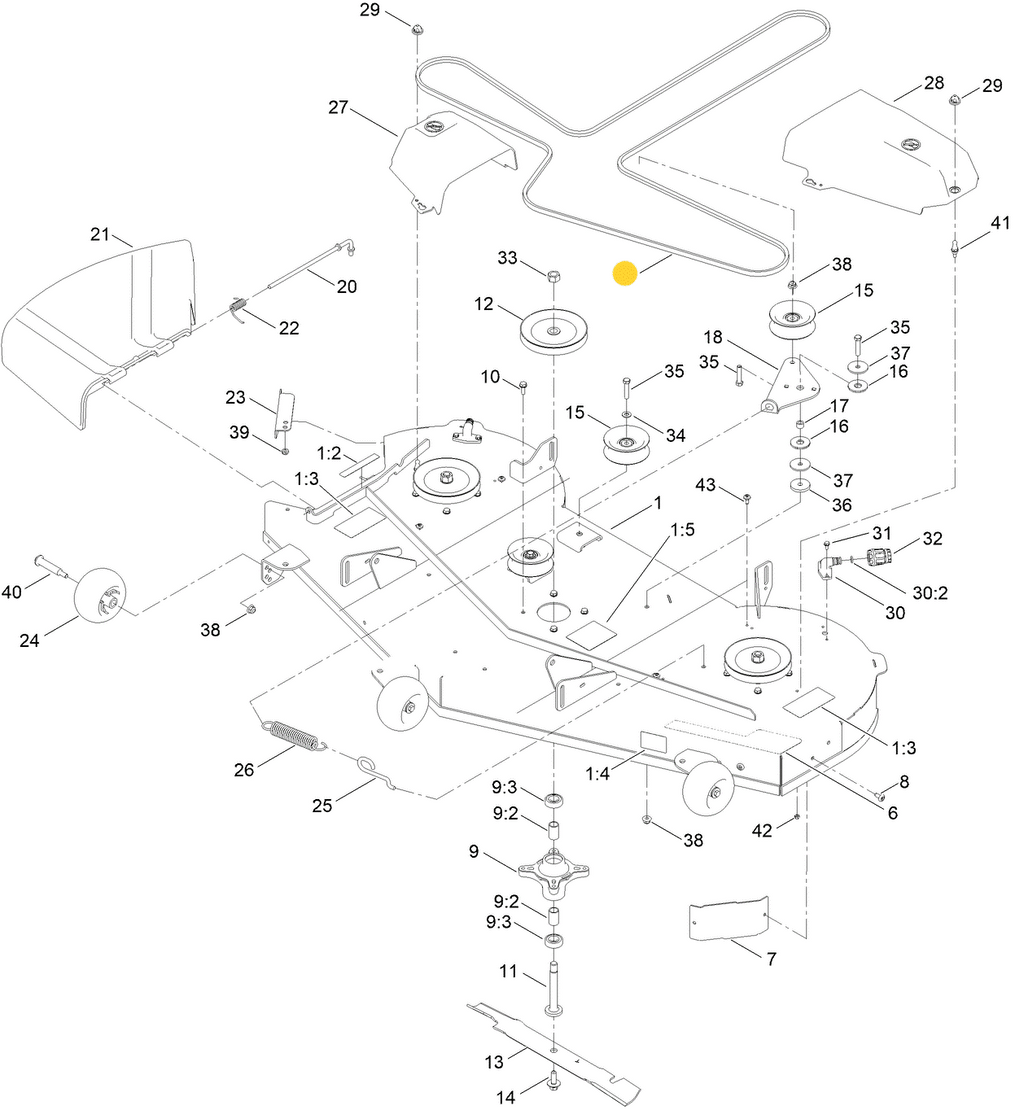

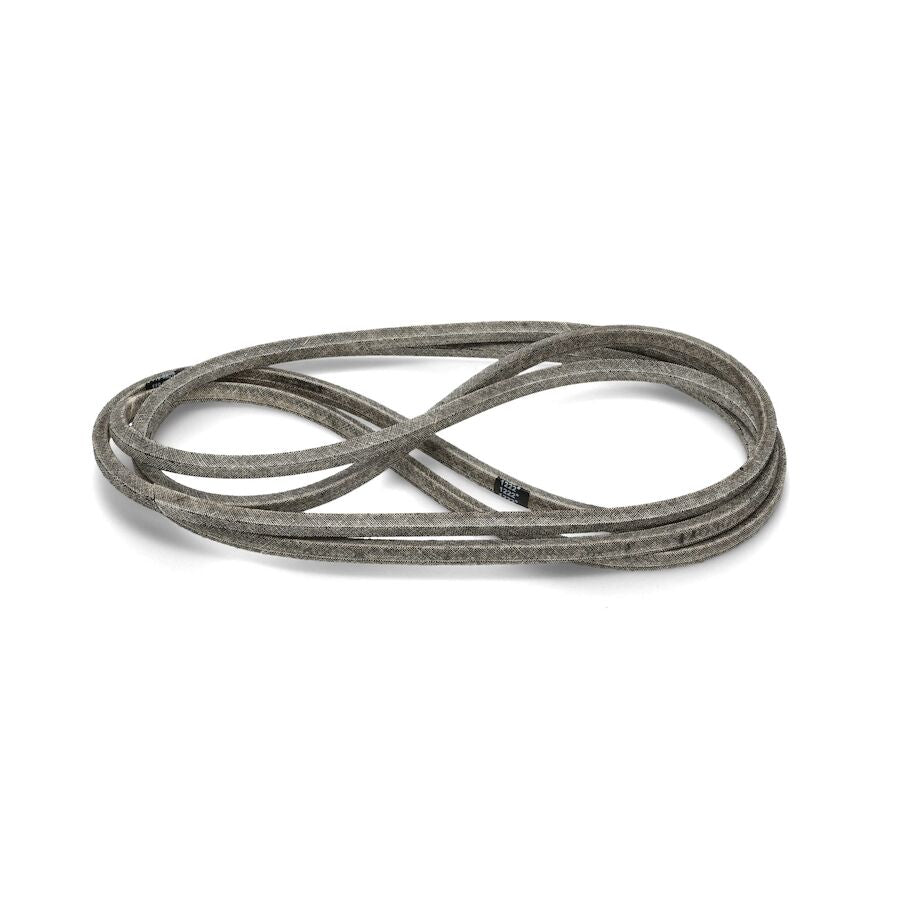

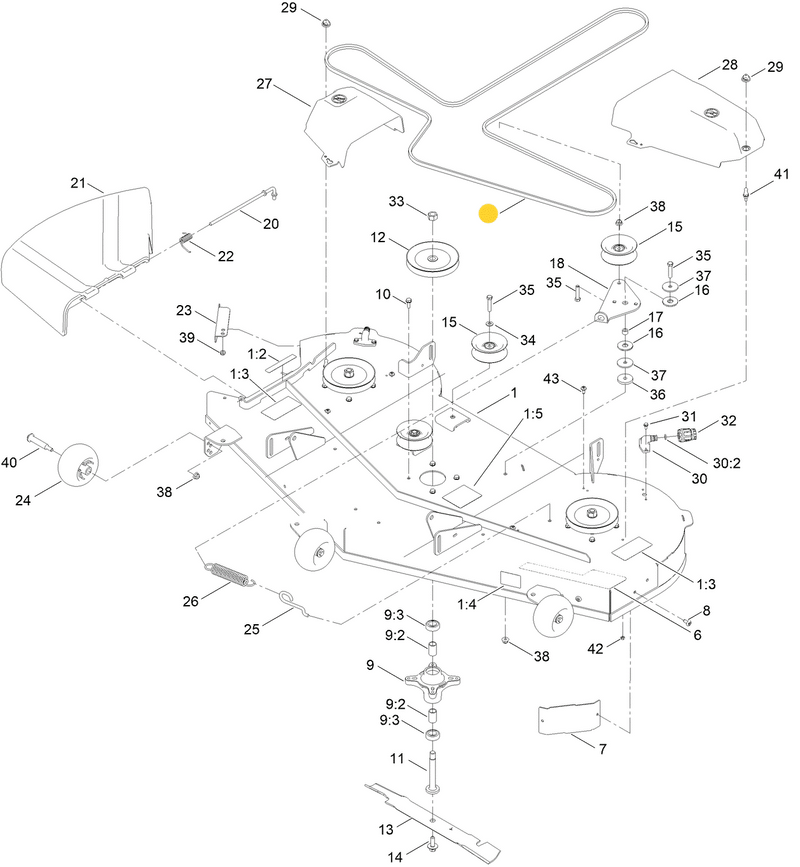

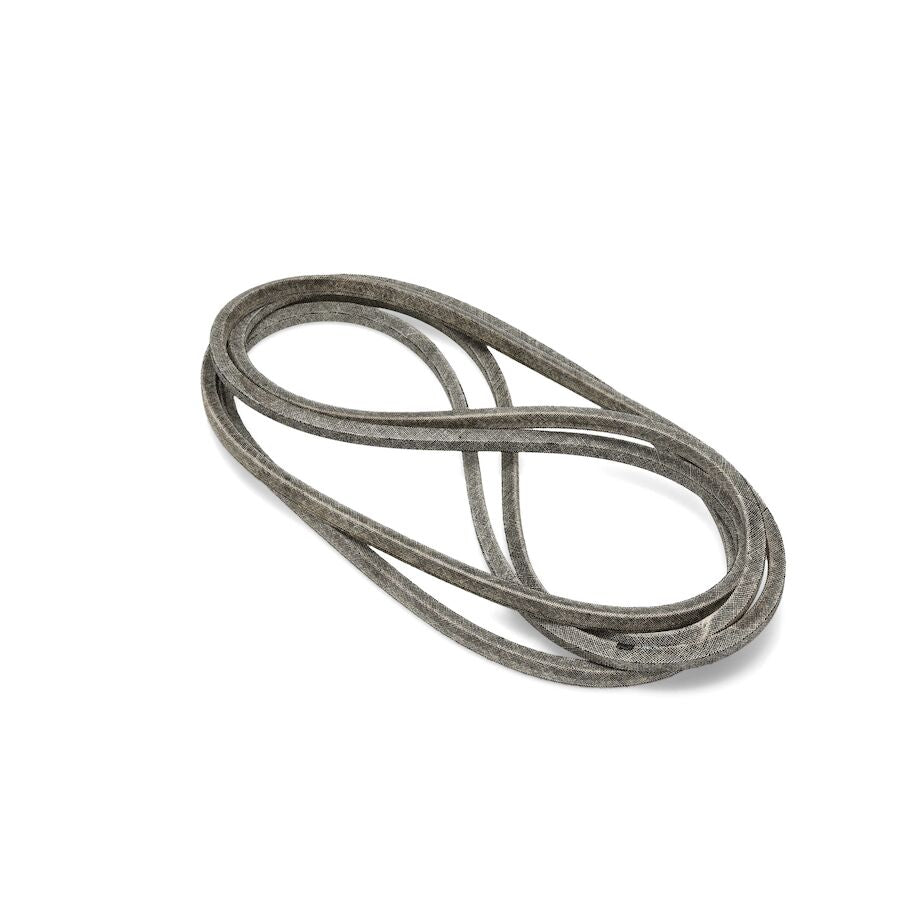

Toro OEM 147-2911 Mower Deck Belt – 60" TimeCutter MAX
Keep your Toro mower deck driving properly with this genuine Toro OEM 147-2911 mower deck belt. This belt is built to OEM specifications for correct fit, durability, and dependable performance on compatible 60" Toro TimeCutter MAX models.
⚠️ Before You Order – Verify Fitment
Belts can vary by deck size, model, and serial number. Not sure? Contact us with your Toro model and serial number and we’ll help verify the correct belt before you order.
- OEM Part Number: 147-2911
- Part Name: Mower Deck Belt

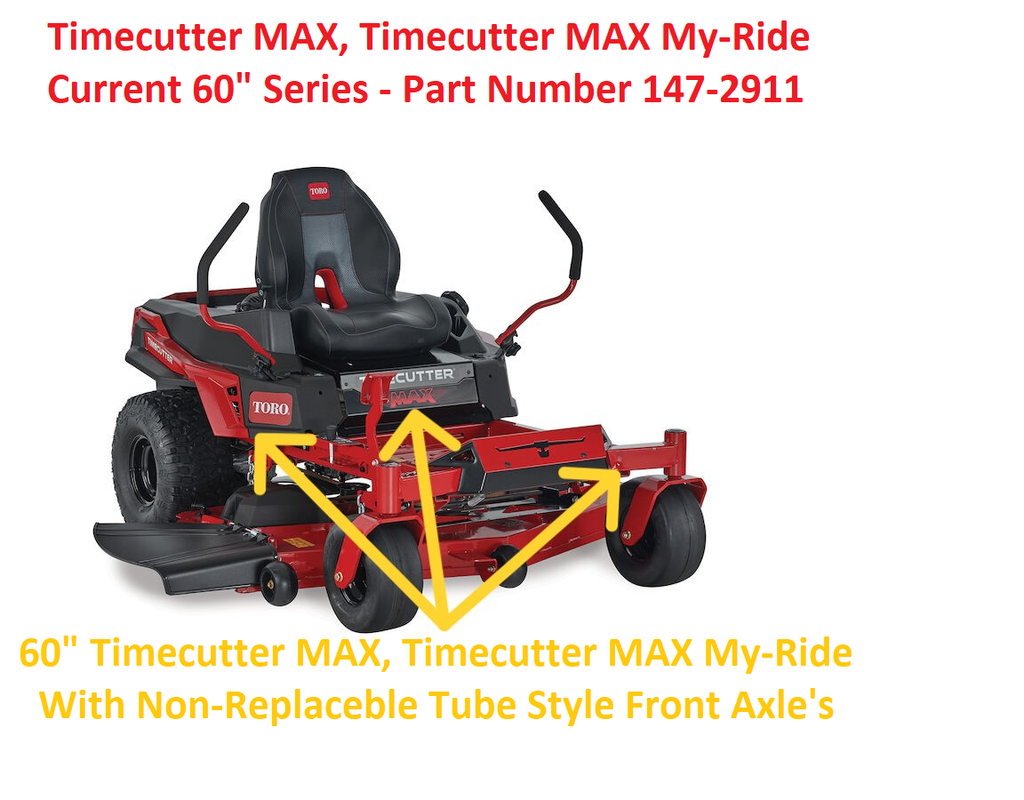

- Application: 60" Toro TimeCutter MAX mower deck
- Length: 154 24/25"
- Width: 1/2"
- Genuine Toro OEM: Correct fit and function for compatible Toro models

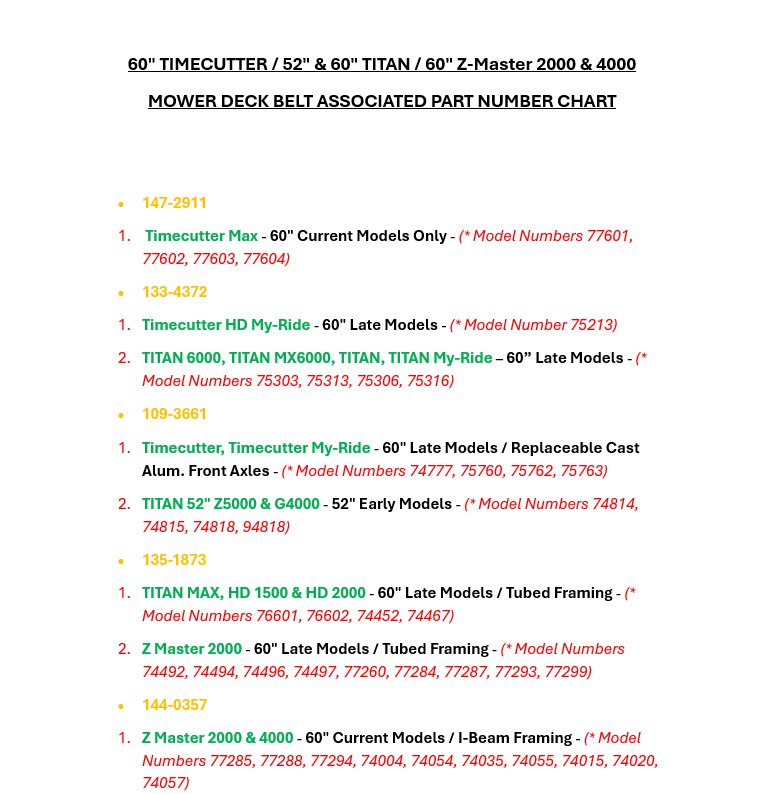

Fits These Toro Models
Verify your model and serial number before ordering.
77601, 77602, 77603, 77604
Related Parts
- 132-9420 – Flat Idler Pulley, requires three per mower deck on compatible TimeCutter models
Additional Recommended Items
- Toro mower blades for 60" deck
- Deck idler pulleys
- Deck spindle assemblies
- Deck belt covers and hardware
- Air filter, oil filter, fuel filter, and spark plugs for seasonal service
Installation Tips
- Park the mower on a flat surface, shut the engine off, remove the key, and disconnect the spark plug wires before service.
- Take a picture of the belt routing before removing the old belt.
- Inspect all idler pulleys and spindle pulleys for rough bearings, wobble, or groove wear before installing the new belt.
- Make sure the belt is fully seated in every pulley groove before engaging the deck.
- After installation, run the deck briefly at low throttle and recheck belt tracking.
- Do not pry the belt over pulleys with sharp tools, as this can damage the belt cords.
