Description
Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 147-2871, 147 2871, 1472871

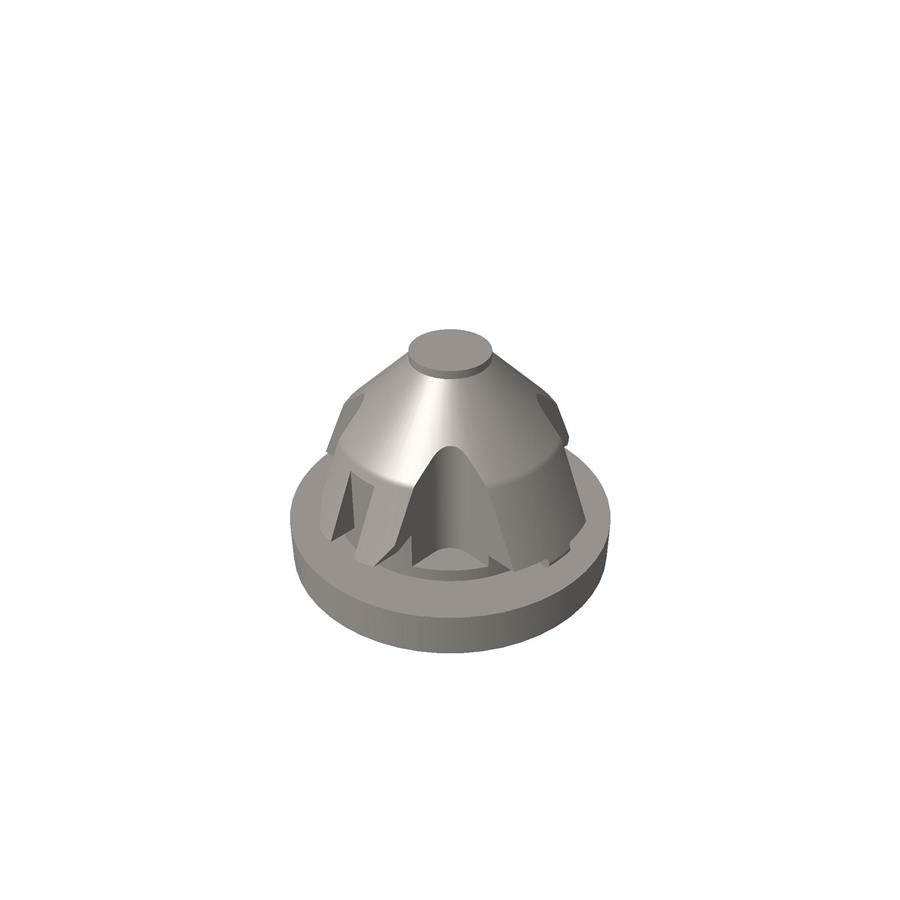

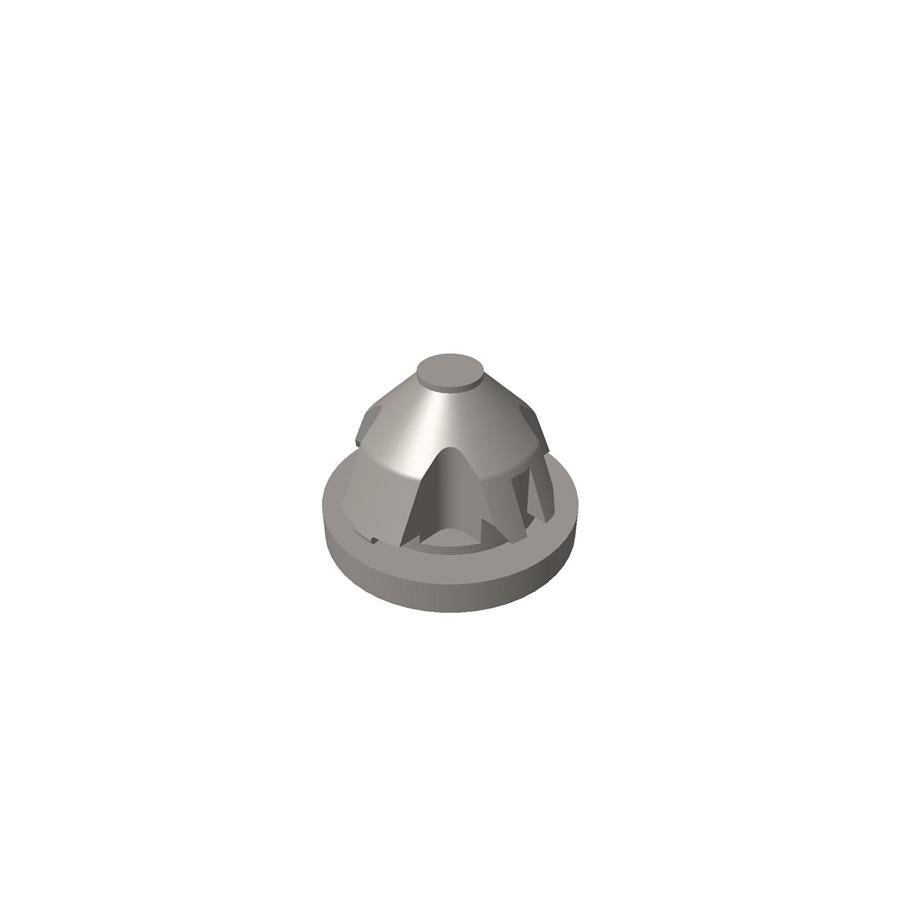

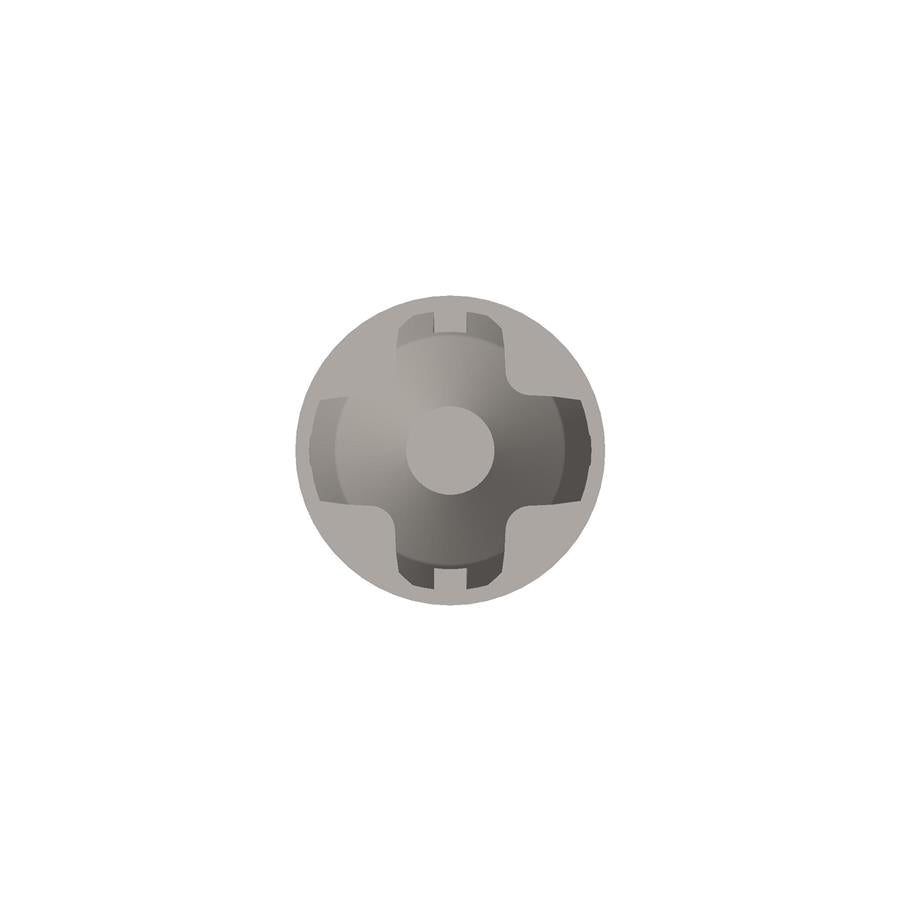

- PRODUCT TYPE: Ball Stud Grommet
- SIZE: NA

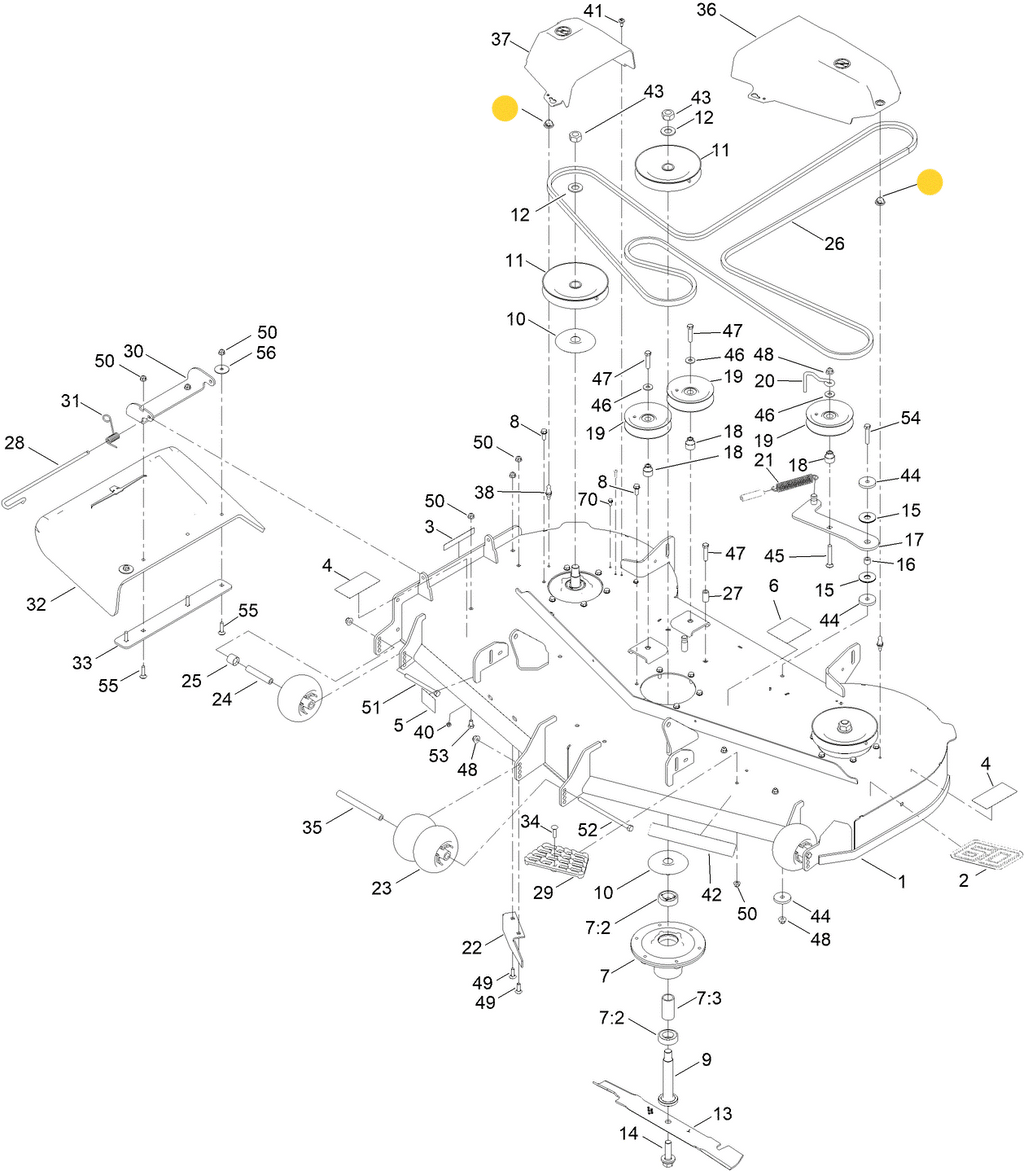

- NOTES & DETAILS: Toro OEM 147-2871 - Inserts into the Mower Deck Spindle Belt and Pulley Cover and Enable the Mower Deck Spindle Belt and Pulley Cover to Clip into a Ball Stud - Allowing for an Easy removing and Installing of Mower Deck Pulley Covers.
- COMMON SERIES APPLICATIONS: Current Titan Models (I-Beam Framing) - Current Titan MAX Models (I-Beam Framing)
- MODEL FIT CHART:
TIMECUTTER
TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604
TIMECUTTER MAX 60” (My-Ride) Series – Model Numbers – 77602, 77603
TITAN & TITAN MAX
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
