Toro OEM 147-2866 Height of Cut Decal Fits Toro Current 42", 50", 54", 60" Timecutter Max Models.

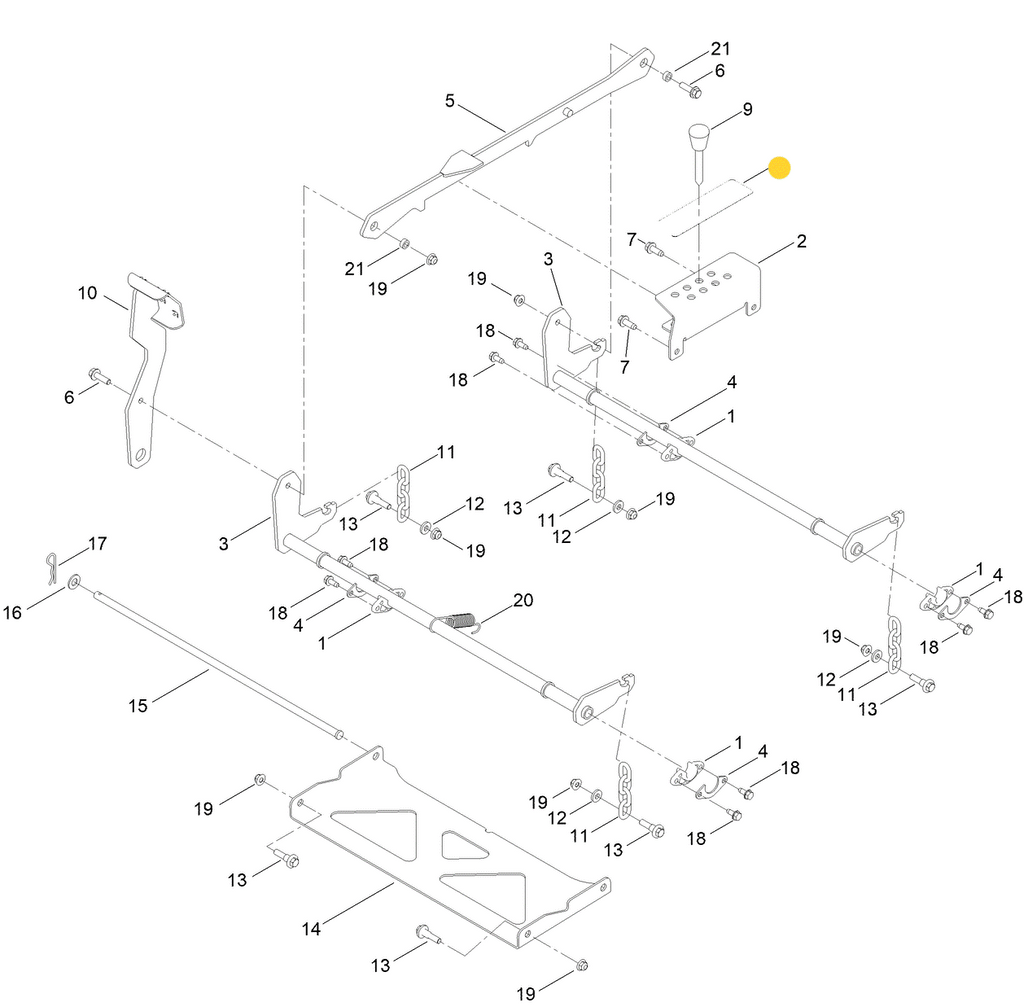

Toro OEM 147 2866 Height of Cut (HOC) Decal is a Numerical Decal and Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting. Toro OEM 147 2866 is Installed on the Top-Side-Surface of the (HOC) Bracket and Fits Toro Current 42", 50", 54", 60" Timecutter MAX. Please refer to the Images above; Product Specifications, Special Notes, and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 147-2866 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 145-6257-01 - HEIGHT OF CUT (HOC) SELECTION BRACKET - (Height of Cut (HOC) Selection Bracket that Bolt Against the Mower Frame Allowing the Height of Cut (HOC) Link to Travel Through or Under the (HOC) Bracket this Allows the Operator to Insert a Mower Deck Height Adjustment Pin at Their Preferred Mowing or Operating Height Ect.) x1 Per Unit
2. 147-2866 - (HOC) Decal - (Allows the Operator to easily Make Their Preferred Selection of Height of Cut Setting- Installed on the Operator-Top-Side Surface of the (HOC) Selection Plate) x1 Per (HOC) Selection Bracket
3. 140-2146 - (HOC) Pin - (Fits into the (HOC) Selection Bracket, providing a stable resting point for the Height of Cut (HOC) Link's - Weldment Plate - to Rest Against at the operator’s chosen Height Setting) x1 Per Unit







Specification

Product Number:	1472866
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.009 LB (0.004 KG)





Model Fit:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
