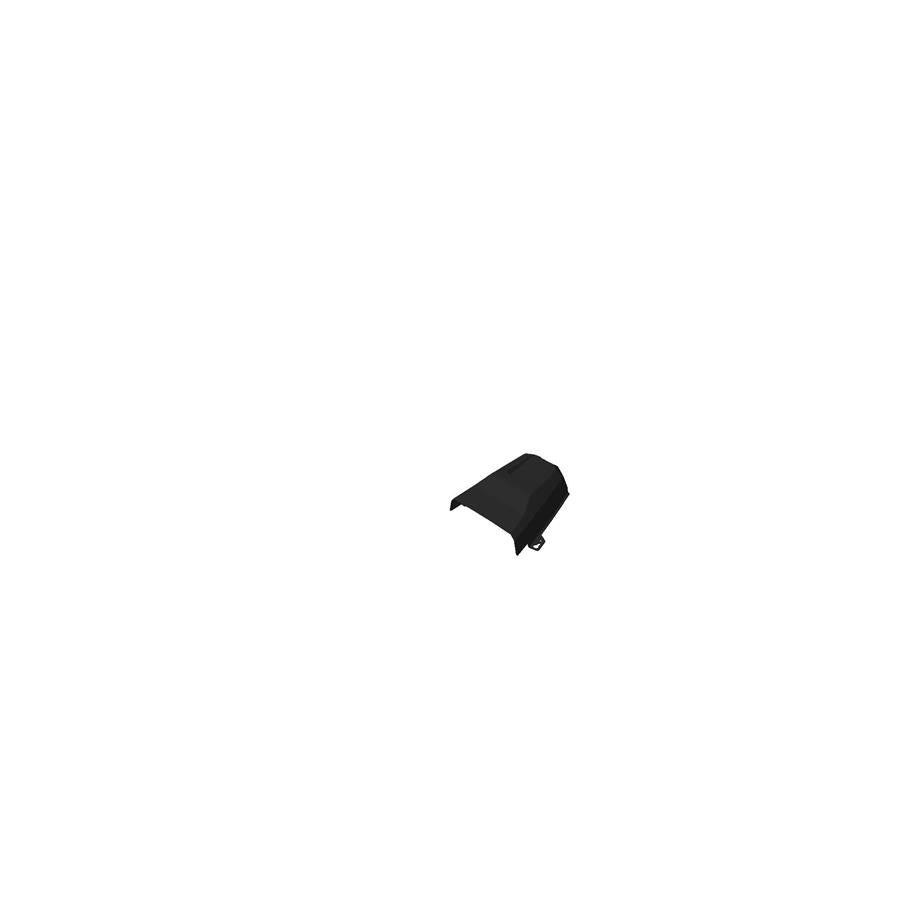

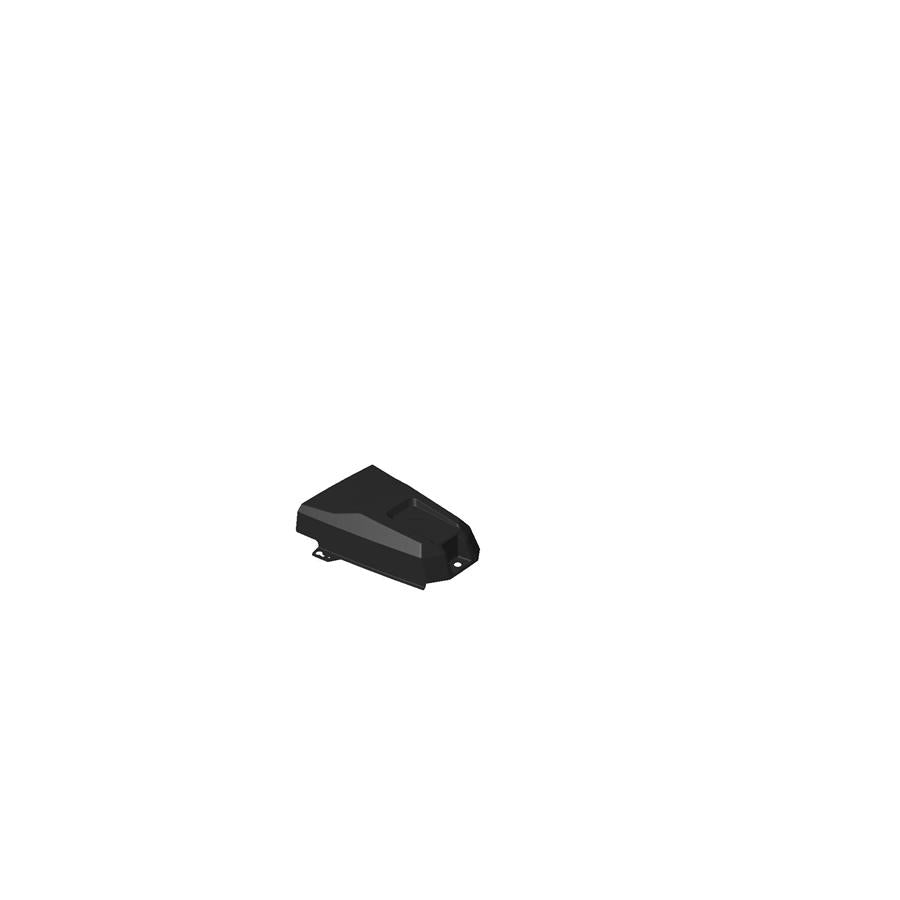

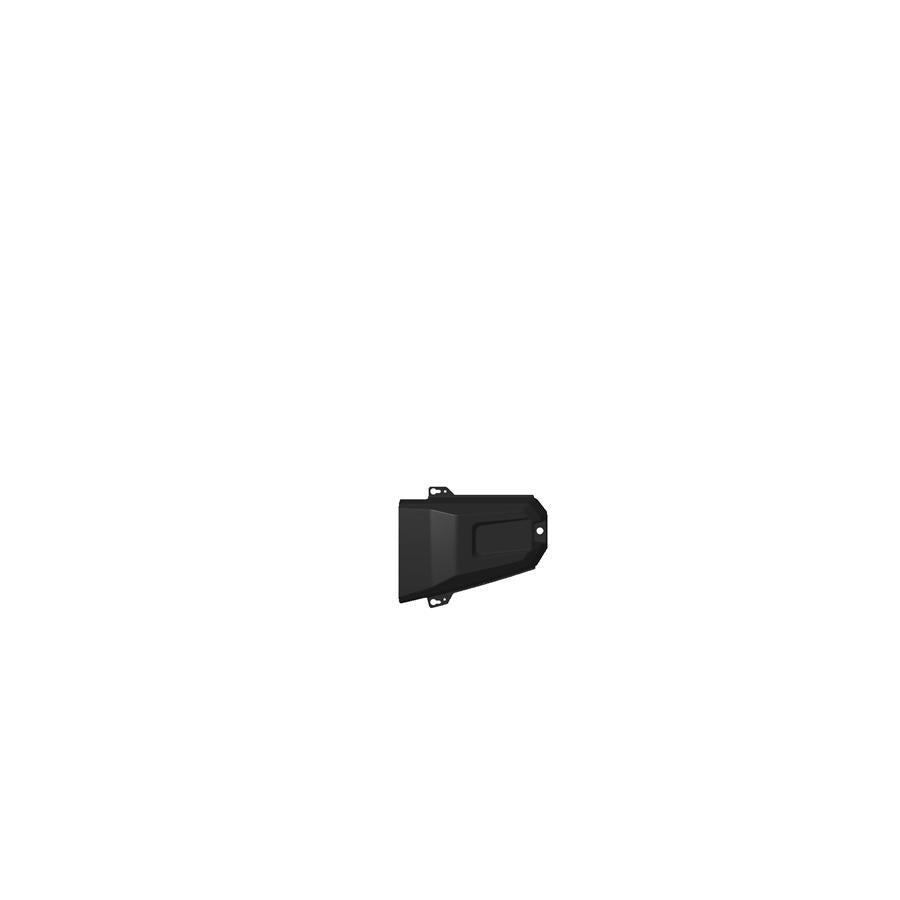

Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Roll over image to zoom in Click on image to zoom
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).
Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).

Toro OEM 147-2854 Left Hand Spindle Belt and Pulley Cover Fits Current Toro 60" Timecutter MAX - 48", 54", 60" TITAN Standard, My-Ride, MAX Models (With I-BEAM Framing).

Toro
Price:
$13.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

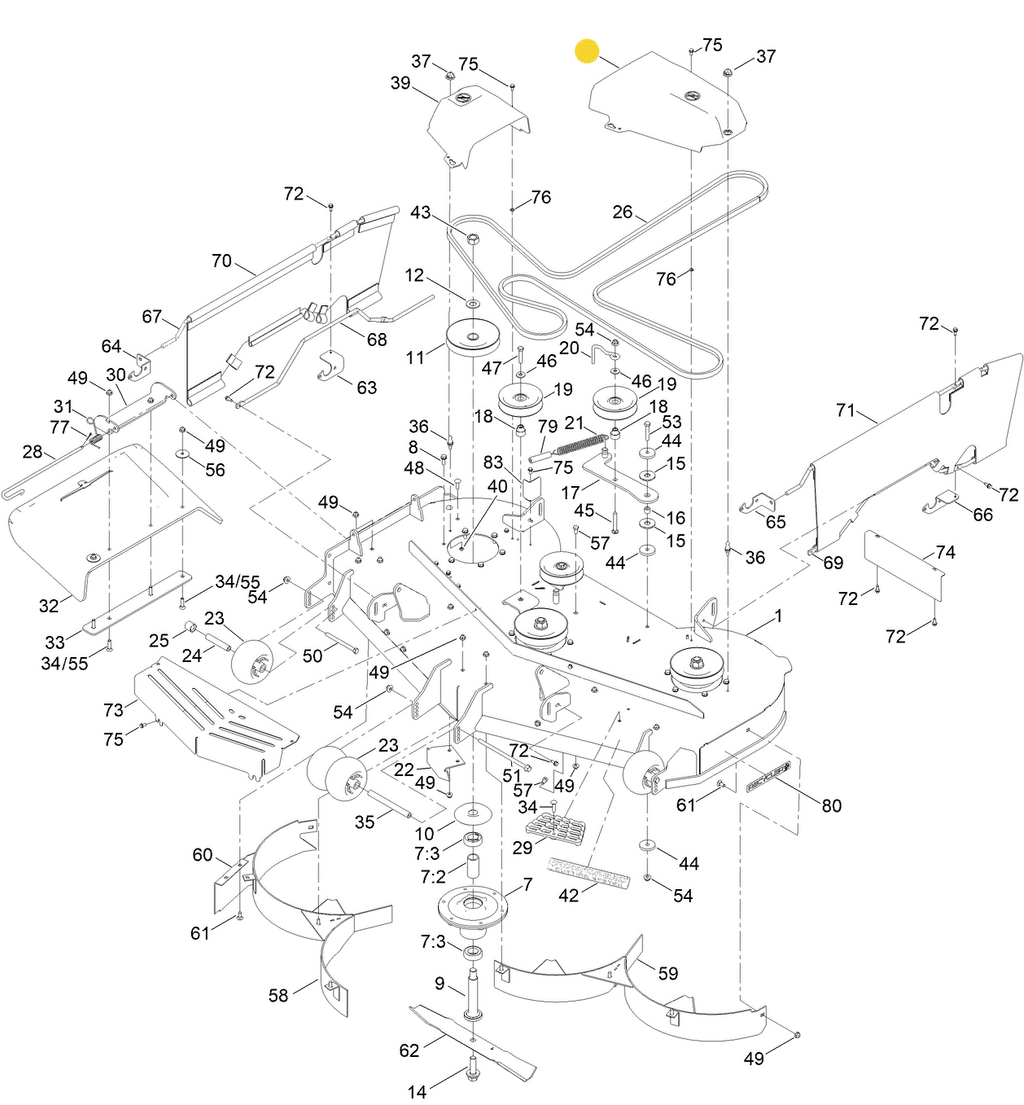

Trust Oem Replacement Left-Side 147 2854 Pulley and Belt Sheild to properly fit and cover those belts and pulleys, keeping the operator safe. the Quick Clip Style allows you to remove the Guards and allows easy access to cleaning your Mower Deck. OEM 147 2854 Fits Current Toro 60" Timecutter Standard, My-Ride, Max - 48", 54", 60" TITAN Standard, My-Ride, Max Models (TITAN Models only with I-BEAM Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED FASTNERS FOR PART NUMBER 147-2854 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 32144-4 - TAPTITE/TAP SCREW - (Retains Pulley Cover Retaining Bracket to Mower Deck by Allowing the Slotted Wholes in the Pulley Cover to Slide under Bolt Flange Head) x2 Per Retaining Pulley Cover
  2. 147-2872 - BALL STUD - (Stud that Retains the Pulley by Allowing a Ball Grommet that is inserted in the Pulley Cover to be Clipped into Place) x1 Per Pulley Cover
  3. 147-2871 - BALL STUD GROMMETS - (Inserts into Pulley Cover to Enable you to Clip Your Pulley Cover in Place) x1 Per Pulley Cover
  4. 115-7373 - NYLON LOCK NUT - (Retains Ball Stud to Mower Deck) x1 Per Pulley Cover







Specification

Product Number:

1472854

Brand:

Toro

Length:



NA

Width:



NA

Height:



NA

Weight:



1.016 LB (0.461 KG)





Model Fit:





60” Timecutter Max - 60" Current Models Only - (* Model Numbers 77601, 77602, 77603, 77604)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)





54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers – 76501, 76511, 76530, 76554)



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448).
