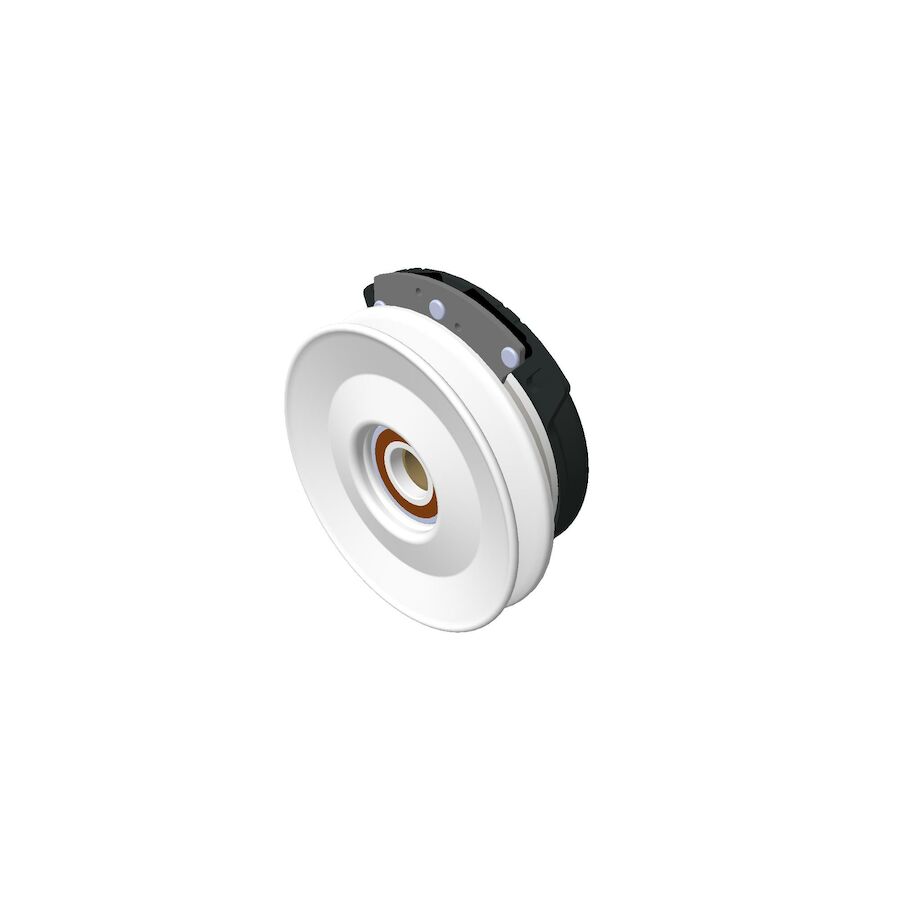

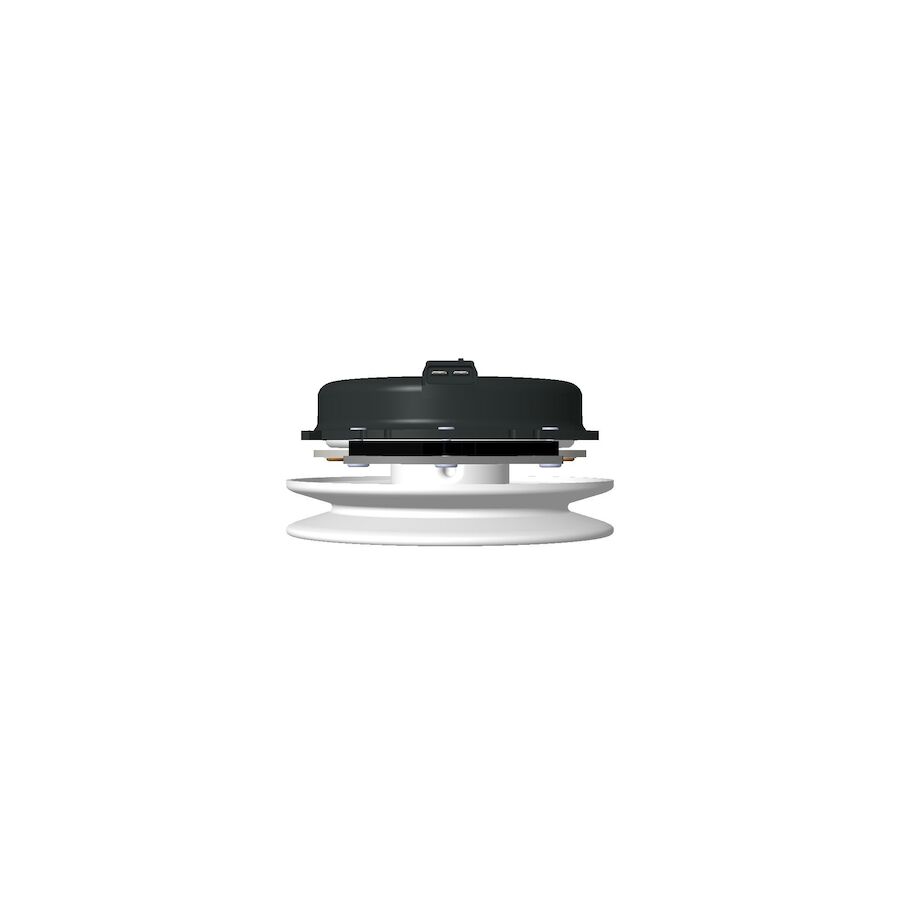

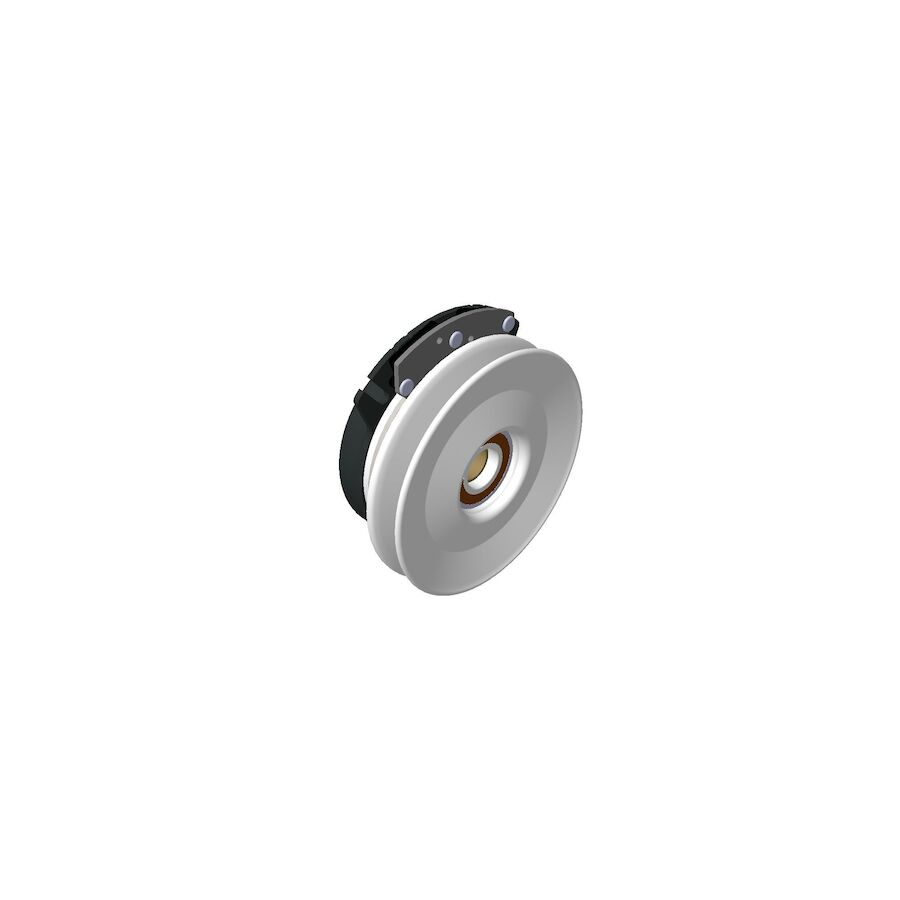

Toro OEM 147-2400 PTO Clutch Fits Current Toro 48", 52", 60" Z Master 2000 Models 77281, 77283, 77285 (With I-Beam Framing and Toro Brand Engines)

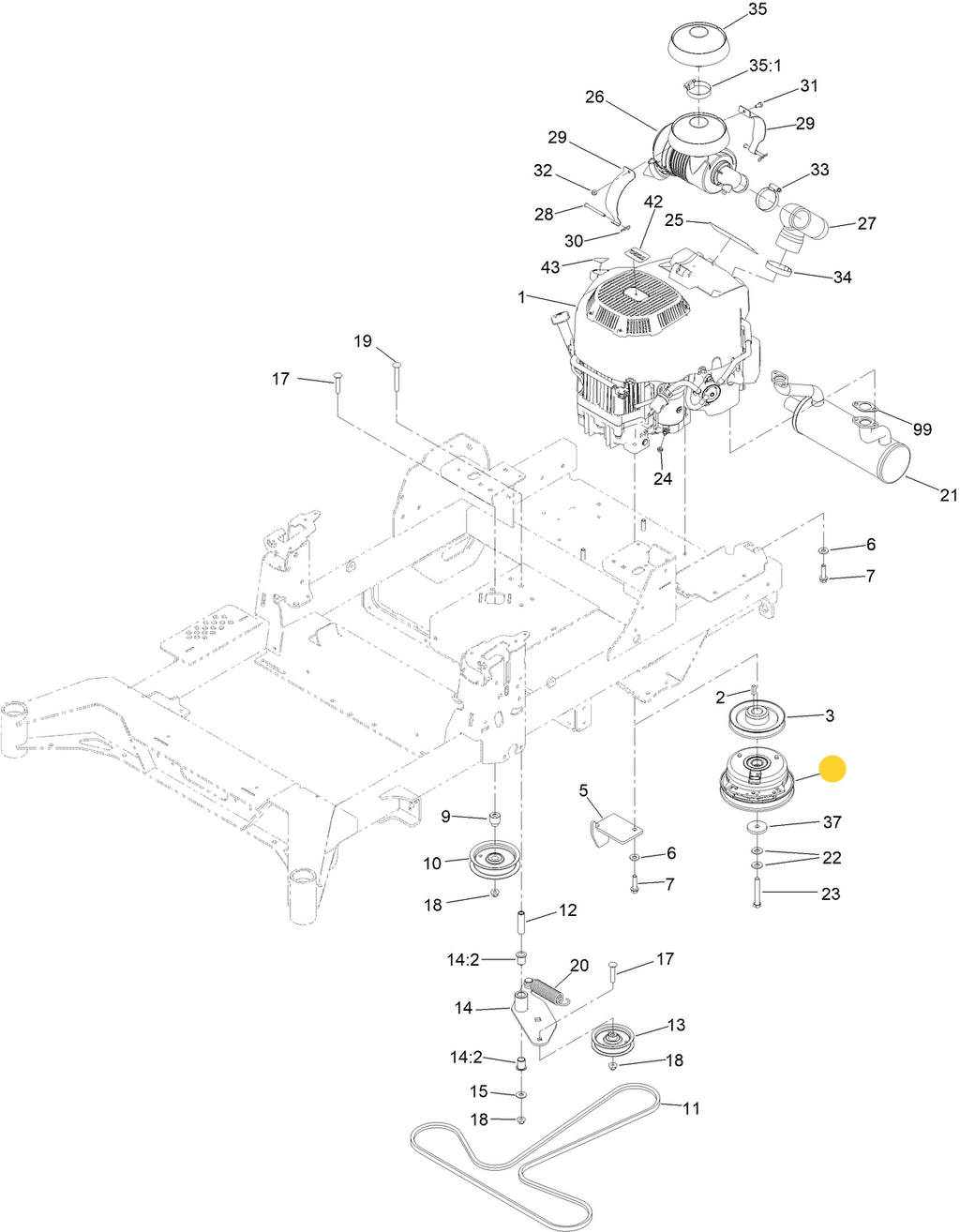

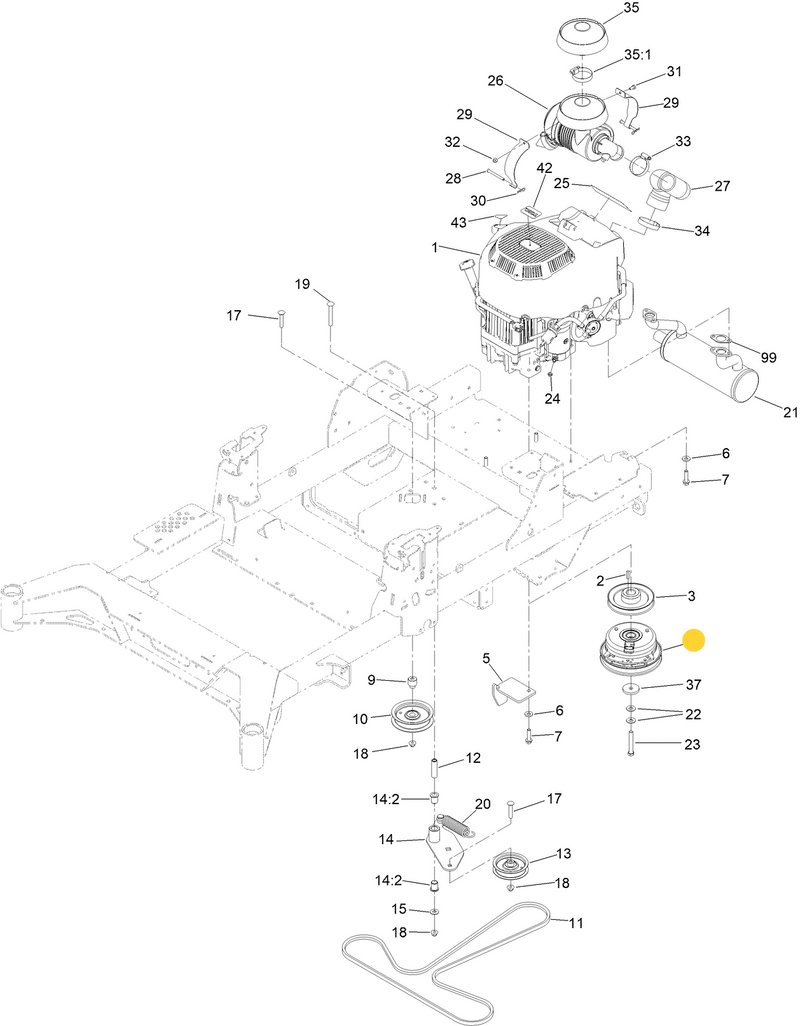

Toro OEM 147 2400 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 147 2400 PTO Clutch is Designed for Toro Current 48", 52", 60" ZMaster 2000 Models (With I-Beam Framing and Toro Band Engines). Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.





NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 147-2400 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





Z-MASTER 2000 MODELS ONLY



1. 126-7198 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 109-6919 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
3. 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x2 Per PTO Clutch
4. 140-1190 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

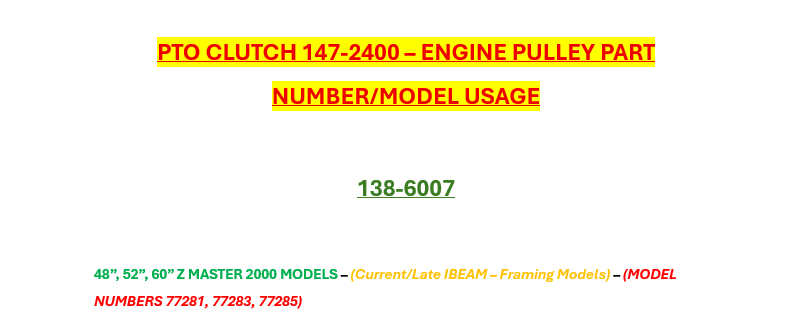

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES













Specification

Product Number:	1472400
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	11.000 LB (4.990 KG)





Model Fit:



48”, 52”, 60” Z-MASTER 2000 - 147-2400 MODEL/SERIES USAGE



48”, 52”, 60” Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285)
