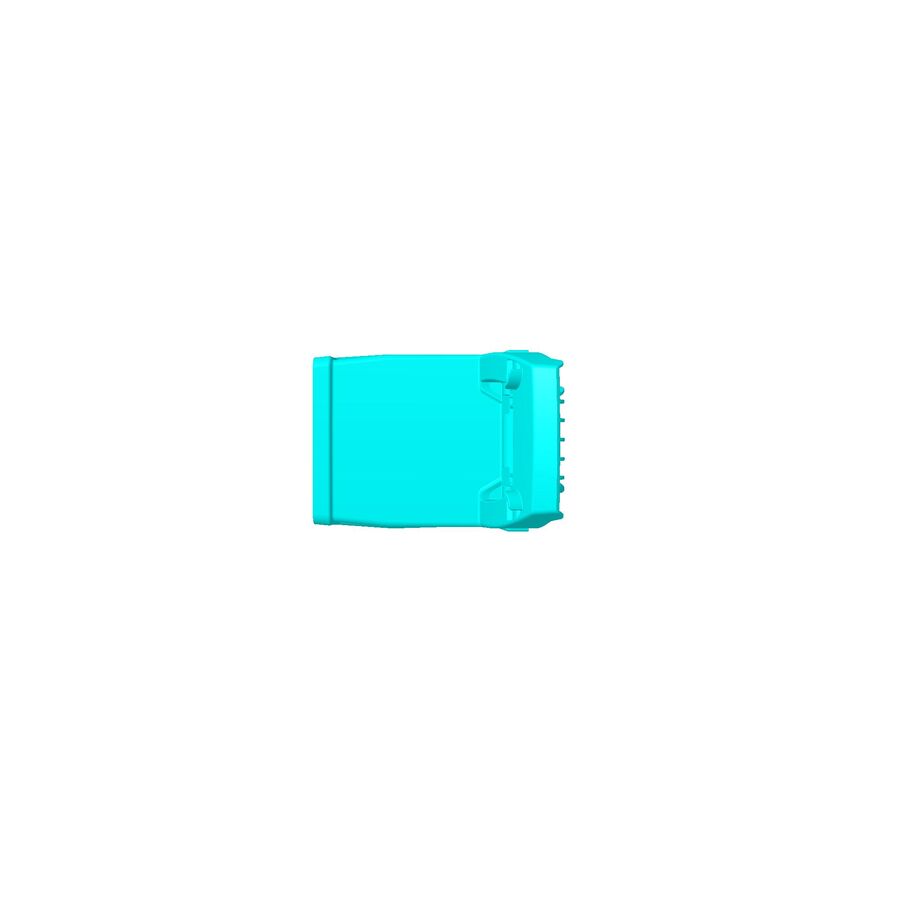

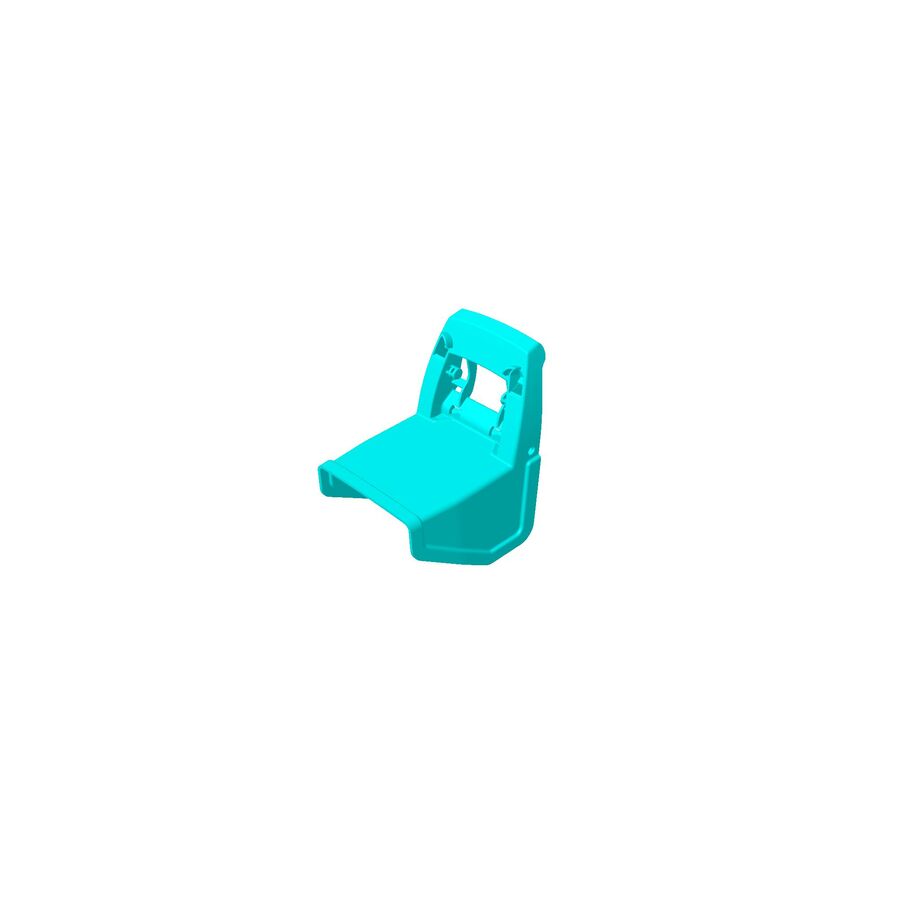

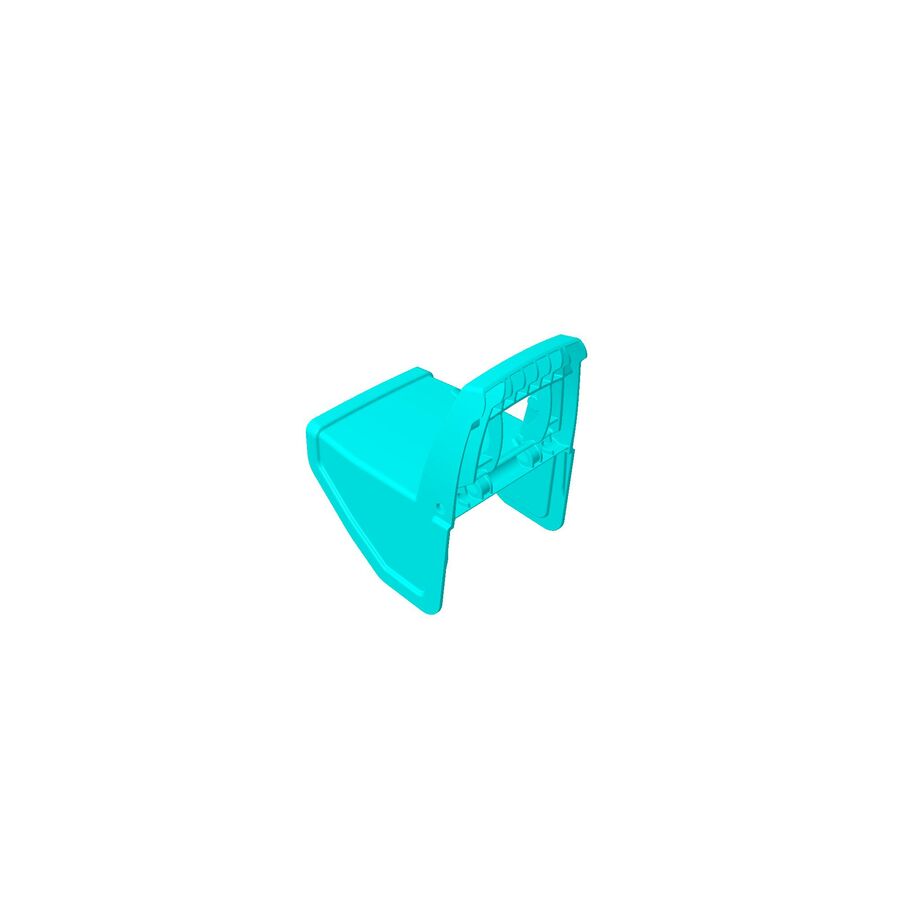

Toro OEM 147-1796 Chute Deflector



Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it.



• OEM Part Number: 147-1796, 147 1796, 1471796
• Part Name: DEFLECTOR-CHUTE
• Application: Chute assembly (top deflector / throw angle control)
• Genuine OEM: Correct fit and function for listed Toro E-Power Max Snowthrower Models





Fits These Toro Models (By Family)



E-POWER MAX Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)





Associated Parts (Common “Replace With” Items)



These parts live in the same chute/deflector assembly and are commonly replaced together when the deflector is damaged or won’t hold position:

Review Model Numbers Associated to Each Part Number to Verify a Correct Fit



• 108-4941 – Trigger-Deflector
• 136-7136 – Spring-Compression (deflector/trigger feel & return)
• 136-8672 – Hinge Pin-Deflector
• 104-8310 – Hinge Pin-Deflector Retaining Ring (Replace Every time Chute Deflector Hinge Pin is Removed)
• 108-4942 – Deflector Chute Hinge (Replace if Cracked or Broken)
• 114-3790 – Deflector Chute Seal
• 46-8091 – Deflector Chute Hinge and Seal Washer Head Screw
• 108-4939 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)

Installation Tips (Chute Deflector Replacement)



• Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
• Visual Documentation: Raise the deflector and note the spring orientation before disassembly (a quick phone photo helps).
• Remove: The pins/springs/trigger parts to the new deflector as needed - All Components are Clip Together (common: 136-8672 hinge pin, 136-7136 compression spring, 117-2314 trigger).
• Transfer or Assemble: The pins/springs/trigger parts to the new deflector as needed - All Components are Clip Together (common: 136-8672 hinge pin, 136-7136 compression spring, 117-2314 trigger).
• Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind.



Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
