Description

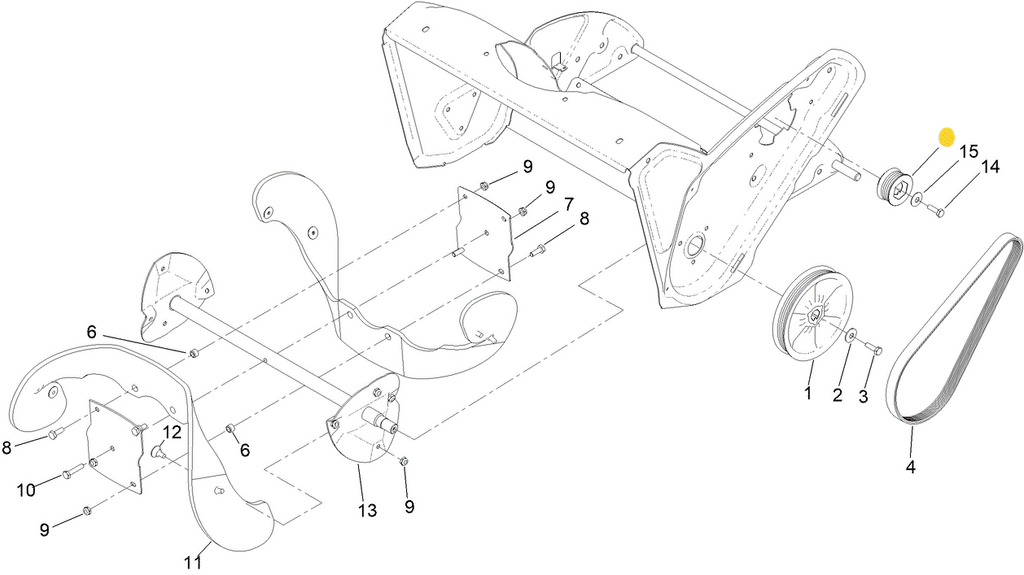

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 147-1760, 147 1760, 1471760

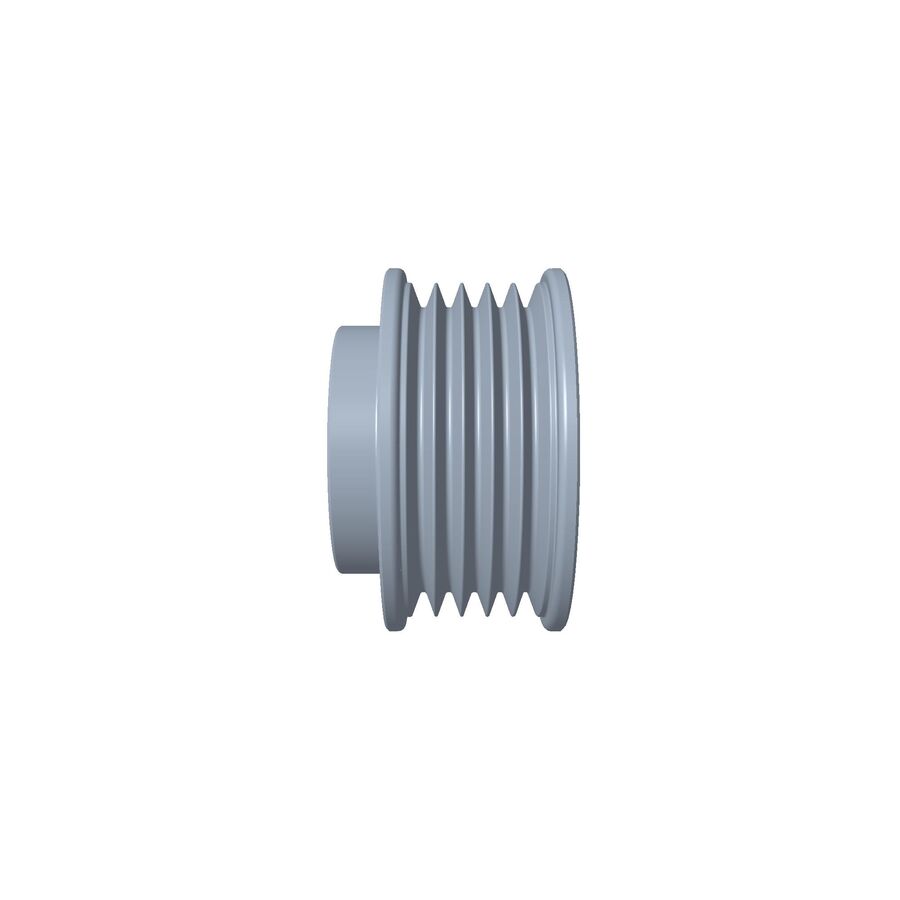

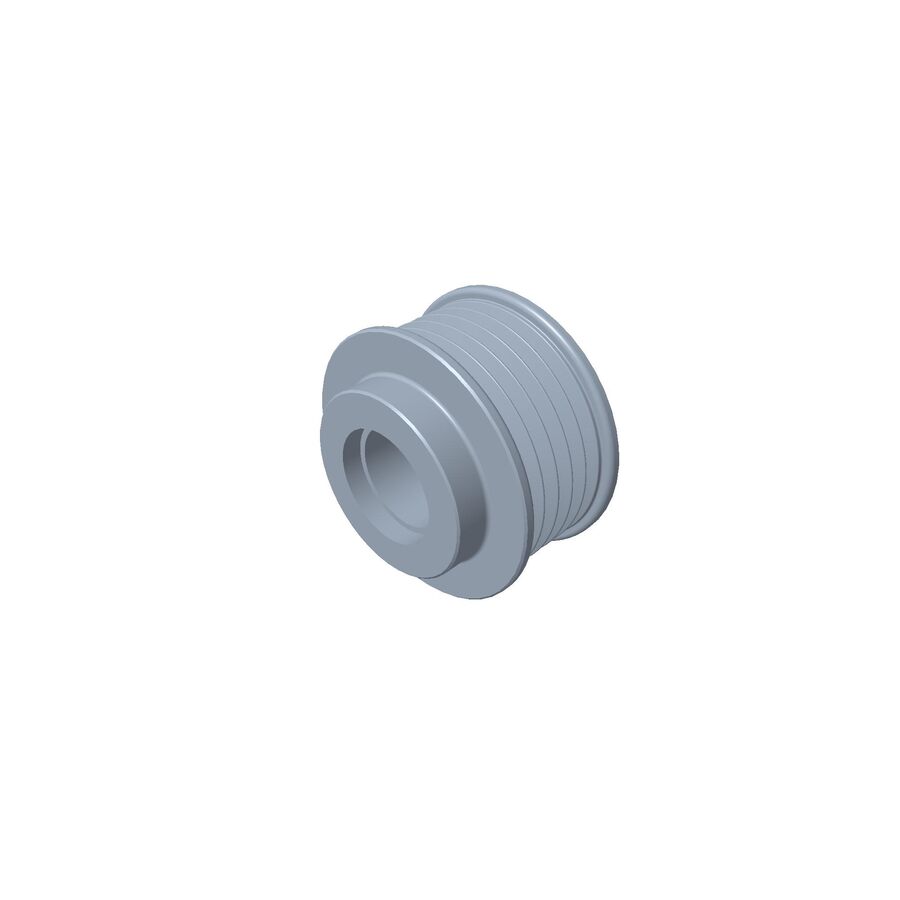

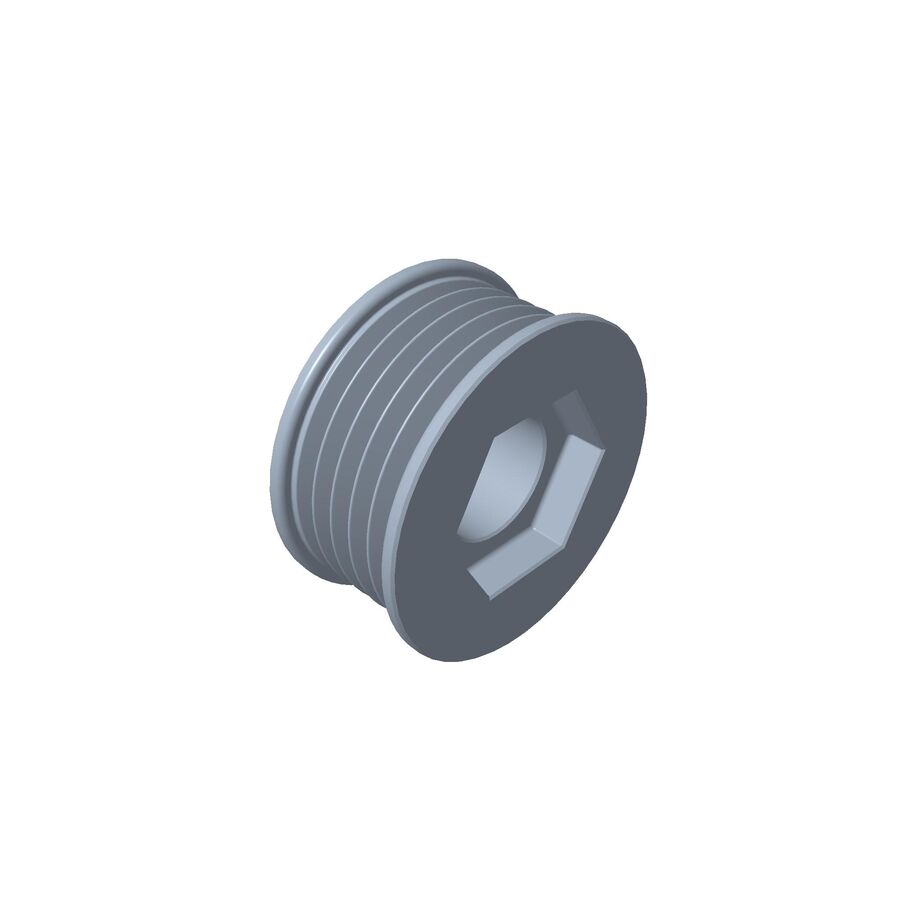

- PRODUCT TYPE: Engine Crankshaft Pulley Assembly
- SIZE: Length 2.000 in. - Width 1.500 in. - Height 1.500 in. - Weight 0.510 lbs.
- NOTES & DETAILS: Toro OEM 147-1760 IS COMMINLY USED - 147-1760 Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
- COMMON SERIES APPLICATIONS: Toro Select 21" Electric or Battery Power Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 147-1760 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 3211-4 - HEX HEAD BOLT (Retains 147-1760 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine Pulley
- 3290-456 - BELLEVILLE WASHER (Used Between 147-1760 Engine Pulley and 3211-4 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Engine Pulley
