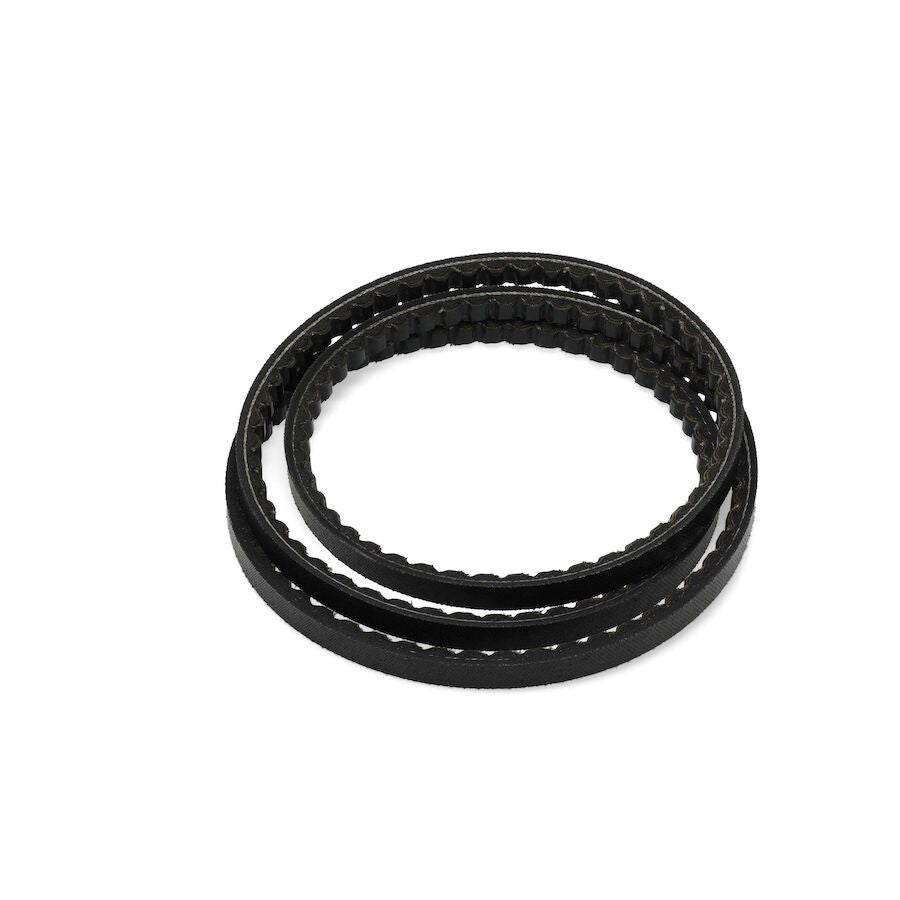

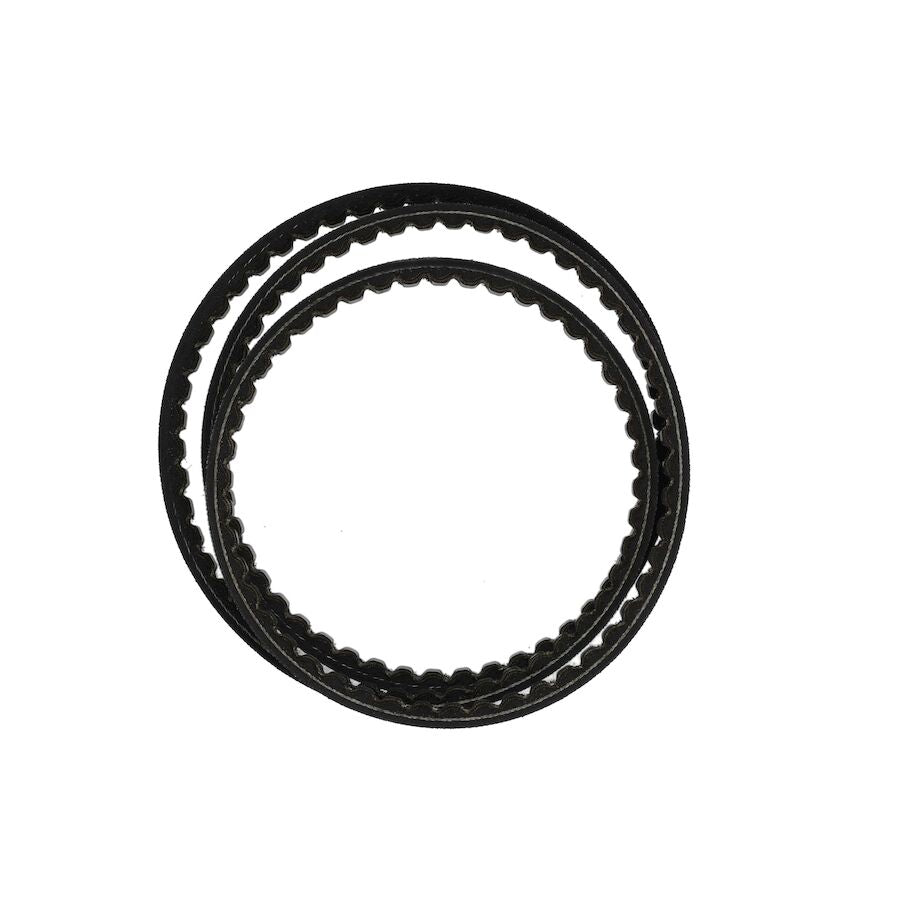

Toro OEM Hydro-Belt 145-6363 Fits Newer I-Beam framed Titan and Titan MAX series.

Experience top-notch performance and perfect fit with the Toro OEM Hydro Drive belt 145 6363. This essential part number 145 6363 is meticulously crafted using premium materials and undergoes rigorous testing to deliver unmatched reliability in even the harshest environments. Don't settle for imitations or substitutes - trust only genuine Toro parts to fit your Titan and Titan MAX series mower. Please refer to the special notes and the model fit guide below to ensure proper fit.

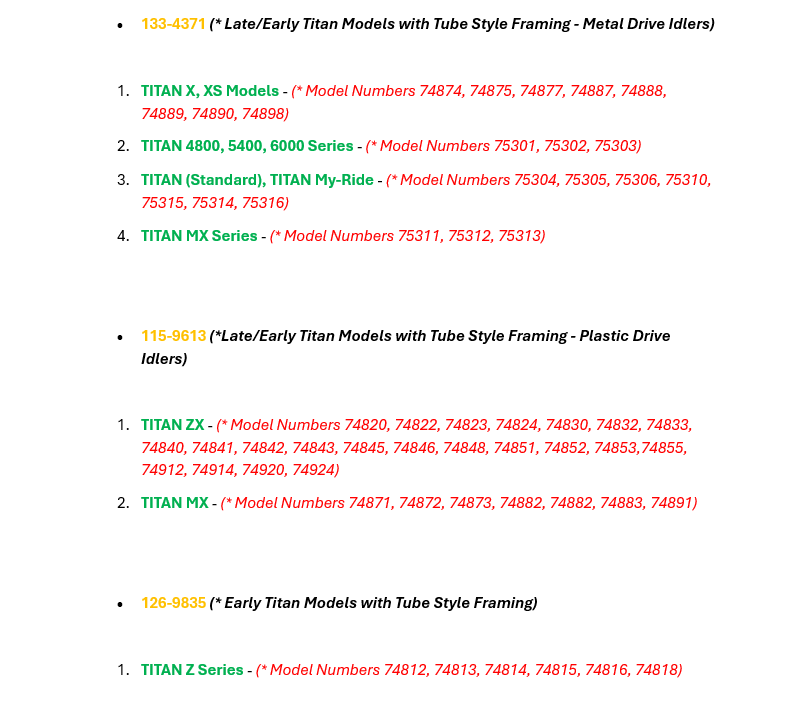

Note 1: (TITAN SERIES - WITH EXCPETION OF THE TITAN HD and TITAN MAX) Due to a design change any Titan with exception of the Titan HD and Titan MAX with the Older Tube-Style Frame will require a different Hydro Drive Belt. Unlike the below reference the NEWER I-BEAM Frame and THE OLDER TUBE-FRAME might both require metal idler pulleys. Refer to the list bellow and click on the appropriate part number to be redirected. Below is a list of Model Numbers to refer to the part numbers bellow for a correct Part Number Reference: 74874, 74875, 75301, 75302, 75303, 75304, 75305, 75306, 75310, 75311, 75312, 75313, 75314, 75315, 75316, 74877, 74887, 74890, 74898

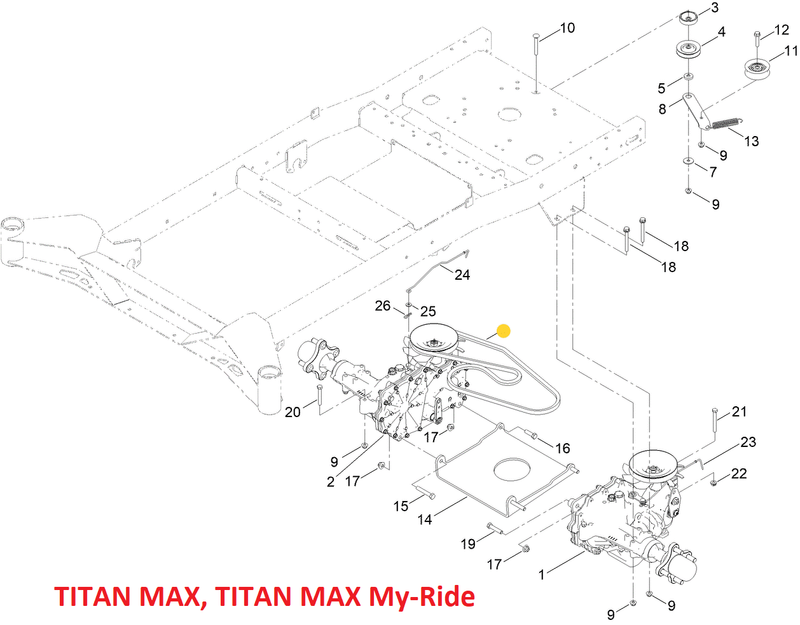

Note 2: (TITAN MAX SERIES) Due to a SERIAL Number break within Models Numbers or Series, Some Model or Series numbers might overlap with a different Hydro Drive Belt Part Numbers. This is a difference between a Metal versus plastic Drive Idler Pulley on the tensioner arms as well as a difference in body style. The newer I Beam frames on the Toro Titan MAX series will have a different part number than the older tube frame Models. The older body style-Titan MAX series take the plastic Idler Pulleys versus the Newer I Beam body style will take the metal Idler pulley on the tensioner arm. Refer to the list bellow and click on the appropriate part number to be redirected.

• PLASTIC IDLER PULLEY and ONLY OLDER TUBE-FRAME Titan HD, Titan MAX

1. HYDRO DRIVE BELT - 126-5993
2. STATIONERY AND TENSIONER ARM IDLER PULLEY - 116-2456

• OLDER TUBE-FRAME TITANS (EXCLUDING TITAN HD and TITAN MAX)

1. HYDRO DRIVE BELT - 138-7597
2. TENSIONER ARM FLAT IDLER - 138-7597
3. STATIONARY V-IDLER - 119-8822

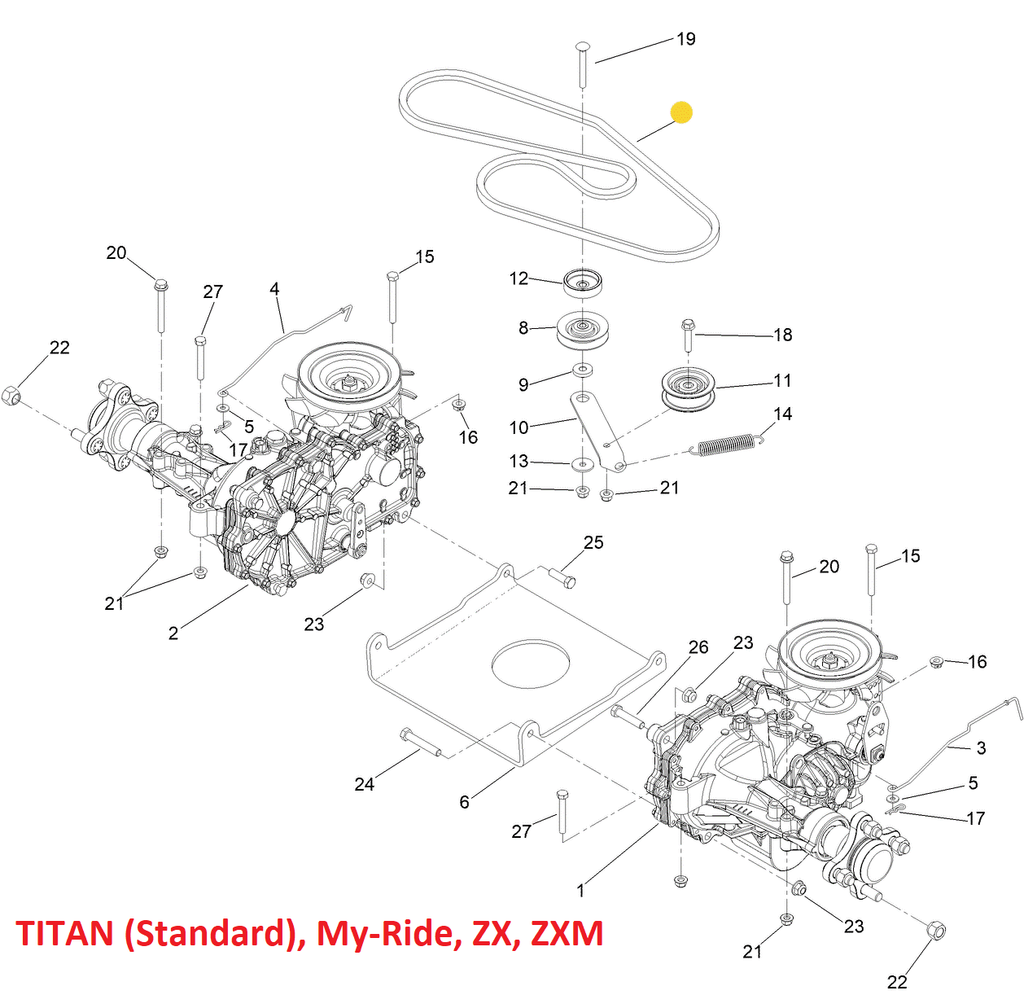

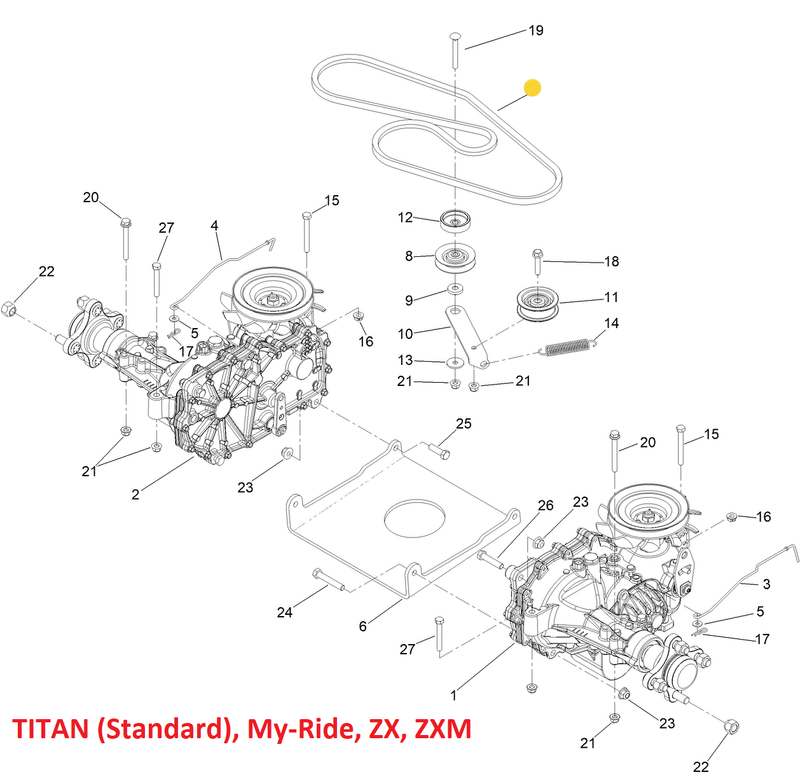

• METAL IDLER PULLEY and NEWER I BEAM TITAN and TITAN MAX series

1. HYDRO DRIVE BELT - 145-6363
2. TENSIONER ARM FLAT IDLER PULLEY - 138-7597
3. TENSIONER ARM V-IDLER PULLEY - 68-0030

 Specification

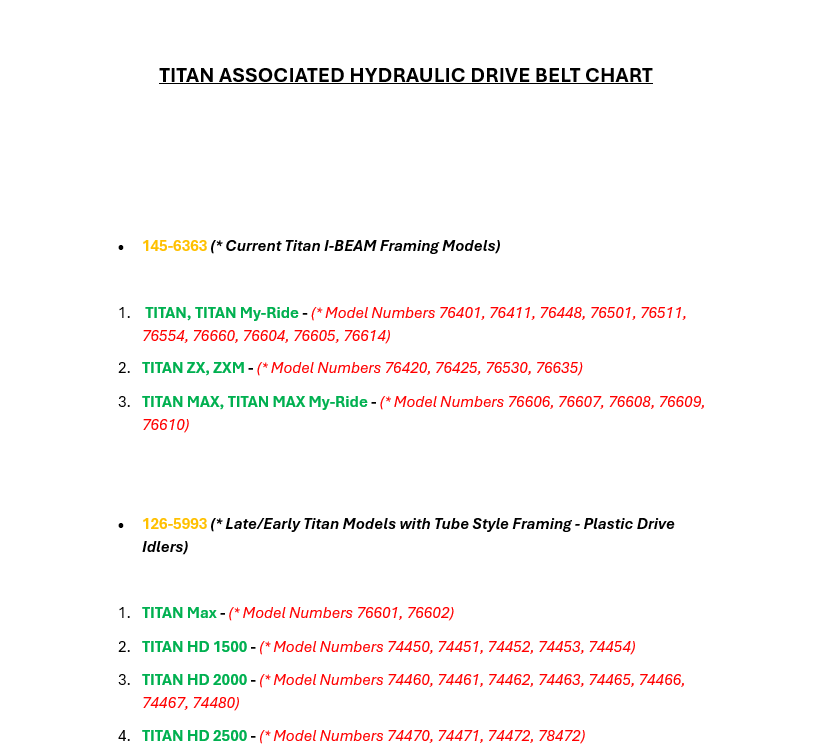

Model Fit:

76401, 76411, 76501, 76511, 76604, 76614, 76420, 76425, 76530, 76635, 76605, 76606, 76607, 76610, 76608, 76609, 76448, 76554, 76660
