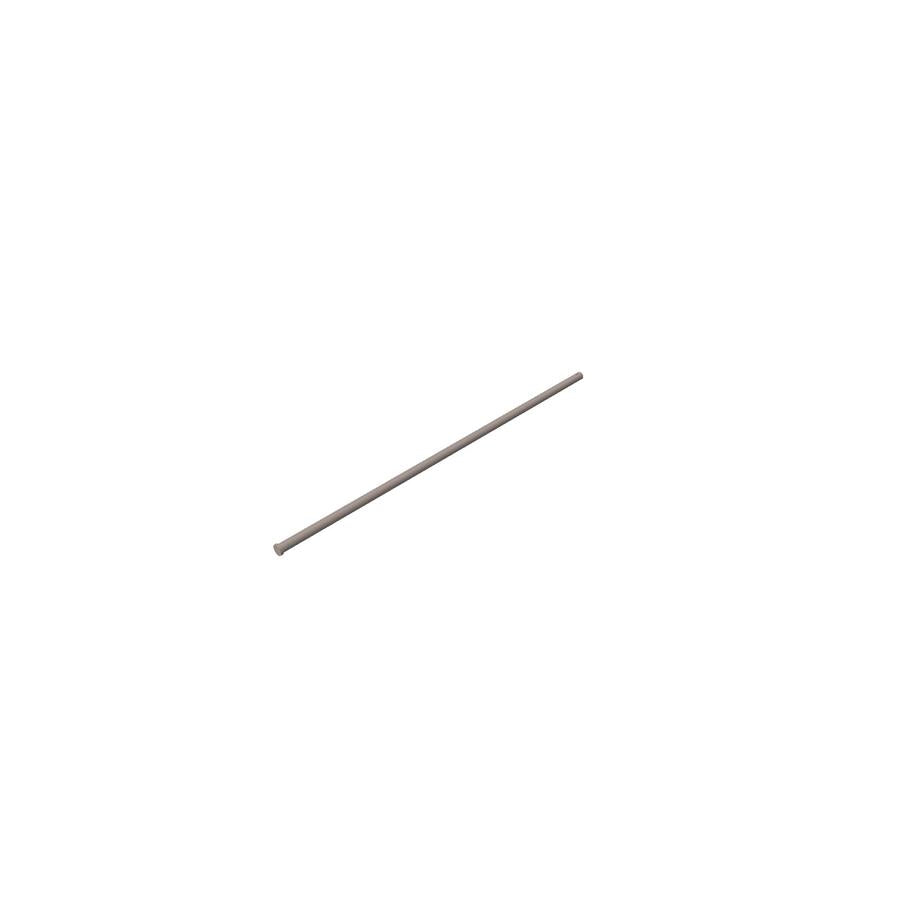

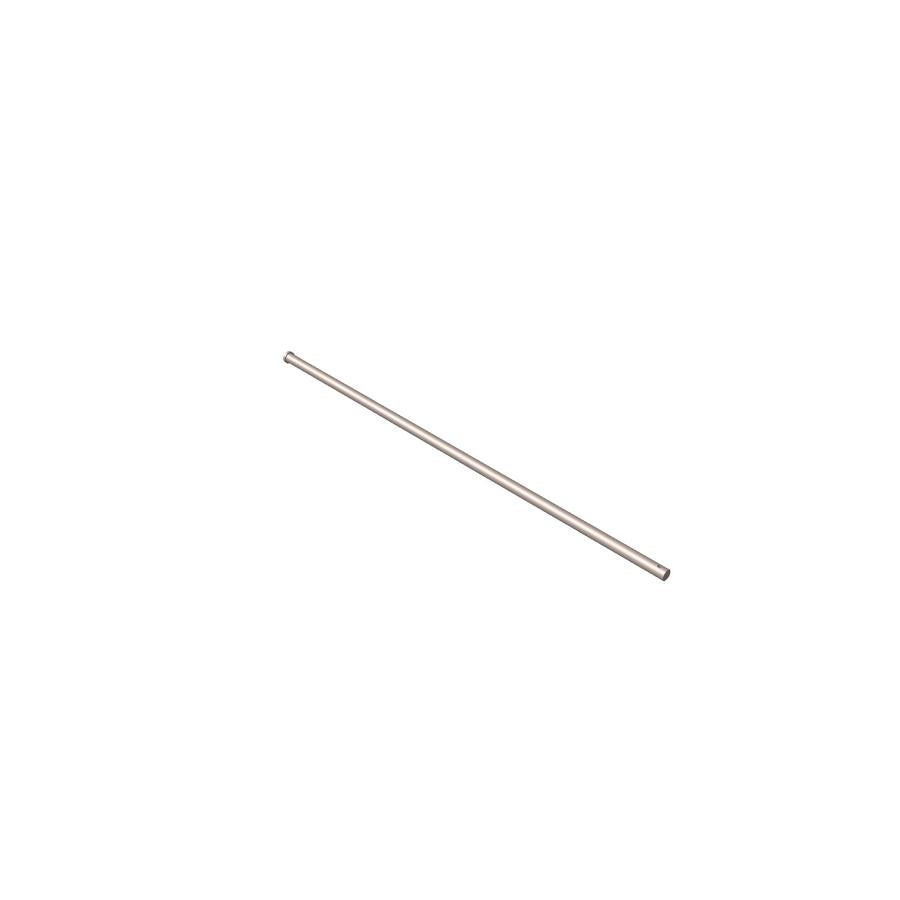

Toro OEM 145-6288 Mower Deck Pivot Pan Rod Fits Toro Current 42", 50", 54", 60" Timecutter Max Models - Current 48", 54", 60" TITAN Standard and MyRide Models with I-Beam Framing.

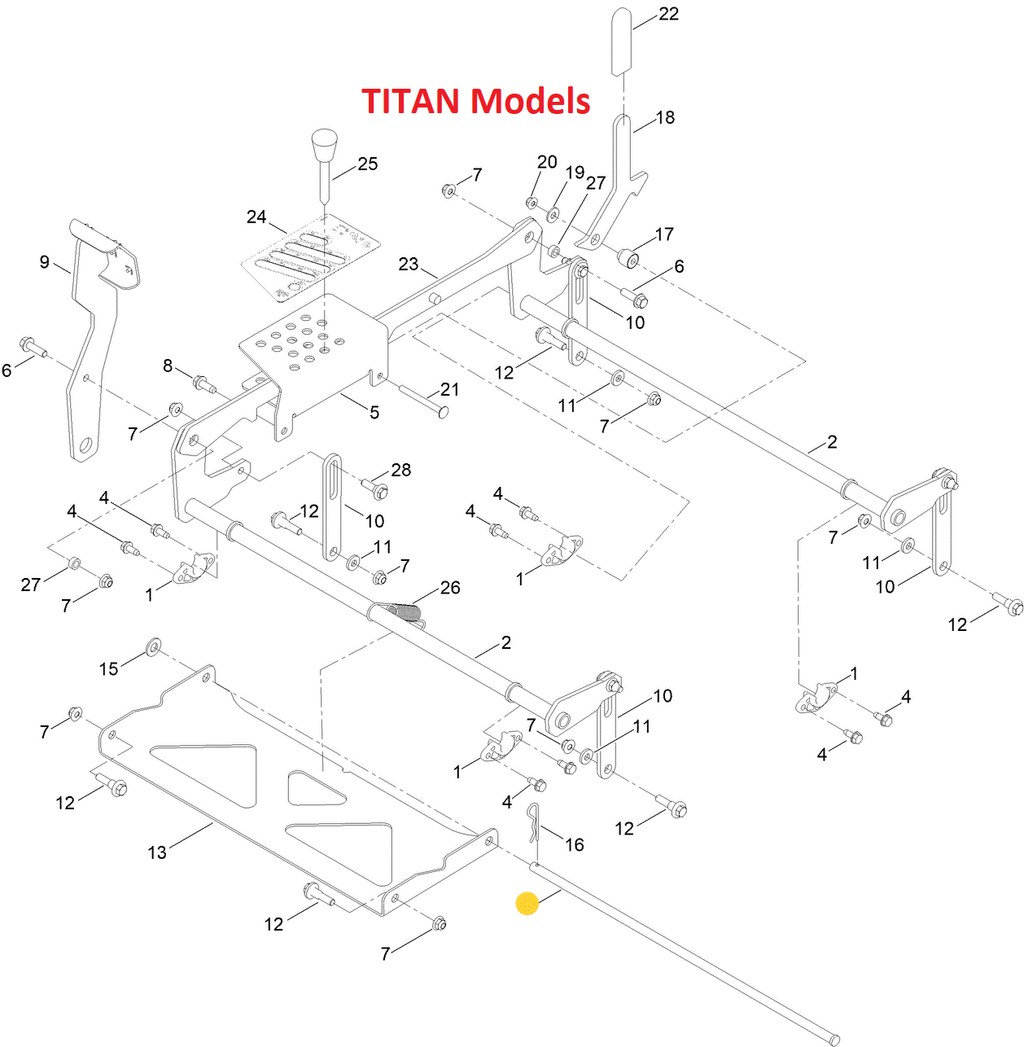

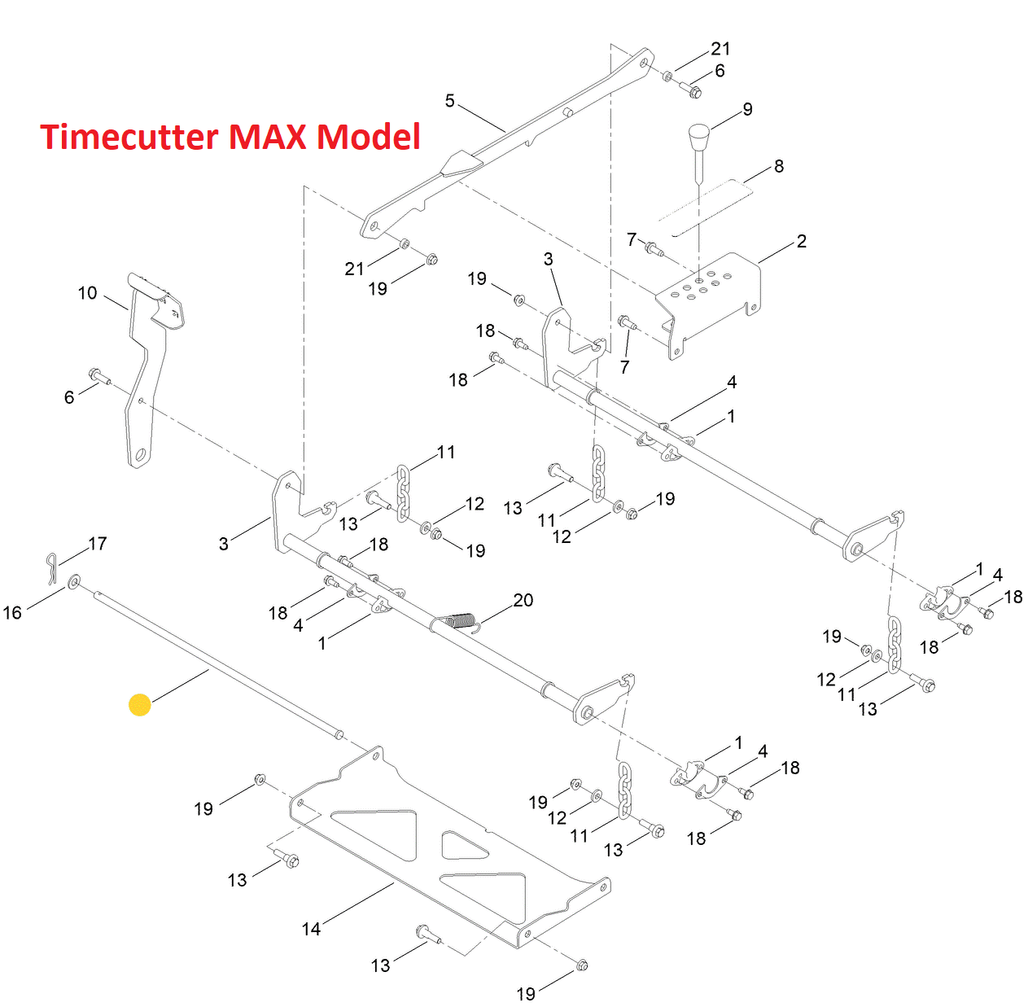

Toro OEM 145 6288 Mower Deck Pivot Pan Rod Retains the Mower Deck Pivot Pan to the Mower Deck Pivot Pan's Weldment Brackets on the Mower Deck. Toro OEM 145-6288 Pivot Pan Rod Enables the Mower Deck to be Effortlessly Disconnected without the Need of Any Tools as well as Enabling the Front of the Mower Deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the Mower Deck. Toro 145 6288 Fits Toro Current 42", 50", 54", 60" Timecutter MAX - Current 48", 54", 60" Titan (Models with I-Beam Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 145-6288 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 145-6248-03 - PIVOT PAN - (Enables the Front of the Mower Deck to stay Fixed while permitting smooth, consistent horizontal movement as the operator raises and lowers the Mower Deck) x1 Per Mower Deck Pivot Pan
2. 139-2562 - CLIP or COTTER PIN - (Retains the Mower Deck Pivot Pan by Retaining the Mower Deck Pivot Pan Rod in the Mower Deck Pivot Pan Weldment Bracket's Holes and Mower Deck Pivot Pan Holes) x1 Per Mower Deck Pivot Pan
3. 139-2611 - FLAT WASHER - (Support the Clip/Cotter Pin Against the Mower Deck Pivot Pan or Mower Deck Pivot Pan Weldment Bracket Hole) x1 Per Mower Deck Pivot Pan








Specification

Product Number:	1456288
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	1.320 LB (0.599 KG)





Model Fit:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
