Toro OEM 145-6278-05 Mower Deck Foot Lift Assist Pedal - Black Havoc Color - Fits Toro Current 54", 60" Timecutter Max Models - Current 60" TITAN Max Model 76610 with I-Beam Framing (All Models with Havoc Black Paint Color Only).

Toro OEM 145 6278 05 Mower Deck Lift Assist Foot Pedal enhances operator efficiency by utilizing leg leverage to assist in raising and lowering the Mower Deck. Toro OEM 145 6278 05 Mower Deck Foot Assist Foot Pedal is Installed over the Mower Deck Front Pivot Arm Shaft and is Fastened with the (HOC) Link and Spacer Using the same Whole and Fastners. The Toro OEM 145-6278-05 significantly reducing the physical effort required during deck height adjustments and Fits Toro Current 54", 60" Timecutter MAX (Models with Black Havoc Paint) - Current 60" Titan Max Model 76610 (Model with Toro Black Havoc Paint and I-Beam Framing). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage. *Front and Rear Pivot Arms Are the Same - Same Part Number for Both.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 145-6278-05 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

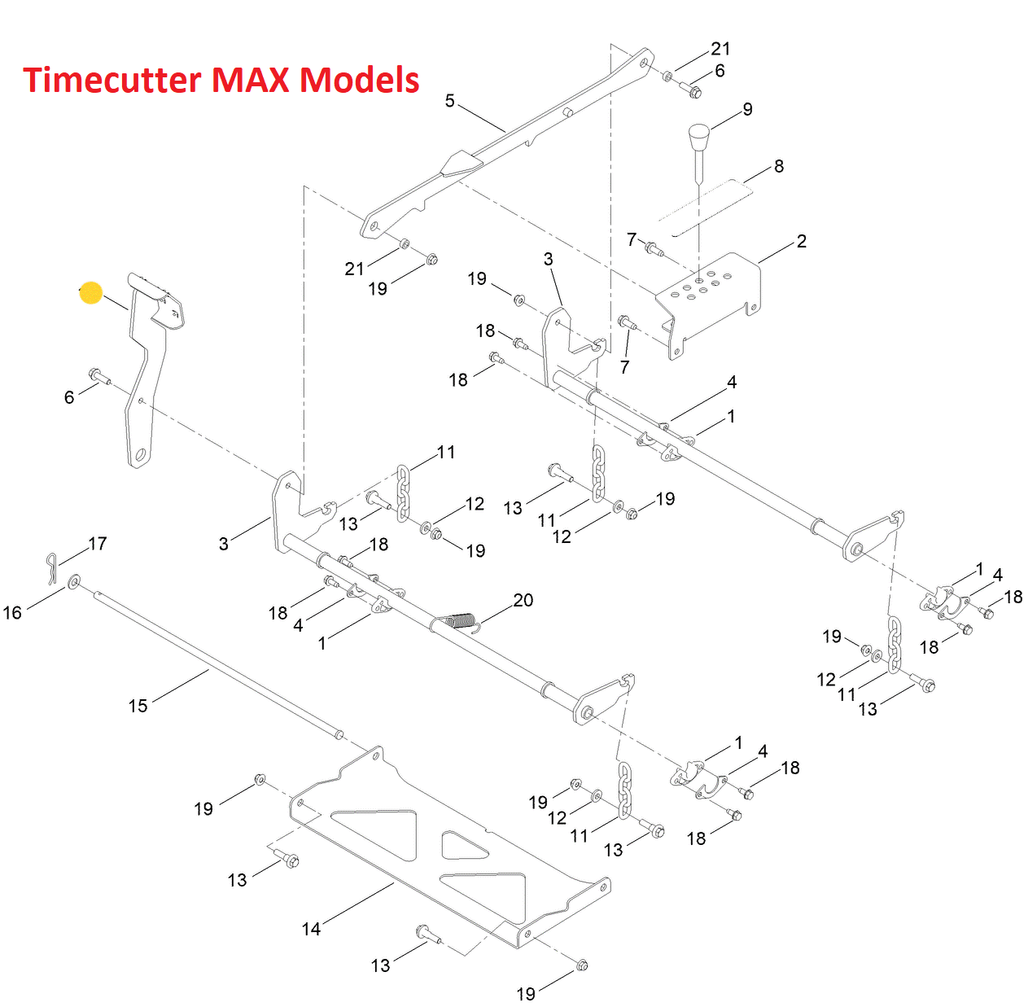

TIMECUTTER MODELS ONLY





1. 145-4645-05 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT & REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Enables the Foot Lift Pedal to be Fastened to it) - *Review Part Number Model Fit Chart to Ensure Correct Fit x2 Per Unit
2. 145-0557-05 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut (HOC) Selection Bracket and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit
3. 145-6278-05 - FOOT LIFT ASSIST PEDAL - (Installed over the Mower Deck Front Pivot Arm Shaft and is Fastened with the (HOC) Link and Spacer Using the same Whole and Fastners) x1 Per Unit
4. 119-4061 - FLANGE BOLTS - (Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm as well as Retaining the Foot Pedal to the Front Pivot Arm) x2 Per (HOC) Link - x1 Per Foot Assist Pedal
5. 140-2093 - HEIGHT OF CUT LINK SPACER - (Inserts into the (HOC) Link and Enable the (HOC) Link to be Tightened with the use of Flange Bolts and Nuts Without Sacrificing the Rotational Movement Needed for Raising and Lowering the Mower Deck) x2 Per (HOC) Link - x1 Per Foot Assist Pedal
6. 119-4042 - FLANGE NUT - (Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm as well as Retaining the Foot Pedal to the Front Pivot Arm) x2 Per (HOC) Lift Link - x1 Per Foot Assist Pedal

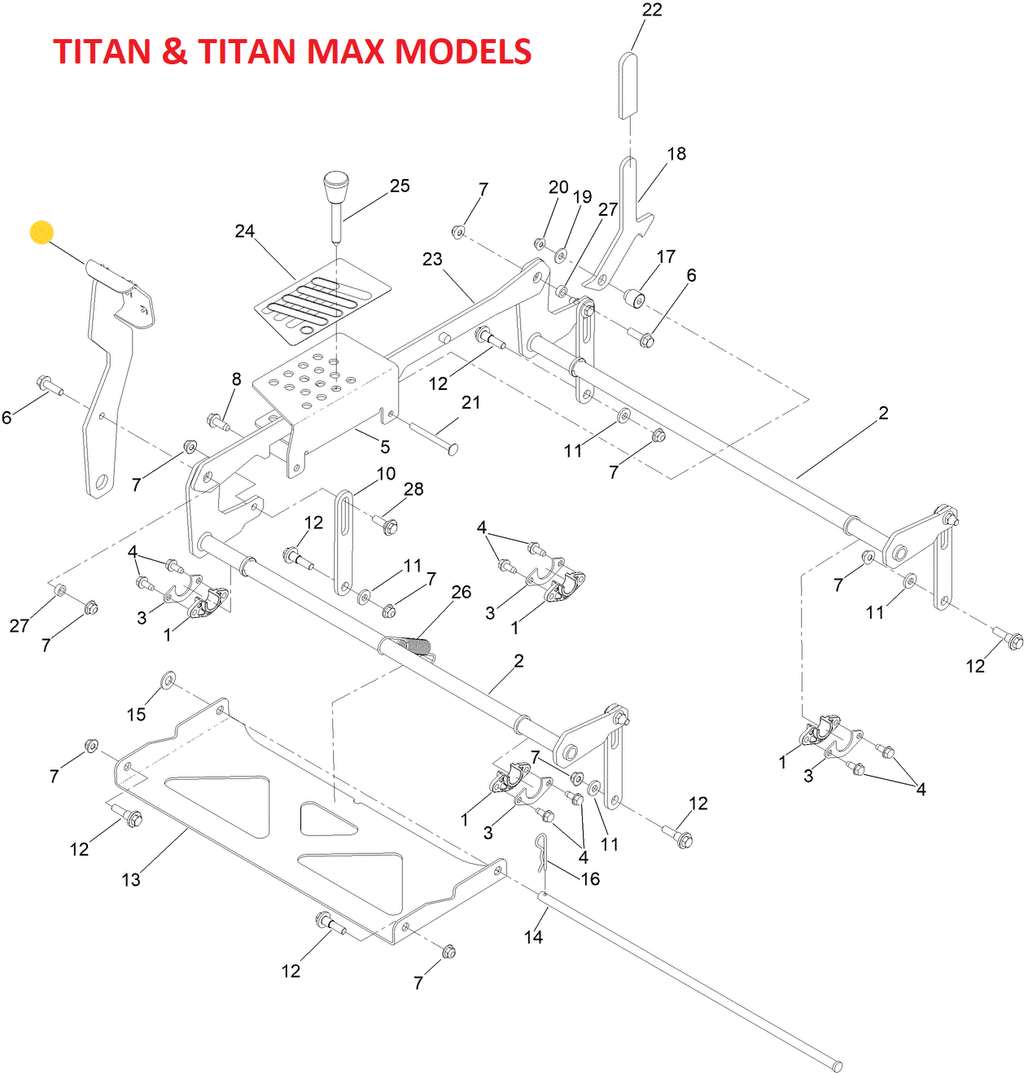

TITAN MAX MODELS ONLY





1. 161-4632-05 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT & REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Enables the Foot Lift Pedal to be Fastened to it) - *Review Part Number Model Fit Chart to Ensure Correct Fit x2 Per Unit
2. 145-6262-05 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut (HOC) Selection Bracket and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit
3. 145-6278-05 - FOOT LIFT ASSIST PEDAL - (Installed over the Mower Deck Front Pivot Arm Shaft and is Fastened with the (HOC) Link and Spacer Using the same Whole and Fastners) x1 Per Unit
4. 119-4061 - FLANGE BOLTS - (Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm as well as Retaining the Foot Pedal to the Front Pivot Arm) x2 Per (HOC) Link - x1 Per Foot Assist Pedal
5. 140-2093 - HEIGHT OF CUT LINK SPACER - (Inserts into the (HOC) Link and Enable the (HOC) Link to be Tightened with the use of Flange Bolts and Nuts Without Sacrificing the Rotational Movement Needed for Raising and Lowering the Mower Deck) x2 Per (HOC) Link - x1 Per Foot Assist Pedal
6. 119-4042 - FLANGE NUT - (Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm as well as Retaining the Foot Pedal to the Front Pivot Arm) x2 Per (HOC) Lift Link - x1 Per Foot Assist Pedal







Specification

Product Number:	145627805
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	2.858 LB (1.296 KG)





Model Fit:



TIMECUTTER



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77507)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77604)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



TITAN



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76610)
