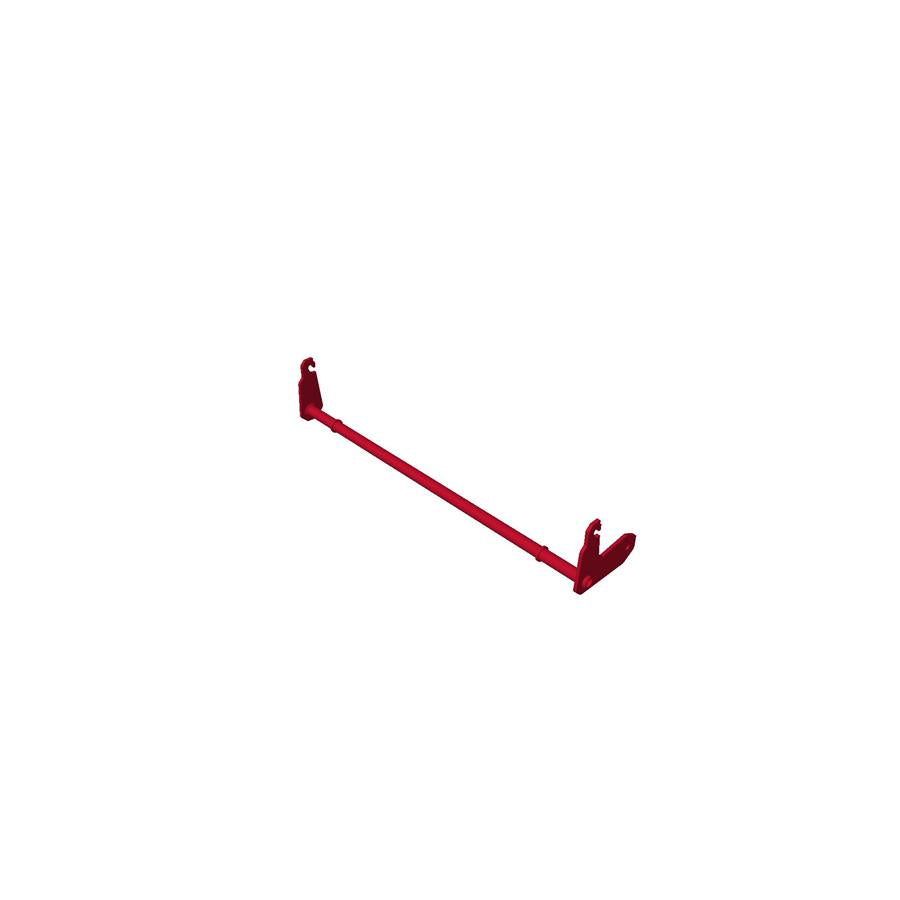

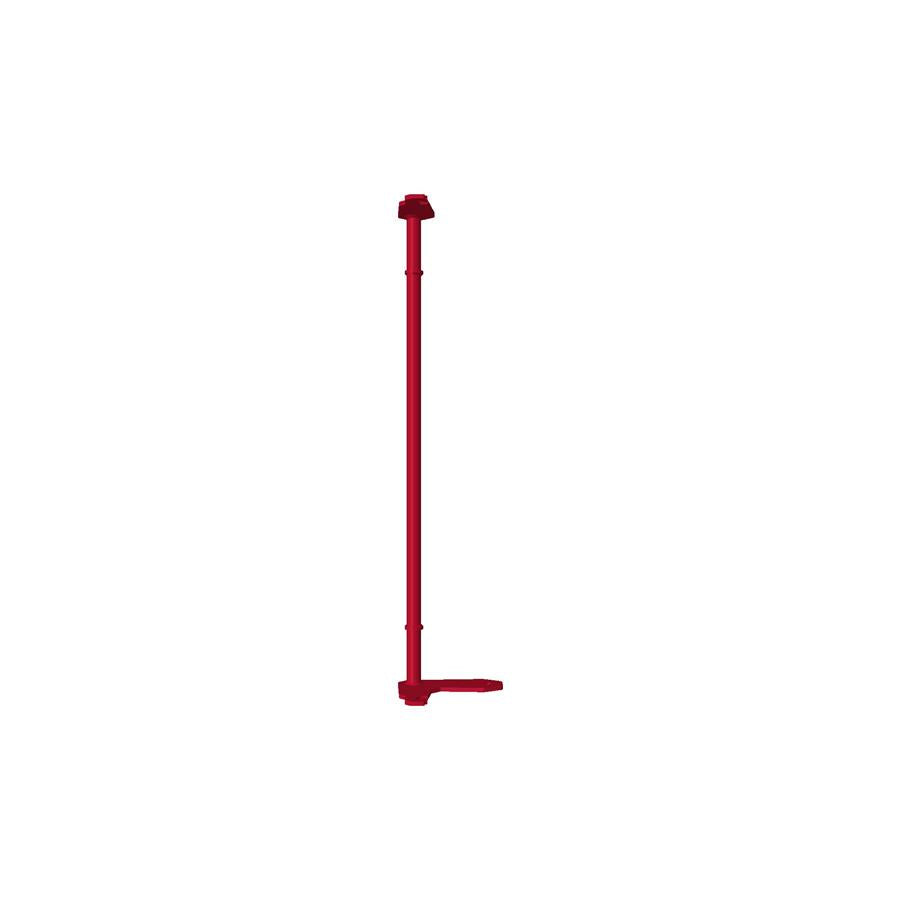

Toro OEM 145-4645-01 Mower Deck Front and Rear Lift Pivot Arm - Toro Red Color - Fits Toro Current 42", 50", 54", 60" Timecutter Max Models (Models with Toro Red Paint Color Only).

Toro OEM 145 4645 01 Mower Deck Front and Rear Pivot Lift/Leverage Arm Is a Rod That Travels Across or Between the Mower Frames and Attaches to the Front and Rear Mower Deck Pivot Arm With the Usage of the (HOC) Link as well as enable the Mower Deck Foot Assist Pedal to Be Inserted over the Shaft Section of the Front Pivot Rod and Fastened together Using the Same Hardware as the (HOC) Link. Toro OEM 145 4645 01 Pivot Arms Connects to the Mower Deck Using a Lift Link Chain (Hook into the Pivot Arms) and Rotate across the Frame of the Mower as the Operator Lower's and Raise's Their Mower Deck. This type of Design helps Leverage some of the Mower Deck Weight as well and makes for an easier Raising and Lowering of the Mower Deck. The Easy Hook in Style 145 4645 01 Pivot Arms and Lift Link Chain Combo Makes It Very Easy for Operators to Remove their Mower Decks for Cleaning or Repairs. 145-4645-01 Mower Deck Pivot Rod is Designed for Toro Current 42", 50", 54", 60" Timecutter MAX (Models with Toro Red Paint). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage. *Front and Rear Pivot Arms Are the Same - Same Part Number for Both - Individually Part Numbered.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 145-4645-01 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

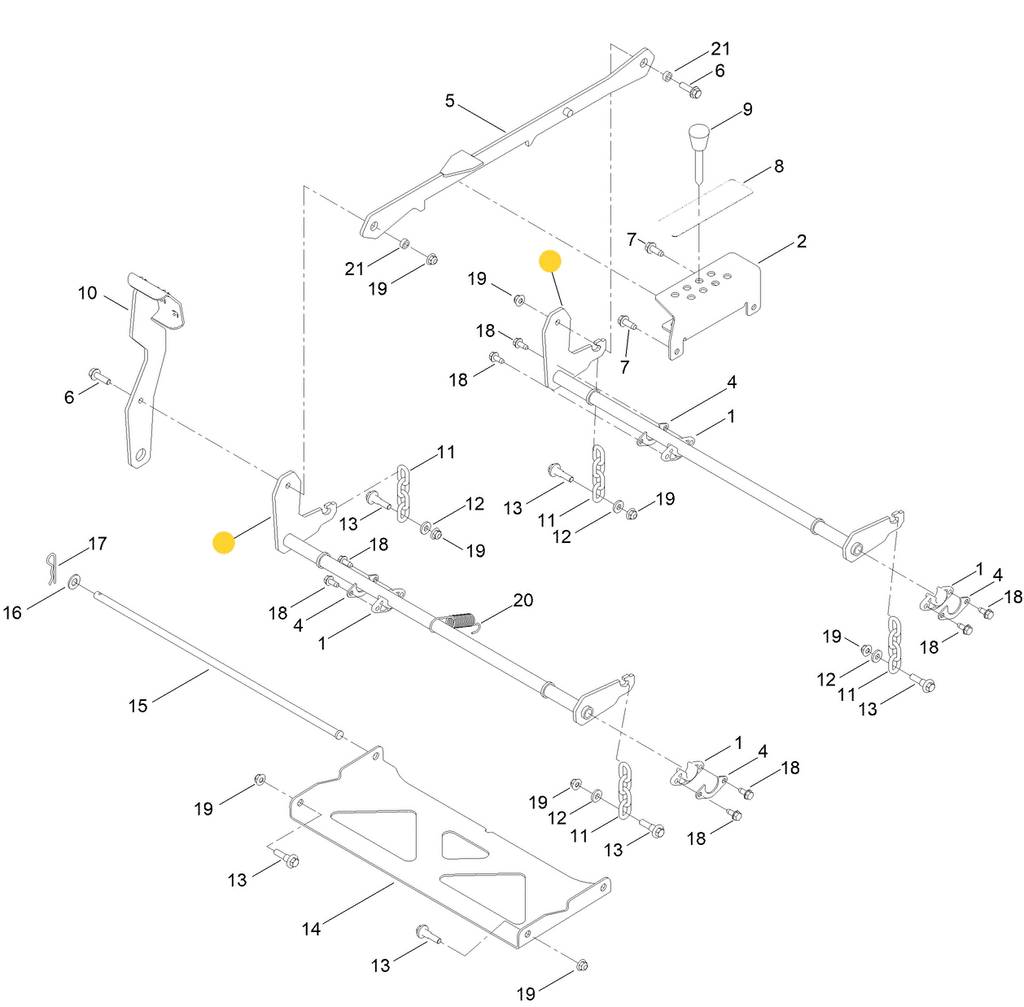

1. 145-4645-01 - MOWER DECK PIVOT/LIFT LEVARAGE ARM (FRONT & REAR) - (Travels Across/Between the Two Frames of the Mower and Attaches to the Lift Linkage and Lift Linkage Mower Deck Chain - Front Mower Deck Pivot Arm Also Enables the Foot Lift Pedal to be Fastened to it) - *Review Part Number Model Fit Chart to Ensure Correct Fit x1 Per Unit
2. 138-7205 - LIFT LINK CHAINS - (Connects the Mower Deck Pivot Lift/Leverage Arm and the Mower Deck - The Lift Link Chains Enable the Mower Deck to Free Float - Bolts to the Mower Deck and Connects to the Mower Deck Pivot Lift Arm Via the Hook on the Pivot Lift Arm) x2 Per Mower Deck Pivot Lift/Leverage Arm
3. 130-0742 - FLANGE SHOULDER BOLT - (Retains Mower Deck Lift Link Chain to the Mower Deck) x1 Per Lift Link Chain
4. 138-7207 - FLAT SPACER/SUPPORT WASHER - (Assembled Between the Mower Deck Fastner Ear and the Lift Link Chain - Assist in Retaining Lift Link Chain Due to the Larger Adjustment Slotted Hole in the Mower Deck Fastner Ear or Bracket as well as Spaces the Lift Link Chain Away From the Mower Deck and Allows The Mower Deck More Forgiveness to Move as Needed when Coming in contact with Something or Just Simply Raising and Lower the Mower Deck) x4 Per Mower Deck
5. 119-4042 - FLANGE NUT - (Retains Flat Spacer/Support Washer, Lift Link Chain and Shoulder Bolt to the Mower Deck as well as Retaining the Flang Bolt and Height of Cut Link to the Front Mower Deck Lift Pivot Arm/Foot Pedal Combo and Rear Mower Deck Lift Pivot Arm) x1 Per Mower Deck Lift Link Chain - x2 Per Height of Cut Link
6. 145-0557-01 - HEIGHT OF CUT LINK - (Connects the Front Mower Deck Pivot Arm/Foot Pedal Combo to the Rear Pivot Arm and Enable the Operator to use the Height of Cut (HOC) Selection Bracket and Pin to Set his Preferred Cut of Height as well as lift the Front and Back of the Mower Deck Simultaneously) x1 Per Unit
7. 145-6278-01 - FOOT LIFT ASSIST PEDAL - (Installed over the Mower Deck Front Pivot Arm Shaft and is Fastened with the (HOC) Link and Spacer Using the same Whole and Fastners) x1 Per Unit
8. 119-4061 - FLANGE BOLTS - (Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm as well as Retaining the Foot Pedal to the Front Pivot Arm) x2 Per (HOC) Link
9. 140-2093 - HEIGHT OF CUT LINK SPACER - (Inserts into the (HOC) Link and Enable the (HOC) Link to be Tightened with the use of Flange Bolts and Nuts Without Sacrificing the Rotational Movement Needed for Raising and Lowering the Mower Deck) x2 Per (HOC) Link
10. 119-4042 - FLANGE NUT - (MENTIONED HIGHER IN THE PART LISTINGS - Retains the (HOC) Link and (HOC) Link Spacer to the Front and Rear Pivot Arm) x2 Per (HOC) Lift Link
11. 32144-70 - FLANGE SELF-TAPPING SCREW - (Retains the Lower Mower Cross Support Gusset/Bracket and Lower Cross Support Bearing/Bushings to Upper Cross Support Weldment Frame/Bracket) x4 Per Bracket
12. 139-5872 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT BEARING/BUSHING - (Attaches with the Lower Support Gusset/Bracket to the Upper Mower Cross Support Weldment Frame/Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange Instead of Rotating Against Metal on Metal) x4 Per Unit
13. 138-7204 - LOWER MOWER DECK PIVOT-LIFT-LEVARAGE ARM SUPPORT GUSSET/BRACKET - (Attaches with the Lower Support Bearing/Bushing to the Upper Mower Cross Support Weldment Frame/Bracket and Allows for the Mower Lift Pivot/Leverage Arm to Rest into and Rotate in a Replaceable Bearing Flange as well as retaining the Bearing/Bushing and Mower Deck Pivot Arm) x4 Per Unit
14. 138-7206 - TENSION SPRING - (Connect to the Front Mower Deck Pivot Arm and Front Mower Deck Pivot Pan and Retains Tension on it) x1 Per Front Mower Deck Pivot Arm or Pivot Pan







 Specification

Product Number:	145464501
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	4.356 LB (1.976 KG)





Model Fit:



TIMECUTTER



42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503)



60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601)
