Description

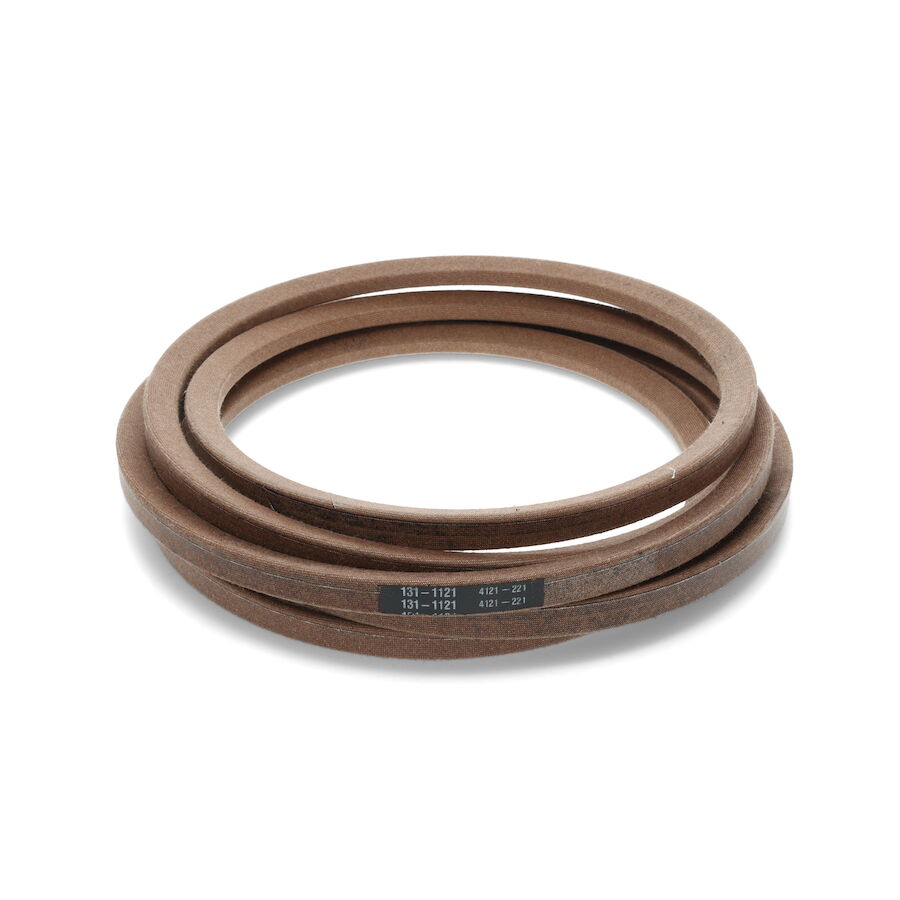

Toro OEM 145 3481 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Toro OEM 145-3481 is made to Fit Toro Current/Late 48" Grandstand Standard and Current 60" Grandstand HDX Models (* Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Toro Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit. Part Number 131-1121 Supersedes to Part Number 145-3481.

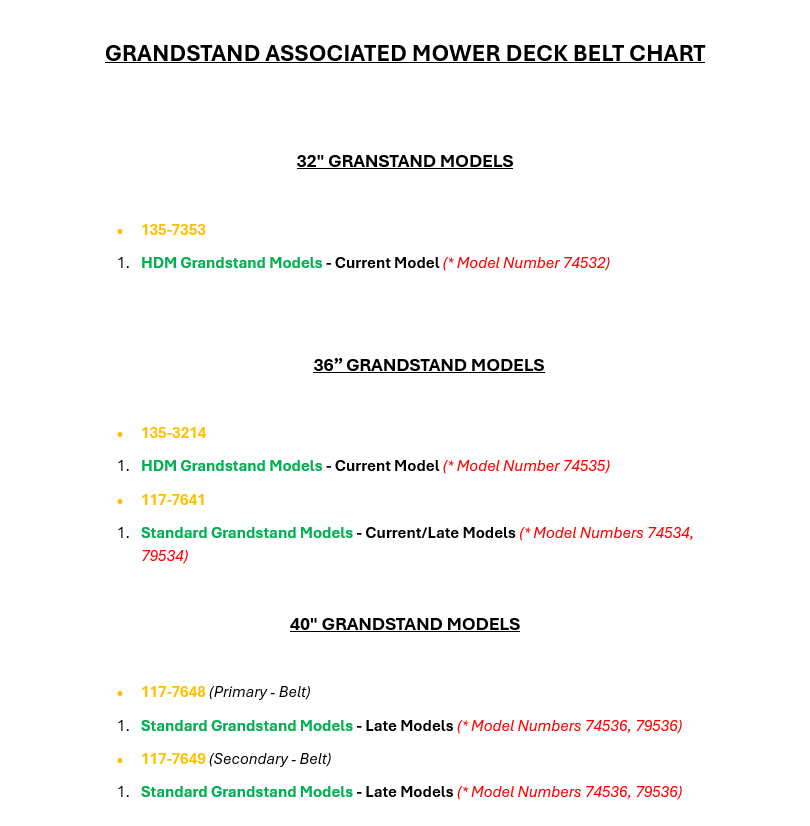

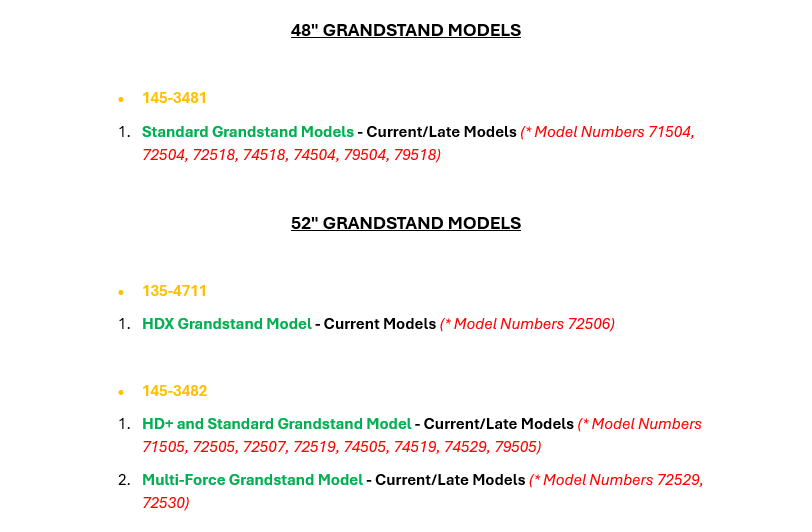

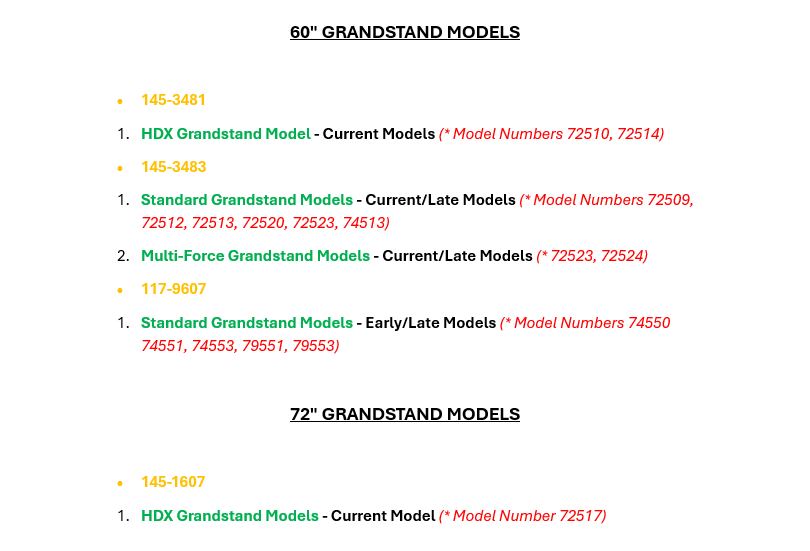

NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Images as well as refer to the Part Numbers under the Grandstand Mower Deck Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Series/Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with.

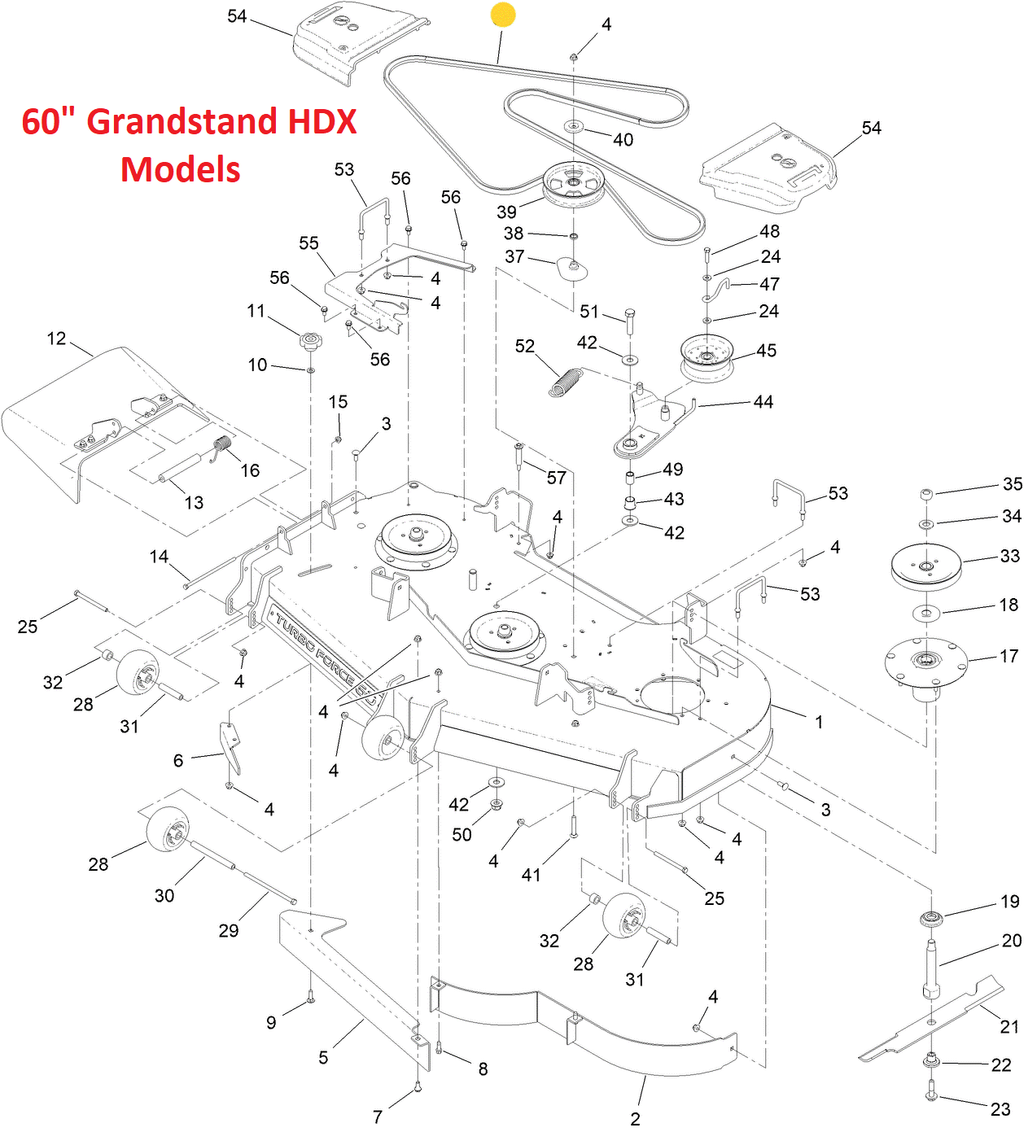

60" GRANDSTAND HDX ASSOCIATED PART REFERENCES FOR 145-3481
CLICK ON PART NUMBER TO BE REDIRECTED
- 116-4666 - FLAT IDLER - ONE PER MOWER DECK
- 136-5404 - FLAT IDLER - ONE PER MOWER DECK

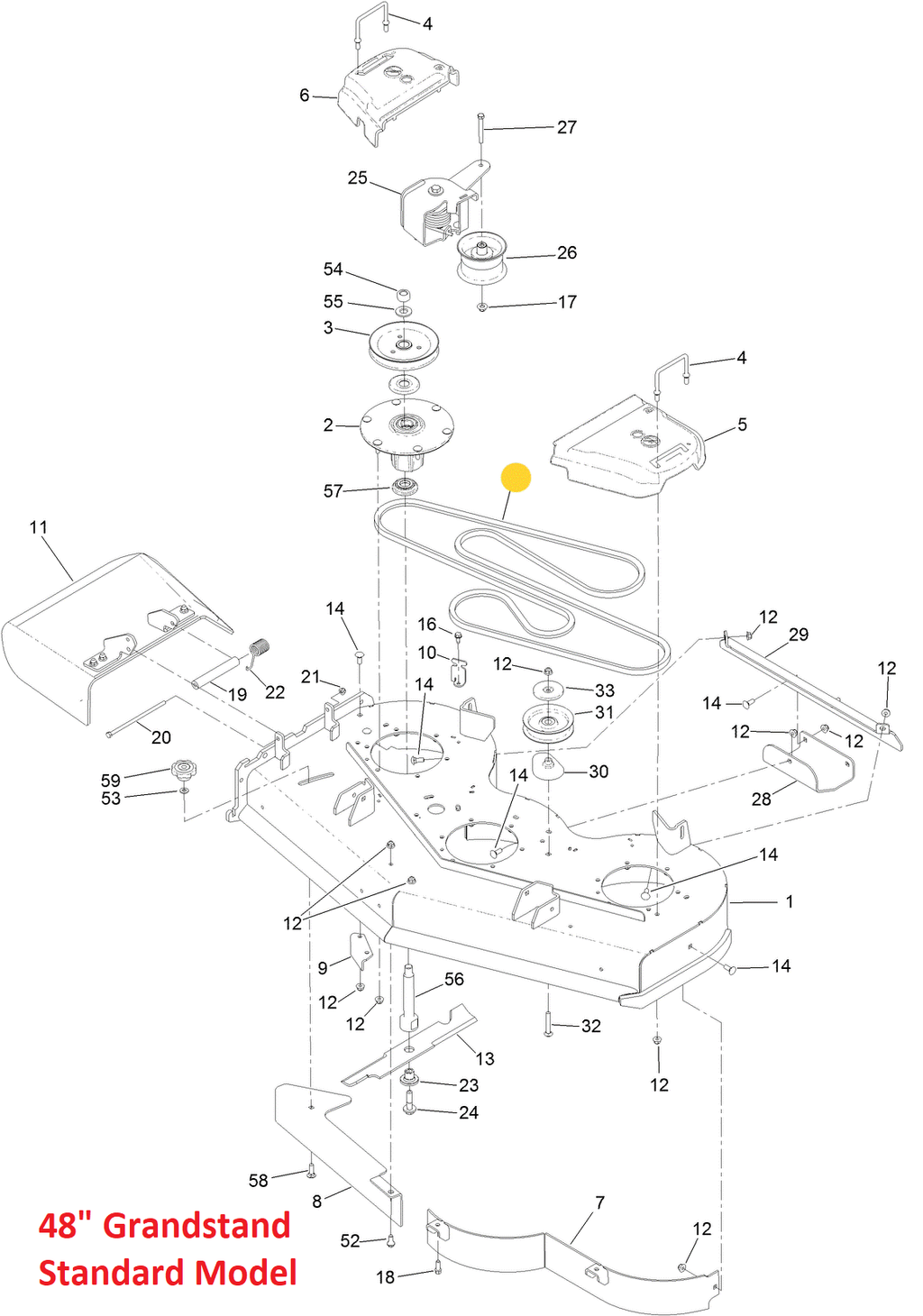

48" STANDARD GRANDSTAND ASSOCIATED PART REFERENCES FOR 145-3481
CLICK ON PART NUMBER TO BE REDIRECTED
- 127-1971 - FLAT IDLER - ONE PER MOWER DECK
- 132-4718 - FLAT IDLER - ONE PER MOWER DECK
Specification
|
Product Number: |
1311121, 1453481 |
|
Brand: |
Toro |
|
Length: |
154 1/2 IN |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.750 LB (0.794 KG) |
Model Fit:
71504, 72504, 72518, 74504, 74518, 79504, 79518, 72510, 72514
