Description

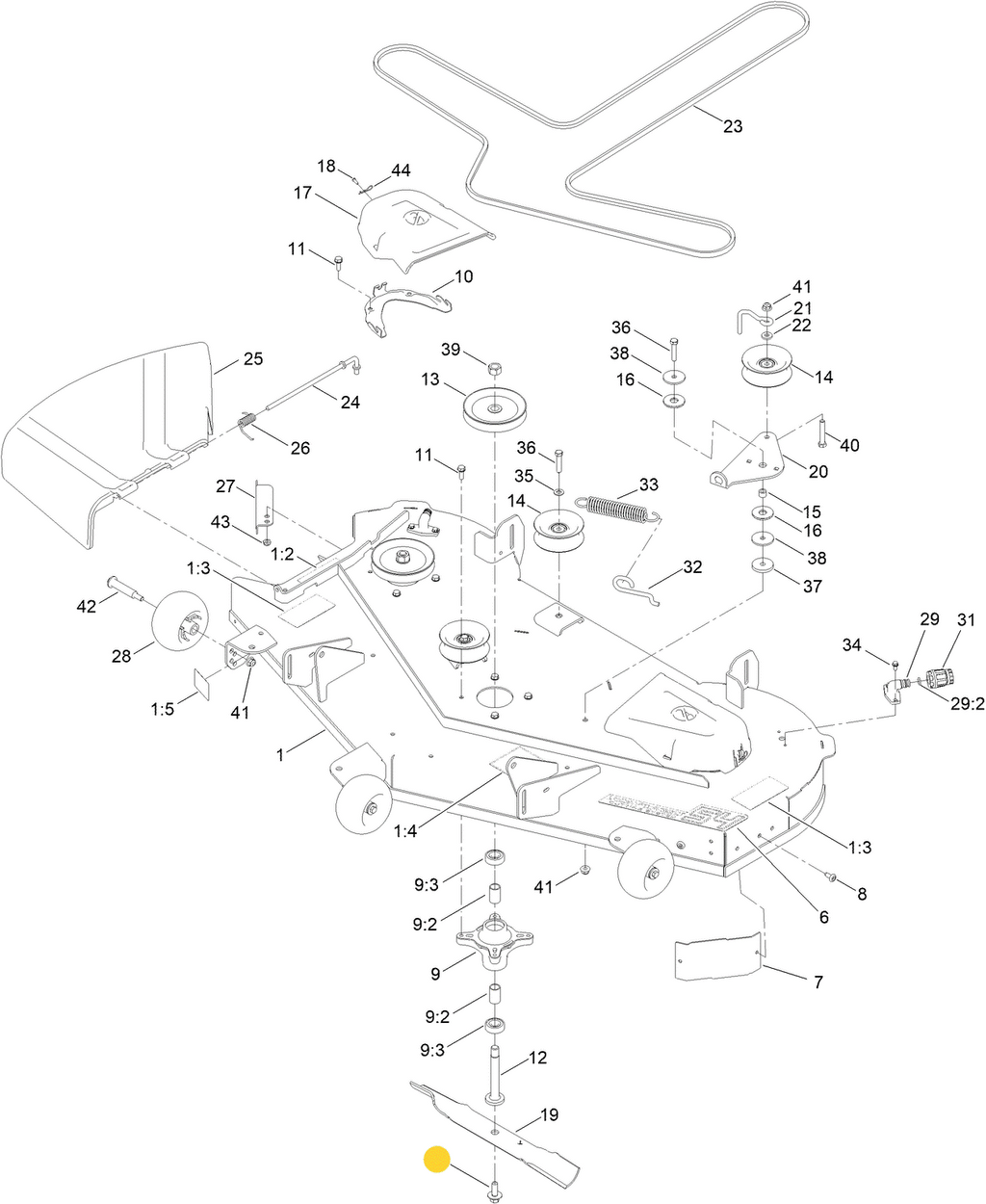

Ensure proper blade tightness with the Toro 145 0411 OEM Flange Mower Deck Blade Bolt. Expertly crafted to maintain Mower Deck Blade tension without compromising the shear point. The 145 0411 Blade Bolt is essential for Toro Late/Current 34", 42", 50", 54", 60", Timecutter Zero Turns Models (Cast Aluminum Axle's - Timecutter MAX Models). Due to Model/Part Number Variation, For an Accurate Model/Series Break down of Part Number Usage Refer to the Model Fit Chart, Images and The Special Notes Below.

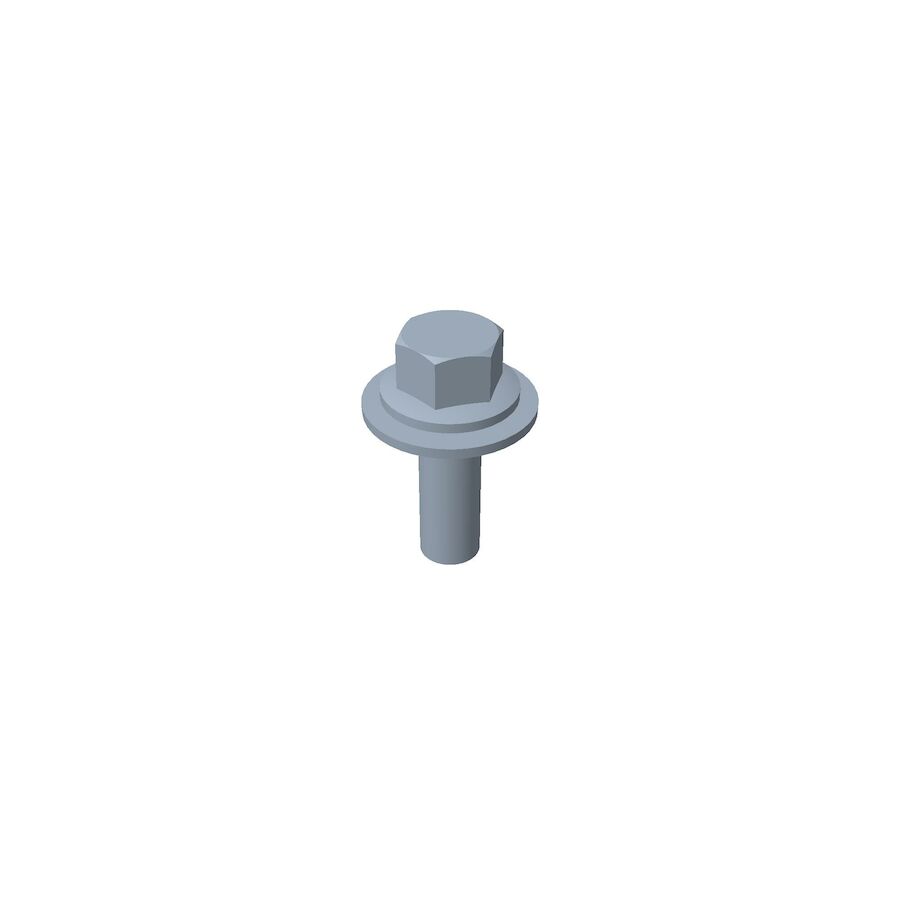

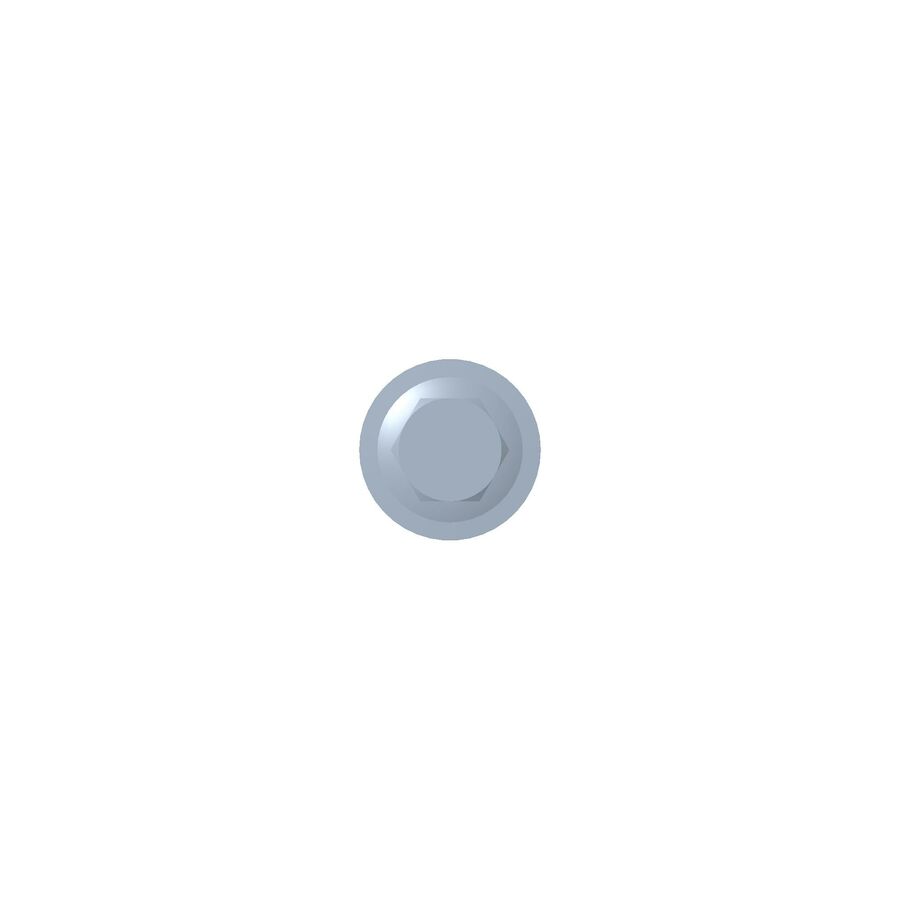

NOTE: Timecutter Mower Models Will have Two Common Mower Deck Blade Bolt Part Numbers a quick Visual Verification can Determine the Correct Blade Bolt Part Number. Mower Deck Blade Bolt 145-0411 is a Flange Bolt with a Compressed Washer while Mower Deck Blade Bolt 26-0671 is a Longer Hex Head - Bolt with a Removable Belleville Washer. Thread Size is Comparable Between Both Bolt. So, if you are Replacing Blade Bolts Both Would Probably work upon Preference if You were to use the Correct Washer Combination. However, Factory Recommendations are recommended and are listed by Model Number Below in The Model Fit Chart.
Specification
|
Product Number: |
1450411 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.116 LB (0.053 KG) |
Model Fit:
TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301
TIMECUTTER 42” ZS Series – Model Numbers – 74677, 74683, 74687
TIMECUTTER 42” MX Series – Model Numbers – 74691
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679
TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75746, 75748, 77401, 77404
TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75747
TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841, 75642
TIMECUTTER 50” MX Series – Model Numbers – 74695
TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759
TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505
TIMECUTTER MAX 50” (My-Ride) Series – Model Numbers – 77502
TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75756, 75757
TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851
TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506
TIMECUTTER MAX 54” (My-Ride) Series – Model Numbers – 77503, 77507
TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75762
TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763
TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604
TIMECUTTER MAX 60” (My-Ride) Series – Model Numbers – 77602, 77603
