Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 140-7924 Supersedes to Part Number144-2828.
- PRODUCT NUMBER AND VARIATIONS: 144-2828, 144 2828, 1442828

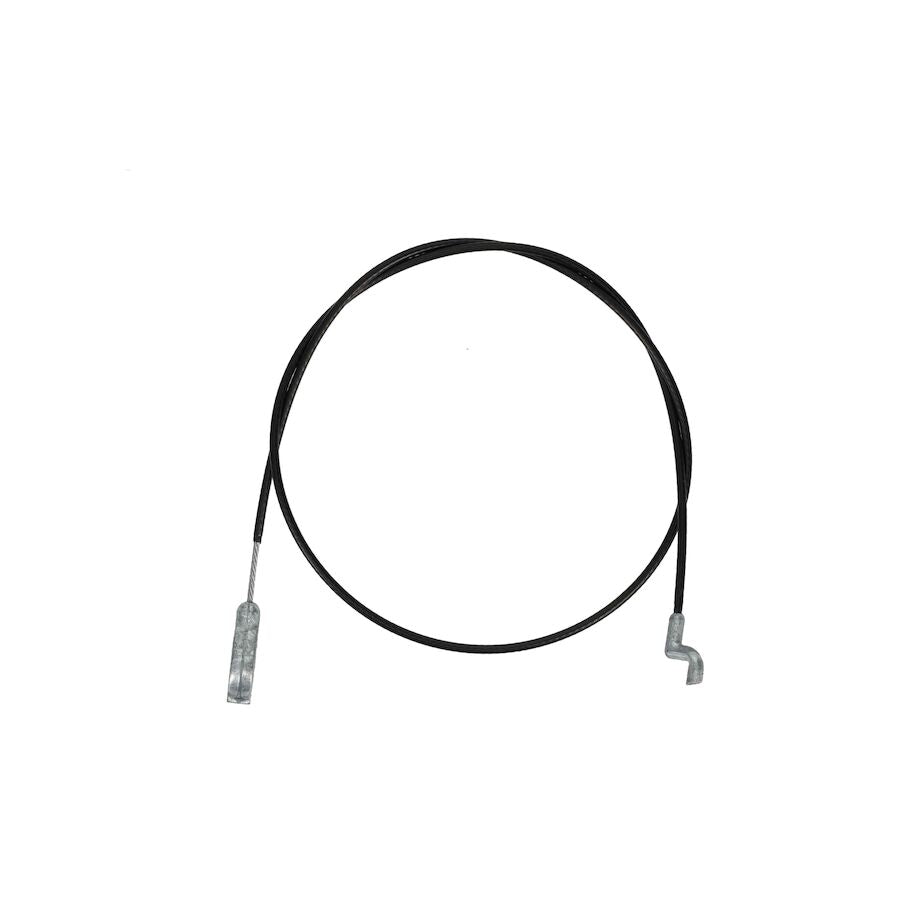

- PRODUCT TYPE: Secondary Traction/Drive Cable
- SIZE: Length 25.750 in. - Width 0.050 in. - Height 0.250 in. - Weight 0.040 lbs.

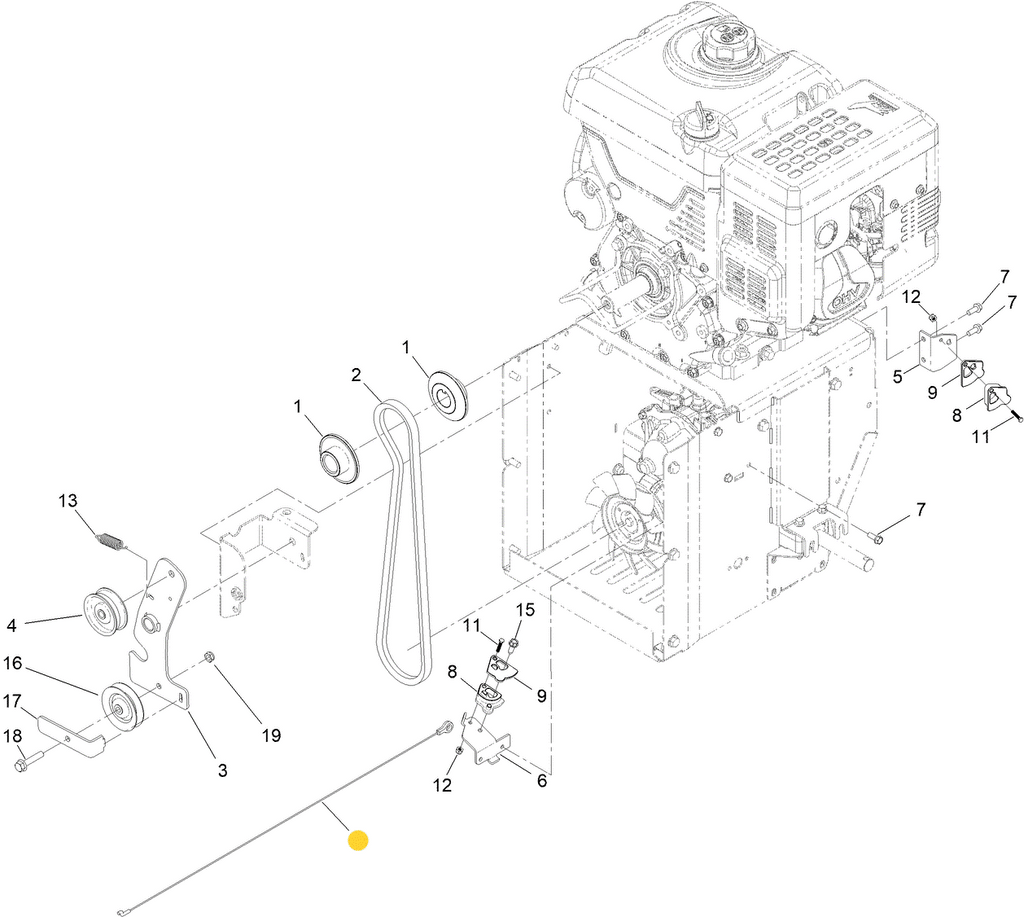

- NOTES & DETAILS: Toro OEM 144-2828 IS COMMINLY USED -144-2828 Secondary Cable is a One of a Two-Part Cable System. - PRIMARY CABLE - 161-0977 Primary Traction Cable End Inserts into the Operator's Control Lever, Travels to Below the Engine on the Lower Snow Blower Frame, Changes Direction into a 90 Degree and Feeds through the Cable Guide 139-3565 and Cable Guide Cap 139-3564 Which is Fastened to the Cable Guide Bracket/Anchor 140-7895-03 - from their Primary Traction Cable 161-0977 Feeds through the rear snowblower frame and connects to the Secondary Traction Cable 144-2828 Via the Eyelet and Spring End Of both Cables. - SECONDARY CABLE - Secondary Cable 144-2828 Changes Direction into a 90 Degree and Feeds through the Cable Guide 139-3565 and Cable Guide Cap 139-3564 Which is Fastened to the Cable Guide Bracket/Anchor 140-7894-03 - From There Secondary Cable 144-2828 Connects to the Idler Pulley Arm via the Hook End to the Idler Arm Whole. Traction Cable's 161-0977 & 144-2828 Only Serve the purpose of Engaging and Disengaging the Drive Capability's by Tightening or adding Pressure Between the Belt and the Idler Pulley which is Fastened to the Idler Arm. Speed Variation is Selected by the Operator - By Adjusting the Speed Selection it Increase and Decreases Hydraulic Pressure. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Select Power TRX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)
