Description

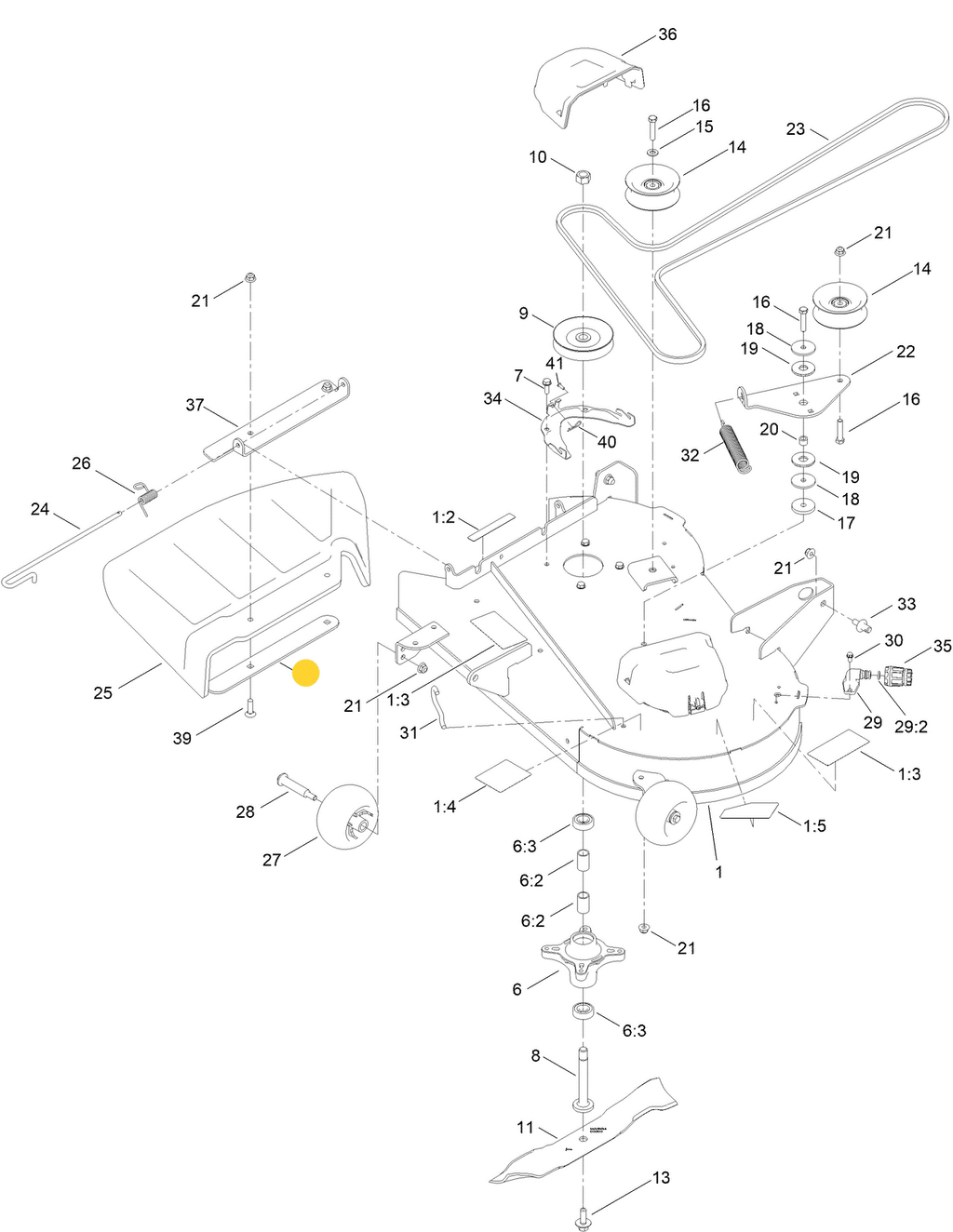

The Toro OEM 144 1957 03 Bottom Pivot Pin/Discharge Chute Bracket functions as a vital component for Current/Late 34" Timecutter Models. 144 1957 03 strategic design incorporates metal construction at all attachment points and enables securing the mower deck discharge chute firmly in place; as well as offering a strong support for the mower deck discharge chute and delivering professional-grade durability. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit.
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 144-1957-03 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 138-7231 - PIVOT PIN (Only Model 77301, 75734 - Retains Discharge Chute Assembly)
- 144-1956-03 - UPPER PIVOT PIN/DISCHARGE CHUTE BRACKET (Retains Discharge Chute)
- 144-1957-03 - LOWER PIVOT PIN/DISCHARGE CHUTE BRACKET (Retains Discharge Chute)
- 3231-28 - CARRIAGE BOLT (Retains Pivot Pin Brackets)
- 104-8301 - LOCKING NUT (Retains Pivot Pin Brackets)
- 138-7232 - TORSION SPRING (Attaches over Pivot Rod)
- 140-3548 - DISCHARGE CHUTE (Review Part Number Model Fit Chart to Ensure Correct Fit)
Specification
|
Product Number: |
144195703 |
|
Brand: |
Toro |
|
Length: |
13.250 IN (33.655 CM) |
|
Width: |
1.750 IN (4.445 CM) |
|
Height: |
0.250 IN (0.635 CM) |
|
Weight: |
1.112 LB (0.504 KG) |
Model Fit:
75734, 77301
