Toro
Price:
$10.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

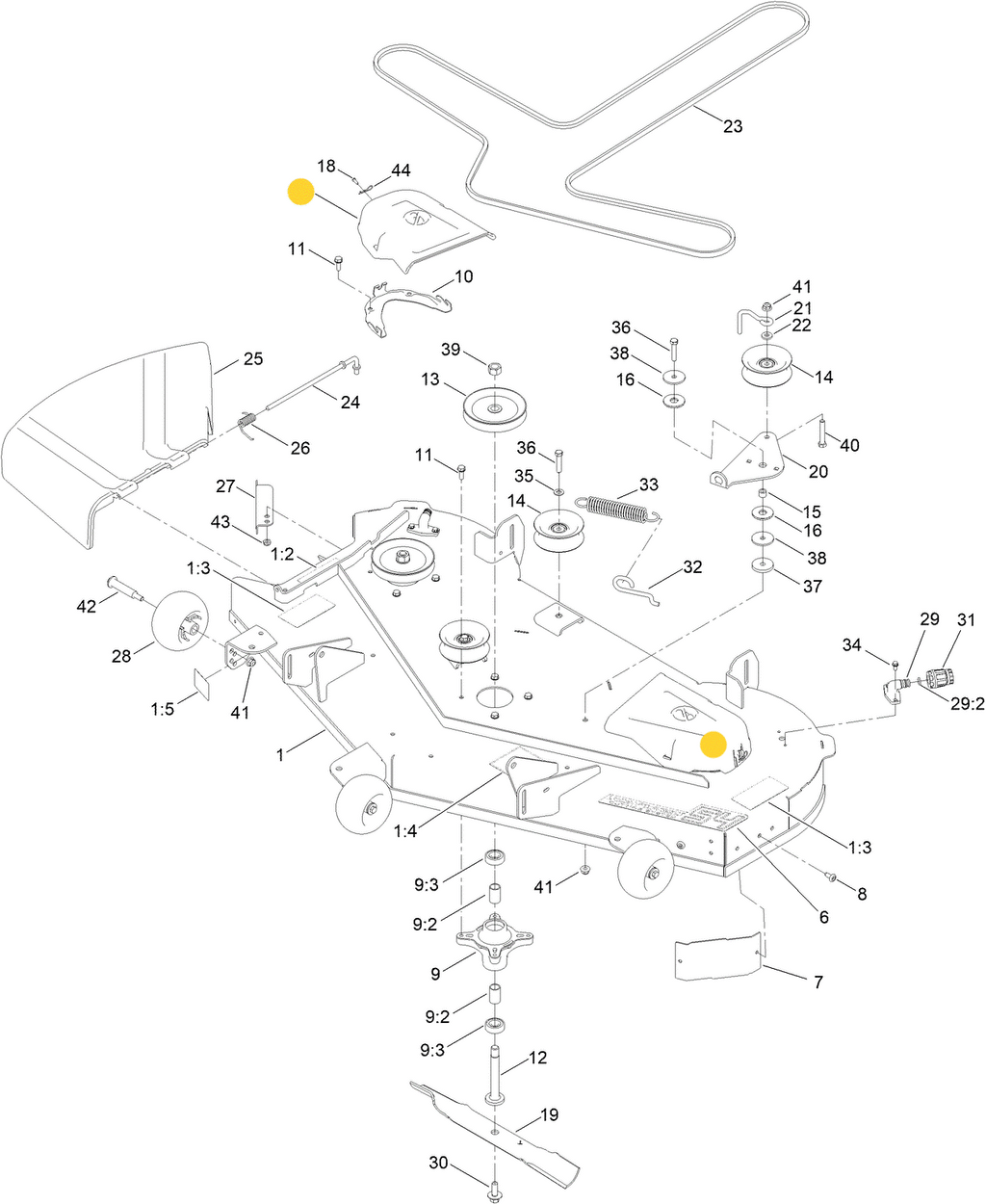

Trust Oem Replacement Right & Left -Side 144 1906 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. the Quick Clip Style allows you to remove the Guards and allows easy access to cleaning your Mower Deck. OEM 144 1906 Fits Toro 50" Timecutter Standard, My-Ride, Max and 54" Timecutter Standard, My-Ride, Max Models (Mower Models That use 144-1906 Will Range Between Series with Cast Aluminum Axles and Timecutter MAX Models and All models will have two Belt Covers, Left-hand and Right-hand side are the Same). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. Part Number 132-3293 & 144-5294 Supersede to Part Number 144-1906.







ASSOCIATED FASTNERS FOR PART NUMBER 144-1906 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 32144-41 - SELF-TAPPING TAP SCREW - (Retains Pulley Cover Retaining Bracket to Mower Deck) x2 per Retaining Bracket
  2. 139-3272-03 - PULLEY COVER RETAINING BRACKET - (Bolts to Mower Deck and Allows you to Retain/Clip Mower Deck Belt Cover in Place) x1 Per Pulley Cover
  3. 94-6961 - PHILIPS HEAD SCREW - (Inserts into Pulley Cover to Retain Deactivating Easy Clip - Clip Pin) x1 Per Pulley Cover
  4. 144-1944 - CLIP/HAIR PIN - (Disables Clip on Easy Clip-on Pulley Cover) x1 Per Pulley Cover







Specification

Product Number:

1393293, 1445294, 1441906

Brand:

Toro

Length:



10.500 IN (26.670 CM)

Width:



9.000 IN (22.860 CM)

Height:



2.750 IN (6.985 CM)

Weight:



0.474 LB (0.215 KG)





Model Fit:





TIMECUTTER 50” MX Series – Model Numbers – 74694, 74695



TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753



TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759



TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505



TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502





TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506



TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507
