Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Roll over image to zoom in Click on image to zoom
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).
Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).

Toro OEM 144-1905 Spindle Belt and Pulley Cover Fits Late/Current Toro Timecutter 34" Standard, My-Ride Models and 42" MX, 4200, Standard, My-Ride Models (Cast Aluminum Axle).

Toro
Price:
$6.39

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

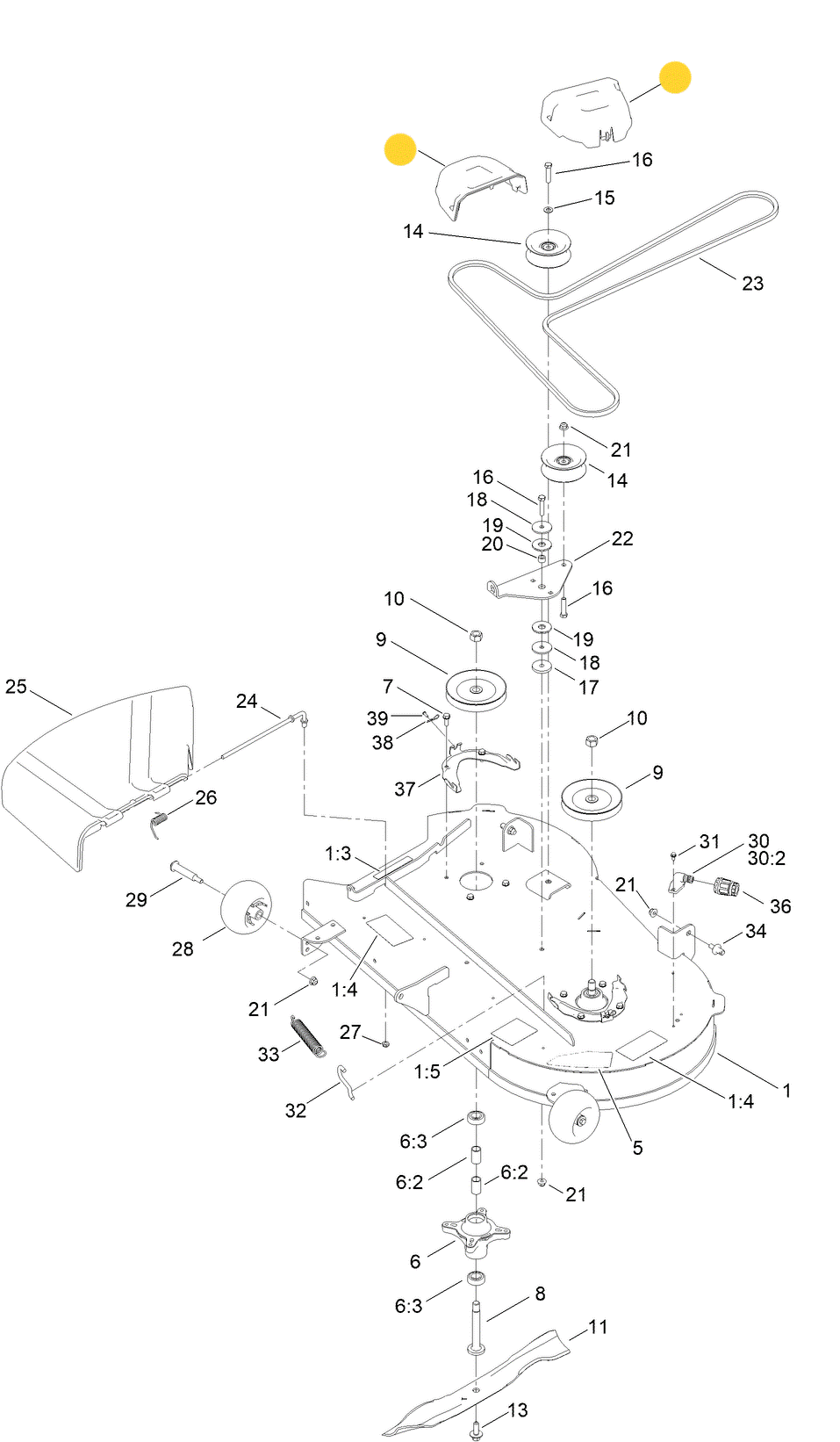

Trust Oem Replacement Right & Left -Side 144 1905 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. the Quick Clip Style allows you to remove the Guards and allows easy access to cleaning your Mower Deck. OEM 144 1905 Fits Toro 34" Timecutter Standard and 42" Timecutter MX, 4200, Standard, My-Ride Models (Mower Models That use 144-1905 Will Have two Belt Covers, Left-hand and Right-hand side are the Same). Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED FASTNERS FOR PART NUMBER 144-1905 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





  1. 32144-41 - SELF-TAPPING TAP SCREW - (Retains Pulley Cover Retaining Bracket to Mower Deck) x2 per Retaining Bracket
  2. 139-3272-03 - PULLEY COVER RETAINING BRACKET - (Bolts to Mower Deck and Allows you to Retain/Clip Mower Deck Belt Cover in Place) x1 Per Pulley Cover
  3. 94-6961 - PHILIPS HEAD SCREW - (Inserts into Pulley Cover to Retain Deactivating Easy Clip - Clip Pin) x1 Per Pulley Cover
  4. 144-1944 - CLIP/HAIR PIN - (Disables Clip on Easy Clip-on Pulley Cover) x1 Per Pulley Cover







Specification

Product Number:

1441905

Brand:

Toro

Length:



8.000 IN (20.320 CM)

Width:



6.000 IN (15.240 CM)

Height:



2.500 IN (6.350 CM)

Weight:



0.298 LB (0.135 KG)





Model Fit:





TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” MX Series – Model Numbers – 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75746, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75747
