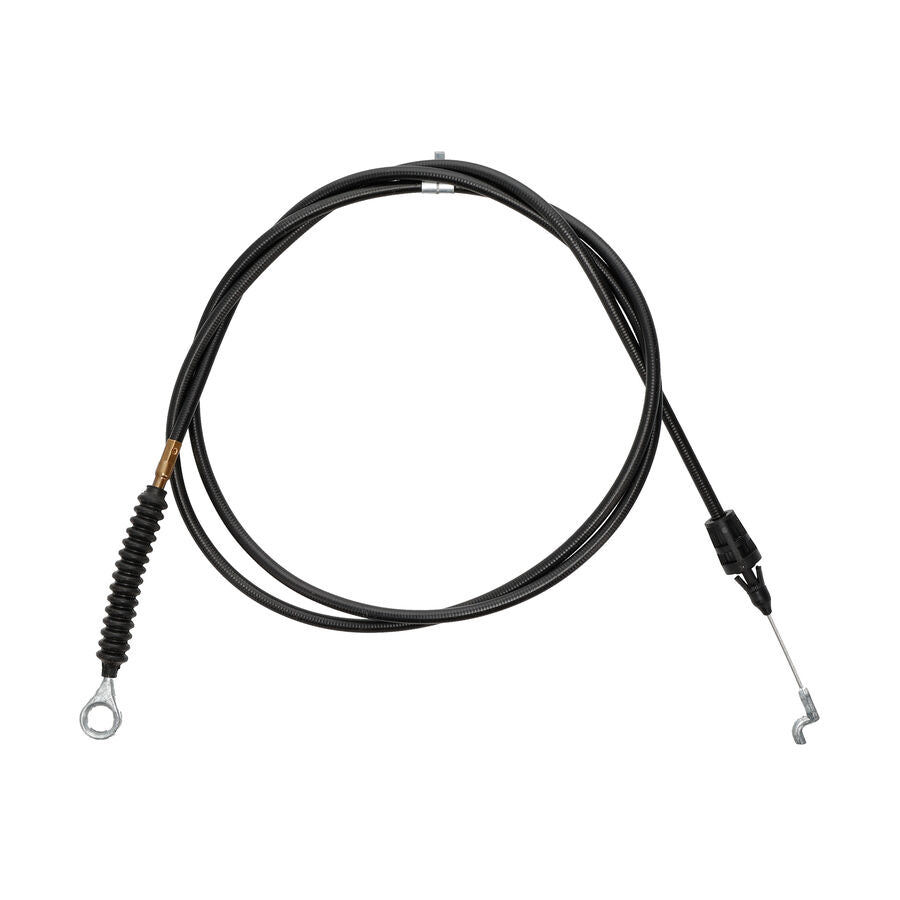

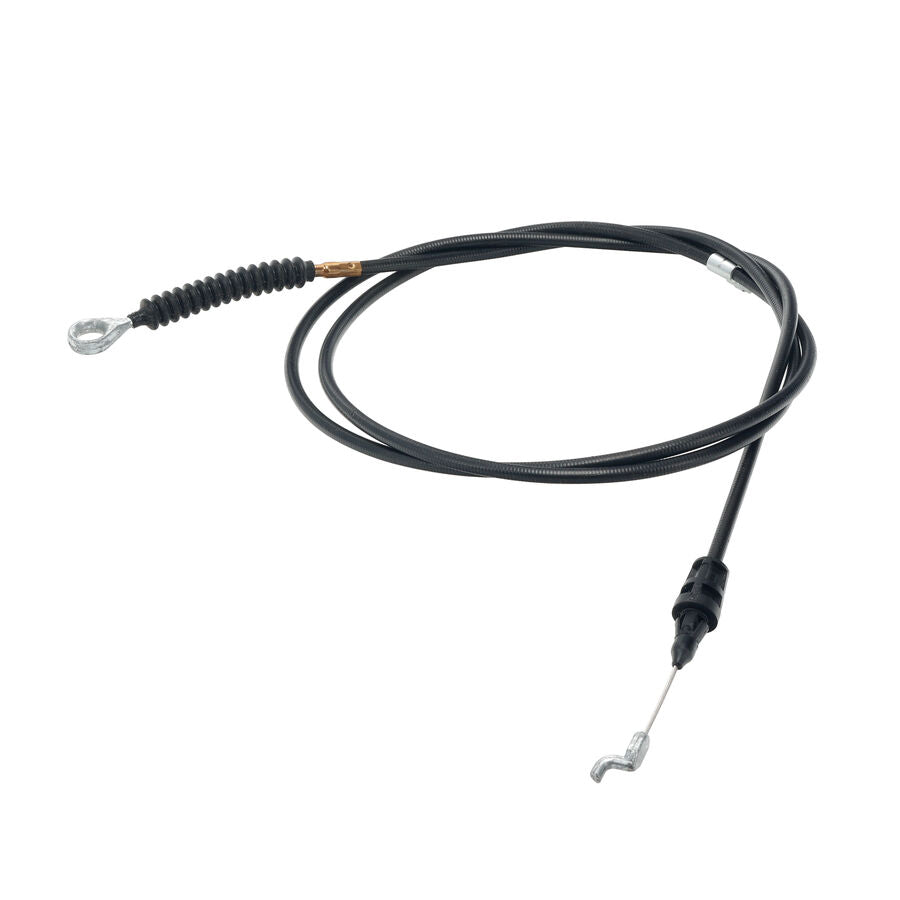

Toro OEM 144-1227 Snowblower Chute Deflector Cable Fits Select Power Max HD Snowblower Model 38838 (Metal Chute).

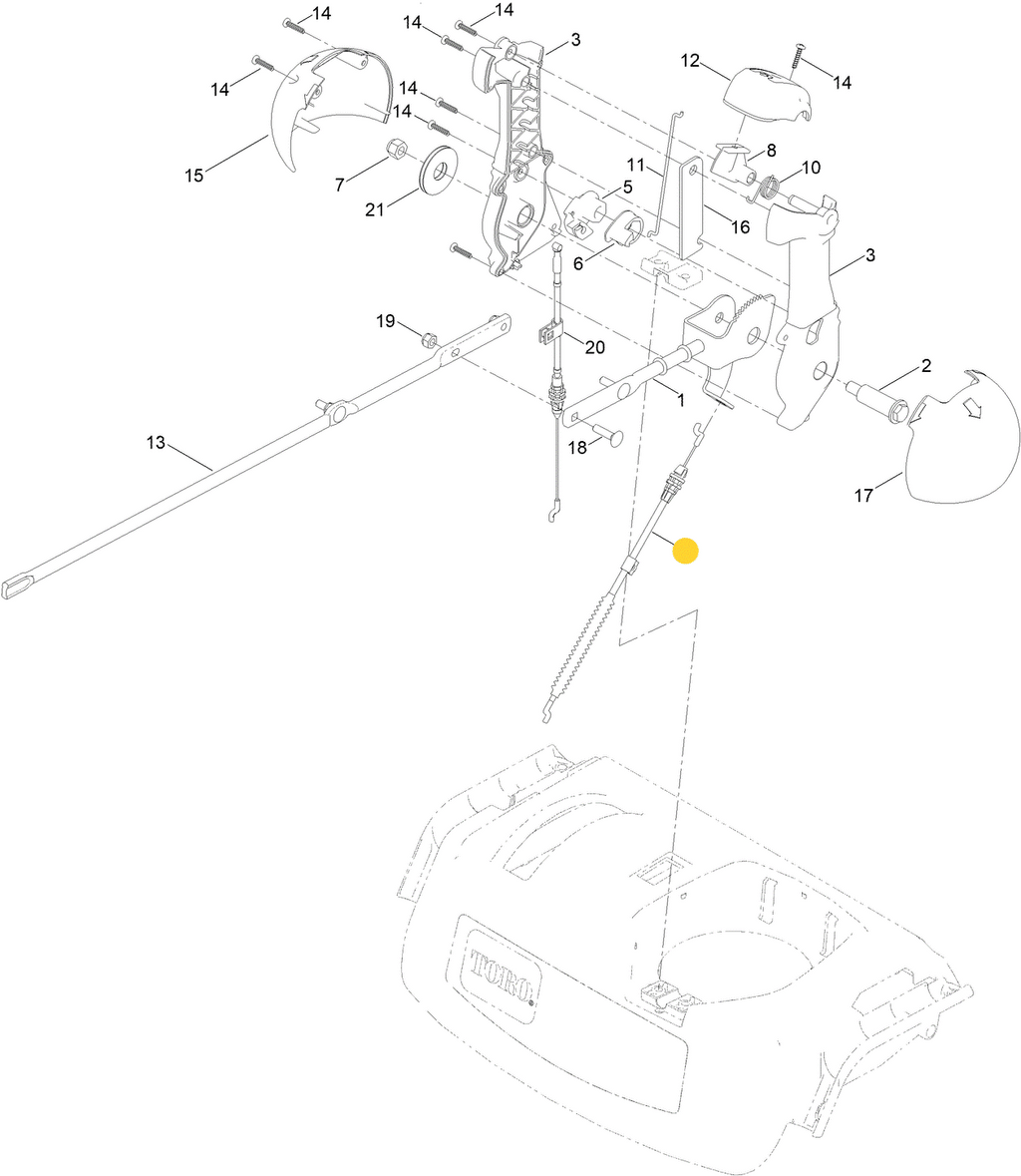

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 144-1227, 144 1227, 1441227
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.200 lbs.

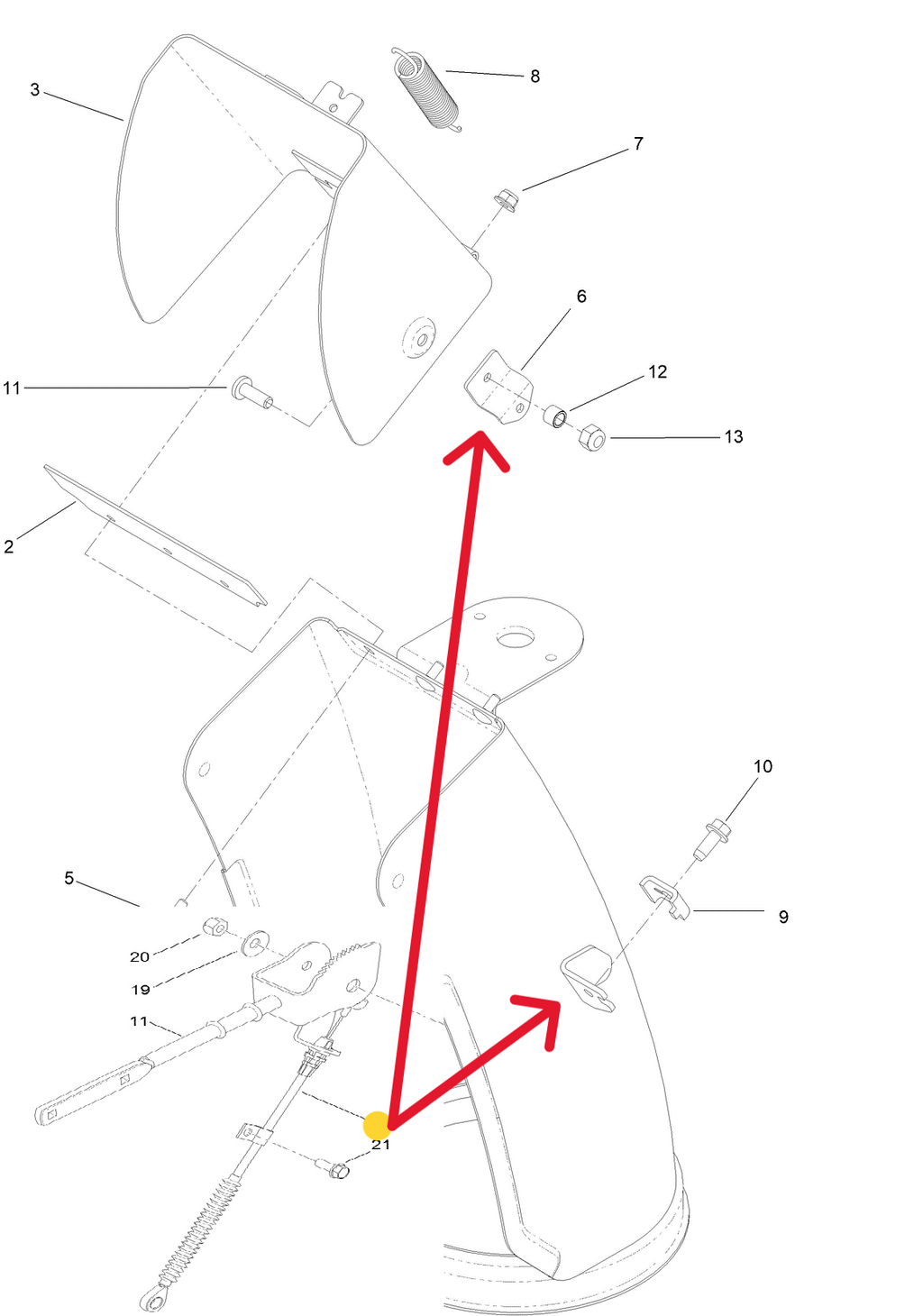

• NOTES & DETAILS: Toro OEM  144-1227 IS COMMINLY USED - 144-1227 Cable Ends - Hook or Shoe End Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Eyelet End Fastens to the Chute Deflector with the Chute Deflector Spring Bracket via a Screw, Spacer and Nylon Lock Nut. - 144-1227 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next the Cable Feeds through a Cable Clamp and Fastener that Attaches to the Cable Bracket that is Welded to the Metal Discharge Chute. - 144-1227 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Deflector as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select Power MAX HD Snow Blower Models (Only Model 38838).





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38838)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 144-1227 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-0662 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt as well as Retaining the Removable Clamp and Cable to Welded Cable Bracket on the Discharge Chute) x1 Per Clamp - x2 Per Chute Deflector Cable
3. 136-7191 - Cable Clamp (Retains the Cable to the Cable Bracket on the Discharge Chute Via the Washer Head Bolt) x1
4. 138-3615-01 - Deflector Chute - Metal (Retains the Eyelet End of the Cable Via the Bolt) x1
5. 138-3671 - Deflector Chute Rubber Gasket/Hinge (Retains the Upper Deflector Chute to the Lower Discharge Chute and Enable it to Bend or Contort as the Cable Pulls on the Deflector Chute Bracket) x1
6. 138-0689 - Phillips Head Screw (Retains the Chute Spring Bracket, Spacer and Nylon Lock Nuts to the Chute Deflector - Installed from Inside Out on the Deflector Chute) x1
7. 138-3615-01 - Deflector Chute Spring Bracket (Enables an Additional Spring to be Installed Between the Snowblower Deflector Chute/Lower Discharge Chute and Installed Between the Chute Deflector and Chute Deflector Cable against the Spacer) x1
8. 138-3678 - Spacer (Inserts into the Eyelet of the Cable on the Outside of the Deflector Chute and Spring Bracket giving the Cable Eyelet Additional Support and Eliminating Cable Play or Slop) x1
9. 137-3094 - Nylon Lock Nut - Plastic (Retains the Eyelet End of the Cable, Chute Spring Bracket and Spacer Via the Bolt) x1
