Description

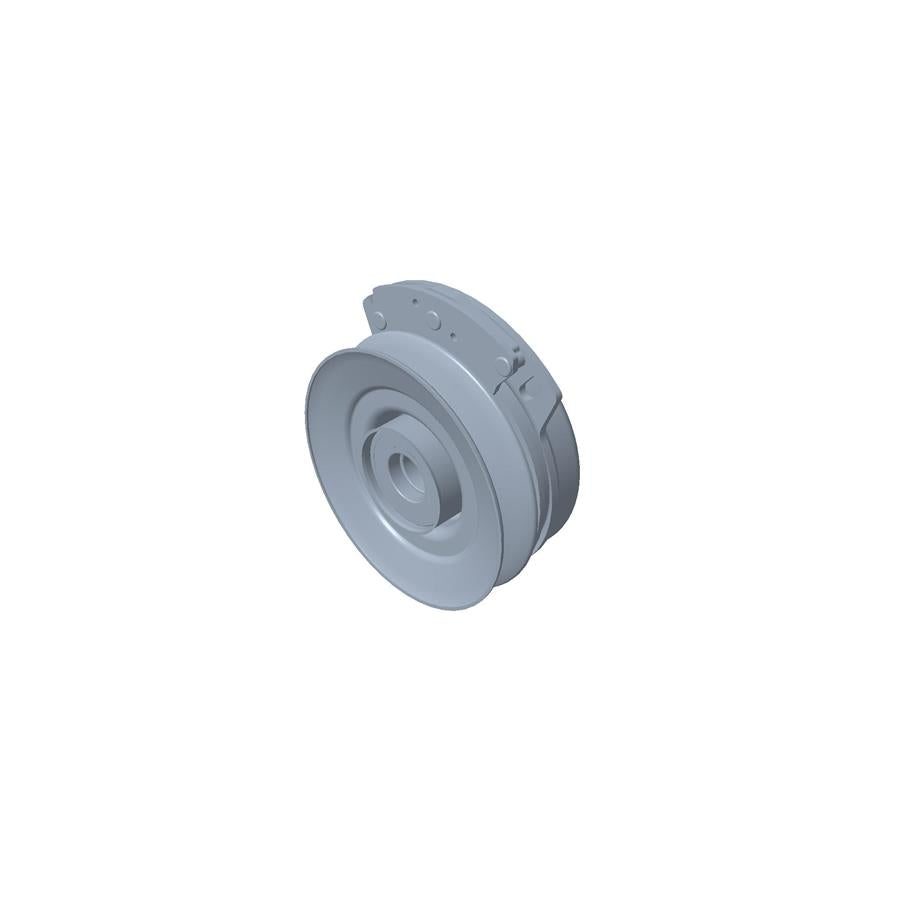

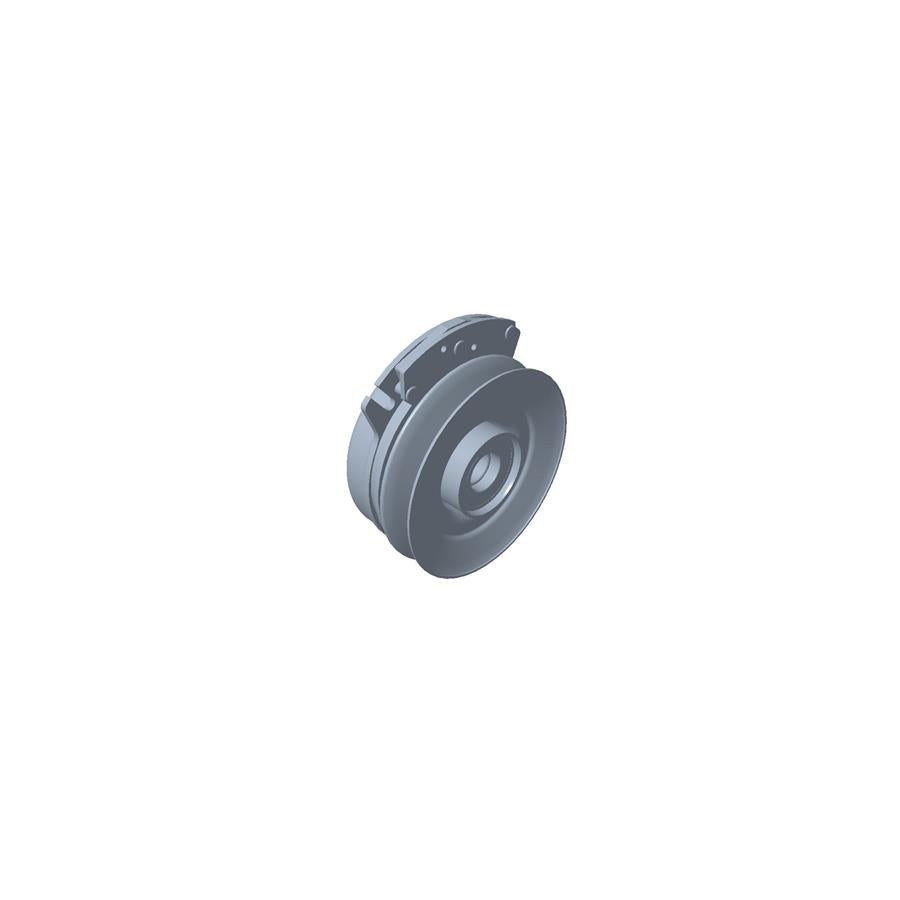

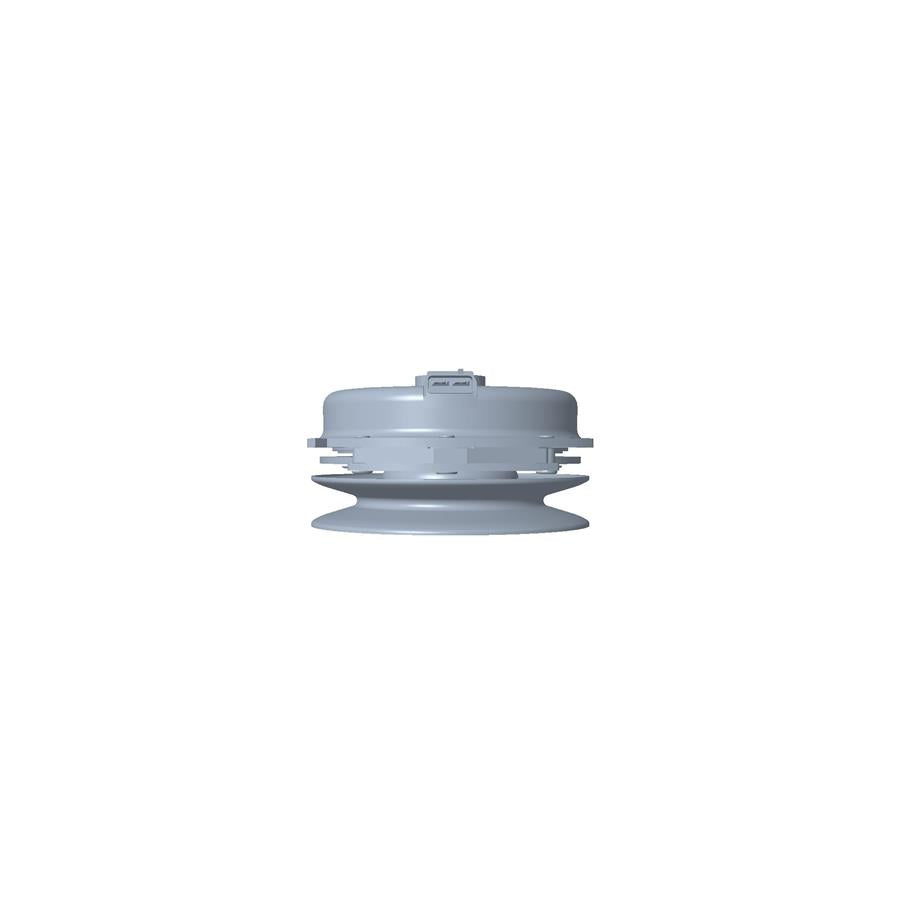

Toro OEM 142 3586 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 142 3586 PTO Clutch is Designed for Current Toro 32", 36" Grandstand HDM - Compact Models 74532, 74535. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

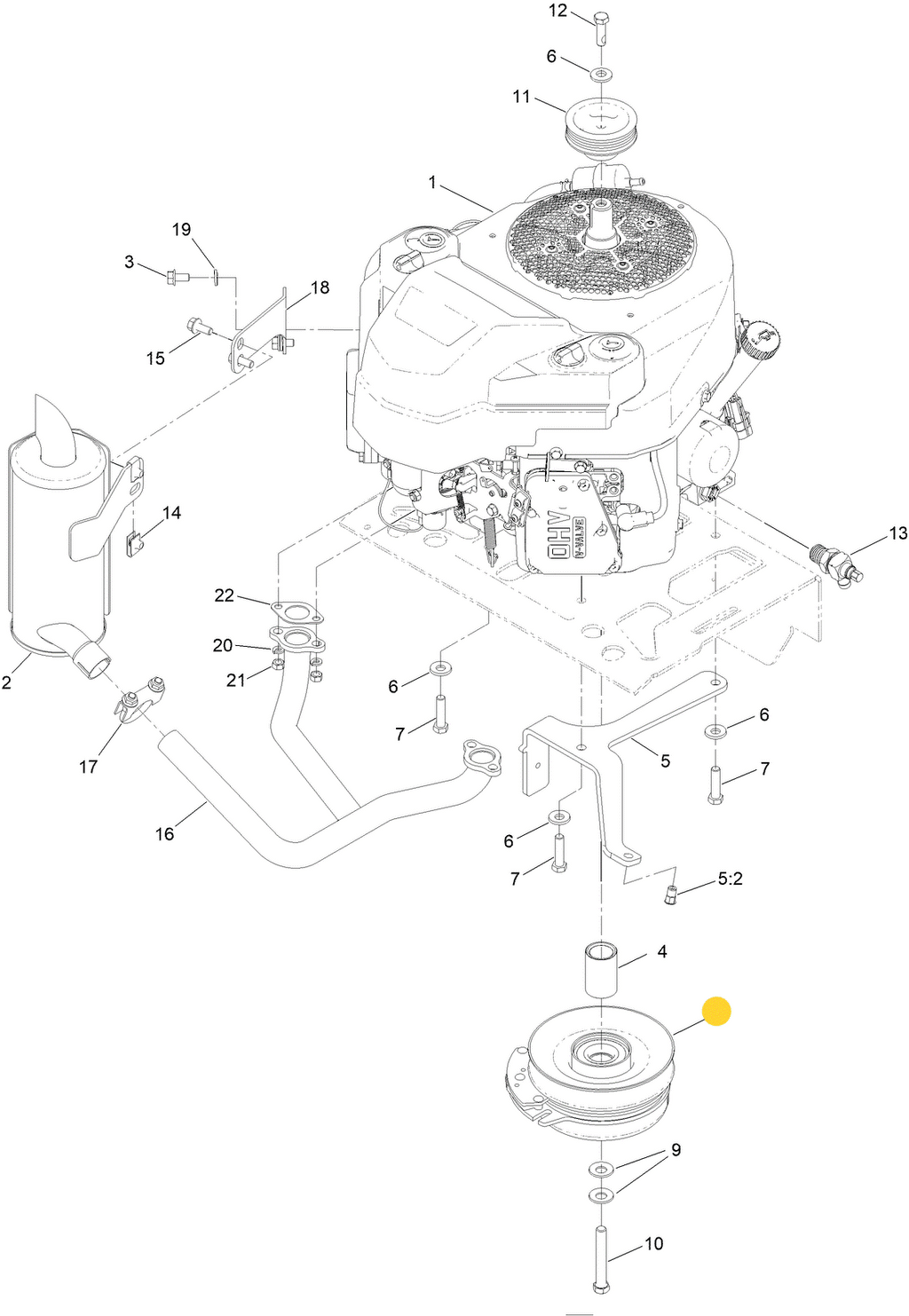

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 142-3586 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
1. 126-7198 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 1-603610 – PTO CLUTCH/ENGINE PULLEY SPRING WASHER – (Retains Torque on PTO Clutch Bolt/PTO Clutch) x1 Per Engine
3. 135-5028 - PTO CLUTCH/CRANKSHAFT SPACER - (Slides over the Crankshaft Above the PTO Clutch and Enables the PTO Clutch to be Fastened at the Correct Pitch to Drive the Mower Deck Belt) x1 Per PTO Clutch
4. 135-6711 - PTO CLUTCH STOP/ARBOR (Idler Arm Mount Bracket) - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch
*REFER TO ENGINE PULLEY REFERENCE FOR PART NUMBER 142-3586 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
NOTE: UNLIKE OTHER MOWER MODELS – MODELS THAT USE 142-3586 REQUIRE THE HYDRAULIC DRIVE BELT PULLEY TO BE MOUNTED TO THE FLYWHEEL SIDE VERSUS THE NORMAL LOCATION ON THE PTO SIDE.
1. 135-7890 - HYDRAULIC DRIVE/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
2. 98-5975 – HYDRAULIC DRIVE/ENGINE PULLEY BELLEVILLE WASHER – (Retains Torque on PTO Clutch Bolt/PTO Clutch) x1 Per Engine
3. 135-1198 – HYDRAULIC DRIVE/ENGINE PULLEY - (Unlike other Units it Mounts to the Flywheel Side of the Engine Instead of the PTO Side) x1 Per PTO Clutch
Specification
|
Product Number: |
1423586 |
|
Brand: |
Toro |
|
Length: |
10.375 IN (26.353 CM) |
|
Width: |
10.375 IN (26.353 CM) |
|
Height: |
6.500 IN (16.510 CM) |
|
Weight: |
10.500 LB (4.763 KG) |
Model Fit:
32” HDM GRANDSTAND - 142-3586 MODEL/SERIES USAGE
GRANDSTAND – (HDM) – (* Model Numbers 74532)
36” HDM GRANDSTAND - 142-3586 MODEL/SERIES USAGE
GRANDSTAND – (HDM) – (* Model Numbers 74535)
