Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 140-7926, 140 7926, 1407926
- PRODUCT TYPE: Power Steering Clutch Cable
- SIZE: Length 43.250 in. - Width 0.750 in. - Height 0.750 in. - Weight 0.044 lbs.

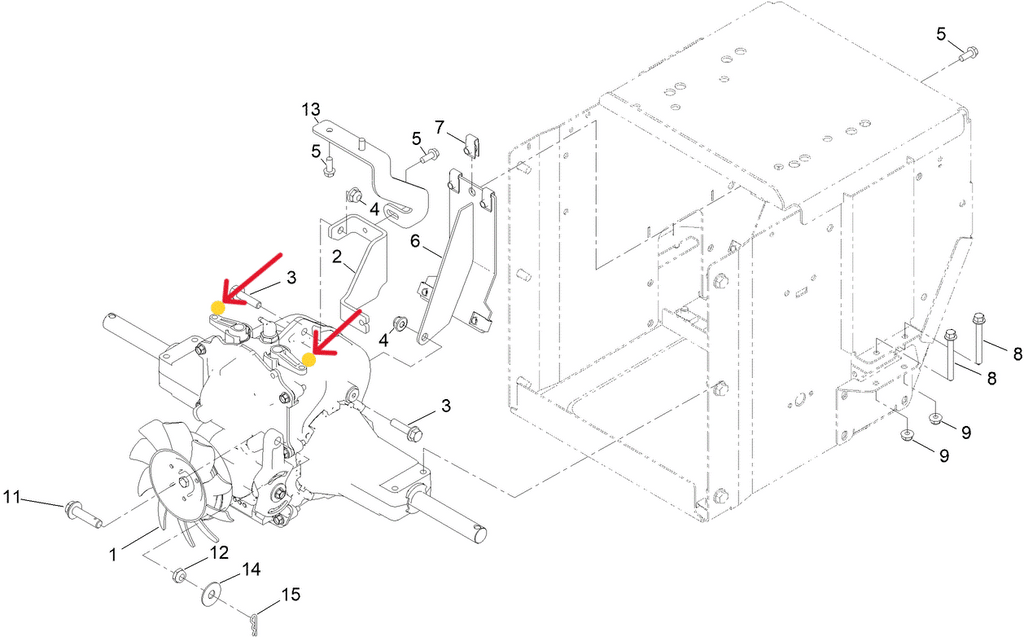

- NOTES & DETAILS: Toro OEM 140-7926 IS COMMINLY USED - 140-7926 Cable End Inserts into the Operator's Steering Clutch Levers 106-4505 on Each Handle Assembly - 140-7926 Cable's Spring End is Equipped with Retaining Plastic Clips and Pushes into and is Retained by the Rear Cover 140-7916-01 that is Assembled Below the Engine Facing the Operator Station, While the Spring of the Cable End Hooks into the Hydraulic Release Levers on the Hydro/Transmission Assembly 140-7930. This Enables the Wheel or Unit Side that is Engaged to Free Wheel Disengaging the Drive Capabilities by Relieving or Bypassing Hydraulic Pressure in the Hydrostat When the Operator is Applying Pressure to the Steering/ Traction Clutch Lever - Giving the Snowblower Steering Capabilities. Snow Blower's with the Power Steering Feature Will Require Two Power Steering Cables - One for Each Side. Click on the Associated Part Numbers to Be Redirected.
- COMMON SERIES APPLICATIONS: Toro Select Power TRX Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)
