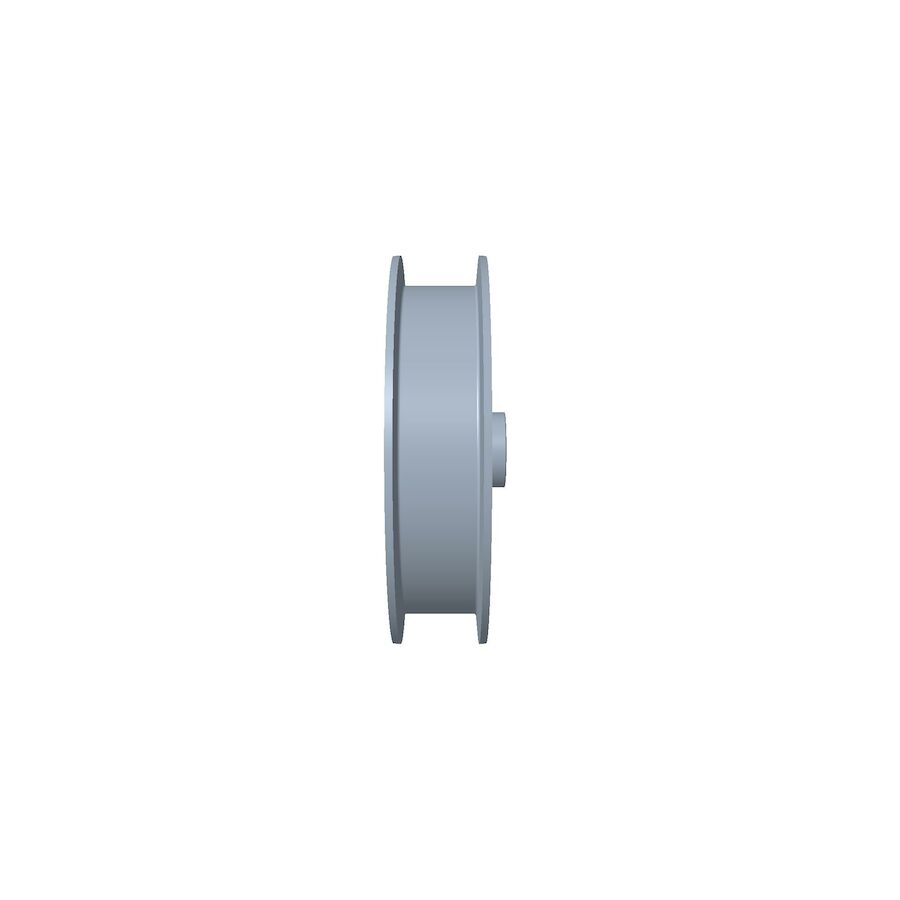

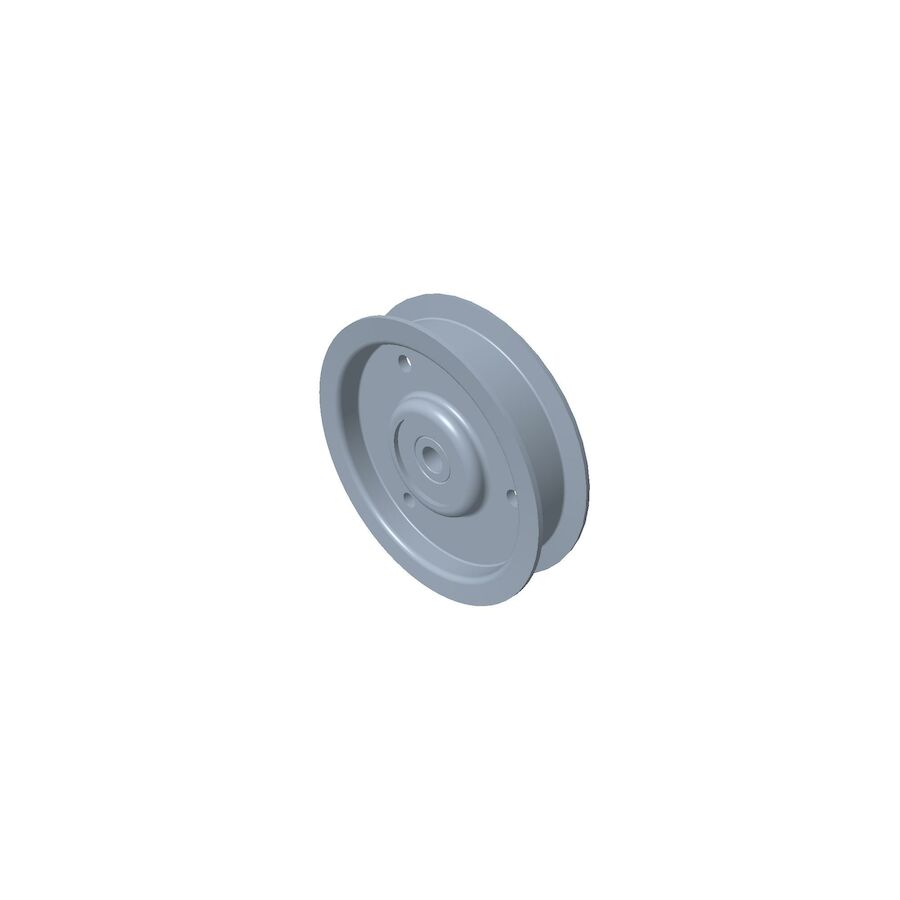

Toro OEM 140-4964 Hydraulic Flat Idler Fits Current/Late 48", 52", 60", 72" ZMASTER 4000 Models - Current/Late 48", 52", 60" ZMASTER 2000 Models (I-Beam Faming).

The Toro OEM 140 4964 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 140 4964 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 48", 52",60", 72" Z Master 4000 Models * Refer to the Note Below Regarding Idler Pulley Changes within 4000 Series - Current/Late 48", 52",60" Z Master 2000 Models (I-Beam Framing Models) Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 140-4964 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.







* IMPORTANT 4000 SERIES SERIAL BREAK NOTE - DUE TO SERIAL BREAKS ONLY EARLY SERIAL NUMBERS REQUIRE PLASTIC IDLERS – IT IS RECOMMENDED TO REPLACE PLASIC WITH PLASTIC METAL WITH METAL – ALTHOUGH NO KNOWN ISSUES WITH UPDATING TO METAL IDLER IF CHOSEN BUT FACTORY SUGGESTION IS ALWAYS BEST.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	1404964
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.886 LB (0.402 KG)





Model Fit:





Z-Master 2000 – 140-4964 MODEL/SERIES USAGE



48”, 52”, 60” Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285)



52”, 60” Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77288, 77291, 77294)



Z-Master 4000 – 140-4964 MODEL/SERIES USAGE



48”, 52”, 60”, 72” Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74035, 74050, 74052, 74054, 74055) *REFER TO THE NOTES



48”, 52”, 60”, 72” Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74024, 74057) * NO SERIAL BREAKS ALL REQUIRE METAL IDLERS







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-4964 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

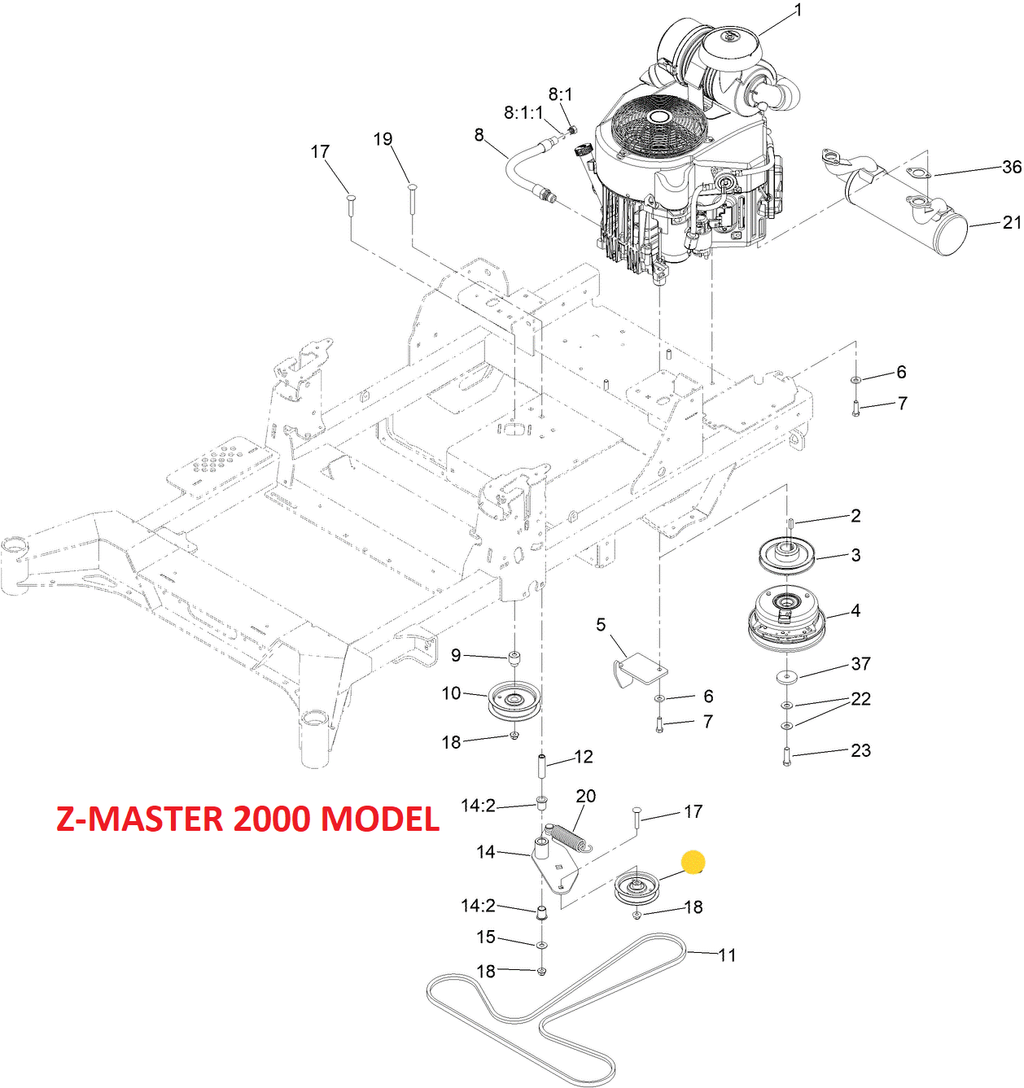

Z-MASTER 2000 MODELS ONLY



1. 117-9971 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 145-5731 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
3. 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley





Z-MASTER 4000 MODELS ONLY



1. 3231-29 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 144-2671 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
3. 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley
