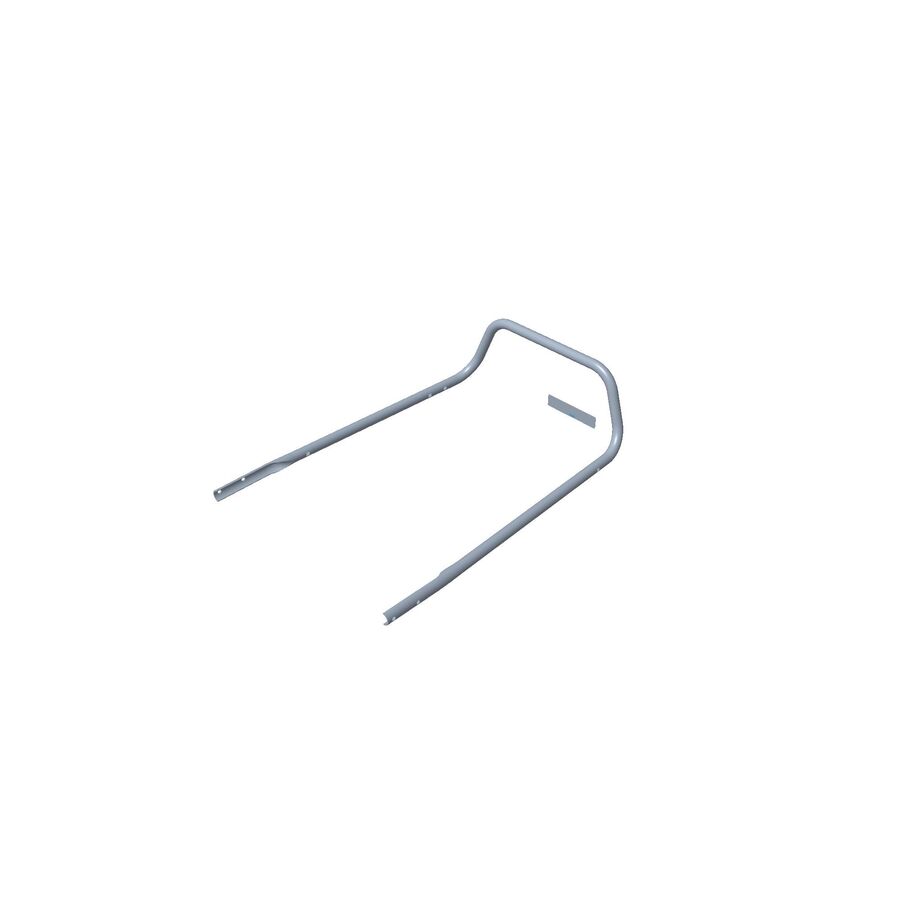

Toro OEM 140-3744 Upper Handle Section Fits Select 21" Toro Single Stage Power Clear and Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 114-3768 Supersedes to Part Number 140-3744



• PRODUCT NUMBER AND VARIATIONS: 140-3744, 140 3744, 1403744, 114-3768, 114 3768, 1143768
• PRODUCT TYPE: Upper Handle Section
• SIZE: Length 28.000 in. - Width 17.500 in. - Height 7.000 in. - Weight 3.295 lbs.
• NOTES & DETAILS: Toro OEM  140-3744 IS COMMINLY USED - As the Upper of a Two-Piece Handle Assembly and Fastens to The Lower Handle Section - Enabling the Operator to Fold the Upper Handle Section Down for Transporting and Storage. The Upper Handle Section 140 3744 Also Contain the Clutch Bail to Engage and Disengage the Rotors/Auger.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38567, 38568, 38569, 38571, 38575, 38576, 38577)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)

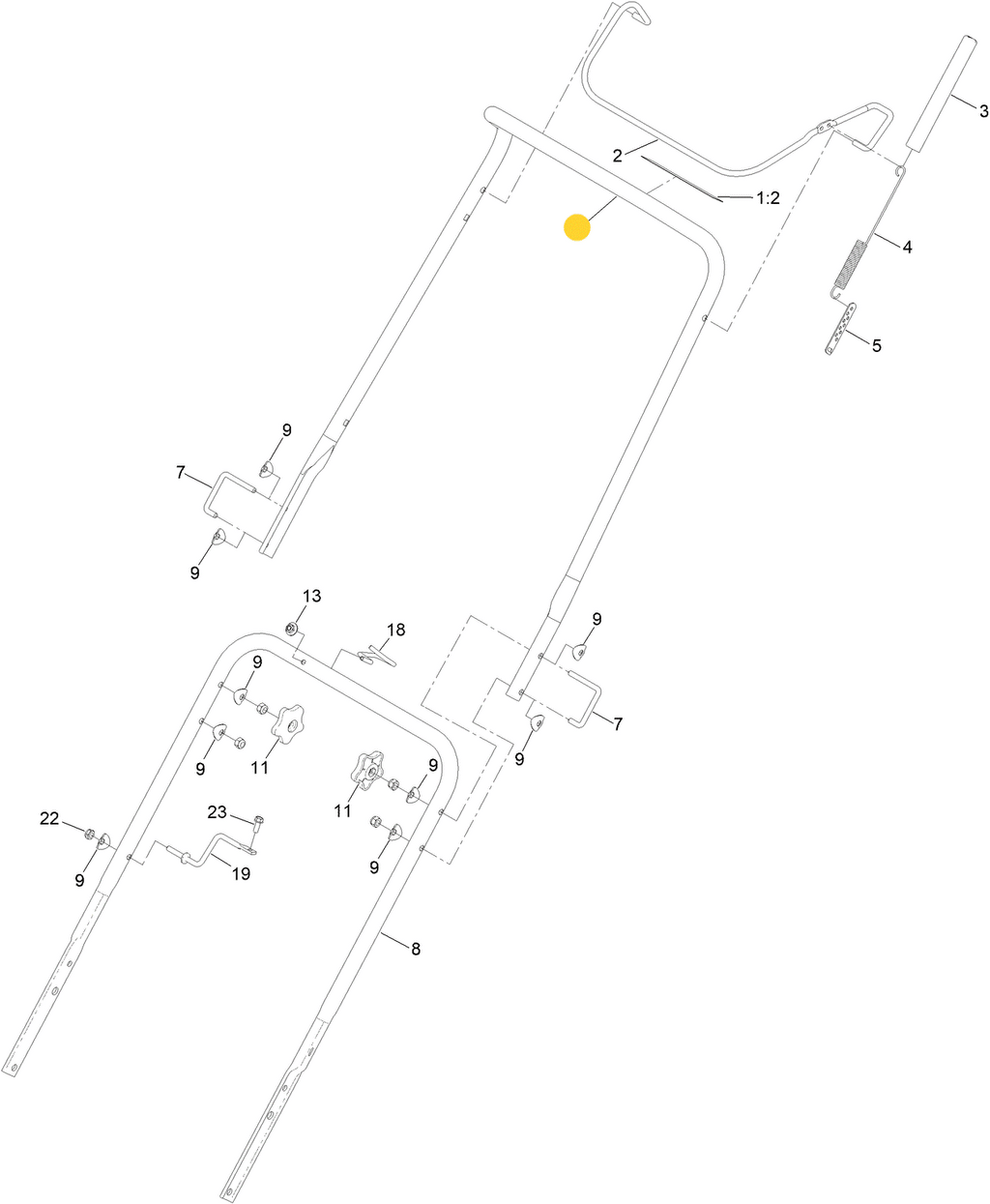

• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-3744 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



UPPER & LOWER HANDLE FASTNERS



1. 136-7130 - HANDLE LOCK BOLT/FASTNER (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
2. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner or x2 Per Hex Head Bolt
3. 114-3779 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
4. 125-7944 - HEX HEAD BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only
5. 3296-72 - LOCK NUT (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only



UPPER HANDLE COMPONETS



1. 114-3780-03 - CLUTCH BAIL (Inserts into the Upper Whole's in the Upper Handle Section and Enables the Operator to Engage and Disengage the Rotors/Auger) x1 Per Handle Assembly
2. 94-2577 - ROTOR/AUGER DECAL (Installed at the Top of the Handle within Operator's View) x1 Per Handle Assembly
3. 125-7938 - REFLECTIVE TAPE (Assembles on the Front -Side of the Upper Handle Section) x2 Per Handle Assembly *Select Models - *R-C (Contractor Grade) Series Only
