Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 108-4919 Supersedes to Part Number 140-3660
- PRODUCT NUMBER AND VARIATIONS: 140-3660, 140 3660, 1403660, 108-4919, 108 4919, 1084919
- PRODUCT TYPE: Cable Guide Complete Kit
- SIZE: Weight 0.044 lbs.
- NOTES & DETAILS: Toro OEM 140-3660 IS COMMINLY USED -

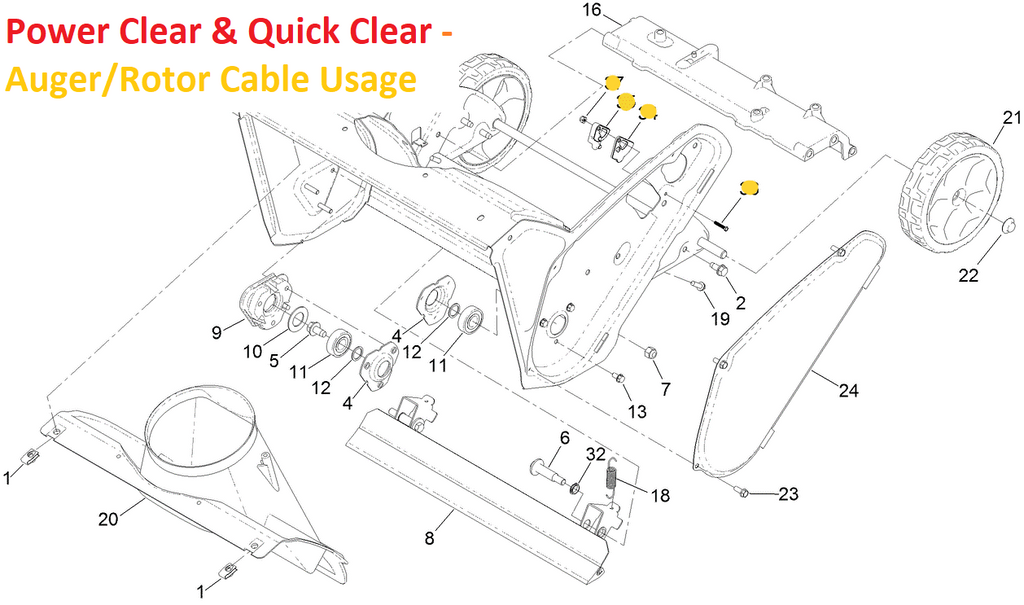

- Quick Clear & Power Clear Snowblower Models - Comes as a Complete Kit - Installed on the Frame of the Snow Blower - Aguer/Rotor Clutch Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Guides are Made of a Softer Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges - Important to Check the Cable Guide when Replacing the Auger Clutch Cable * Used for the Auger/Rotor Cable and Requires One Per Unit

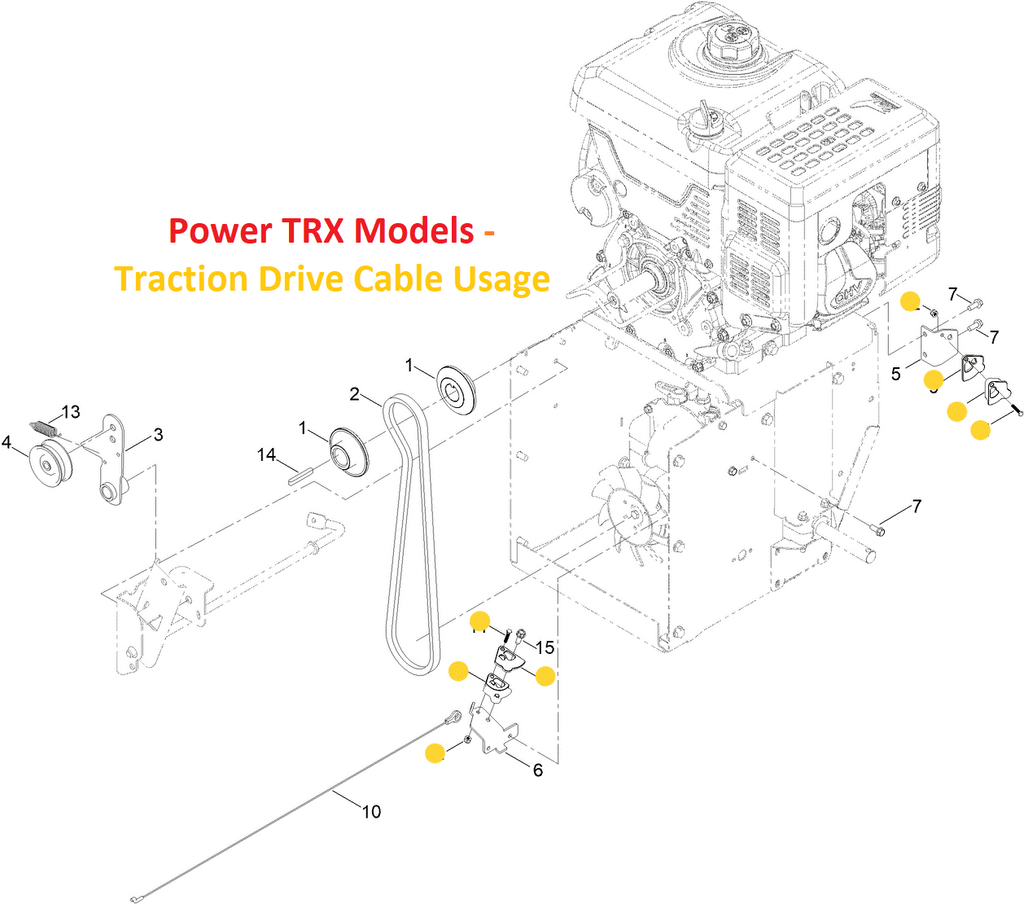

- Power TRX Snowblower - Comes as a Complete Kit - Retains to the Main Frame with the Use of Fastner Brackets - Traction Drive Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle or Less without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Guides are Made of a Softer Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges - Important to Check the Cable Guide when Replacing the Traction Drive Cable. * Used for the Traction Drive Cable and Requires Two Per Unit
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models - 28" & 32" Power TRX Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38453, 38454, 38458, 38459, 38472, 38473, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)
POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)
Kit Assemblies – Part Numbers – (* Model Numbers 140-3660)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-3660 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

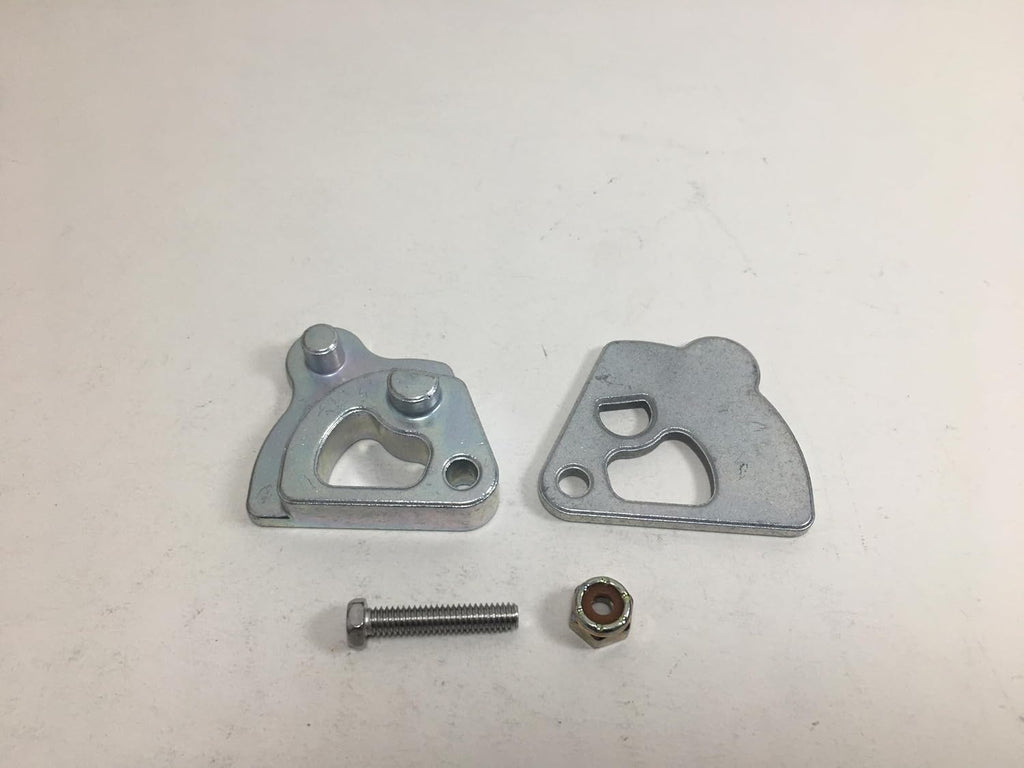

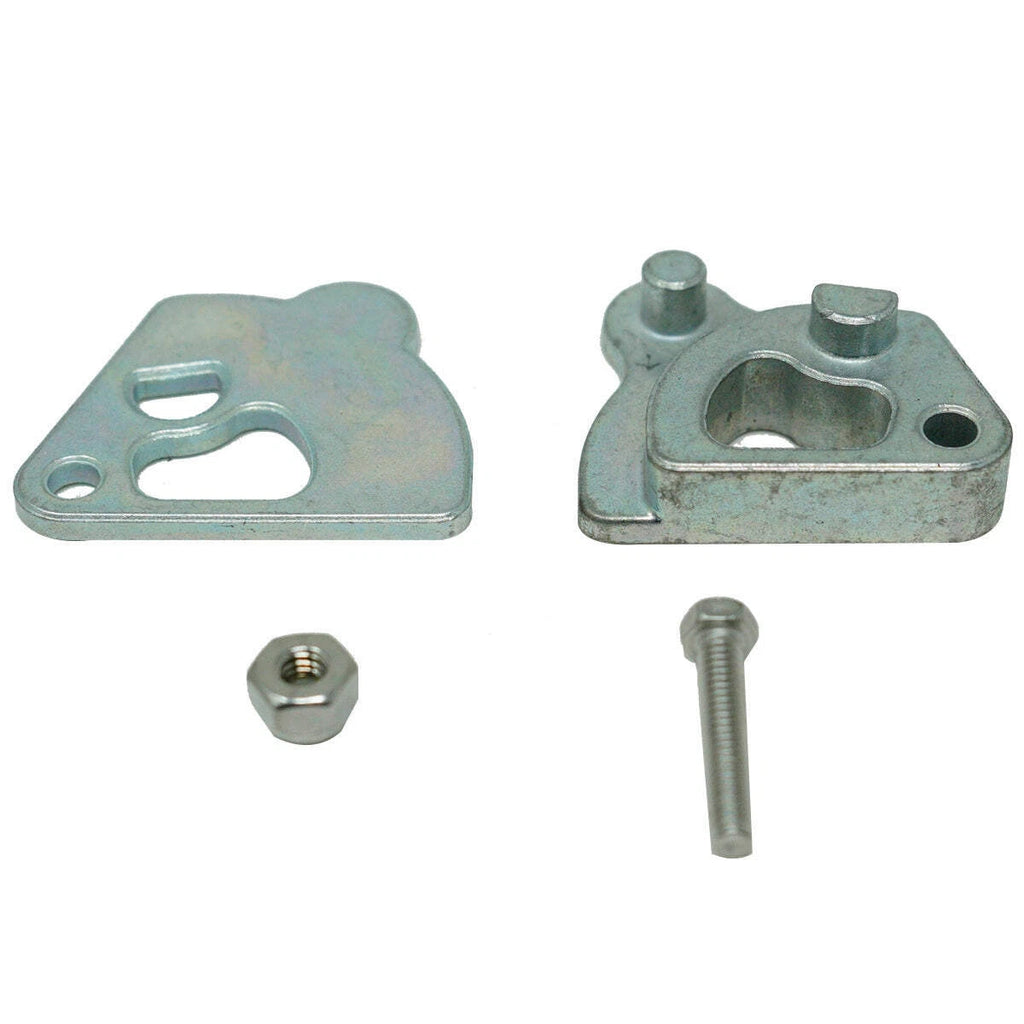

140-3660 - COMPLETE KIT - SCREW, CABLE GUIDE, CABLE GUIDE CAP AND LOCK NUT
SINGLE STAGE SNOWBLOWER AUGER/ROTOR CABLE
- 360-0272 - SCREW (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Cable Guide
- 139-3564 - CABLE GUIDE CAP (Removeable Cap that Enable the Auger/Rotor Clutch Cable to be Inserted into the Cable Guide and Retains the Cable When Reinstalled) x1 Per Cable Guide
- 520-0006 - NYLON LOCK NUT (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Cable Guide
DUAL STAGE SNOWBLOWER TRACTION/DRIVE CABLE
- 360-0272 - SCREW (Retains the Cable Guide and Cable Guide Cap to the Retaining Bracket which Fastens to the Snowblower Main Frame) x1 Per Cable Guide
- 139-3564 - CABLE GUIDE CAP (Removeable Cap that Enable the Auger/Rotor Clutch Cable to be Inserted into the Cable Guide and Retains the Cable When Reinstalled) x1 Per Cable Guide
- 140-7894-03 - CABLE & CABLE GUIDE ANCHOR/BRACKET (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Unit * Installed under the Engine by the Transmission/Hydro
- 140-7895-03 - CABLE & CABLE GUIDE ANCHOR/BRACKET (Retains the Cable Guide and Cable Guide Cap to the Snowblower Main Frame) x1 Per Unit * Installed on the Snowblower Frame by the Engine under the Operator's Station.
- 520-0006 - NYLON LOCK NUT (Retains the Cable Guide and Cable Guide Cap to the Retaining Bracket which Fastens to the Snowblower Main Frame) x1 Per Cable Guide
